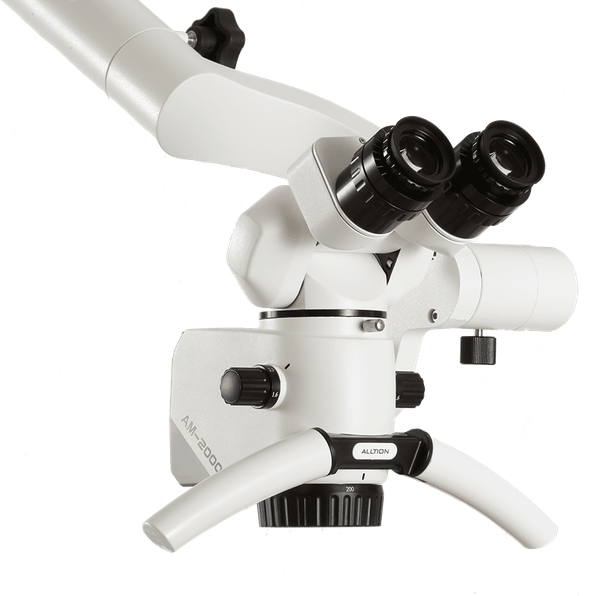

AM-2000

SURGICAL MICROSCOPE

Key Features

Single-Handed Operation

Without taking your hand off the handle, variable objective lens can be operated with your thumb, making it easy to perform common functions with one hand.

Optical Performance

Two types of filter: orange, green Three types of light spot: maximum, medium, minimum (without filter)

Integrated DC Power Supply

Two types of normal voltage output available for almost all kinds of electronics products. Alltion also can customize a dedicated power supply cable.

Camera System

A full function camera system (HD) tailored for AM-2000. Photograph, video recording, freeze, USB storage, play back, contrasting photo-photo, photo-live images, mouse operated, wireless foot control.

Configurable Binocular Tubes

Different binocular tubes can be selected to accommodate a range of surgical needs.

Recommended Configuration

Practical Configuration

• AM-2000 Fixed-focus Type: Manual 5-Step magnification, 0-180°inclinable binocular with pupillary distance adjustment, 120°connecting arm, F250mm fixed focus objective lens, LED lighting(5 modes), Mobile floor stand
• AM-2000V Variable Type: Manual 5-Step magnification, 0-180°inclinable binocular with pupillary distance adjustment, 120°connecting arm, Variable objective lens (250mm to 430mm), LED lighting(5 modes), Mobile floor stand

Camera Configuration

• AM-2000VC Fixed-focus Camera Type: Manual 5-Step magnification, 0-180°inclinable binocular with pupillary distance adjustment, 120°connecting arm, Variable objective lens (250mm to 430mm), ALL-CAM2, LED lighting(5 modes), Mobile floor stand
• AM-2000VC-4K Variable camera Type: Manual 5-Step magnification, 0-180°inclinable binocular with pupillary distance adjustment, 120°connecting arm, Variable objective lens (250mm to 430mm), ALL-CAM4, LED lighting(5 modes), Mobile floor stand

Technical Parameters of AM-2000 Series Surgical Microscope

Optics

• Type: Standard / Optional
• Magnification: Manual 5-step magnification
• Zoom range: 3.4/ 5.3/ 8.5/ 13.6/ 21X (In 250mm objective lens)
• Binocular: Straight binocular / 45°binocular/0-180°adjustable binocular with interpupillary distance adjustment
• Range of Pupillary Distance: 50-75mm
• Eyepiece Field: 12X/18B / 10X/21B
• Lens Technology: Apochromatic technology
• Diopter: ±6D
• Optical Extender: 30°binocular extender with angle rotation device / 45°/ 90°binocular extender with angle rotation device
• Objective Lens: 200-310mm variable objective lens / 250mm objective lens, 250-430mm variable objective lens

Illumination

• LED: Long-life LED: ≥60,000 hours
• Illumination: Maximum 50,000lx with objective lens 300mm
• Color Rendering: ≥85%
• Color Temperature: 5500K
• Light Spot: Three types of light spot: Maximum/Medium/Minimum(Without filter), Two types of filter: Green/Orange

Power Supply

• Rated Voltage: Input:AC100-240V,50/60HZ, output: DC12V/3A
• Input Power: 25-60VA

Support System

• Floor stand / Ceiling mount/Low position wall mount/High position wall mount/Fixed floor stand/Table mount

Optional Camera Parameters

ALL-CAM2

• Sensor: 1/2 inch SONY high sensitivity, low noise CMOS
• Resolution: HD 1080P 60FPS(16：9)
• Picture resolution: 2M,4M,8M
• Storage: External 64G U disk
• Data format: Photo: JPG format, video: MP4 format
• Image transmission: Internal WIFI/external WIFI real-time multi-point transmission, HDMI high-definition real-time transmission
• Basic functions: Freeze, photograph, video recording, automatic exposure, white balance, play back and cross curve
• Image effect: Exposure value, best brightness, gain, red gain, blue gain, saturability, contrast ratio, definition and HDR
• System settings: Automatic naming/self-naming, show/hide time, show/hide LOGO, eleven languages for option, image resolution, naming setting, system update, restore default, version information internal WIFI/external WIFI
• Input Power: 5V/ 6.5W-9W
• Computer system: Windows system
• Phone system: Android system, I0S system

ALL-CAM4

• Sensor: 1/1.8" SONY 8 million pixel high-performance, high sensitivity and low-noise CMOS
• Resolution: 4K (3840*2160) 60FPS (16:9)
• Picture resolution: 8M (3840*2160), 2M (1920*1080)
• Storage: Connect external USB flash disk (support FAT32 and NTFS formats)
• Data format: Picture: JPG format; video: MP4 format
• Image transmission: Built-in WIFI real-time multipoint transmission, HDMI real-time 4K transmission
• Basic functions: Freeze, photograph, video recording, automatic exposure, white balance, play back and cross curve, sound recording
• Image effect: Exposure value, best brightness, gain, red gain, blue gain, saturability, contrast ratio, definition and HDR
• System settings: Automatic/autonomous naming, show/hide time, show/hide LOGO, eleven languages for option (Chinese, English, German, French, Spanish, Italian, Portuguese, Swedish, Japanese, Russian, Polish), image resolution, naming setting, system update, restore default, version information
• Input Power: 12V/ 10-25VA
• Computer system: Windows system
• Phone system: Android system, I0S system
