ASM-112
ALLTION(Guangxi) Instrument Co., Ltd · Quelle
Stereo Microscopes
Microscope Characteristic
Standard with 10X/20X two-step magnification
Adopts a two-step magnification magnification system for quick switching of magnifications

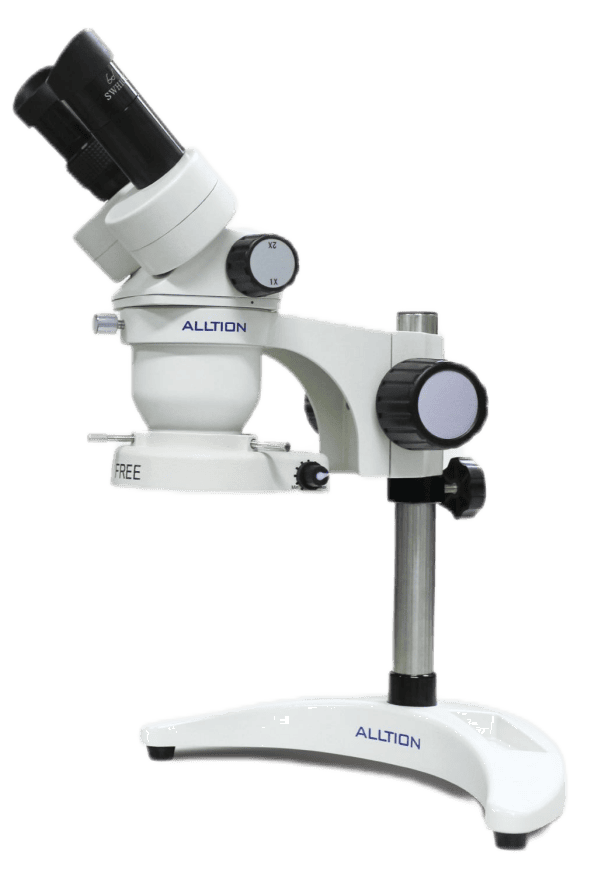

The professional design of C-shape base provides sufficient operation space for the technicians. There is NO base/object in the working area underneath the lens to disturb the operation, but the normal stereo microscopes do.
Two Types of Support Stand
- BC: Binocular, C-shape base
- TC: Trinocular, C-shape base
Specification
| Model | Description |
|---|---|
| ASM-0745BC, ASM-0745TC, ASM-0745BS, ASM-0745TS | Microscope main body |
| Objective Magnification | 1X, 2X |
| Total Magnification | 10X, 20X |
| Zoom ratio | 1:2 |
| Working distance | 105 mm |
| Observation tube inclination | 45° |
| Eyepieces | 10X, Field of view: Φ23mm |
| Interpupillary distance adjustment range | 52mm-75mm (10X) |
| Diopter adjustment | Provided on left eyepiece tube only |
| Magnification adjustment | Magnification with both hand wheels in horizontal direction Rotating |
| Focusing for BC & TC models only | Rack-and-pinion drive on ball bearing guides, focusing range: 51mm |
Optional Accessories
- SWF5X/23mm Eyepiece
- SWF10X/23 Reticle Eyepiece (OCM10/100X)
- WF20X/15mm Eyepiece
- WF30X/9mm Eyepiece
- Additional objective 0.37X
- Additional objective 0.5X
- Additional objective 0.7X
- Additional objective 1.5X
- 0.3X CCD Adapter
- 0.5X CCD Adapter
- 1X CCD Adapter
- CANON and/or Nikon DSLR adapters
- LED Ring Light
- Dustcover
Produktinformationen
| Hersteller | ALLTION(Guangxi) Instrument Co., Ltd |
|---|---|
| Focusing | Rack-and-pinion drive on ball bearing guides, focusing range: 51mm |
| Eyepieces | 10X, Field of view: Φ23mm |
| Zoom Ratio | 1:2 |
| Available Models | ASM-0745BC, ASM-0745TC, ASM-0745BS, ASM-0745TS |
| Working Distance | 105 mm |
| Diopter Adjustment | Provided on left eyepiece tube only |
| Total Magnification | 10X, 20X |
| Objective Magnification | 1X, 2X |
| Magnification Adjustment | Magnification with both hand wheels in horizontal direction Rotating |
| Observation Tube Inclination | 45° |
| Interpupillary Distance Adjustment Range | 52mm-75mm (10X) |
