BlackBox 10
Labomed Europe b.v. · #8125110 · Quelle
BlackBox 10
The UC3MOS body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts. These measures ensure a rugged, robust solution with an increased lifespan when compared to other camera solutions.
Sensor & Size(mm)
Pixel(?m)
G Sensitivity
Dynamic Range
SN Ratio
FPS/Resolution
Binning
Exposure
10M/MT9J003(C)
1/2.3"(6.44x4.616)
1.67x1.67
0.31v/lux-sec
65.2dB
34dB
7.2@3584x2746
24.5@1792x1372
1x1,2x2,4x4
0.38ms~2000ms
OTHER HARDWARE CONFIGURATION
Spectral Range
380-650nm (with IR-filter)
White Balance
ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique
Ultra Fine Color Engine
Capture/Control API
BMS_pix3, Native C/C?, C#, Directshow, Twain, Labview
Recording System
Still Picture and Movie
Cooling System*
Natural
OPERATING ENVIRONMENT
Operating Temperature
-10?â????~ 50?â????
>
Storage Temperature
-20?â????~ 60?â????
Operating Humidity
30~80%RH
Storage Humidity
10~60%RH
Power Supply
DC 5V over PC USB Port
SOFTWARE ENVIRONMENT
Operating System
Support Microsoft Windows 7 /8 /10 (32 & 64 bit)
OS X (Mac OS X), Linux
PC Requirements
CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB port: USB2.0 High-speed Port
Display: 17" or Larger
CD-ROM

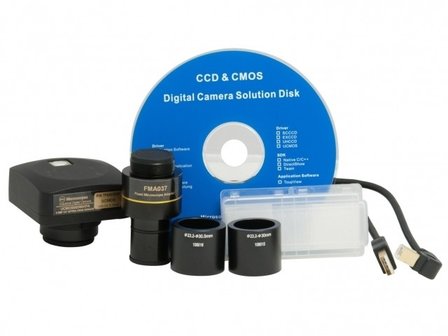

In the box you will find:
Camera
software CD with BMS_pix3
Calibration slide
Microscope adapter with optics
tubse size adapter 23,2mm to 30,0 mm
tube size adapter 23,2mm to 30,5 mm
Software:
BMS_pix3 (Windows)
BMS_pix3_(MAC)
BMS_SDK (Software Development Kit)
Produktinformationen
| Hersteller | Labomed Europe b.v. |
|---|---|
| Binning | 1x1, 2x2, 4x4 |
| Exposure | 0.38ms~2000ms |
| Sn Ratio | 34dB |
| Pixel (μm) | 1.67x1.67 |
| Temperature | -10°C ~ 50°C |
| Stromversorgung | DC 5V over PC USB Port |
| Dynamic Range | 65.2dB |
| G Sensitivity | 0.31v/lux-sec |
| White Balance | ROI White Balance / Manual Temp-Tint Adjustment |
| Cooling System | Natur |
| Fps/resolution | 7.2@3584x2746, 24.5@1792x1372 |
| Spectral Range | 380-650nm (with IR-filter) |
| Cpu Requirements | Equal to Intel Core2 2.8GHz or Higher |
| Operating System | Support Microsoft Windows 7/8/10 (32 & 64 bit) OS X (Mac OS X), Linux |
| Recording System | Still Picture and Movie |
| Storage Humidity | 10~60%RH |
| Operating Humidity | 30~80%RH |
| Sensor & Size (mm) | 10M/MT9J003(C) 1/2.3" (6.44x4.616) |
| Capture/control Api | BMS_pix3, Native C/C++, C#, Directshow, Twain, Labview |
| Memory Requirements | 2GB or More |
| Storage Temperature | -20°C ~ 60°C |
| Display Requirements | 17" or Larger |
| Usb Port Requirements | USB2.0 High-speed Port |
| Color Rendering Technique | Ultra Fine Color Engine |
