Better milling means more value from every job.

Key Benefits

• Harnessing the full potential of the digital workflow
• Milling more accurately in less time
• Maximum accuracy of fit
• Minimized rework
• Reduced need for specialist staff
• Less tool wear

Modular Cassette and Blank Holder System

The modular cassette system allows users to externally load as many cassettes as needed. Each cassette can hold up to 20 milling tools and 10 blanks, allowing quick and efficient material changes and saving valuable time. Each clamp ring holder can accommodate either materials or abutment blank holders.

Coolant Lubrication

A perfectly adapted and well-functioning coolant lubrication system is a prerequisite for consistent milling quality and extended tool service life. The CIMT Pi5 features a powerful water pump and a large 22-liter tank with a filtration system.

• Powerful water pump
• Ideal for both dry and wet milling
• Large (22-liter) water tank with filtration system
• High-capacity (8-liter) debris hopper for wet milling

Tactile 3D Measuring System

A high-precision tool length sensor to calibrate the milling unit and measure hybrid laser-sintered parts. Shapes can be edited by re-milling until a perfect fit is achieved. As an integral part of the design, this innovation breaks new ground in the dental industry.

Pi-Clean for the Machining Chamber

When precision and speed are paramount, cleanliness is critical. The fully automated Pi-Clean system for the machining chamber ensures that the work area is cleaned quickly and thoroughly. The fully automated extraction system safely removes chips and dust. A chip pre-separator with a cyclone turbine completes the system.

Additional Features

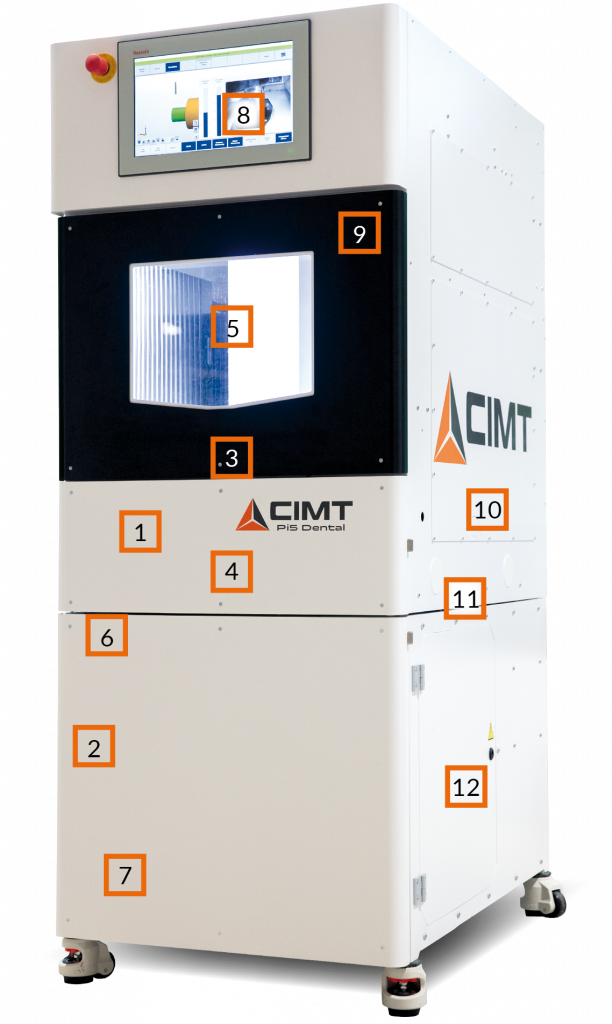

5 - Milling Spindle

• Reinforced high-frequency spindle
• Heavy-duty spindle nose
• Ultra-high-speed synchronous motor
• Rated speed: 50,000 rpm, extreme pulse torque
• Direct clamping system for 6-mm milling cutter shank
• Optional HSK clamping system

6 - Drive

• Max. 1.7 G acceleration for constant milling tip speeds
• Servo motor for all 5 axes (Bosch-Rexroth)
• Absolute positioning drives
• Linear guides with precision rollers for high rigidity
• Zero-backlash ball screw for best results
• Optional external position measuring system (linear encoder) for increased positioning accuracy

7 - Machine Bed

• Ultra-rigid mineral-cast steel-frame machine bed

8 - Screen Interface

• 15-inch multi-touch screen
• Dental CIMT GUI for intuitive operation
• All functions monitored
• Full remote-control option

9 - Integrated Cooling Medium System (IKM)

• Focused cooling for enhanced surface quality when milling plastics

10 - Rotary-tilt Axis

• Rigid, accurate and consistently reliable rotary axes for 5-axis machining tasks

11 - Extraction System

• Powerful extraction system
• Chip pre-separator with cyclone turbine for optimized chip evacuation

12 - Control Unit

• Advanced CNC control technology
• Intelligent servo drives and motors
• Extensive PLC and CNC programming (DIN 66025)
• Integrated RJ45 Ethernet connection
• Supports I/O link systems for Industry 4.0 applications
