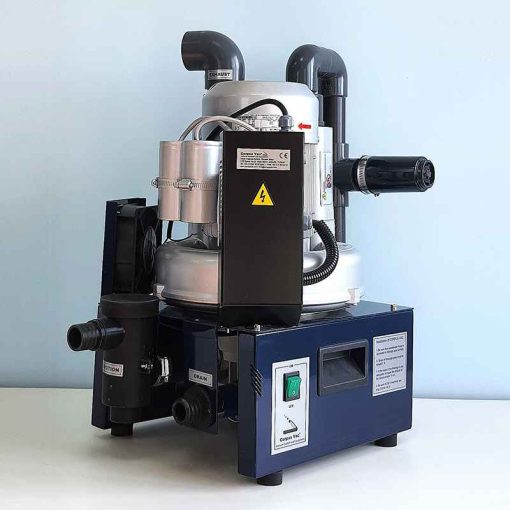

Corpus Vac Direct®System 3/4
CORPUS VAC Vacuum Sistemleri SAN VE TIC. · Quelle
Model: Corpus DIRECT Semi wet Suction System for 3/4 Chair
Specifications:
- Voltage: 104 – 127 V or 208 – 254 V
- Frequency(Hz): 50 Hz / 1.100 kW or 60 Hz / 1.300 kW
- Size: H:55 Cm, W: 37 Cm, D:50 Cm
- Weight: 30 Kg (app.)
- Motor Power and Type: 1.100 kW or 1.300 Watt / Side Channel Blower
- Current Consumption: 3-3,8 Amps
- Motor Capacity (Air): 2.000 Liter air/ minute
- Motor Speed (rpm): 2800 Rpm
- Motor vacuum pressure: – 150 mbar (+/- 10%)
- Sound: 65 dB
- Vacum Capacity (H20): 20 liter H2O / Minute
- Inlet /Outlet hose diameter: Standart : 30 mm / Optional 40 mm
- On/Off Type: Automatic by any microswitch
- Surface & paint type: Electrostatic powder painting
- Working type + PCB: Non-stop suction + PCB with delay adjuster system
Produktinformationen
| Hersteller | CORPUS VAC Vacuum Sistemleri SAN VE TIC. |
|---|---|
| Größe | H:55 Cm, W: 37 Cm, D:50 Cm |
| Modell | Corpus DIRECT Semi wet Suction System for 3/4 Chair |
| Sound | 65 dB |
| Gewicht | 30 Kg (app.) |
| Spannung | 104 – 127 V or 208 – 254 V |
| Frequenz | 50 Hz / 1.100 kW or 60 Hz / 1.300 kW |
| Motor Speed | 2800 Rpm |
| On Off Type | Automatic by any microswitch |
| Working Type Pcb | Non-stop suction + PCB with delay adjuster system |
| Motor Capacity Air | 2.000 Liter air/ minute |
| Surface Paint Type | Elektrostatische Pulverbeschichtung |
| Current Consumption | 3-3,8 Amps |
| Vacuum Capacity H2o | 20 liter H2O / Minute |
| Motor Power And Type | 1.100 kW or 1.300 Watt / Side Channel Blower |
| Motor Vacuum Pressure | – 150 mbar (+/- 10%) |
| Inlet Outlet Hose Diameter | Standart : 30 mm / Optional 40 mm |
