Dental Milling Machine TZ5 Titanium Milling
Baot Biological Technology Co.,Ltd. · Quelle

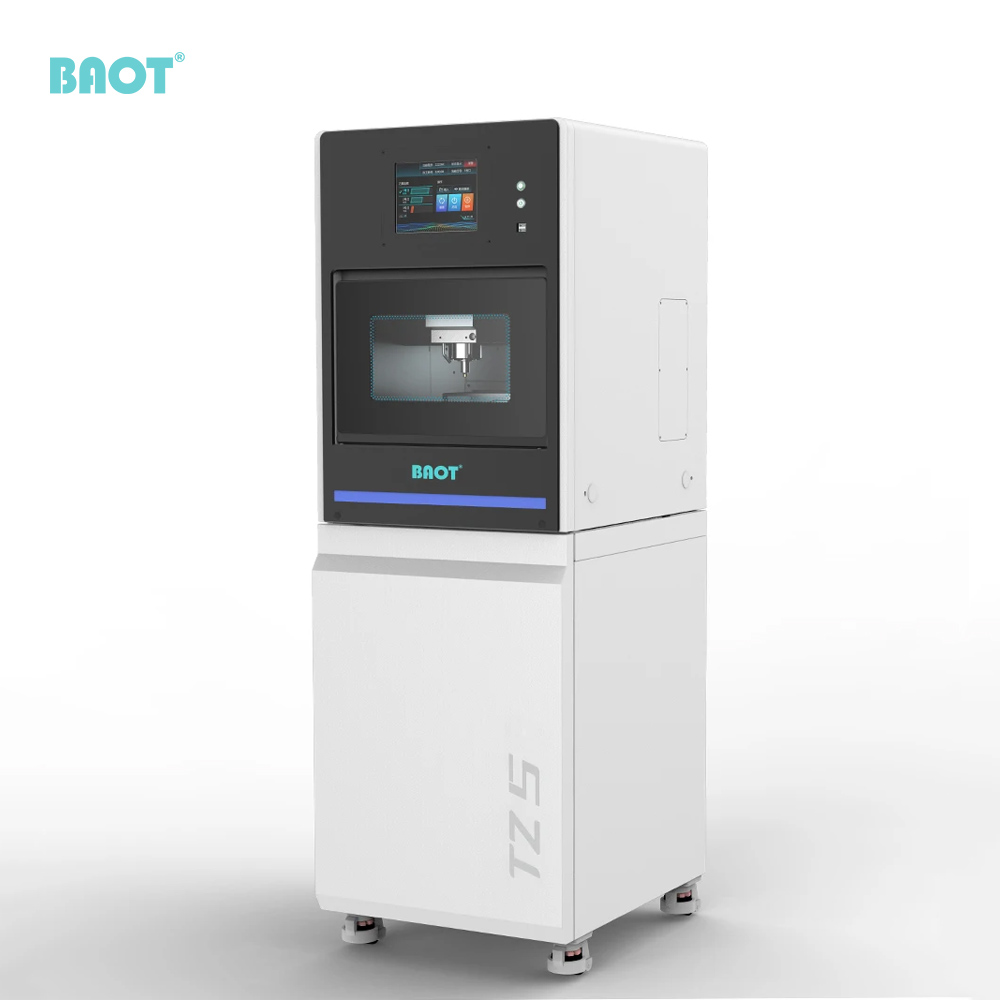

Dental Milling Machine TZ5 for Titanium Glass Ceramic
The TZ5 dental milling machine is an innovative and versatile device with high-precision five-axis linkage for various milling scenarios. Its industrial-grade servo drive system and precision lead screw guide rail ensure exceptional milling accuracy. The one-piece cast aluminum structure enhances stability, and features like an integrated cooling system and high-frequency spindle contribute to precise machining. With continuous milling after power failure and intelligent memory processing, the TZ5 dental titanium milling machine offers efficient performance.
Additionally, we offer timely after-sales service and online remote maintenance support to provide comprehensive assistance for users.
Advantages of BAOT TZ5 Dental Milling Machine:

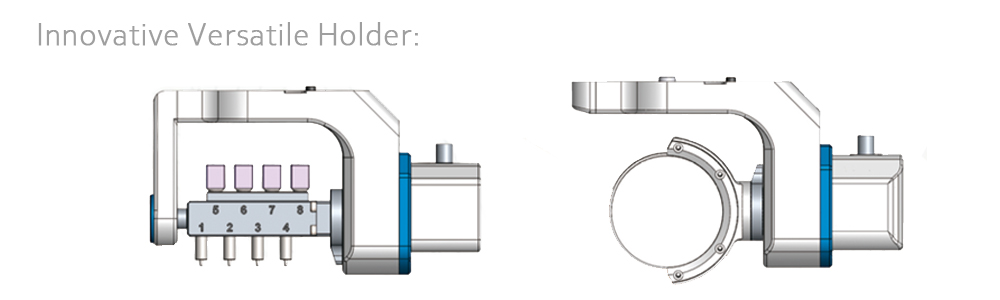

- Diverse Holders: Versatile metal holders for diverse milling.
- Precision Machining: High-precision five-axis machining, minimal post-grinding.
- Industrial Servo Drive: Industrial-grade full servo drive system.
- Precision Guide Rail: Precise lead screw guide rail for high milling precision.
- Cast Stability: Stable with a one-piece cast aluminum structure.
- Integrated Cooling: Integrated cooling and liquid circulation.
- High-Speed Spindle: High-precision, high-frequency, high-speed spindle.
- Timely Maintenance: Timely after-sales and online remote maintenance.
- Continuous Milling: Continuous milling after a power failure, intelligent memory.
Technical Specifications
The milling machine TZ5 is equipped for wet machining and can handle a variety of materials including glass ceramic, titanium, HPP and PMMA.
Processing Materials
- Titanium
- Glass Ceramic
- HPP
- PMMA
Average Milling Time
- PMMA Provisional PMMA tooth: 15-18 mins
- Metal Abutment 15-20 mins
- Glass Ceramic Full Crown: 25-30 mins, Inner Crown: 20-25 mins, Veneer: 20-30 mins, Inlay/Onlay: 25-40 mins, Bridge: 40-60 mins
Produktinformationen
| Hersteller | Baot Biological Technology Co.,Ltd. |
|---|---|
| Brand | BAOT |
| Drive | Full Servo Drive |
| Leistung | 3.5KW |
| Gewicht | 193KG |
| Spindle | Speed: 0~60000rmp, Power: 2.5KW |
| Lead Time | 3~5 days for sample, 10~15 days for mass order |
| Air Pressure | 0.45-0.7MPa |
| Milling Mode | Wet Milling |
| Stromversorgung | 220V, 50Hz |
| Axis Quantity | 5 |
| Milling Range | X:190mm/ Y:110mm/ Z:105mm, A:360°, B:±35° |
| Shipping Port | Support Express · Sea freight · Land freight · Air freight |
| Cooling Method | Water Cooled |
| Product Origin | Guangdong, China |
| Bur Specification | Quantity: 8 Diameter: 4mm/6mm |
| Dimension (lxwxh) | 705 x 520 x 1590 mm |
| Processing Materials | Titanium Column, Glass Ceramic, HPP, PMMA |
