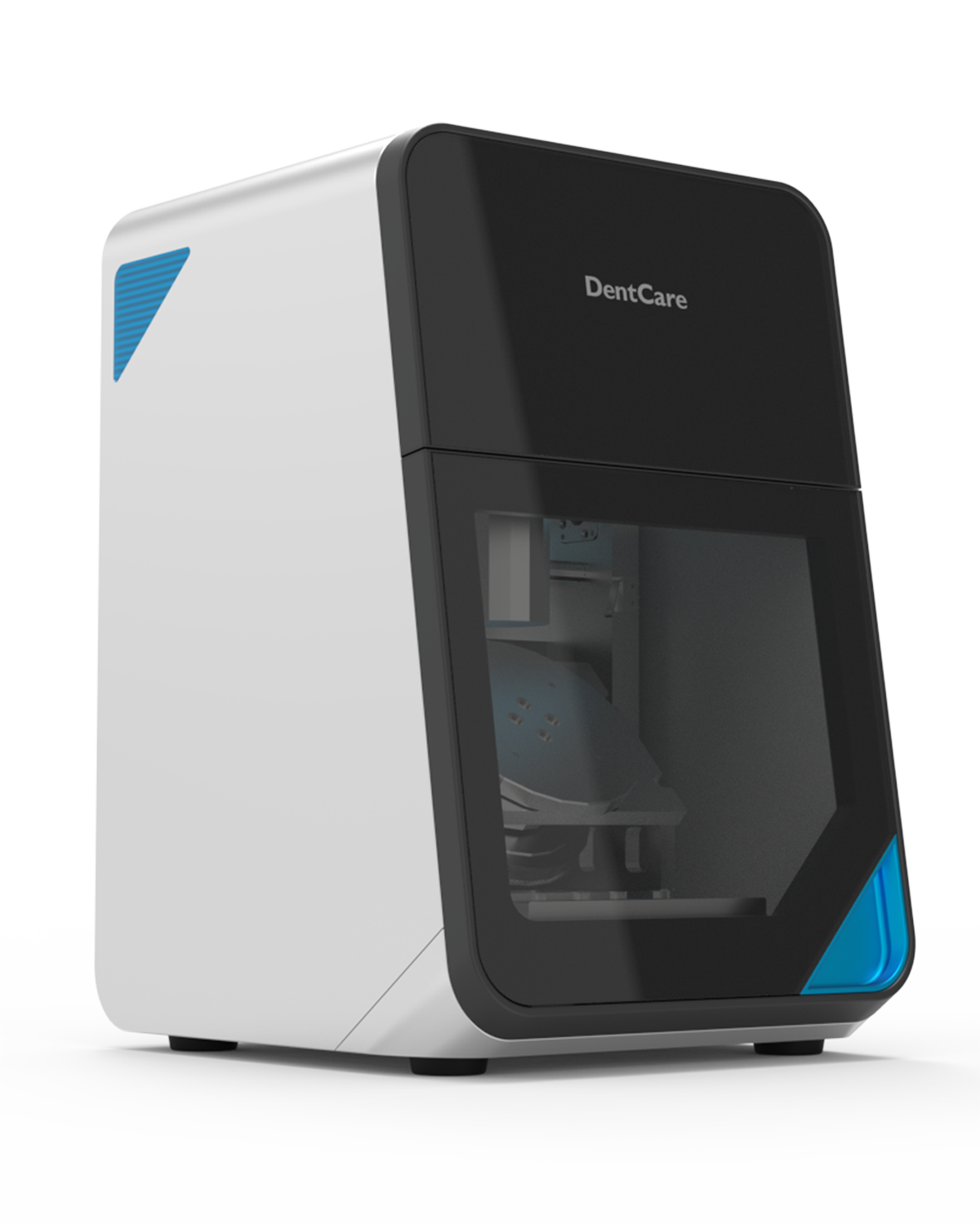

DentCare BQM-T4X | AI Aligner Trimming Machine
Utilizing AI to detect cutting paths, the cutting of invisible aligners can be completed repidly in just 90sec. Reduce failure rates, save production time, and enhance work efficiency.
Product Features
ㆍ 3+1 axes dry machining
ㆍ Compressed air-free operation without suction
ㆍ 5" capacitive touch screen
ㆍ AI Trimming Line Detection
Product Specification
Fields of application
Dry machining
Number of axes
3+1
Spindle
High-frequency, 12,000RPM, 400W
Linear axes
X-/Y-/Z-axis
X-axis：105mm / Y-axis：105mm / Z-axis：105mm
XYZ Step Motor
Accuracy
±0.01 mm
Rotary axis A-axis
Rotation angle 360°, infinite
Dry
Compressed air-free operation without suction
Connectivity
USB / Ethernet / WIFI
Dimension
34 x 36.1 x 48 cm
Weight
Around 45 kg
DentCareCore
System Inside
•Single board computer with QR code camera and touch screen
•Connect to DentCareCore website for remote control and monitor
•Provide application interface for automated production line
Produktinformationen
| Hersteller | BenQ AB DentCare Corporation |
|---|---|
| Axes | 3+1 |
| Gewicht | Around 45 kg |
| Accuracy | ±0.01 mm |
| Ai Feature | AI Trimming Line Detection |
| Abmessungen | 34 x 36.1 x 48 cm |
| 旋轉a軸 | 360° (無限制) |
| Rotary Axis | 360° infinite rotation |
| Konnektivität | USB / Ethernet / WIFI |
| Touch Screen | 5" capacitive touch screen |
| 乾式操作 | 免空壓機或吸塵設備 |
| 內建功能 | 配置QR Code 掃瞄系統，連接DentCareCore網站，可遠程控制和監控，提供自動化生產線的應用介面 |
| 加工方式 | 乾式加工 |
| 加工精度 | ±0.01 毫米 |
| 工作軸數 | 3+1 軸 |
| 機體尺寸 | 34 x 36.1 x 48 cm |
| 機體重量 | 45 kg |
| 步進馬達 | XYZ 步進馬達 |
| 觸控螢幕 | 7吋 |
| 轉速功率 | 12,000轉/分，400W |
| 連接方式 | USB / Ethernet / WIFI |
| Spindle Power | 400W |
| Spindle Speed | 12,000RPM |
| X Axis Travel | 105mm |
| Y Axis Travel | 105mm |
| Z Axis Travel | 105mm |
| Operation Type | Compressed air-free, dry machining without suction |
| Processing Time | 90 seconds per aligner |
| 直線軸 X /y /z 軸 | X軸：105毫米 / Y軸：105毫米 / Z軸：105毫米 |
