DIGISENS HD
New Life Radiology S.r.l. · Quelle
Description

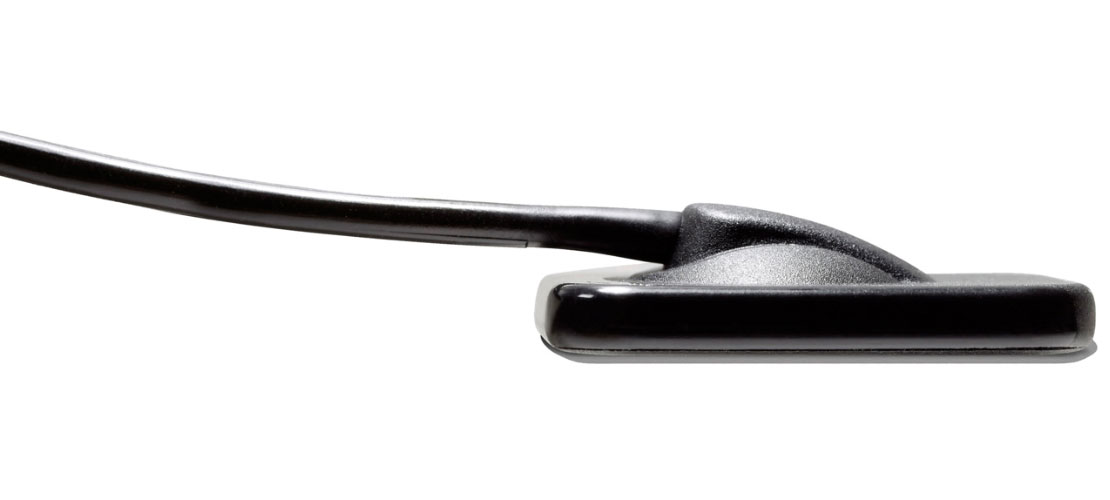

Intraoral Sensor
The best CMOS technology with an ergonomic design able to adapt easily the anatomy of the oral cavity.
DIGISENS HD is an innovative, flexible, very resistant sensor able to produce high quality images.
DIGISENS HD is Immediately Operative
- Easy to install, handle and transport
- It produces high quality images in real time.
- Images can be stored in your PC, saving space and time.
- Our Imaging Software can easily manage images stored.
DIGISENS HD in 2 sizes
- Size 1 – Active area of 30.01×20 mm
- Size 2 – Active area of 37.96×25.95 mm
The advantages of DIGISENS HD
Our Intraoral sensor produces perfect, high quality images with excellent resolution (28lp/mm) without the use of traditional films, no waiting and with very short exposure time. Images are directly sent to your screen.
Our Imaging Software is a dynamic and intuitive system. It guides the user through its practical content by rapidly highlighting its essential functions.
Produktinformationen
| Hersteller | New Life Radiology S.r.l. |
|---|---|
| Absorption | 6 A |
| Frame Rate | 0.7 fps |
| Auflösung | 18 µm |
| Pixel Shape | Quadratisch |
| Sensitivity | 15 LSM/µGy |
| Temperature | 0 ÷ 35°C |
| Dynamic Range | 58 dB |
| Supply Voltage | 5 V DC from USB |
| Connection To Pc | USB 2 (A type) cable 2.7 mt |
| Scintillator Type | FOS (FOP + Csl) |
| Spatial Resolution | 28 lp/mm typ |
| Active Area (size 1) | 30.01 X 20 mm |
| Active Area (size 2) | 37.96 X 25.95 mm |
| Degree Of Protection | Equivalent to IP67 |
| Maximum Absorbed Dose | 50 Gy |
| Distance Between Pixels | 18 µm |
| Maximum Absorbed Current | 275 mA |
| Saturation Dose (@70 Kv) | 340 µGy |
| Number Of Pixels (size 1) | 1666 x 1110 |
| Number Of Pixels (size 2) | 1998 x 1442 |
| Selectable Anodic Current | 4-7 mA |
| Dark Current Typical @25°c | 350 LSB/s |
| X Ray Response Non Uniformity (xrnu) | ± 30 % |
