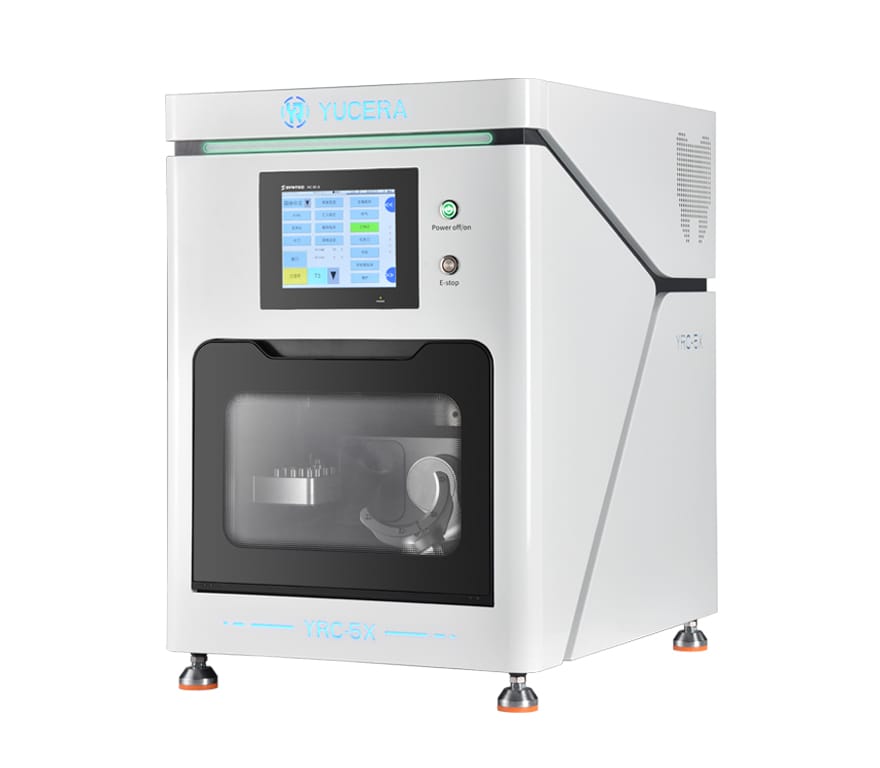

Dry 5-axis Dental Milling Machine YRC-5X

Dry 5-axis Dental Milling Machine YRC-5X

After its face lift, Upgrade to a larger display screen, Enhances the user experience for greater perfection. Thanks to its proven reliability, The engraving and milling machine offers high precision and fast milling speeds, the YRC-5X is a true driver of performance in any laboratory.

Features

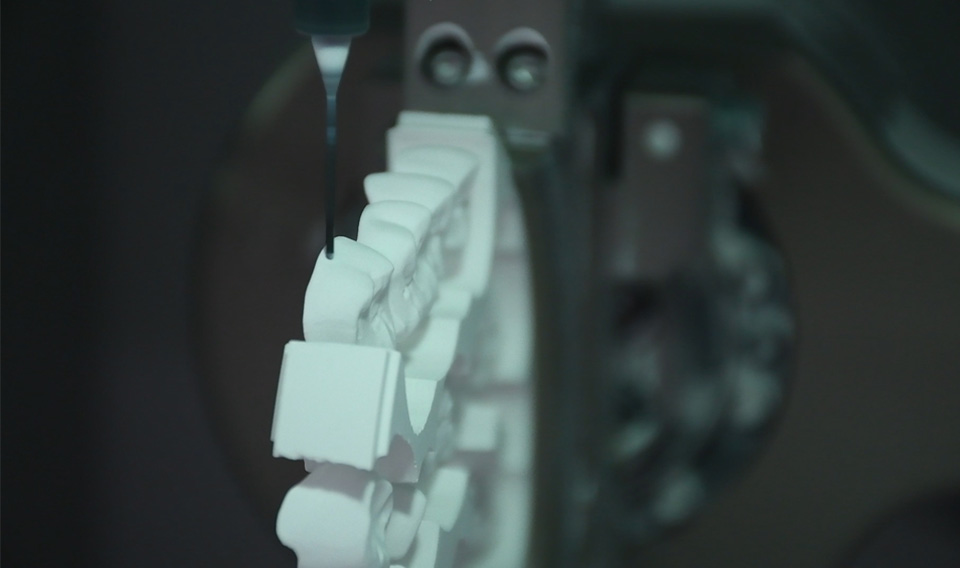

• 90° Vertical Milling: The 90° Vertical Milling is good for milling of the anterior and allows for a fine texturing of the denture, providing the customer with a more perfect result.

• Resume when interrupted: In case of an unexpected situation, processing can be automatically resumed from the last interrupted step, avoiding duplication of work and improving processing efficiency

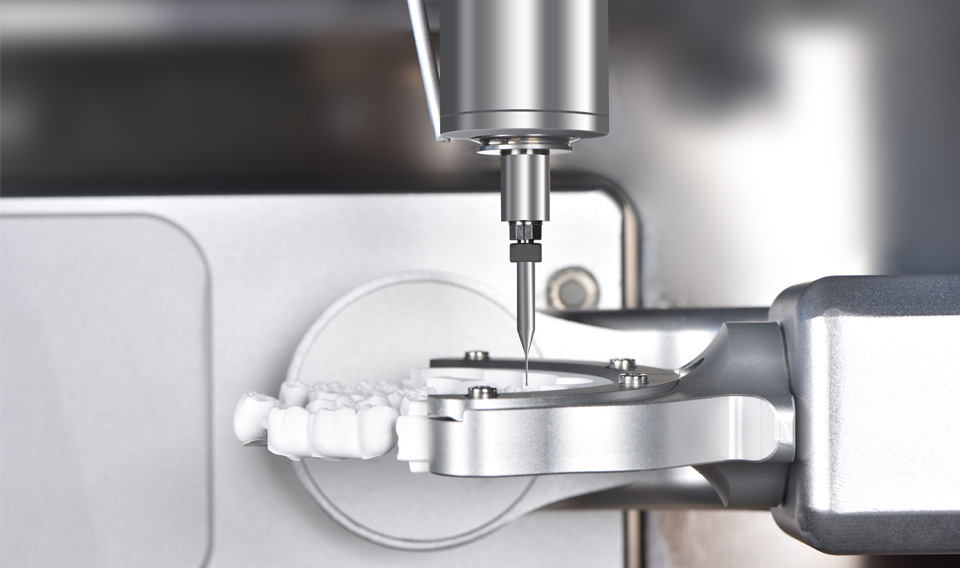

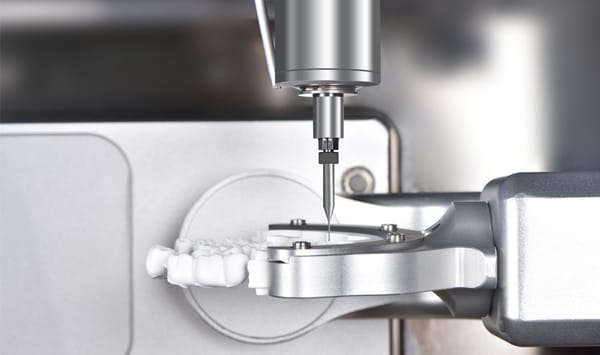

• Large B-axis rotation: B-axis rotation angles up to +35°, -91°, so large angle implants can be processed

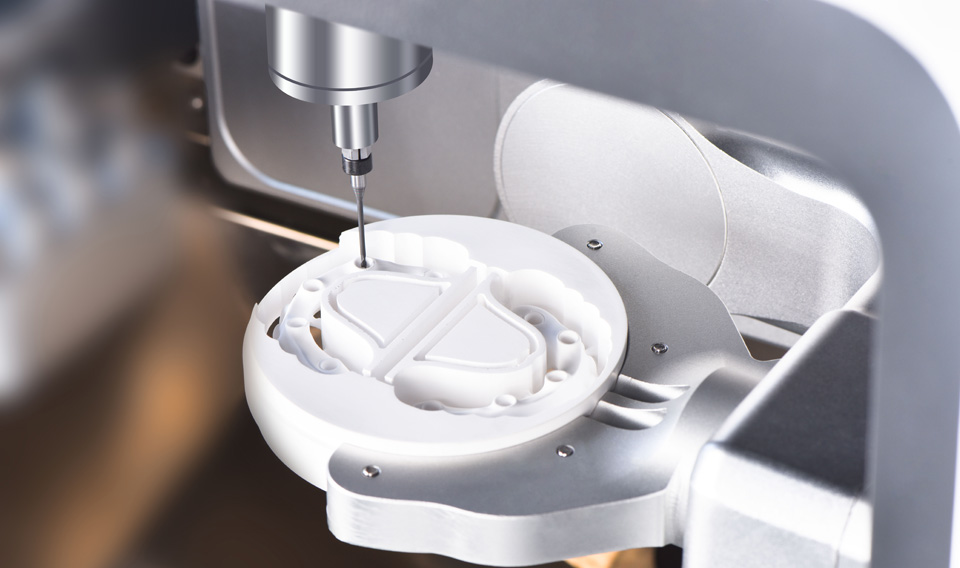

• 20% increased in material utilisation: The C-Clamp Adapter allowing the use of material edges and a 20% increase in material utilisation.

You choose: material, indication

Materials: Zirconia, Wax, PMMA, PEEK, Composite

Indications: Veneer, Crown, Bridge, Inlay, Onlay

Technical Data

GENERAL

• Fields of application: Dry Machining
• Materials: Zirconia, Wax, PMMA, PEEK, Composite
• Indications: Veneer, Crown, Bridge, Inlay, Onlay, Impant

BASE SYSTEM

• Construction: Machine bed made of solid cast aluminum body
• Housing: Sheet steel housing, white high-gloss lacquer finish
• Number of axes: 5
• Linear axes X-Y-Z-axis: Ground precision guides made of high-alloyed steel.
• Rotary axis A-axis: Rotation angle 360°, infinite
• Rotary axis B-axis: Precision ball screw with rotary transmission. Rotation angle: +35° -90°. With the highest angular precision
• Lighting: RGB LED lighting with status display in the working chamber

ENVIRONMENTAL CONDITIONS

• Operating temperature: Between 10℃ and 35℃
• Air moisture: Max.80%(relative), non-condensing

PROCESSING MODES

• 5-axis linkage, dry milling
• Processing time: Full crown < 15 min, 3-unit bridge < 30 min
• Processable material thickness: 10-30 mm

CONNECTION REQUIREMENTS

• Rated Working Pressure: 4.5-7.5 bar (without water, oil-free)
• Power: 220-230 volts. 800 watts

AUTOMATION

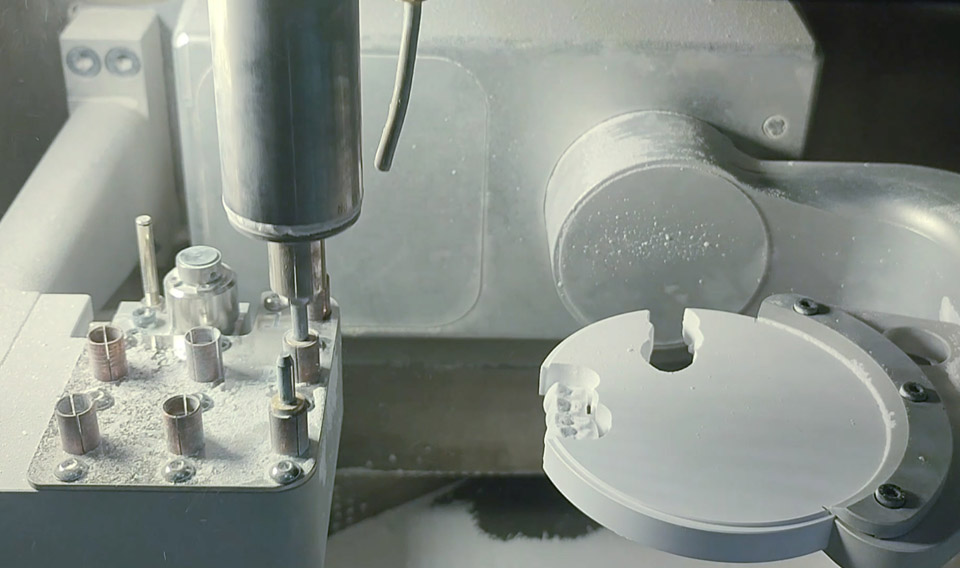

• Tool change
• Tool magazine for 10 tools.

DIMENSIONS & WEIGHTS

• Dimensions(W/D/H): 530x650x750mm with open flap and drawer
• Footprint (W/D): 480x580 mm
• Weight: 145 kg

SPINDLE

• High-frequency spindle, synchronous with pneumatic tool clamping
• Sealing air to prevent debris from entering
• Speed: Up to 60,000 rpm
• Power: Peak power (Pmax): 1500 watts. nominal power: 800 watts
• Collet: Stainless steel collet, C-clamp

APPROVALS

• All models: CE, VDE
• North America model: UL, FCC
