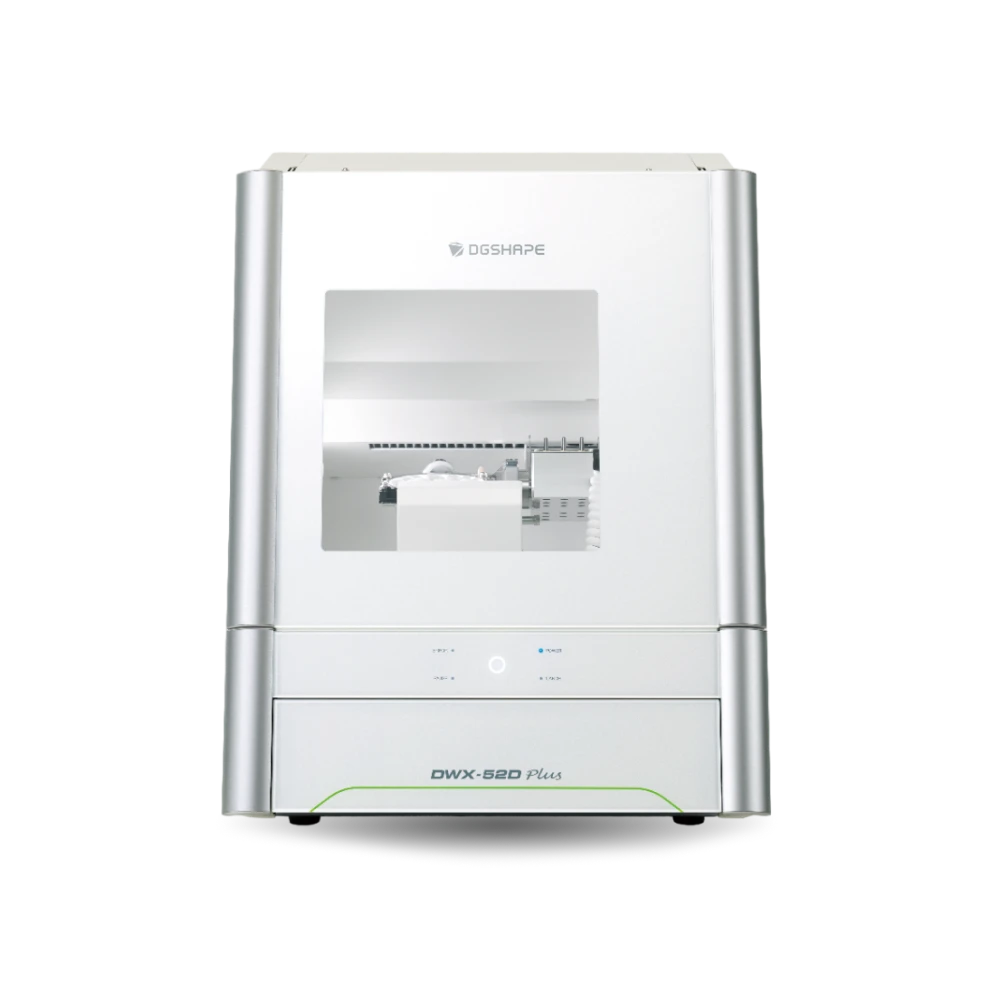

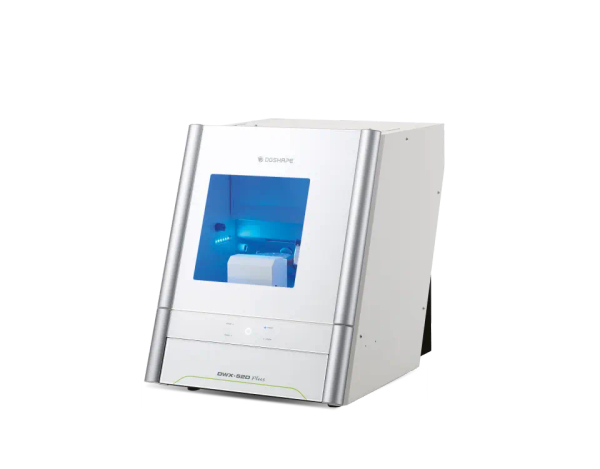

DWX-52D PLUS 5-Achs-Trocken-Dental-Fräsmaschine
DGSHAPE A Roland Company · #DWX-52D PLUS · Quelle
Eine 5-Achs-Dental-CNC-Fräsmaschine, die die Dentalproduktion mit schnelleren Fräszeiten, laufruhigem Betrieb und einer robusten Spindel revolutioniert. Fortschrittliche 5-Achs-Technologie ermöglicht die Bearbeitung einer breiten Palette von Dentalmaterialien und Anwendungen mit maximaler Geschwindigkeit und Präzision.
Produktinformationen
| Hersteller | DGSHAPE A Roland Company |
|---|---|
| Depth | 660 mm (26.0 in.) |
| Breite | 495 mm (19.5 in.) |
| Altura | 600 mm |
| Höhe | 600 mm (23.6 in.) |
| Gewicht | 67 kg (147.7 lbs.) |
| Largura | 495 mm |
| Interface | USB |
| Axis Speed | XYZ axis 6 to 1,800 mm/min |
| Verbindung | USB |
| Abmessungen | Width 495 mm x Depth 660 mm x Height 600 mm |
| Tool Length | 40 to 55 mm |
| Profundidade | 660 mm |
| Max Disc Size | 98.5 mm diameter, 10 mm height |
| Spindle Speed | 6,000 to 30,000 rpm |
| Max Body Section | 95 mm diameter, 60 mm max height |
| Power Consumption | approx. 200 W |
| Consumo De Energia | aprox. 200 W |
| Millable Materials | Zirconia, Wax, PMMA, Composite resin, PEEK, PEKK, Gypsum, Glass fiber reinforced resin, CoCr sinter metal, Polycarbonate |
| Milling Bur Length | 40 to 55 mm (1.57 to 2.17 in.) |
| Power Requirements | AC 100 V to 240 V ±10%, 50/60 Hz (overvoltage category II, IEC60664-1), 2.0 A |
| Rotary Axis Travel | A ±360°, B ±30° |
| Tool Shank Diameter | 4 mm |
| Millable Applications | Inlay, Onlay, Overlay, Crown, Copings, Veneer, Toronto Bridge, Bridge, Implant Bar, Occlusal Splint and Bites, Surgical Guide, Removable Dental Prostheses |
| Requisitos De Energia | CA 100 V a 240 V ±10%, 50/60 Hz (categoria de sobretensão II, IEC60664-1), 2,0 A |
| Tool Changer Capacity | Up to 15 tools |
| Spindle Rotating Speed | 6,000 to 30,000 rpm |
| Attachable Milling Burs | Up to 15 pieces |
| Operating Speed Xyz Axis | 6 to 1,800 mm/min (0.24 to 70.9 in/min) |
| Rotary Axis Travel Angle | A ±360°, B ±30° |
| Xyz Axis Operating Speed | 6 to 1,800 mm/min (0.24 to 70.9 in/min) |
| Milling Bur Shank Diameter | 4 mm (0.16 in.) |
| Rotary Axis Travel Angle A | ±360° |
| Rotary Axis Travel Angle B | ±30° |
| Brocas De Fresagem Acopláveis | Até 15 peças; Diâmetro da haste: 4 mm; Comprimento: 40 a 55 mm |
| Velocidade De Rotação Do Eixo | 6.000 a 30.000 rpm |
| Velocidade De Operação Eixo Xyz | 6 a 1.800 mm/min |
| Loadable Workpiece Shape Pin Type | 6 mm (0.24 in.) diameter |
| Forma Da Peça De Trabalho Tipo Pino | Diâmetro de 6 mm |
| Forma Da Peça De Trabalho Tipo Disco | Seção do degrau 98,5 mm de diâmetro, 10 mm de altura; Seção do corpo com 95 mm de diâmetro, 60 mm de altura máxima |
| Ângulo De Deslocamento Do Eixo Rotativo | A ±360°, B ±30° |
| Loadable Workpiece Shape Disc Type Body Section | 95 mm (3.74 in.) diameter, 60 mm (2.36 in.) max. height |
| Loadable Workpiece Shape Disc Type Step Section | 98.5 mm (3.8 in.) diameter, 10 mm (0.39 in.) height |
