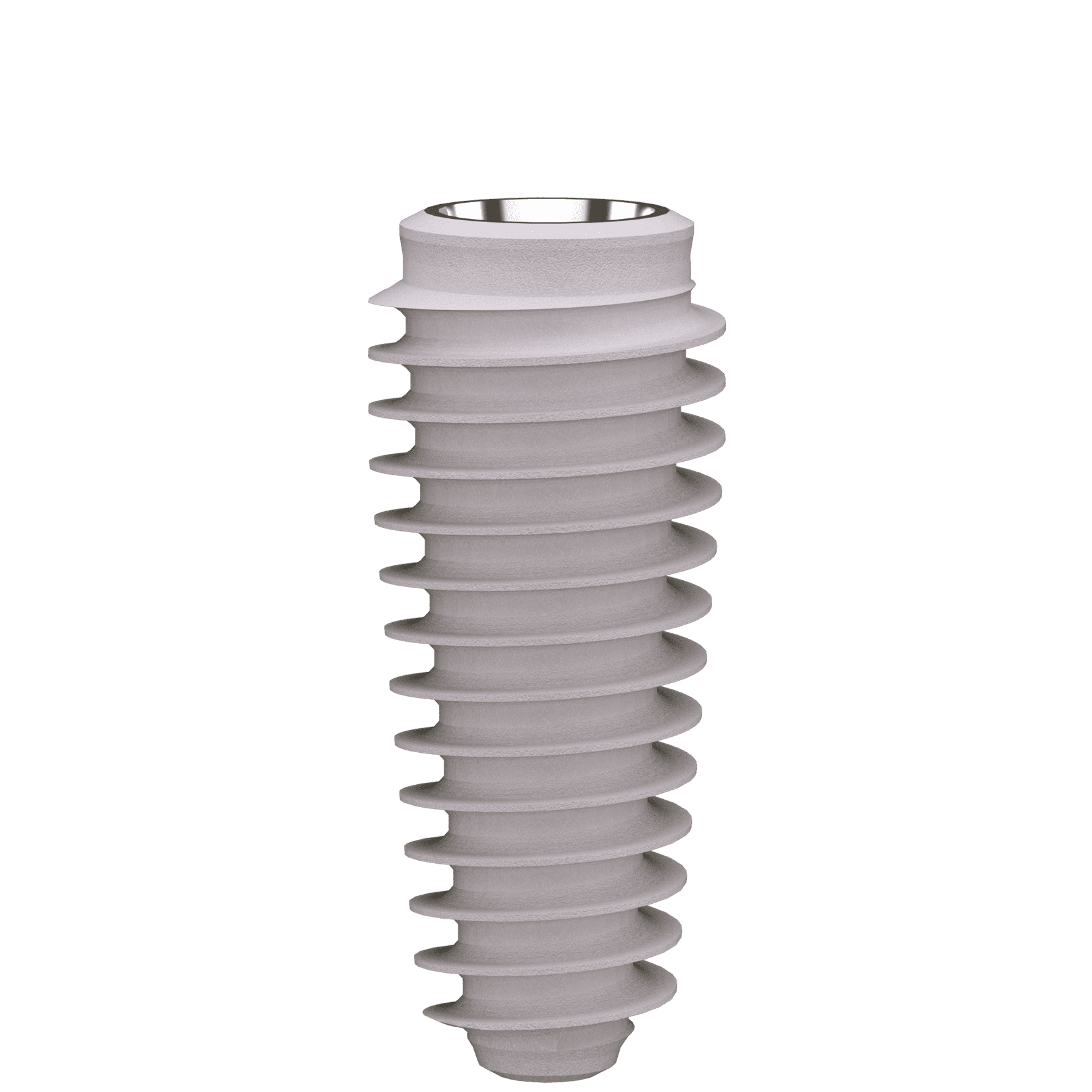

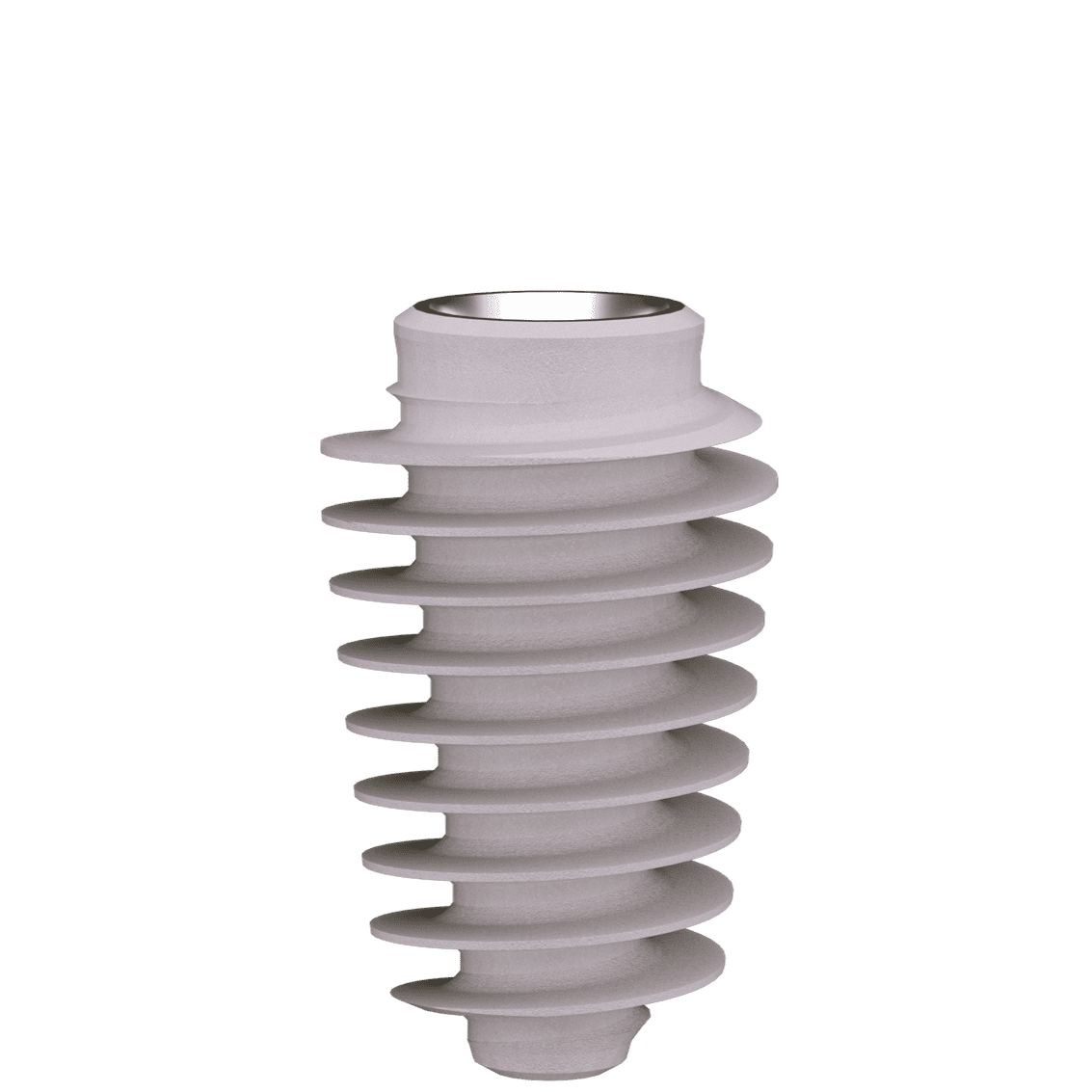

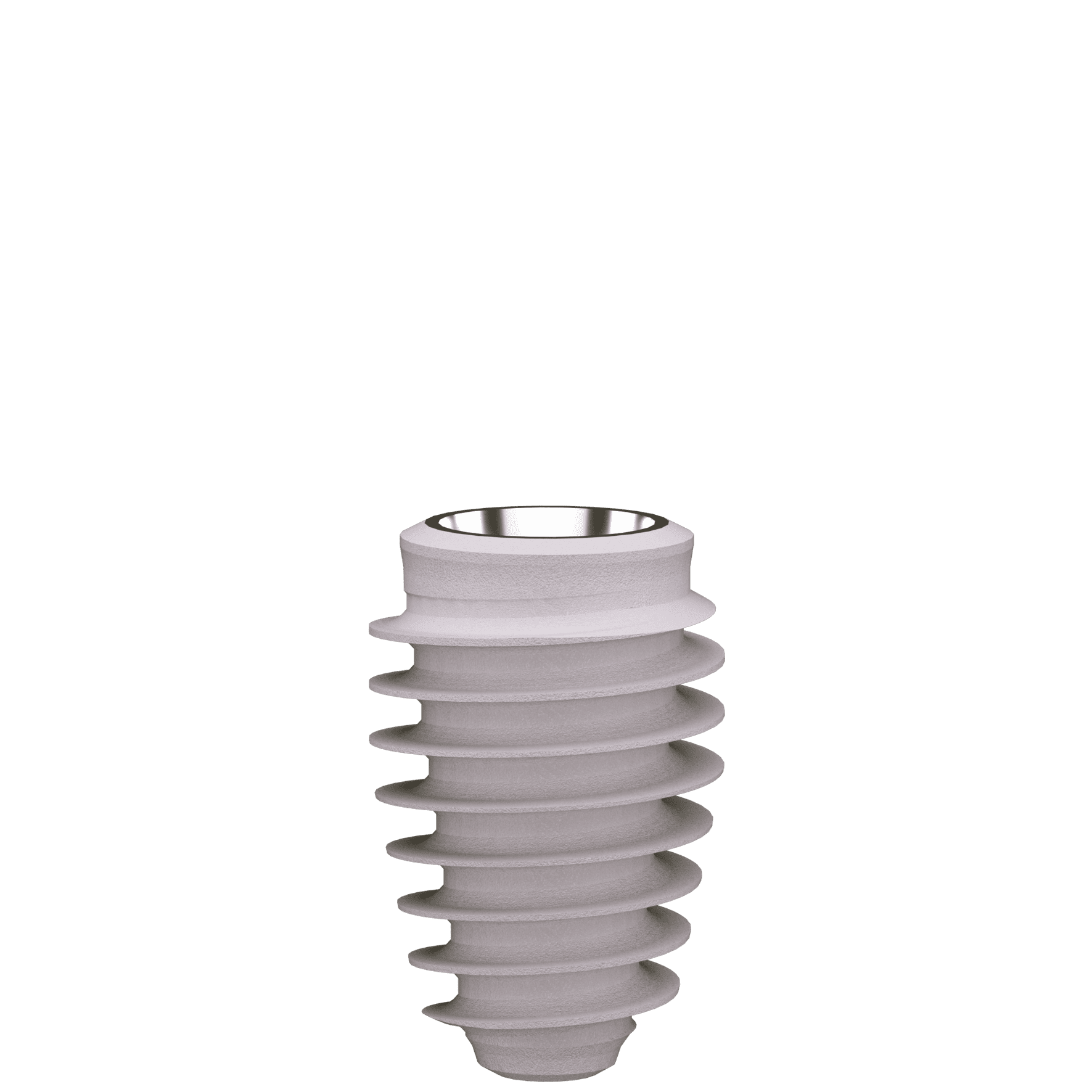

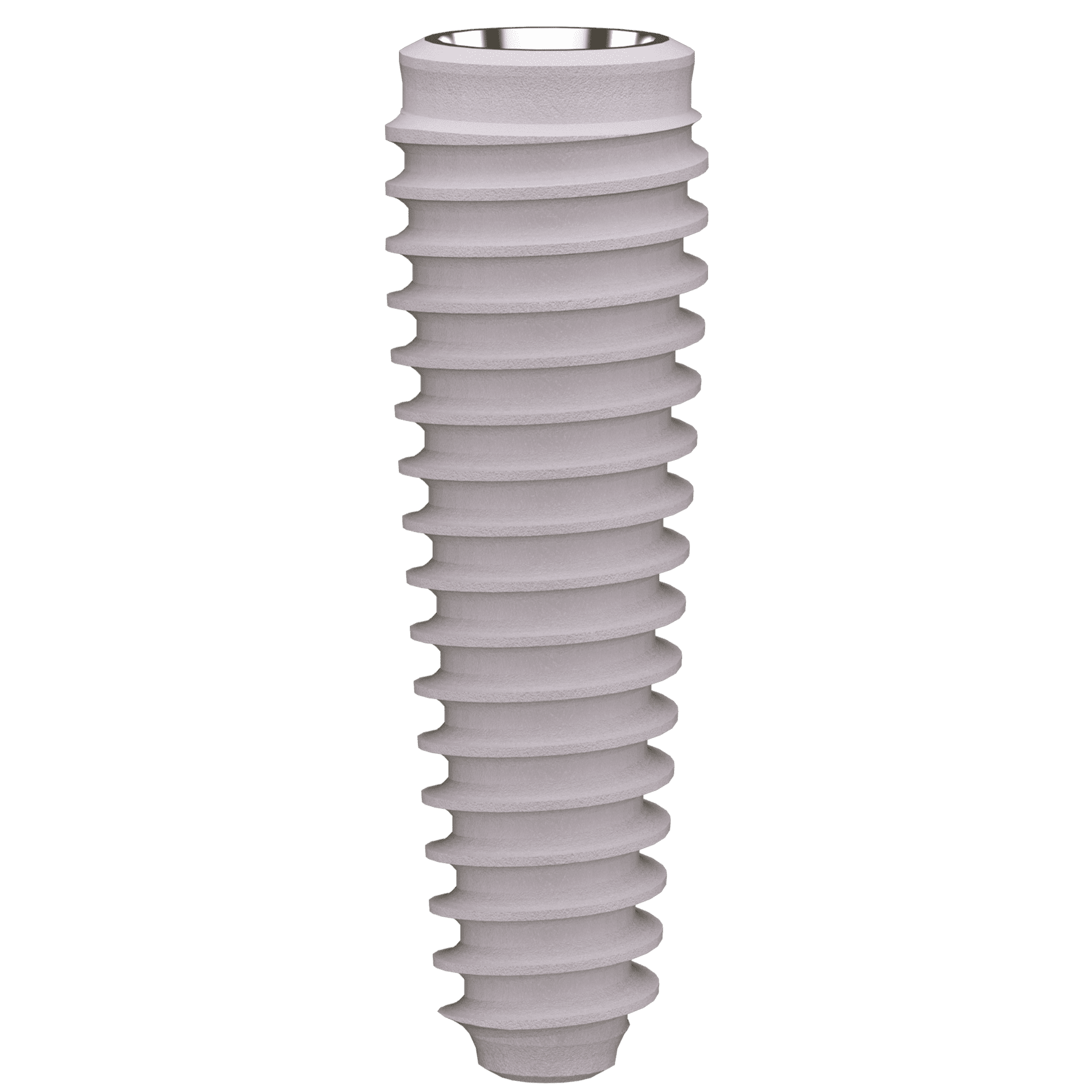

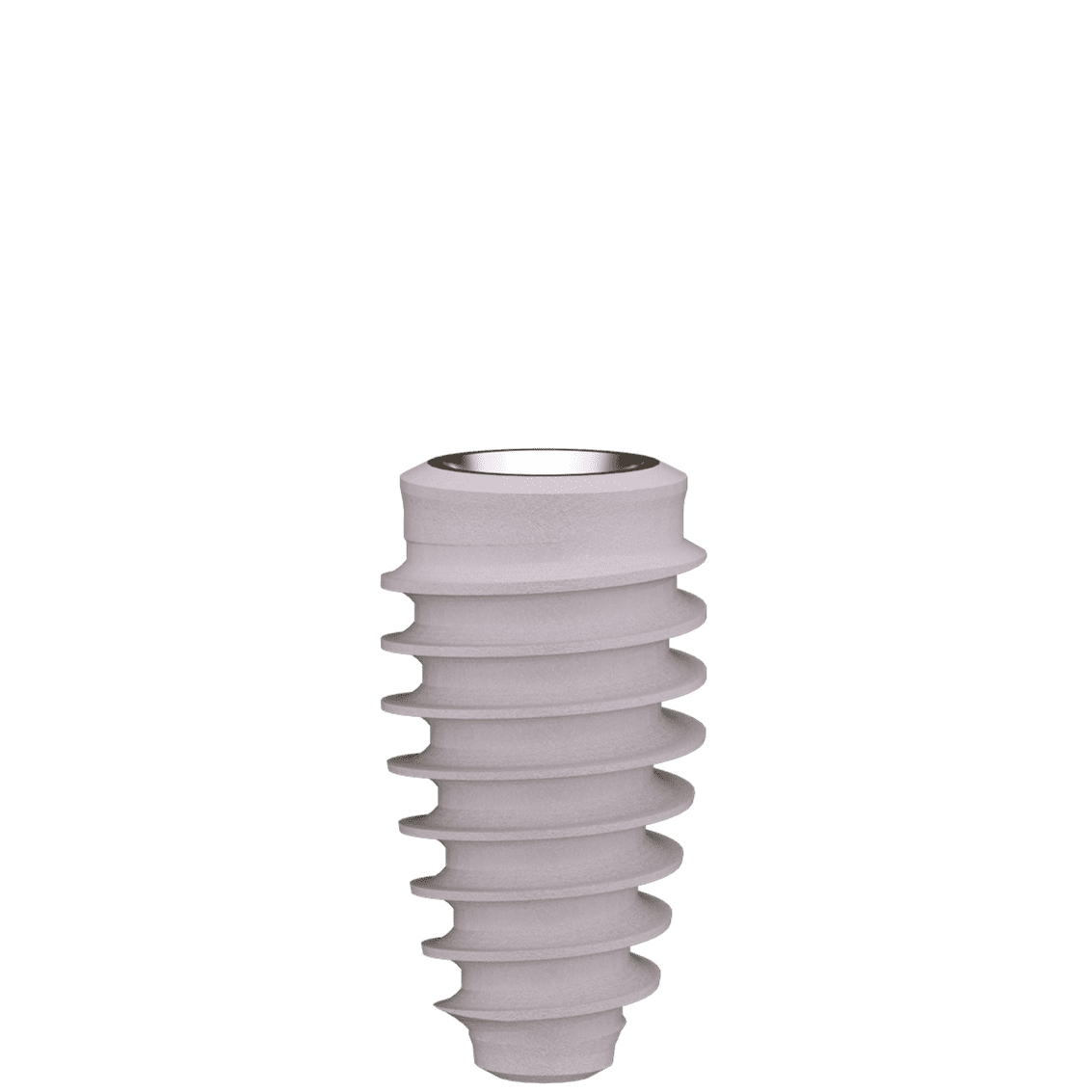

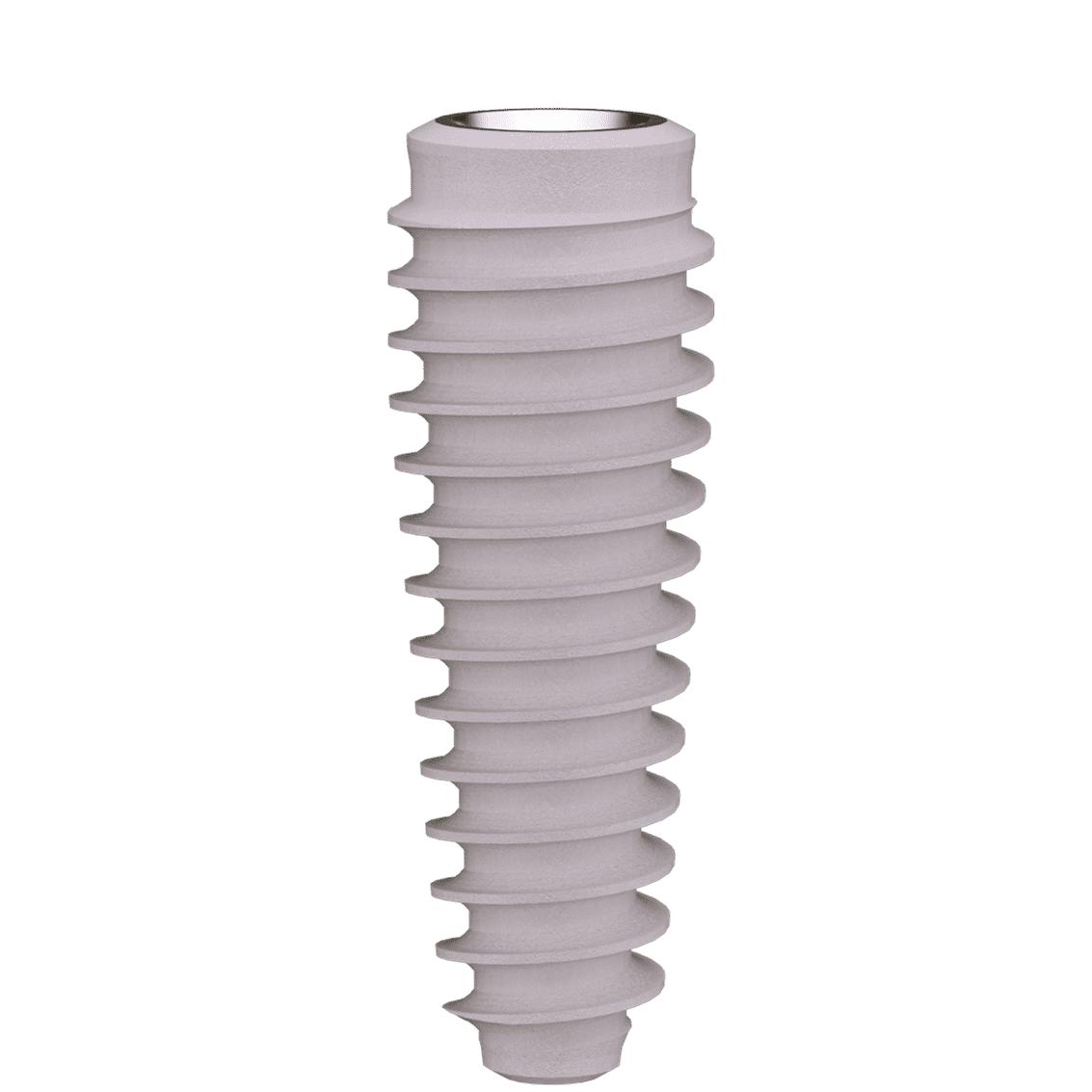

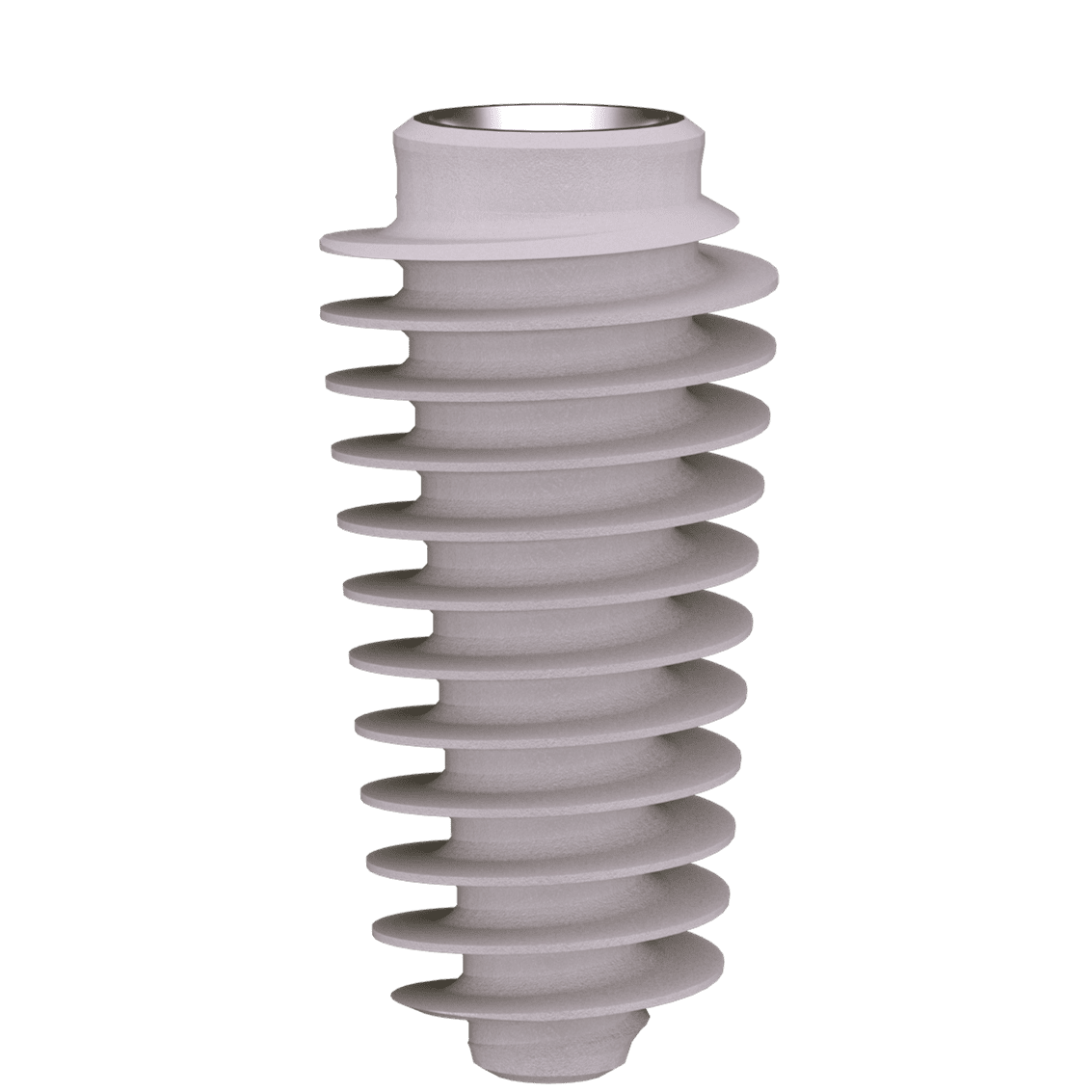

DXL Smart Implant

DXL SMART IMPLANT

Multiple diameter options available:

• DIAMETER 3.5: NARROW PLATFORM, PINK colour code, INTERNAL HEX 2.1
• DIAMETER 4.0: STANDARD PLATFORM, RED colour code, INTERNAL HEX 2.24
• DIAMETER 4.5: STANDARD PLATFORM, GREEN colour code, INTERNAL HEX 2.24
• DIAMETER 5.5: STANDARD PLATFORM, BLUE colour code, INTERNAL HEX 2.24

Length options: 8mm, 10mm, 12.5mm, 15mm (depending on diameter)

It is possible to order implants with cover screw. Add -C to the relevant article and Add with cover to the relevant implant name in your order.

ATTENTION: It is used for installation in front and lateral parts canines, incisors, premolars.

Cover screws available:

• DXL NARROW COVER SCREW STERILE Ø2.6xH0mm / DXL-3000001-N-S (for diameter 3.5)
• DXL COVER SCREW STERILE Ø3.1xH0mm / DXL-3000001-S (for diameters 4.0, 4.5, 5.5)

Only DXL Premium Hybrid Implant with cover series include cover screw.

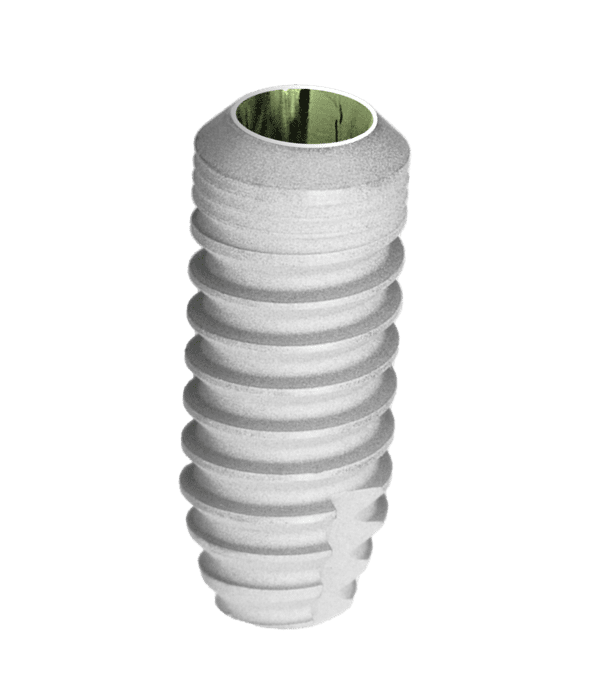

DXL IMPLANT PLUS

Multiple diameter options available:

• DIAMETER 3.3: NARROW PLATFORM, PINK colour code, INTERNAL HEX 2.1
• DIAMETER 3.75: STANDARD PLATFORM, RED colour code, INTERNAL HEX 2.24
• DIAMETER 4.1: STANDARD PLATFORM, GREEN colour code, INTERNAL HEX 2.24
• DIAMETER 4.8: STANDARD PLATFORM, BLUE colour code, INTERNAL HEX 2.24

Length options: 8mm, 10mm, 12.5mm, 15mm (depending on diameter)

It is possible to order implants with cover screw. Add -C to the relevant article and Add with cover to the relevant implant name in your order.

ATTENTION: It is used for installation in front and lateral parts canines, incisors, premolars.

Cover screws available:

• DXL NARROW COVER SCREW STERILE Ø2.6xH0mm / DXL-3000001-N-S (for diameter 3.3)
• DXL COVER SCREW STERILE Ø3.1xH0mm / DXL-3000001-S (for diameters 3.75, 4.1, 4.8)

Only DXL Premium Hybrid Implant with cover series include cover screw.

IMPLANT BODY

The streamlined cylindro-conical/tapered implant body emulates the drill shape for a more aggressive and precise bone-socket fitting.

CRESTAL NECK-COLLAR DESIGN

Its special "vertical slope:d-shoulder" platform design prevents cervical resorption in the vulnerable crestal area. It also provides for a stronger biomechanical stability at bone-level placement.

CONICAL CONNECTION

DXL implants need a specific surface roughness to be incorporated fast, permanently and without complications into the jaw tissue. DXL Implants SLA surface is the latest generation of dental implant surfaces. The increased surface area provides perfect bone implant connection. Due to this advantage the implant has higher primary stability and quick osseointegration. It can be used with one-stage or two-stage protocol.

THREAD CHARACTERISTICS

The spiral-shaped trapezoidal aggressive thread was developed for a better primary stability therefore it is recommended to be used for all bone densities. Specially designed for immediate loading protocol.

SURFACE

DXL implants have a specific surface roughness (Ra: 2.3 – 3.0 µm) which supports a predictable osseointegration into the jaw bone without complications. DXL implants SLA (Sand-Blasted / Large Grid / Acid-Etched) surface is the latest generation of standardized dental implant surfaces. The increased surface area provides for a perfect coagulum-docking, which is responsible for the boney-wall to implant apposition. Due to this advantage the implant maintains a higher primary stability and has a quicker osseointegration.

APICAL PART

Due to the precise convex or "bullet-nose" non-invasive apical implant design/shape, it can prevent damage/trauma to anatomical bone structures or the sensitive sinus membrane tissue, such as during sinus-lift procedures – thus reducing the time of the surgical protocol.
