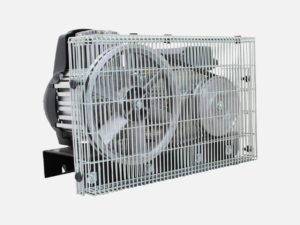

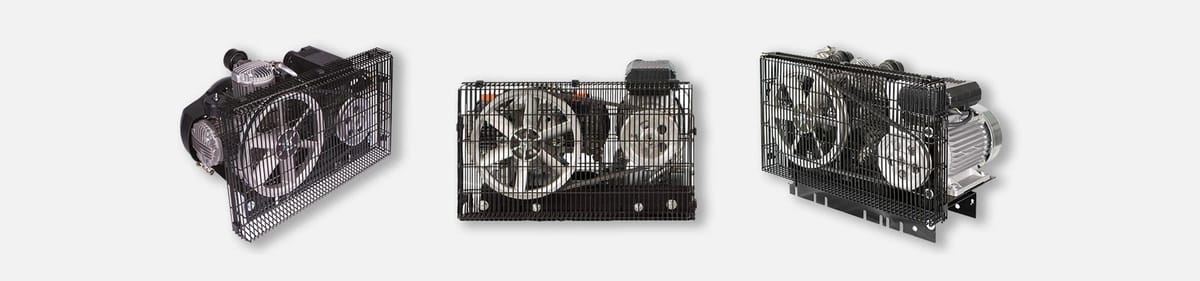

GIANO C1-B

Al.Con.Press. S.r.l. con unico socio / Alcon Air · #BG1SGNO1C111D · Quelle

GIANO C SERIES PUMPING UNITS The four main components for the Giano series compressors are: Piston, Cylinder, Motor and Valves.

This single-cylinder compressor on a base is fitted with an exclusive suction filter system on a silencer, which makes it unique, for this type, in silent operation. The groups are complete with fixing feet in die-cast aluminum; there is the possibility of supply in a soundproofed cabinet, with or without compensation tank, with pressure switch and accessories.

Produktinformationen

HerstellerAl.Con.Press. S.r.l. con unico socio / Alcon Air
CodiceBG1SGNO1C111D / BG1GNO1C111D
Rumore70 / 73 dB (A)
Gewicht23.5 – 51.9 kg – lbs
Spannung230/50/1 V/Hz/Ph
N° Giri1400 / 1600 Rpm
Tensione230/50/1 V/Hz/Ph
Air Intake90 – 3.1 L/min – cfm
Abmessungen550 x 330 x 360 mm
Noise Level70 dB (A)
Revolutions1400 Rpm
Assorbimento6 A
Engine Power0.750 kW – 1 hp
Max Pressure9 – 130.5 bar – psi
Aria Aspirata90 – 3,1 / 105 – 3,7 L/min – cfm
Pressione Max9 – 130,5 bar – psi
Cilindri Stadi1/1 n°
Potenza Motore0,750 – 1 kW – hp
Cylinders Stages1/1 n°
Power Absorption6 A
