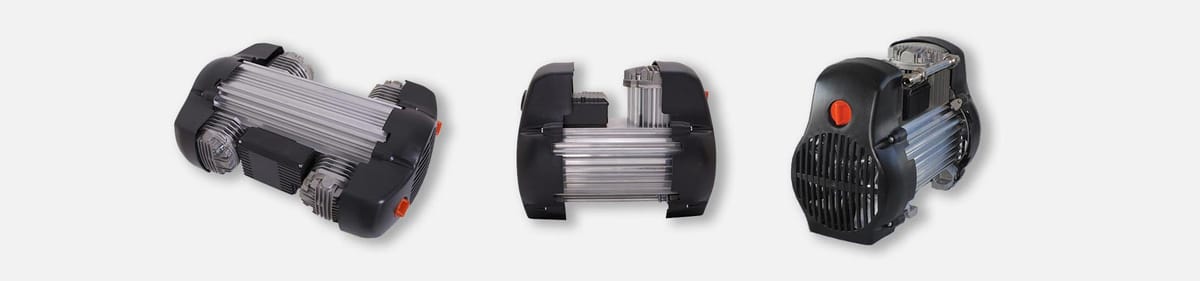

GIANO C3
Al.Con.Press. S.r.l. con unico socio / Alcon Air · #GNO3C000D · Quelle
GIANO SERIES PUMPING UNITS The four main components for the Giano series compressors are: Piston, Cylinder, Motor and Valves.
This three-cylinder compressor mounts an exclusive system of suction filter on the silencer, which makes it unique, for this type, in silence during operation. The groups are complete with fixing feet in die-cast aluminum; there is the possibility of supply in a soundproofed cabinet, with or without compensation tank, with pressure switch and accessories.
Produktinformationen
| Hersteller | Al.Con.Press. S.r.l. con unico socio / Alcon Air |
|---|---|
| Codice | GNO3C000D |
| Rumore | 78 dB (A) |
| Gewicht | 9 kg – 20 lbs |
| N° Giri | 1600 Rpm |
| Air Intake | 310 L/min – 11 cfm |
| Abmessungen | 340 x 270 x 320 mm |
| Noise Level | 78 dB (A) |
| Revolutions | 1600 rpm |
| Max Pressure | 9 bar – 130,5 psi |
| Product Code | GNO3C000D |
| Aria Aspirata | 310 – 11 L/min – cfm |
| Pressione Max | 9 – 130,5 bar – psi |
| Cilindri Stadi | 3/1 |
| Cylinders Stages | 3/1 |
