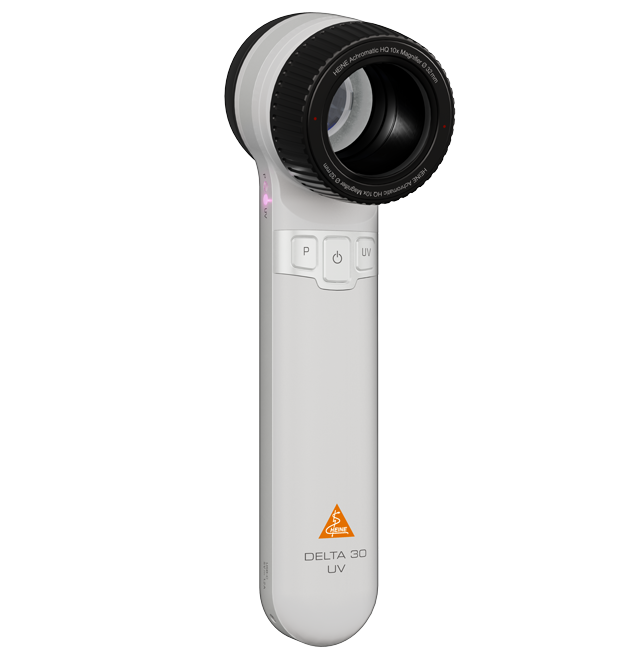

HEINE DELTA 30 UV Dermatoscope

A glow beyond the visible – UV, polarised, and non-polarised illumination united in one device.

The all-in-one HEINE DELTA 30 UV Dermatoscope combines UV, polarised, and non polarised illumination in one device – helping you streamline your workflow and focus on what truly matters: your patients.

The highlights

Navigate through the galaxy: Seamless orientation with the push of a button

With the Toggle function between UV, polarised, and non-polarised light, you can conveniently switch between illumination options at the push of a button. Recognition of the "Blink Sign" with polarisation. Identification of structures with UV light.

A galaxy of colours: Discover the visible and highlight structural details

UV illumination at typically 365 nm in combination with 10x magnification reveals fluorescence patterns with exceptional clarity. Specialized filters refine the light spectrum and enhance contrast – bringing potentially unseen details into focus.

A sharp look into the depths of the universe: See every detail crystal-clear

The proven achromatic HEINE optical system delivers sharp, high-contrast images with outstanding depth of field. A 32 mm lens with 10x magnification provides an ultra-sharp 30 mm Ø field of view with galactic clarity.

Benefit from all functions of the HEINE DELTA 30 UV Dermatoscope

Achromatic HEINE optical system for an optimal visual field

• 32 mm lens delivering a "real" 30 mm field of view
• 10x magnification for detailed examination
• Integrated dioptre adjustment for more precise focusing

Three illumination options in one device

• Toggle easily between UV, polarised, and non-polarised illumination
• Natural colour rendering for enhanced contrast and accurate assessment

Long-lasting and robust for high reliability

• Ultra-light aluminium frame for strength and durability
• LEDHQ with virtually unlimited lifetime and consistently strong performance

smoothSURFACE

• Hygienic design, easy-to-clean surface
• Recessed connections to support optimal hygiene standards

Intuitive and ergonomic

• Angled handle design for perfect positioning
• Easy usage for fast but precise examinations
• Compact size for mobile and flexible use

Smart power source options

• Charge status indicator
• Automatic switch-off function
• Rechargeable with USB-C via cable or charging station

Custom light intensity

• Side-mounted button with three degrees of luminous intensity
• Adjustable for both white light and UV illumination

UV illumination for fluorescence visualization

• Twelve UV LEDs at typically 365 nm provide uniform illumination
• Special filters ensure pure, consistent UV light while eliminating stray wavelengths
