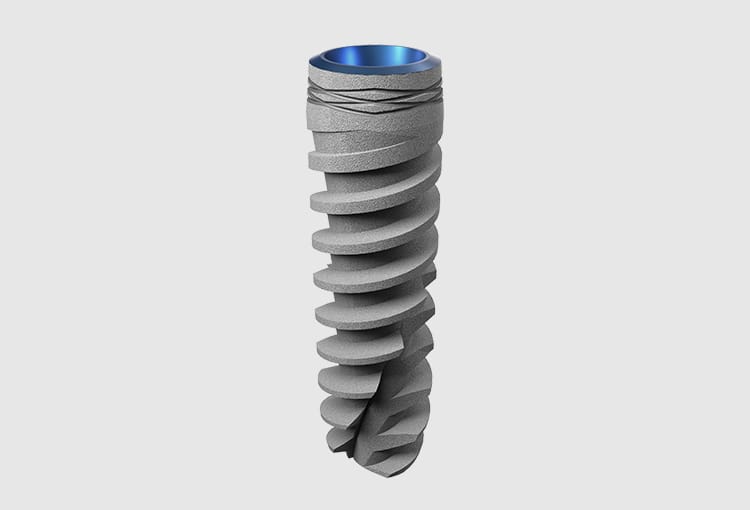

I-ON Conical Platform Implant
AB Dental Devices Ltd. · Quelle
Technical details & Features
- Perfect design, for optimal aesthetic results
- Excellent bacteria-sealed implant-abutment interface
- Stable and strong implant-abutment connection
- Unified physical platform-shifting for all diameters
- Comprehensive prosthetic line for all diameters 3.5-5.0 mm
- Top-class design for the professional high-end user
Implant Range and Protocol

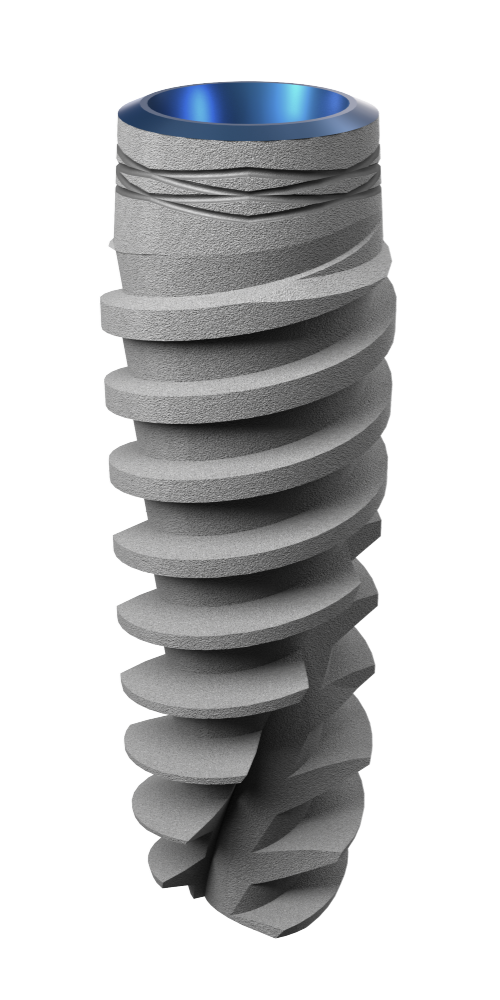

∅ 3.5
Lengths: 10, 11.5, 13, 16
Final Drill Protocol:
- Final drill speed: 500-700
- Drill diameter: 3.2. Countersink drill if needed.
- All drills are available with or without irrigation according to the dentist/surgeon's preferences. Procedure recommended by AB Dental should not replace the dentist/surgeon's judgement and experience.

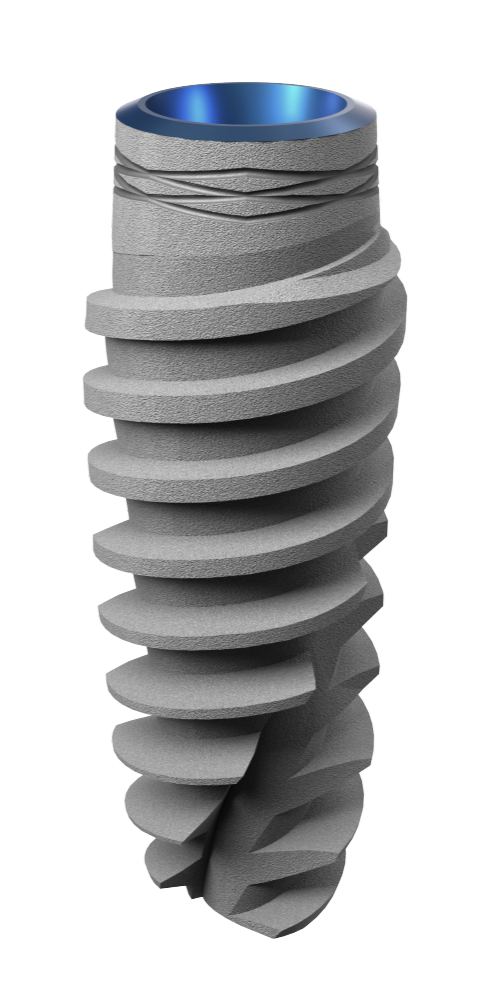

∅ 3.75
Lengths: 8, 10, 11.5, 13, 16
Final Drill Protocol:
- Final drill speed: 400-700
- Drill diameter: 3.2. Countersink drill if needed.
- All drills are available with or without irrigation according to the dentist/surgeon's preferences. Procedure recommended by AB Dental should not replace the dentist/surgeon's judgement and experience.

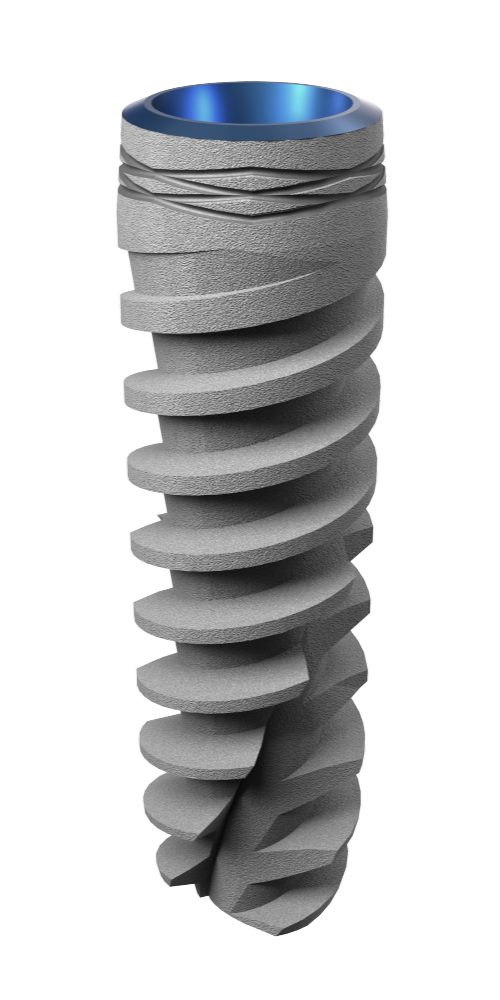

∅ 4.2
Lengths: 6, 8, 10, 11.5, 13, 16
Final Drill Protocol:
- Final drill speed: 400-600
- Drill diameter: 3.65. Countersink drill if needed.
- All drills are available with or without irrigation according to the dentist/surgeon's preferences. Procedure recommended by AB Dental should not replace the dentist/surgeon's judgement and experience.

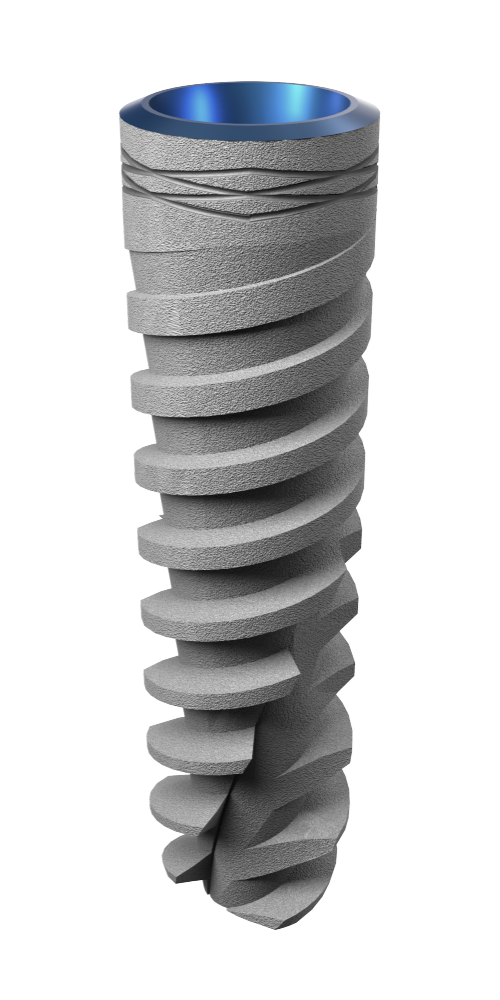

∅ 5.0
Lengths: 6, 8, 10, 11.5, 13
Final Drill Protocol:
- Final drill speed: 400-600
- Drill diameter: 4.0. Countersink drill if needed.
- All drills are available with or without irrigation according to the dentist/surgeon's preferences. Procedure recommended by AB Dental should not replace the dentist/surgeon's judgement and experience.
Optional Drills
Available countersink drills for optional use.

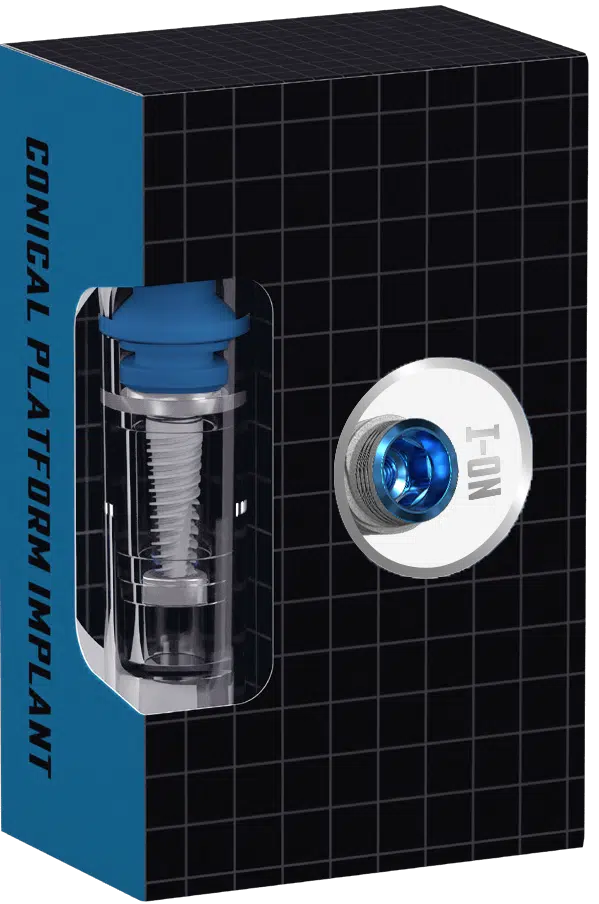

Package Content
Includes vial and package as shown.
Produktinformationen
| Hersteller | AB Dental Devices Ltd. |
|---|---|
| Verbindung | Conical Platform |
| Diameter Options | 3.5 mm, 3.75 mm, 4.2 mm, 5.0 mm |
| Platform Shifting | Unified physical platform-shifting for all diameters |
| Prosthetic Compatibility | Comprehensive prosthetic line for all diameters 3.5-5.0 mm |
| Available Lengths (∅ 3.5) | 10, 11.5, 13, 16 mm |
| Available Lengths (∅ 4.2) | 6, 8, 10, 11.5, 13, 16 mm |
| Available Lengths (∅ 5.0) | 6, 8, 10, 11.5, 13 mm |
| Final Drill Speed (∅ 3.5) | 500-700 RPM |
| Final Drill Speed (∅ 4.2) | 400-600 RPM |
| Final Drill Speed (∅ 5.0) | 400-600 RPM |
| Available Lengths (∅ 3.75) | 8, 10, 11.5, 13, 16 mm |
| Final Drill Speed (∅ 3.75) | 400-700 RPM |
| Final Drill Diameter (∅ 3.5) | 3.2 mm |
| Final Drill Diameter (∅ 4.2) | 3.65 mm |
| Final Drill Diameter (∅ 5.0) | 4.0 mm |
| Final Drill Diameter (∅ 3.75) | 3.2 mm |
