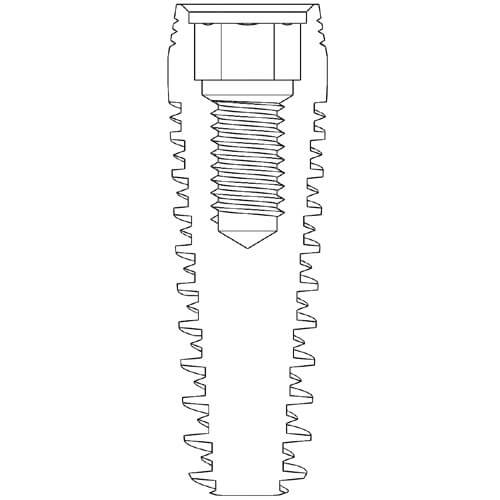

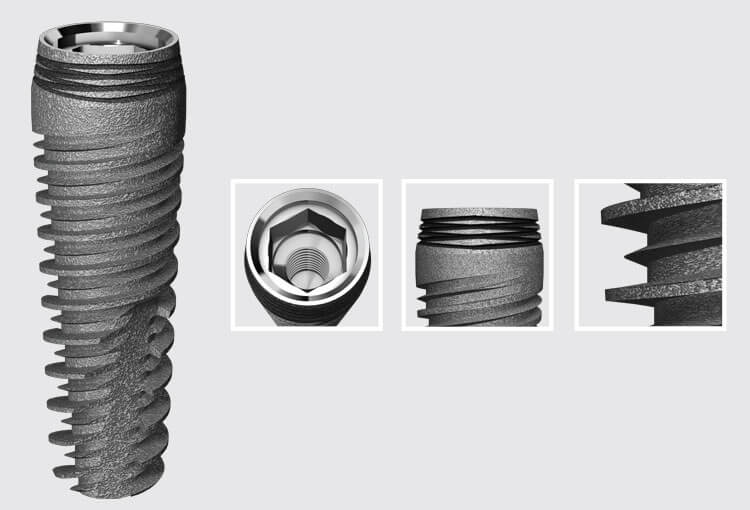

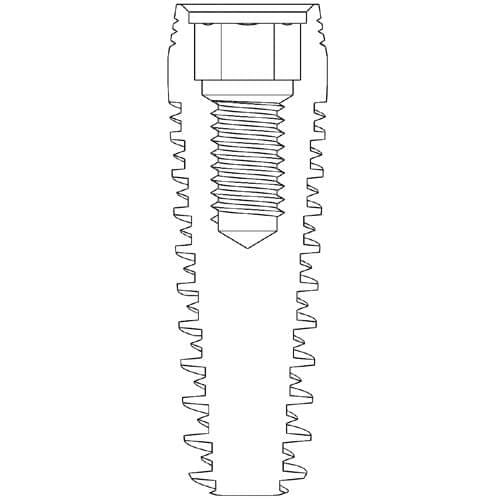

I10 Trapeze implant

Technical details & Features

• A groovy implant that enables a better grip on the bone. The dental implant is designed to prevent future regression of the different types of bone. • Its trapeze shape helps prevent future bone regression. • Sharp and deep threads that facilitate primary stability. • Grooved implant enabling better integration with the bone. • Has a tapered neck that reduces cervical absorption. • Facilitates the remodeling of bone. • The implant consists of a Platform Switch and is specially designed to enable the change of direction during the implantation. • Recommended for the aesthetic zone (the upper jaw). • The restoration platform is Standard for all diameters, including Ø4.2 and above. • All AB Dental implants undergo special calcium-phosphate sandblasting, followed by thermal and acid etching treatments for surface roughening.

Implant range and protocol

∅ 4.2

Lengths: 8, 10, 11.5, 13, 16

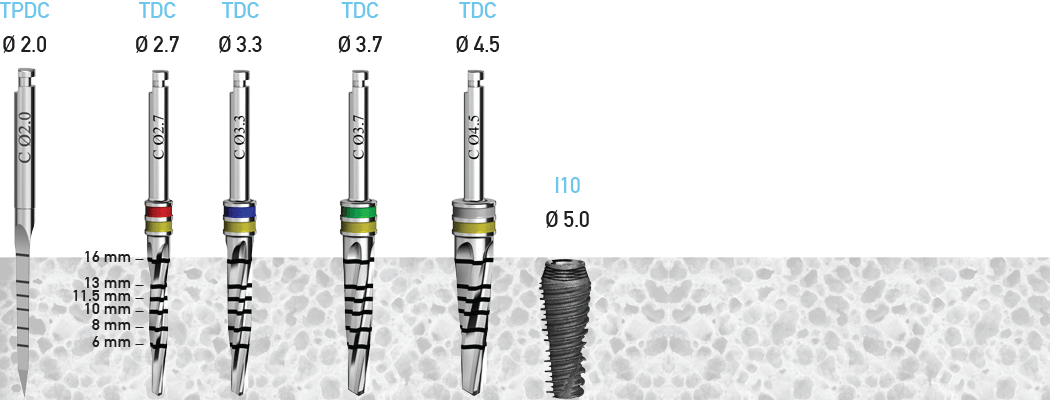

Final Drill Protocol

• Drill speed (RPM): 400-600
• Drill diameter (mm): 3.7

All drills are available with or without irrigation according to the dentist/surgeon's preferences. Procedure recommended by AB Dental should not replace the dentist/surgeon's judgement and experience.

∅ 5

Lengths: 8, 10, 11.5, 13

Final Drill Protocol

• Drill speed (RPM): 300-500
• Drill diameter (mm): 4.5

All drills are available with or without irrigation according to the dentist/surgeon's preferences. Procedure recommended by AB Dental should not replace the dentist/surgeon's judgement and experience.

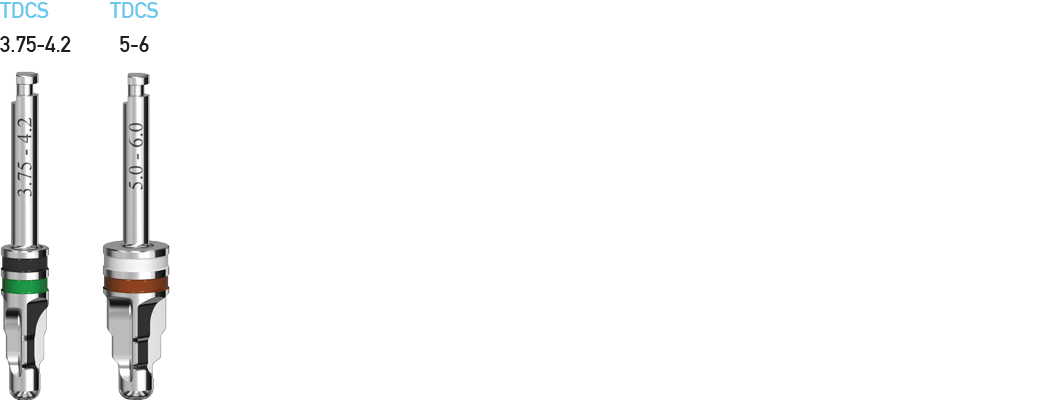

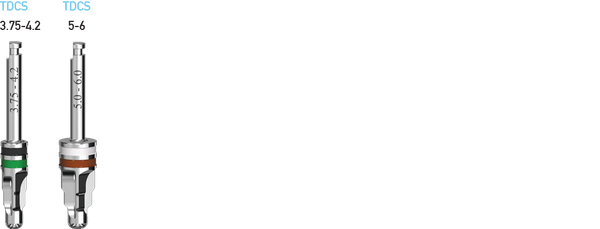

Optional drills

Final drills for dense bone (type 1-2)

Package Content

Components, Inside tube, Outside tube, Package included
