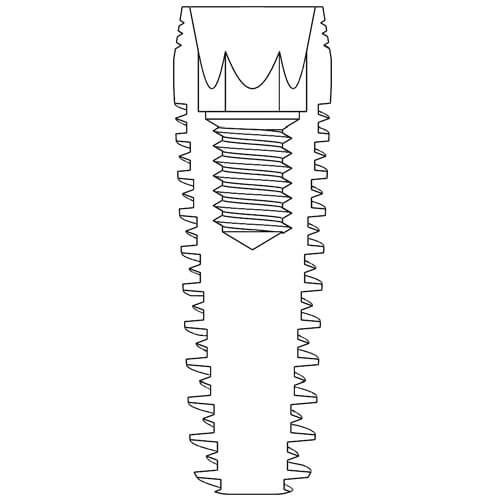

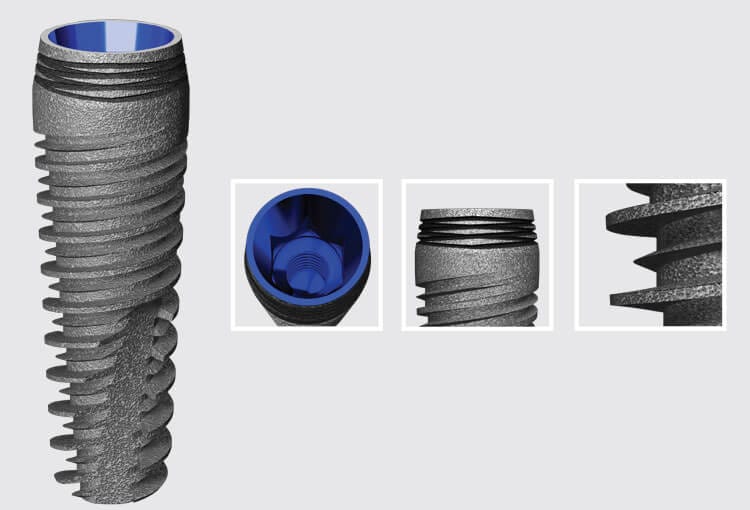

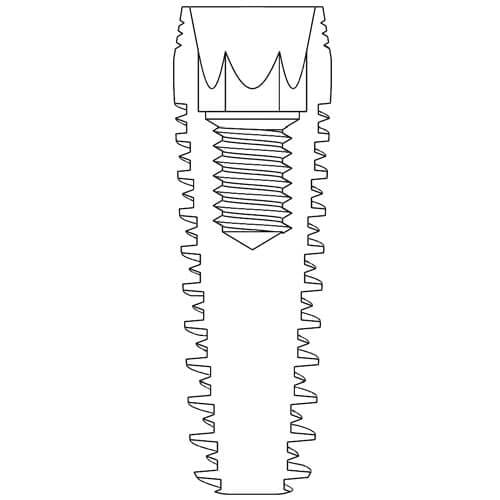

I10C Trapeze implant with conical platform

Technical details & Features

• The conical connection between the implant and the internal hex increases the tightness of the implant to the prosthetic part. • Helps reduce the risk of penetration by bacteria and helps prevent gingivitis and future bone loss. • Groovy neck. • Has special conical restoration parts. • Two separate external threads: Flat thread that enables the strongest initial stability & sharp thread that enables the insertion of the implant easily and with minimal trauma to the bone. • All AB Dental implants undergo blasting with calcium phosphate particles for surface roughening, followed by several thermal acid etching treatments for the implant's surface roughness and microstructure.

Implant range and protocol

∅ 4.2 mm

Lengths: 8, 10, 11.5, 13 mm

Final Drill Protocol

Drill speed (RPM): 400-600 Drill diameter (mm): 3.7

All drills are available with or without irrigation according to the dentist/surgeon's preferences. Procedure recommended by AB Dental should not replace the dentist/surgeon's judgement and experience.

Optional drills

Final drills for dense bone (type 1-2)

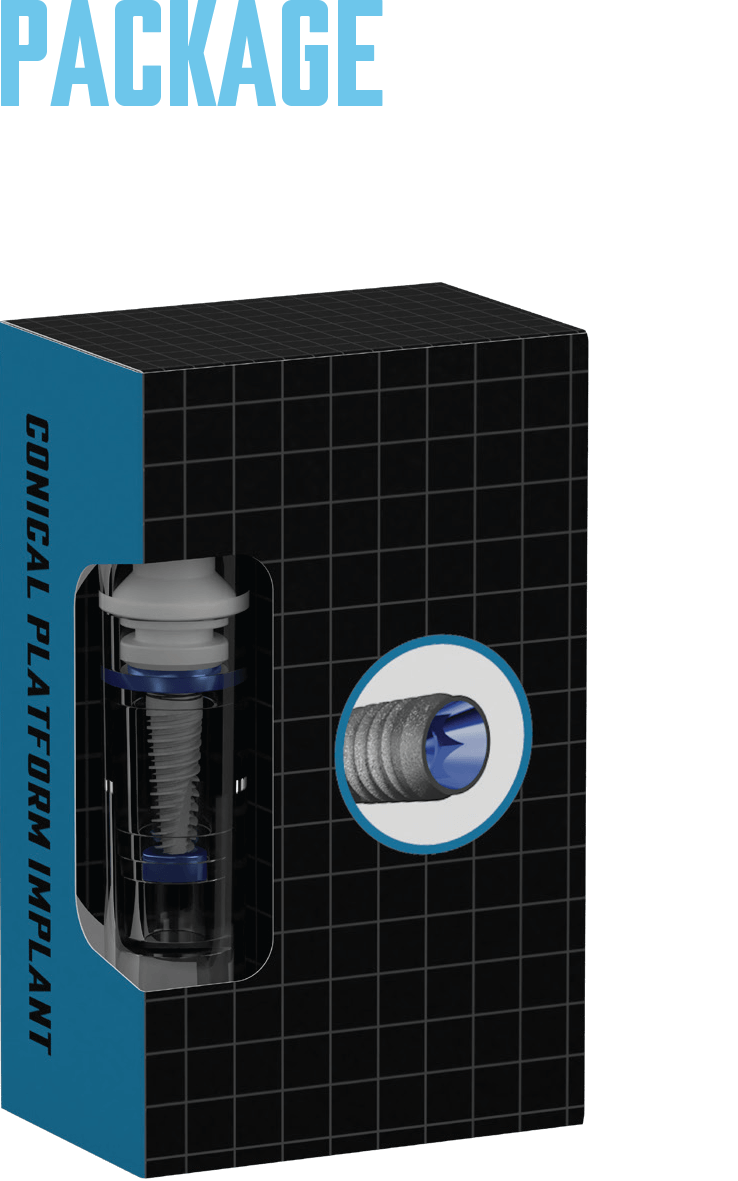

Package Content

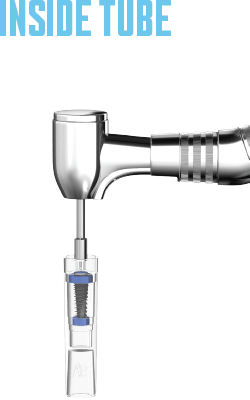

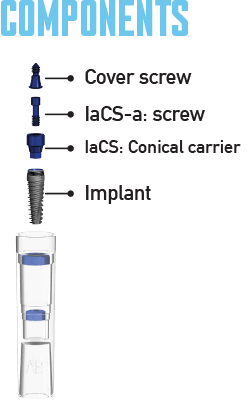

Includes implant components, inside tube, outside tube, and package as shown in component images.
