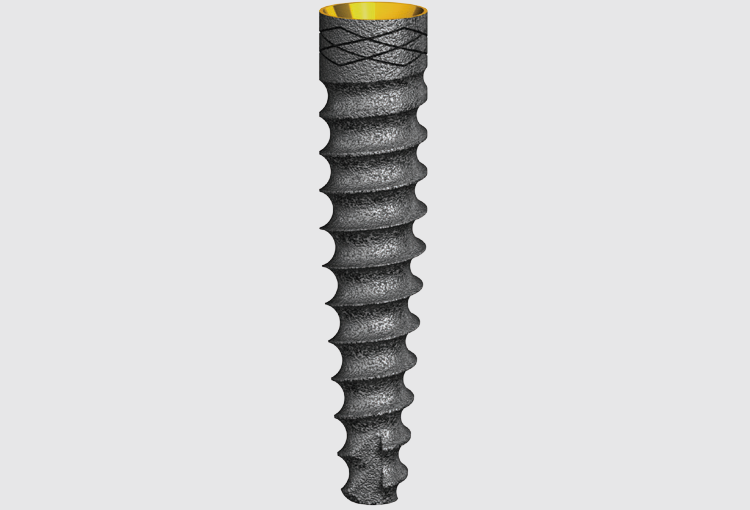

I5-3 Narrow Conical implant
AB Dental Devices Ltd. · Quelle
Technical details & Features
• The implant neck is designed in a form of a grid, to decrease bone regression.
• Suitable for soft bone zones.
• Easy and fast insertion (self-tapping).
• The design allows the implant insertion via an incision, creating better stability.
• Double platform – deep (hex connection) and flat (non-hex connection).
• All AB Dental implants undergo special calcium-phosphate sandblasting and thermal and acid etching treatments for surface roughening.
implant range and protocol
∅ 3.0
Lengths: 10, 11.5, 13, 16
Final Drill Protocol
- Drill speed (RPM): 900-1200
- Drill diameter (mm): 2
All drills are available with or without irrigation according to the dentist/surgeon's preferences. Procedure recommended by AB Dental should not replace the dentist/surgeon's judgement and experience.
∅ 3.3
Lengths: 10, 11.5, 13, 16
Final Drill Protocol
- Drill speed (RPM): 500-700
- Drill diameter (mm): 2.7
All drills are available with or without irrigation according to the dentist/surgeon's preferences. Procedure recommended by AB Dental should not replace the dentist/surgeon's judgement and experience.

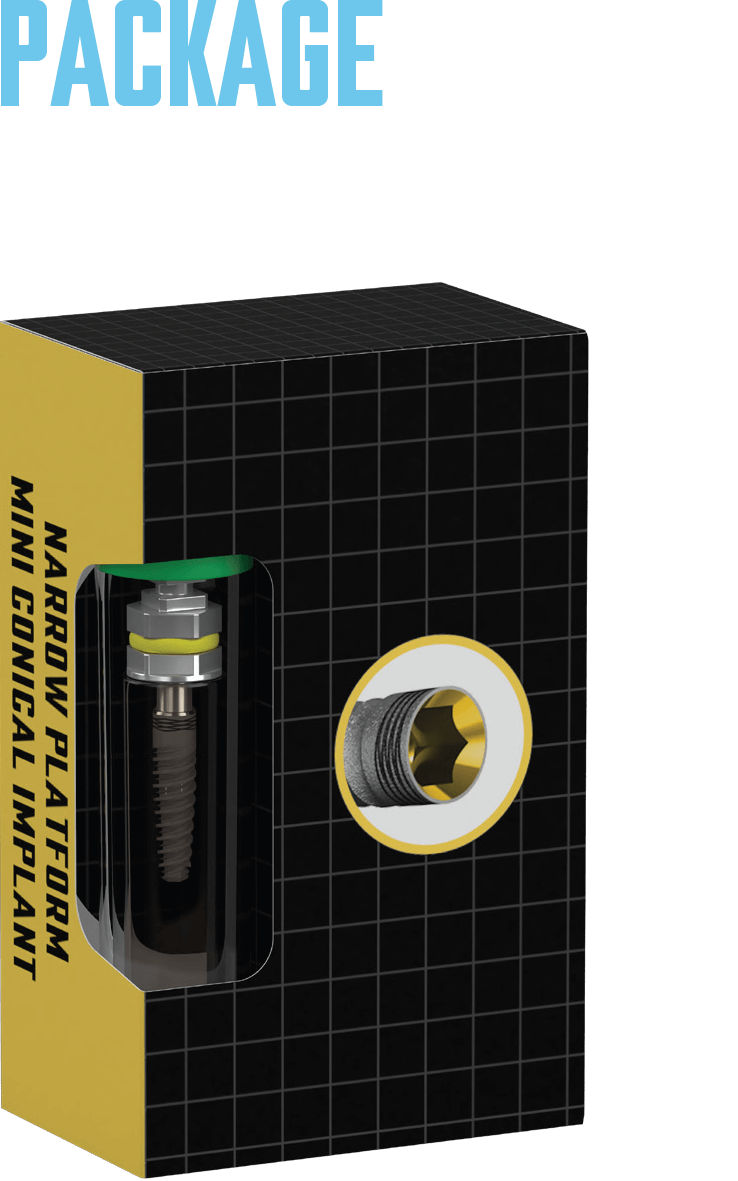

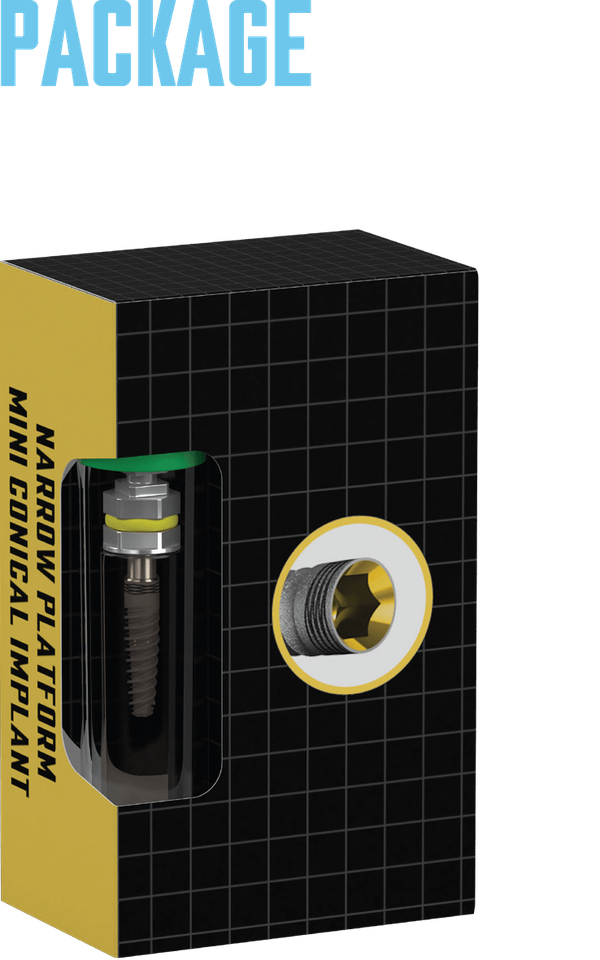

Package Content
Implant components and package included (see images)
Produktinformationen
| Hersteller | AB Dental Devices Ltd. |
|---|---|
| Typ | Narrow Conical Implant |
| Lengths | 10 mm, 11.5 mm, 13 mm, 16 mm |
| Oberfläche | Calcium-phosphate sandblasting and thermal and acid etching |
| Diameters | 3.0 mm, 3.3 mm |
| Insertion | Selbstschneidend |
| Verbindung | Double platform - deep (hex connection) and flat (non-hex connection) |
| Anwendung | Suitable for soft bone zones |
| Design Feature | Grid-form implant neck |
| Drill Speed 3.0mm | 900-1200 RPM |
| Drill Speed 3.3mm | 500-700 RPM |
| Final Drill Diameter 3.0mm | 2 mm |
| Final Drill Diameter 3.3mm | 2.7 mm |
