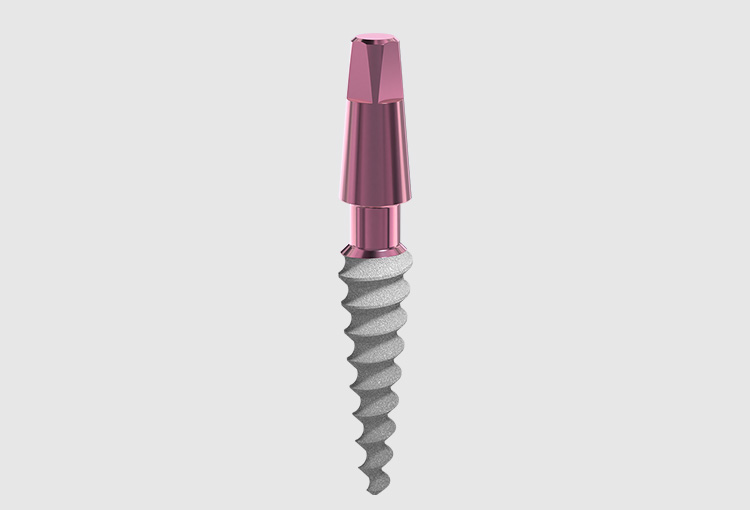

I6 Narrow integral implant

Technical details & Features

• One-piece conical, integral implant combined with an abutment
• Designed for narrow alveolar ridges with sufficient depth and narrow interdental spaces
• Available also in 2.4 mm diameter for very narrow ridges, such as anterior mandibular area
• Enables fixing cemented restorations or detachable prosthetics
• Implant insertion with minimal injury to the jawbone
• Can be immediately-loaded
• The one-piece implants absorb the applied forces ideally without any risk of screw fractures
• The absence of a connection between the implant and the abutment prevents microbial infection and future bone resorption
• Provides an aesthetic solution
• Rounded threads and self-tapping
• Suitable as a temporary implant until placing final implants for permanent rehabilitation, even in very narrow ridges
• All AB Dental implants undergo special calcium-phosphate sandblasting and thermal and acid etching treatments for surface roughening

Implant range and protocol

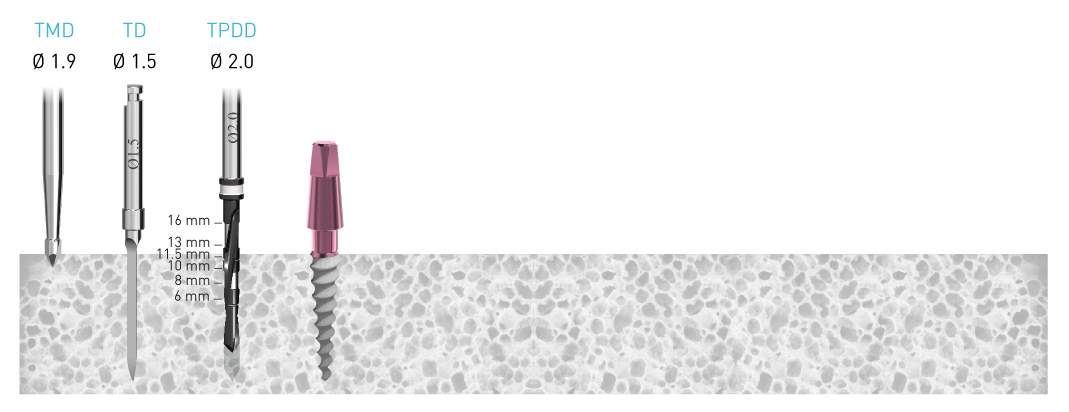

∅ 2.4

• Lengths: 11.5, 13, 16
• Final Drill Protocol: Drill speed (RPM) 900-1200, Drill diameter (mm) 2

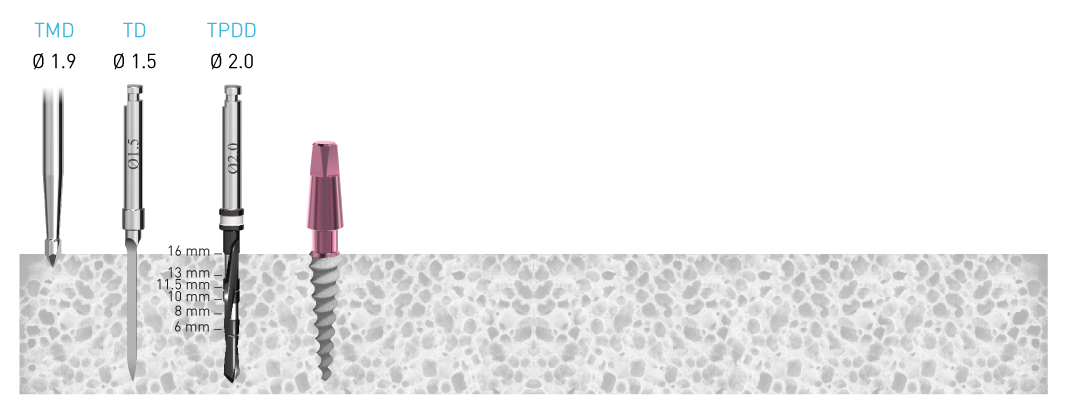

∅ 3.0

• Lengths: 10, 11.5, 13, 16
• Final Drill Protocol: Drill speed (RPM) 800-1000, Drill diameter (mm) 2.2

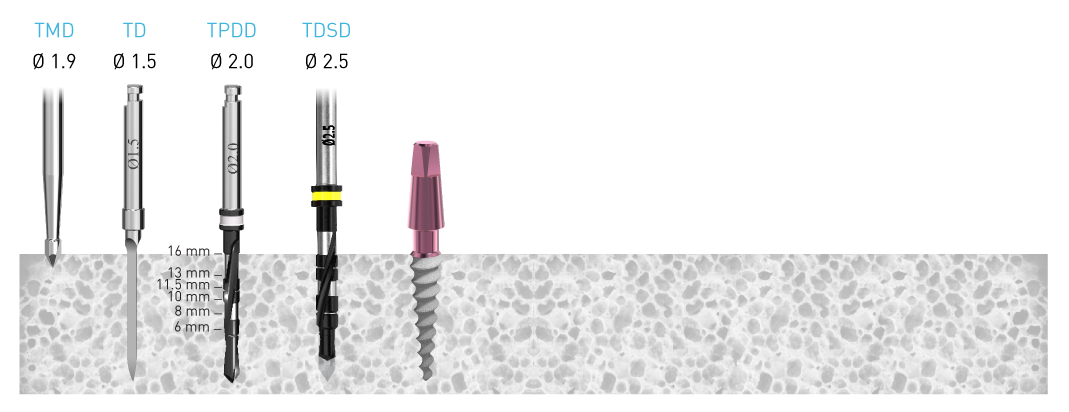

∅ 3.3

• Lengths: 6, 8, 10, 11.5, 13, 16
• Final Drill Protocol: Drill speed (RPM) 800-1000, Drill diameter (mm) 2.5

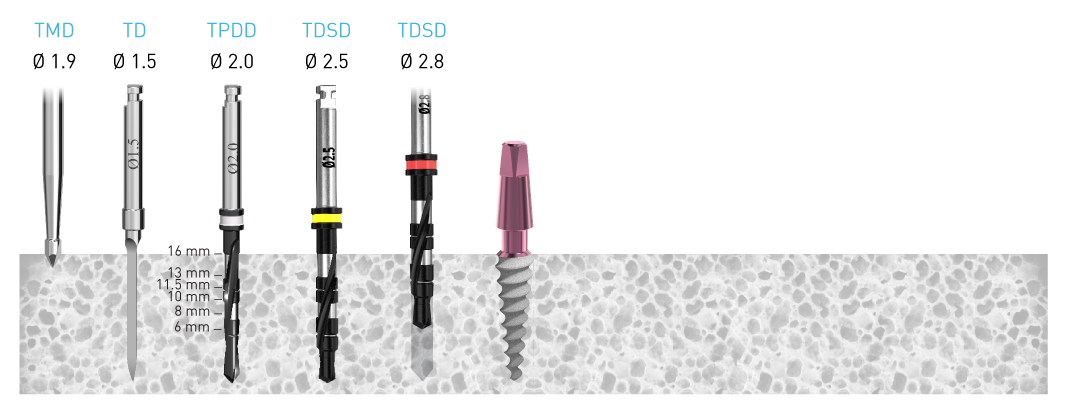

∅ 3.75

• Lengths: 6, 8, 10, 11.5, 13, 16
• Final Drill Protocol: Drill speed (RPM) 500-700, Drill diameter (mm) 2.8

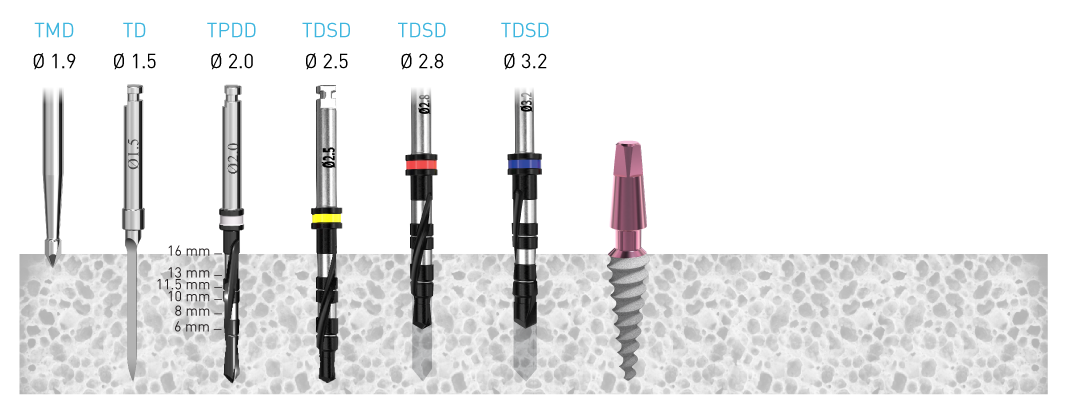

∅ 4.2

• Lengths: 6, 8, 10, 11.5, 13, 16
• Final Drill Protocol: Drill speed (RPM) 400-700, Drill diameter (mm) 3.2

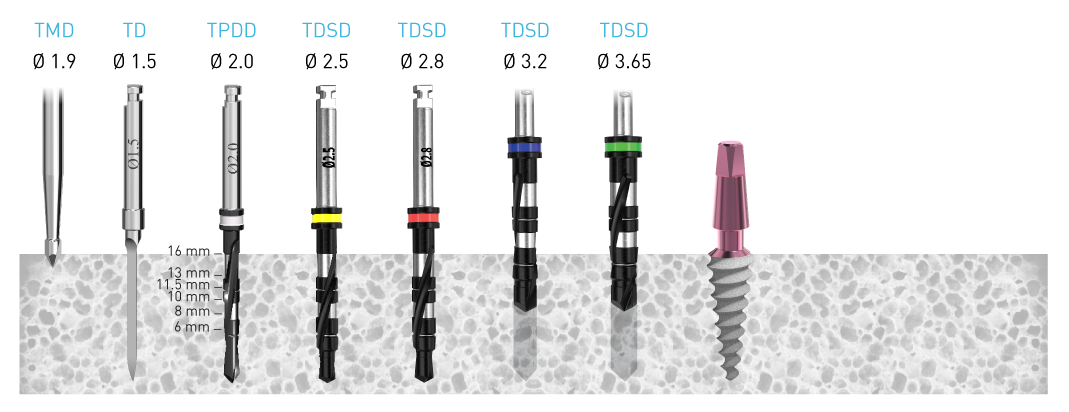

∅ 5.0

• Lengths: 6, 8, 10, 11.5, 13
• Final Drill Protocol: Drill speed (RPM) 400-600, Drill diameter (mm) 3.65

All drills are available with or without irrigation according to the dentist/surgeon's preferences. Procedure recommended by AB Dental should not replace the dentist/surgeon's judgement and experience.
