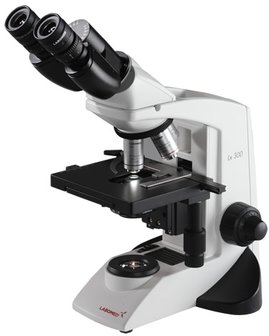

Lx300, Siedentopf Binocular head

A Versatile System for the College Classroom

Today's educators call for a classroom microscope that would be ideal for continued education and pre-clincial programs. Demanded is a product with crisp optics, ergonomic features for a mature classroom, and a price point that supports institutional purchases. Provided is the Lx 300, putting all requests to rest.

Lx 300 Advantages:





EP2 series Infinity Corrected Plan Achromatic objectives provide crisp and accurate images at all powers. The optical system allows for the introduction of digital accessories while maintaining the highest level of performance.





A Butterfly style binocular head will enable two distinct viewing positions for students of different heights, thus making the Lx 300 comfortable and versatile in use.







An eco friendly and highly efficient rechargeable LED (approx. 100,000 hours bulb life) serves as a powerful daylight color temperature illumination source that will make bulb change a thing of the past.



    Microscope

		Stand
		Single mold sturdy stand with anti-rust materials. Ergonomic base for hand rest and greater stability.


		Viewing Body
		Siedentopf Binocular (Butterfly style) or Trinocular head, 45° inclined, 360° rotatable, with adjustable viewing height up to 40 mm, IPD 48 - 75 mm


		Eyepieces
		Wide field 10x/18 mm with foldable eye guards, lockable, antifungal


		Nosepiece
		Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip


		Objectives
		EP2 Plan Achromat DIN Infinity objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal


		Mechanical stage
		Double plate stage 150 x 135 mm, X-Y travel range 75 x 40 mm with low-height controls. Hard coated surface for scratch resistance. Double specimen holder.


		Condenser
		Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue daylight filter. Rack and pinion movements on metal guides


		Focusing
		Coaxial coarse and fine focus on ball drive system for smooth operation


		Illumination
		Intensity controlled LED (up to 50,000 hours of LED life)


		Electronics
		Universal input 100 - 240 V AC, 50/60 Hz. Built-in voltage stabilizer








Package Contents

Power Cable (6ft)
Cargille Immersion Oil
Spare bulb (20w version only)
Nylon Dust Cover & Cleaning Cloth
Styrofoam Casing



Accessories (Optional)

Pointers & Micrometer Reticules
Phase (Simple & Zernike), Polarizing, Fluorescence and Dark Field Kits
Dual Viewing Bridge
Quintuple Position Viewing Bridge
Auxiliary Objectives and Eyepieces
Cord Hanger Kit
Digital Cameras and Adapters
Soft Carrying Case
