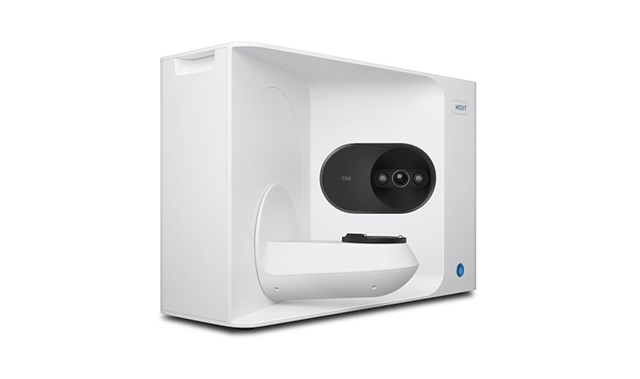

Model Scanner T310
IZEN IMPLANT CO., LTD. · #T310 · Quelle
Introduction
With high-quality hardware and optimized software, scan a full-arch in just 18 seconds 5.0MP cameras ensure high-resolution detailed scan data. With four-camera system, it covers a wide scan area, eliminating any blind spots. Auto-elevation High accuracy (9-micron accuracy), following ISO 12836 Enjoy open system which allows to import / export files in STL format
Additional description
Specifications in detail:
| Specification | Detail |
|---|---|
| Resolution of camera | Mono 5.0 (MP) x 2 |
| Point spacing | 0.040mm |
| Scan area | 100mm x 73mm x 60mm |
| Scan Principle | Phase-shifting optical triangulation |
| Light source | LED, 150 ANSI-lumens, Blue LED |
| Connection | USB 3.0 B Type |
| Power | AC 100 ~ 240V (50/60Hz) |
| Accuracy (ISO 12836) | 9㎛ |
| Full arch scan speed | 18 seconds (7 cuts) |
Optional: Replica denture, Orthodontic Scanning, Flexible Scanning, Articulator Scanning
Produktinformationen
| Hersteller | IZEN IMPLANT CO., LTD. |
|---|---|
| Leistung | AC 100 ~ 240V (50/60Hz) |
| Scan Area | 100mm x 73mm x 60mm |
| Verbindung | USB 3.0 B Type |
| Lichtquelle | LED, 150 ANSI-lumens, Blue LED |
| Zertifizierung | CE, FDA |
| Point Spacing | 0.040mm |
| Scan Principle | Phase-shifting optical triangulation |
| Place Of Origin | Korea |
| Accuracy (iso 12836) | 9㎛ |
| Full Arch Scan Speed | 18 seconds (7 cuts) |
| Resolution Of Camera | Mono 5.0 (MP) x 2 |
