P12 Flat connection abutment

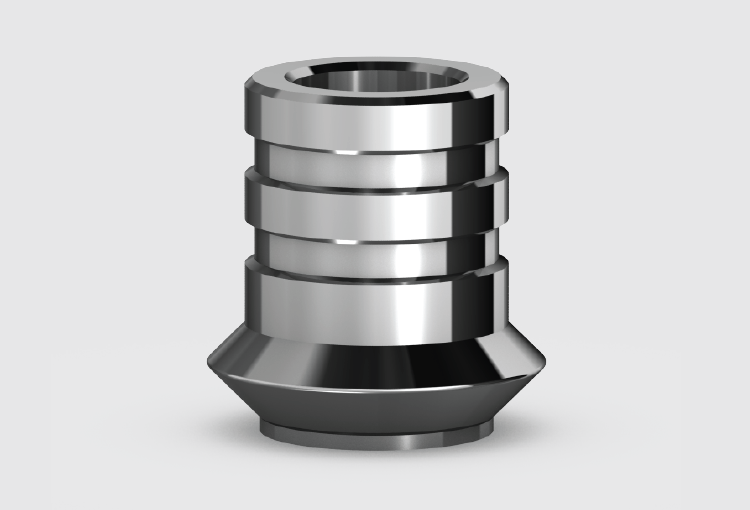

P12 FLAT CONNECTION ABUTMENT

The P12 abutment is used for screw-retained restorations and enables restoration on non-parallel implants, by canceling the hex and thereby canceling the obstruction of the insertion path. This enables the restoration of full arch bridges even with non-parallel implants with severe angles.

Key Features:

• The P12 system provides a comprehensive solution for temporary and permanent restoration while retaining maximum precision.
• Issued patent.
• Retains maximum precision.
• Platform switching by design, allowing a perfect environment for the growth of the soft tissues and helps to prevent bone resorption.
• In case of a non-double platform implant, the P12C adaptor enables the use of a flat connection abutment. This adapter provides a second function as an extension piece when the implant is placed too deep.
• Suitable for anterior implants with buccal inclination, and enables high esthetic results.

Size Specifications

P12 FLAT CONNECTION ABUTMENT

• Model: P12-3.75
• D1 (mm) = 4.5
• L (mm) = 5

P12C ADAPTOR FOR FLAT CONNECTION ABUTMENT

• Model: P12C-3.75, 3
• Model: P12C-3.75, 5
• D1 (mm) = 3.75
• L (mm) = 3,5

D2-P12 IMPRESSION TRANSFER FOR FLAT CONNECTION ABUTMENT

• Model: D2-P12-3.75, 9
• Model: D2-P12-3.75, 15
• D1 (mm) = 4.5
• L (mm) = 9, 15

D2N-P12 NARROW IMPRESSION TRANSFER FOR P12

• Model: D2N-P12-3.75, 9
• Model: D2N-P12-3.75, 15
• D1 (mm) = 3.75
• L (mm) = 9, 15

P12-TEMPORARY FLAT CONNECTION ABUTMENT

• Model: P12-3.75-T
• D1 (mm) = 4.5
• L (mm) = 15
• L1 (mm) = 7

P12-T/L TEMPORARY FLAT CONNECTION LONG ABUTMENT

• Model: P12-3.75-T/L
• D1 (mm) = 4.5
• L (mm) = 15
• L1 (mm) = 11

Related Screws

• D2al: Long screw for D2-P12 Impression transfer
• D2-P12ca: Long screw for D2-P12 Impression transfer
• P4a-S: Short screw
• P12ca: Short screw for P12C adaptor
• P12p: Plastic sleeve for p12
