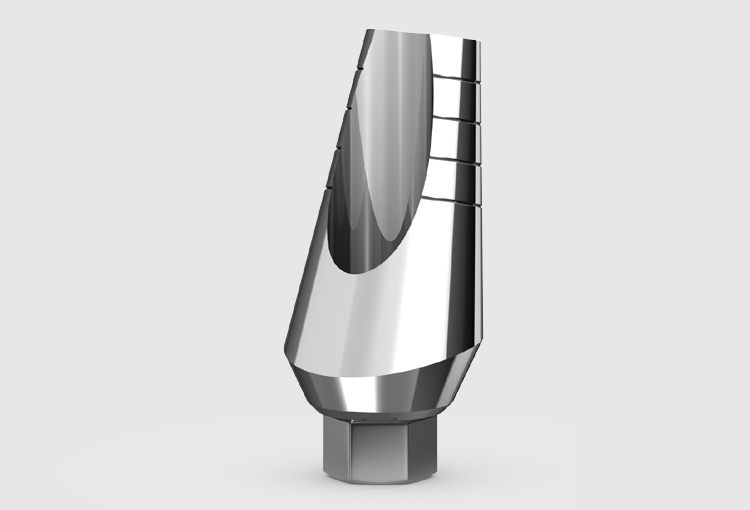

P4 Angular abutment
AB Dental Devices Ltd. · Quelle
• Angular abutment for cemented restoration, allowing the dentist to rehabilitate the implant's position even in extreme angles such as 35˚ and 45˚. • The P4 is available in 15˚ and 25˚, as a long abutment (13mm). • Platform switching by design, allowing a perfect environment for soft tissue growth and helps to prevent bone resorption.
Size Specifications
P4 ANGULAR ABUTMENT
- P4-3.75, 15
- P4-3.75, 25
- P4-3.75, 35
- P4-3.75, 45
- D1 (mm) = 4.7
- 15°, 25°, 35°, 45°
- L (mm) 15°, 25° = 9
- L (mm) 35°, 45° = 10, 12
P4ST ANGULAR ABUTMENT
- P4-3.75, 15st
- P4-3.75, 25st
- D1 (mm) = 4.7
- 15°, 25°
- L (mm) = 9
P4L LONG ANGULAR ABUTMENT
- P4L-3.75, 15
- P4L-3.75, 25
- D1 (mm) = 4.7
- 15°, 25°
- L (mm) = 13.4
PAN NAROW ANGULAR ABUTMENT
- P4N-3.75, 15
- D1 (mm) = 3.75
- 15°
- L (mm) = 9
P4-5 ANGULAR ABUTMENT
- P4-5, 15
- P4-5, 25
- D1 (mm) = 5
- 15°, 25°
- L (mm) = 10.75, 11.1
Produktinformationen
| Hersteller | AB Dental Devices Ltd. |
|---|---|
| Eigenschaften | Platform switching by design, prevents bone resorption |
| Plattform | 3.75, 5 |
| Indikation | Cemented restoration on non-parallel implants |
| L Dimensions | 9 mm (standard angles 15°/25°), 10-12 mm (35°/45°), 13.4 mm (long) |
| D1 Dimensions | 4.7 mm (standard/ST/L), 3.75 mm (narrow), 5 mm (P4-5) |
| Type Variants | Standard (P4), Short thread (P4ST), Long (P4L), Narrow (P4N) |
| Available Angles | 15°, 25°, 35°, 45° |
