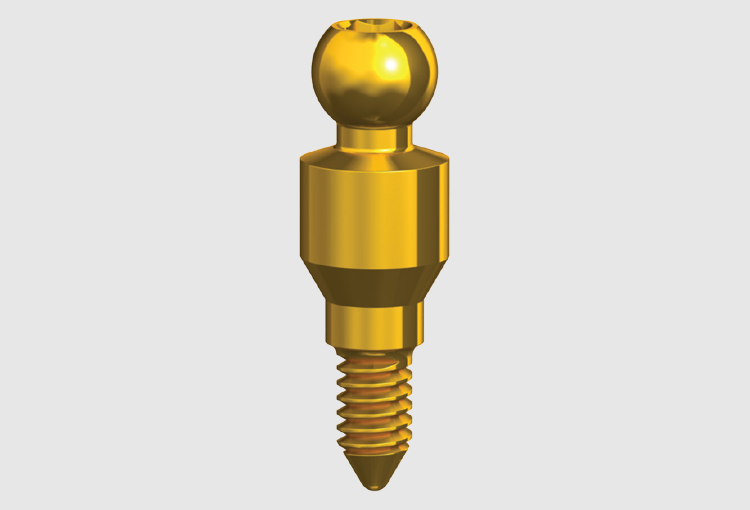

P5-3 Narrow ball attachment abutment
AB Dental Devices Ltd. · #P5-3 · Quelle
• An abutment that connects a detachable prosthesis to an implant and stabilizes it. • The abutments are provided with a stainless steel and silicon caps. • Silicon caps are available in three degrees of hardness, 1-3, from the hardest to the softest. • Available in different heights: 1mm- 6mm. • Platform switching by design, allowing perfect environment for the soft-tissues growth and helps preventing bone resorption. • Narrow platform-3mm diameter.

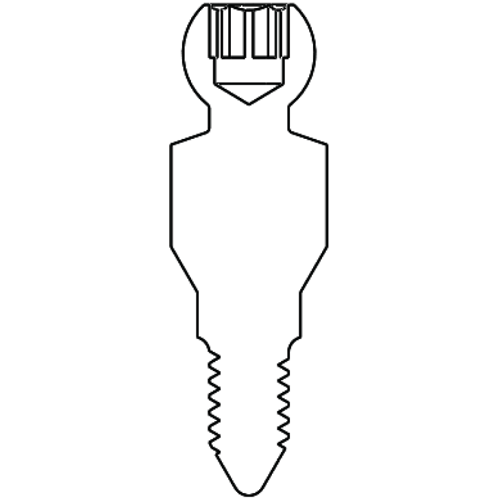

P5 BALL ATTACHMENT ABUTMENT WITH NARROW PLATFORM
Available variants:
- P5-3, 1
- P5-3, 2
- P5-3, 3
- P5-3, 4
- P5-3, 5
- P5-3, 6
Specifications:
- D1 (mm) = 3
- L (mm) = 1, 2, 3, 4, 5, 6
P5A METAL CAP
- P5a
- D1 (mm) = 5
- L (mm) = 3.2
P5B SILICON CAP
- P5b-1 (hard, grey color)
- P5b-2 (medium, transparent color)
- P5b-3 (soft, pink color)
- D1 (mm) = 4
- L (mm) = 2.5
Produktinformationen
| Hersteller | AB Dental Devices Ltd. |
|---|---|
| Length L | 1, 2, 3, 4, 5, 6 mm |
| Material | Stainless steel and silicon caps |
| Plattform | Narrow platform - 3mm diameter |
| Cap Colors | Metal cap, grey (hard), transparent (medium), pink (soft) |
| Diameter D1 | 3 mm |
| Design Feature | Platform switching |
| Available Heights | 1mm - 6mm |
| Silicon Cap Hardness | Available in three degrees: 1-3 (hardest to softest) |
