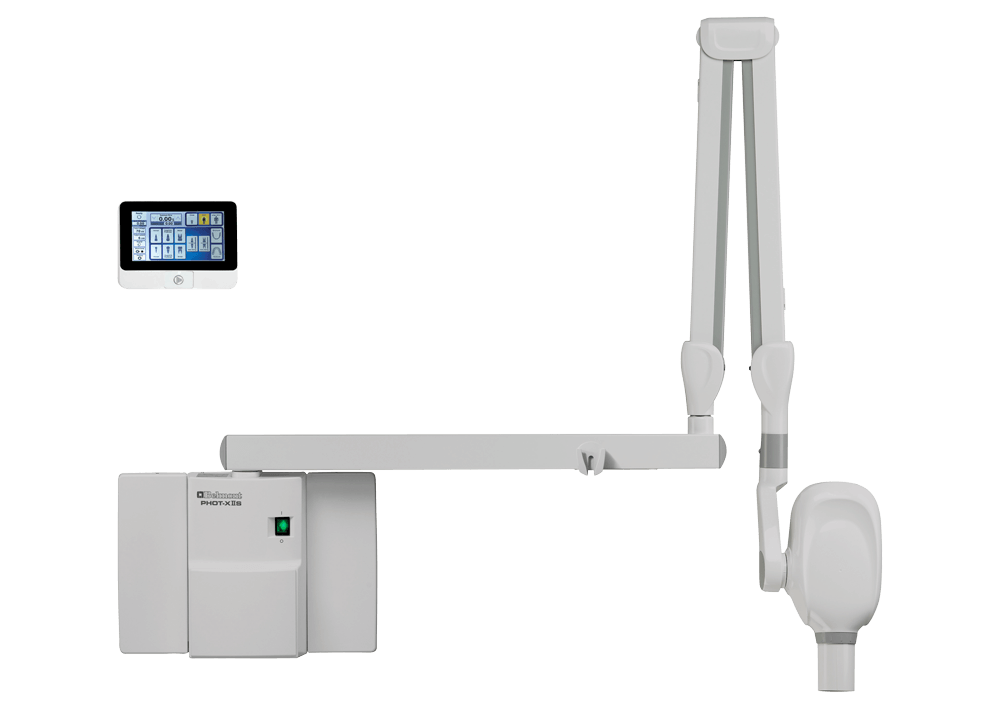

PHOT-xlls LCD Intraoral Imaging System
Belmont · #505WK · Quelle
The PHOT-xIIs LCD is engineered for dental professionals who require exceptional image clarity and adaptable functionality. From detailed diagnostic work to everyday procedures, it provides consistent, high-resolution imaging with intuitive controls, helping clinicians make informed decisions while streamlining workflow.
Produktinformationen
| Hersteller | Belmont |
|---|---|
| Modell | 505WK |
| Gewicht | 1.2 lbs |

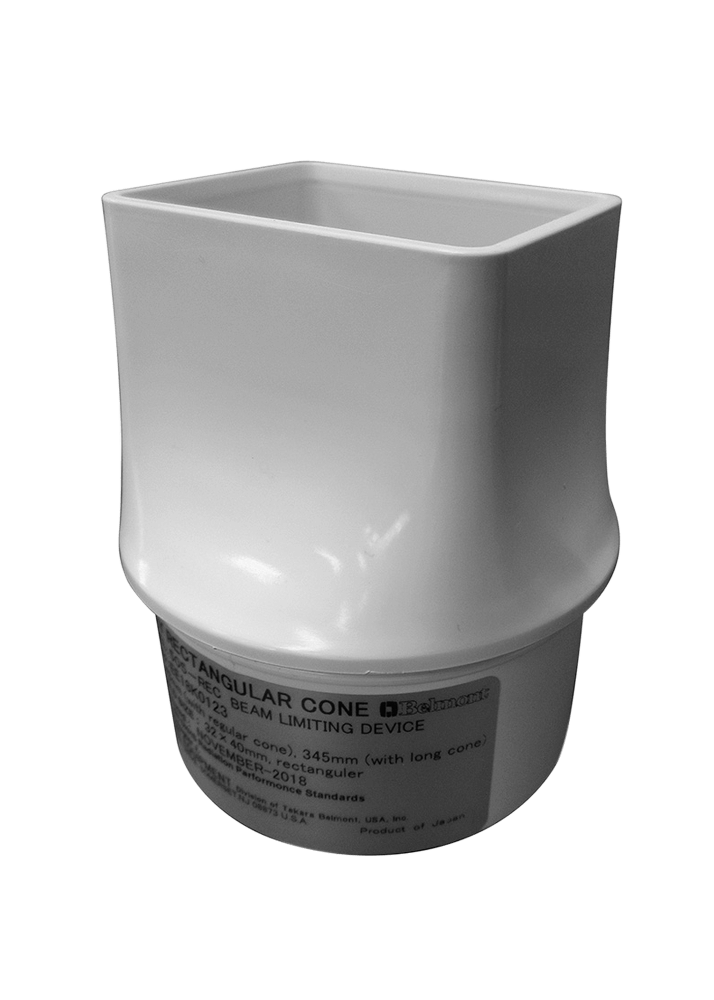

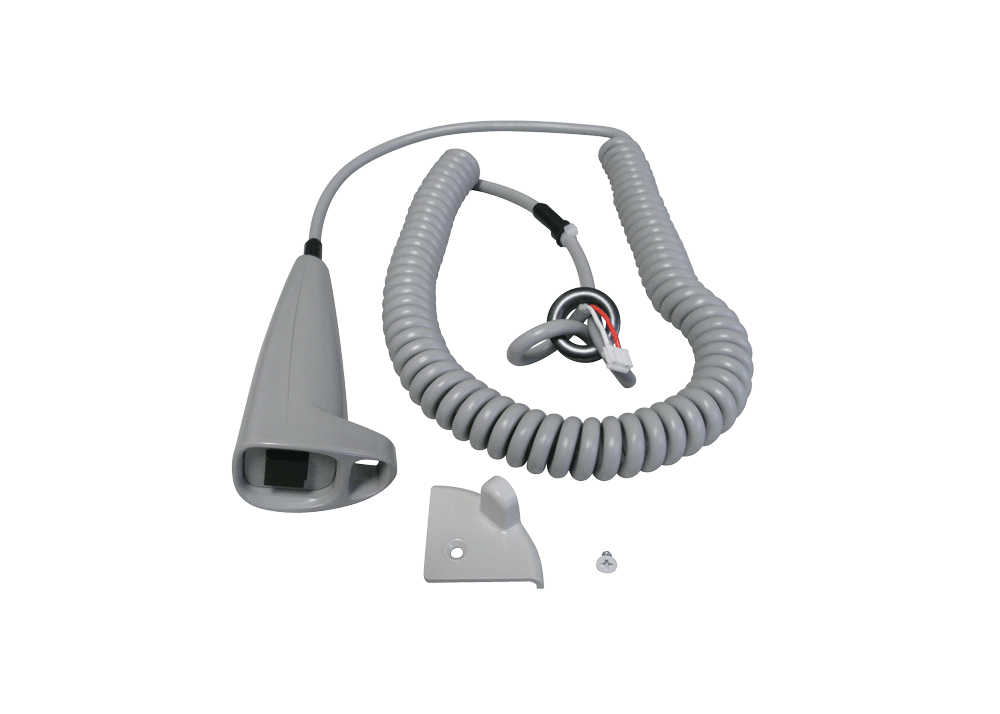

| Options | Rectangular Collimator, 12" Long Cone, Coiled Wire Remote Switch, Pass-Thru Mounting Plate |
| Spannung | 120 VAC |
| Garantie | 5-Year |
| Abmessungen | 12 × 2 × 1.5 in |
| Duty Cycle | 1:30 |
| Focal Spot | 0.4 mm (IEC60336) |
| Cone Length | 8" Source to Skin Distance (SSD) |
| Exposure Time | 0.01 – 2.0 s |
| Generator Type | DC |

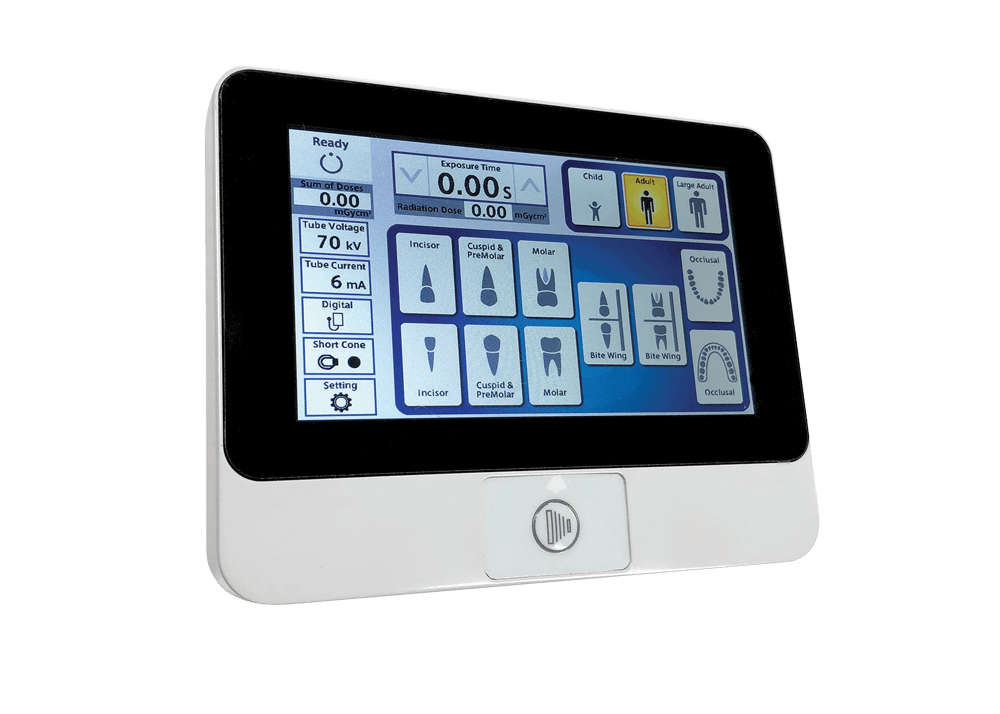

| User Interface | LCD Touchscreen Sub-controller |
| Wall Mounting Plate | 16" Center Stud Mounting |
| Selectable Tube Current (ma) | 3 mA, 6 mA |
| Selectable Tube Voltage (kv) | 60 kV, 70 kV |
| Applicable Regulations Compliance | ETL, FDA |
| Minimum Filtration In Useful Beam | 2.0 mm AI Equivalent at 70 kV |
| Maximum Reach With Arm Length Selection | 84-1/8" with 40" Length Arm; 75-5/8" with 31-1/2" Length Arm; 64- 1/8" with 20" Length Arm; 56-1/8" with 12" Length Arm |
