Prima˜DNT Microscope Premium, Wall mount, NuVar 10

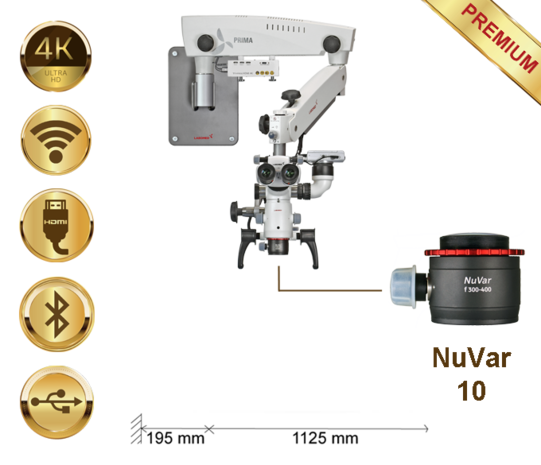

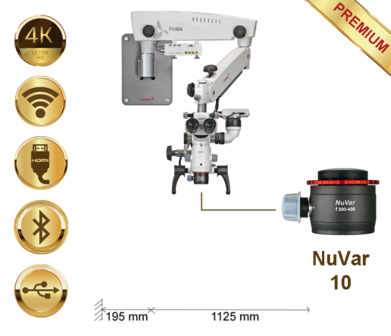

Prima DNT Microscope Premium with Wall mount and NuVar 10, Sony A6100 camera and HDMI wireless

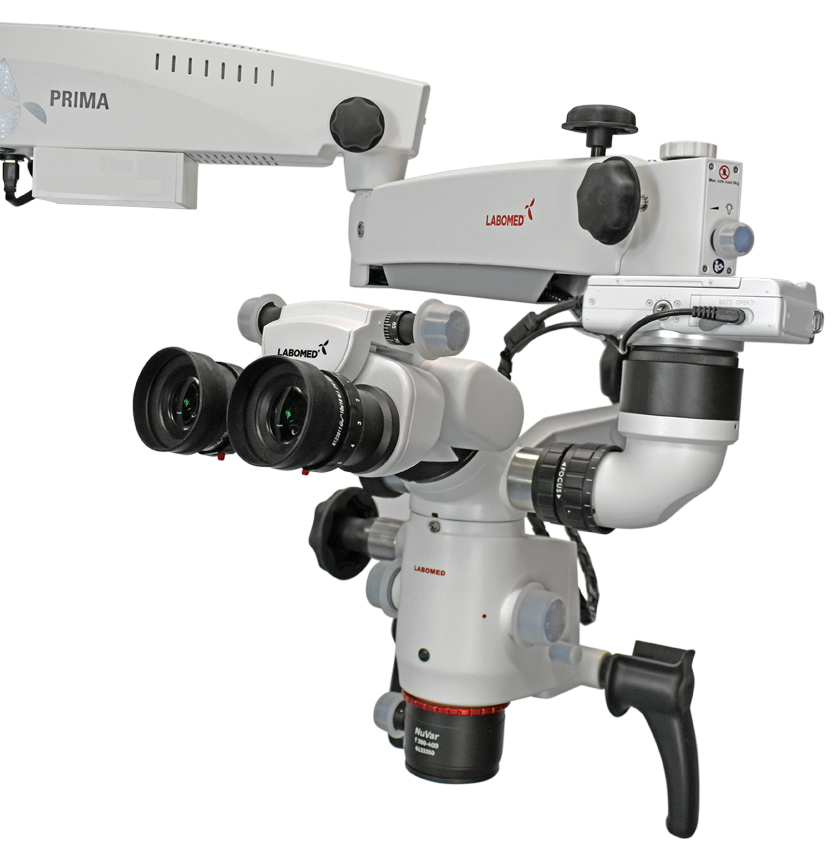

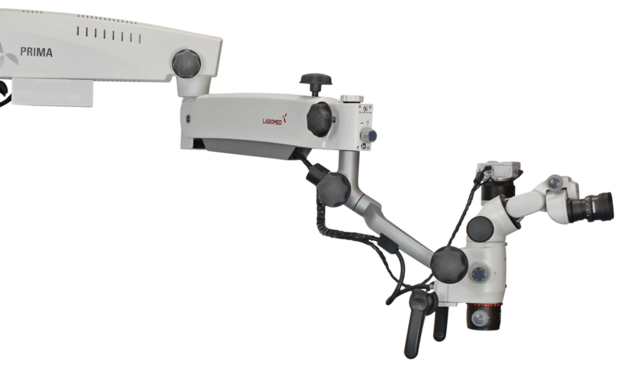

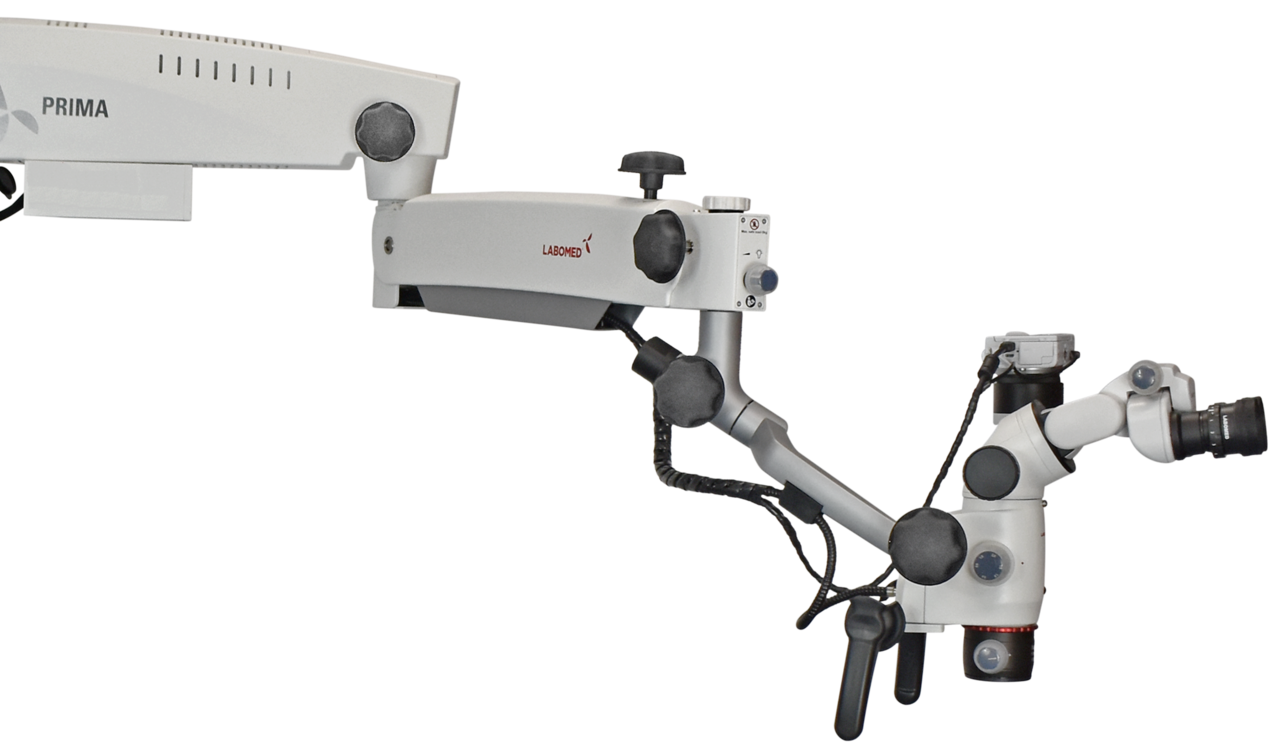

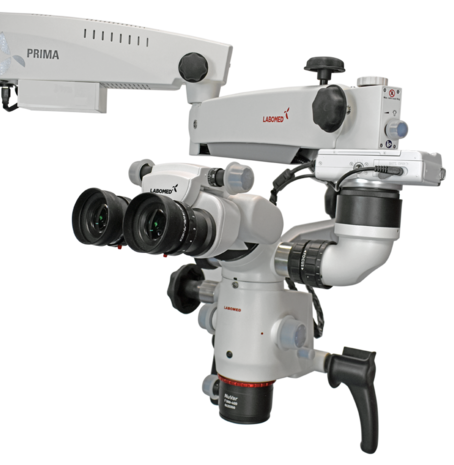

The Prima DNT dental microscope reflects a performance-driven and modular design for the evolving needs of today's dental professional. With an intelligent LED illumination system, crisp optics and fluid articulation, the Prima DNT is a technology leader among dental operating microscopes.

A super bright LED delivers over 135,000 Lux with a natural daylight colour temperature. A run time of up to 60,000 hours eliminates the need for frequent bulb changes. Built-in electronics make for the most compact arm system around.

An Apochromatic optical system produces superior resolution and artifact-free images for excellent visibility. Proprietary MaxLite™ coatings promise reflection-free and durable optics.

The NuVar™ objective delivers variable working distances, making the Prima DNT more versatile and user friendly for dental professionals.

Microscope Premium Specifications

Prima DNT microscope with an intelligent LED illumination system
Mounting system: Wall mount system
Suspension arm: 1125 mm
Magnichanger: 5 step magnichanger with magnification 0.4x, 0.6x, 1.0x, 1.6x and 2.5x
Viewing bodies: ergonomic binocular tubes 0º-210º tiltable, IPD range 55-75 mm, f=170 mm
Objective: NuVar 10
Eyepieces: WF 10X/18 mm with foldable eye guards, diopter adjustment ± 5 mm with diopter lock
Observation head: ergonomic adjustable handgrips for observation head
Microscope carriers: 120º carrier
Illumination: fiber optic illumination 50W LED, up to 60,000 hours of LED lamp lifetime, 135,000 Lux
Input: AC 115-240V, 50/60Hz
Filter: yellow and green filter with filter holder
Vertical movement of arm: 600 mm
Fuse: quick-acting fuse 1.0 Amp
Standard accessories: dust cover for microscope observation head and illumination box
Beam Splitter: Double beam Splitter, inclined
DSLR: Camera Optics tube with all adapters to connect Lumix camera
DSLR Camera Optics tube: yes
SD-card: yes
Camera system: Sony A6100 camera
Camera USB output: on the arm of the microscope
Bluetooth: yes, Bluetooth 4.2
WiFi: yes, IEEE 802.11b/g/n

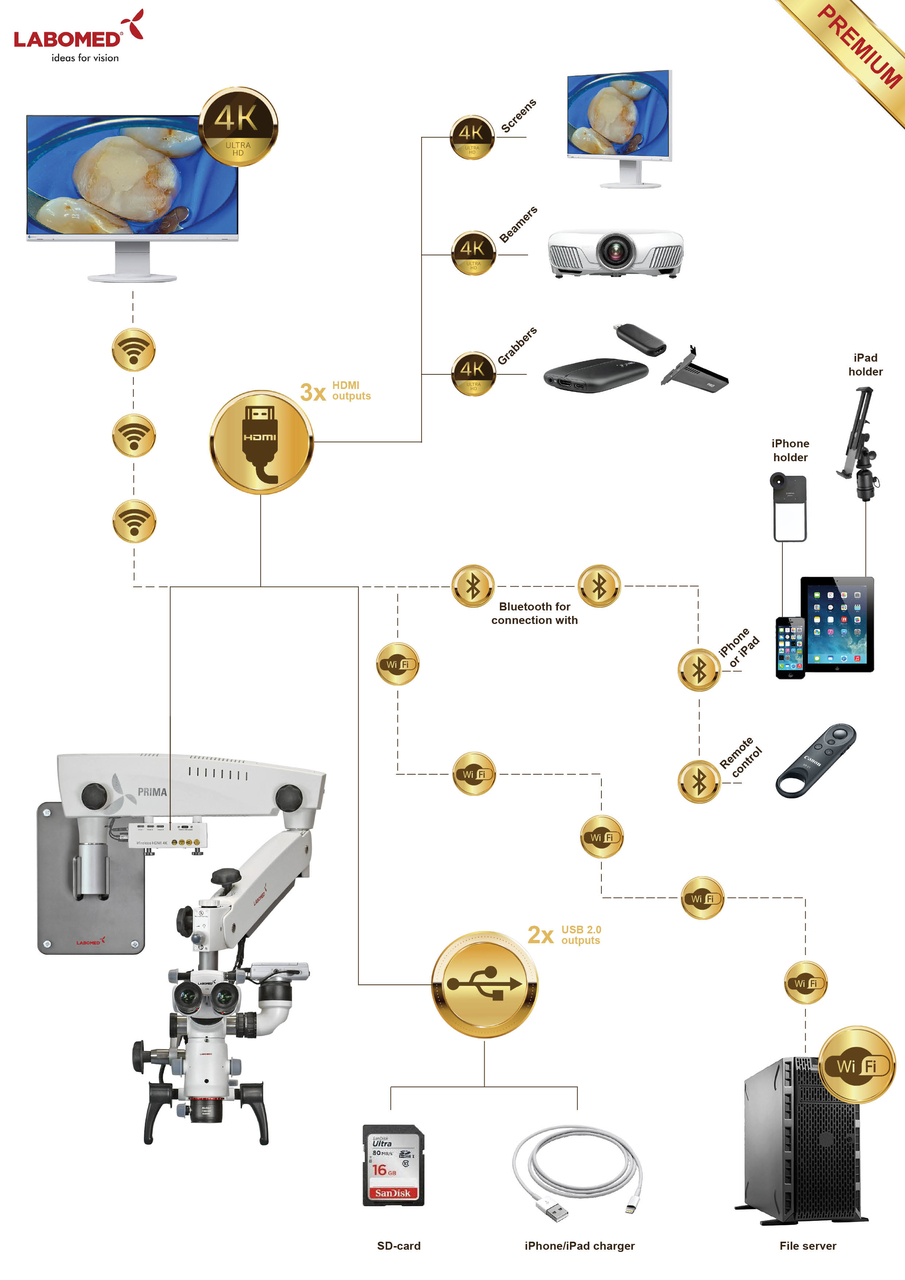

HDMI: 3x HDMI 4K output for multiple monitor use
Wireless 4K: HDMI 4K, max. 30 meter, 60 frames/sec, Zero delay (<5ms), transmitter build on microscope and receiver for the monitor
iPhone USB charging point: yes
Including: Double beam Splitter with Sony A6100 camera

PACKAGE CONTENTS:

> Prima DNT microscope > Objective NuVar 10 > DBSi with Lumix camera > HDMI wireless kit > Wall mount system > Sterilizable knob covers > Nylon dust cover



DIMENSIONS (mm)





MOUNTING (mm)





CONFIGURATIONS
