Prima Mu ENT Microscope, Wall mount
Labomed Europe b.v. · #6212000-060 · Quelle
Prima Mµ ENT microscope with 90º head, CMO 250 mm and wall mount
The Prima Mµ is intended for routine inspection and in screening clinical environments. A well-designed apochromatic optical system with a high output LED built directly into the microscope housing provides users with a compact solution. The arm system has been carefully designed to mitigate vibration and lower the system's centre of gravity to provide a more stable, lighter weight solution.
A single 27 watt LED intelligently drives the illumination system to deliver over 75,000 Lux at a carefully selected color temperature of 5700K, making Prima Mµ's eye-pleasing illumination the brightest in its class. Built into the magnichanger, the LED design makes the system more compact and runs cool for over 50,000 hours.
An Apochromatic 3-step Galilean optical system produces aberration-free images corrected for all primary wavelengths. Proprietary MaxLite™ coatings promise the highest degree of anti-reflective and scratch-resistant properties, illuminating images evenly and without artifacts. Fine focusing control is provided through long working distance NuVar 10. The Apochromatic optical system produces superior resolution and artifact-free images for excellent visibility. Proprietary MaxLite™ coatings promise reflection-free and durable optics.
The ProLine™ features a host of digital SLR, video camera and CCD adapters. All helping to simplify documentation and communicating treatment plans to patients. A Rotoplate and Extender Kit make viewing hard-to-see regions of the mouth more comfortable and ergonomic.
Microscope Specifications
Prima Mu ENT microscope with an intelligent LED illumination system
Mounting system: wall mount
Suspension arm: 980 mm
Magnichanger: 3 step magnichanger with magnification 0.6x, 1.0x and 1.6x
Viewing bodies: binocular tubes 90º tiltable, IPD range 55-75 mm, f=170 mm
Objective: lens f=250 mm with a manual fine focus control knob
Eyepieces: WF adjustable eyepiece 10x/FN 18 mm with eye guards

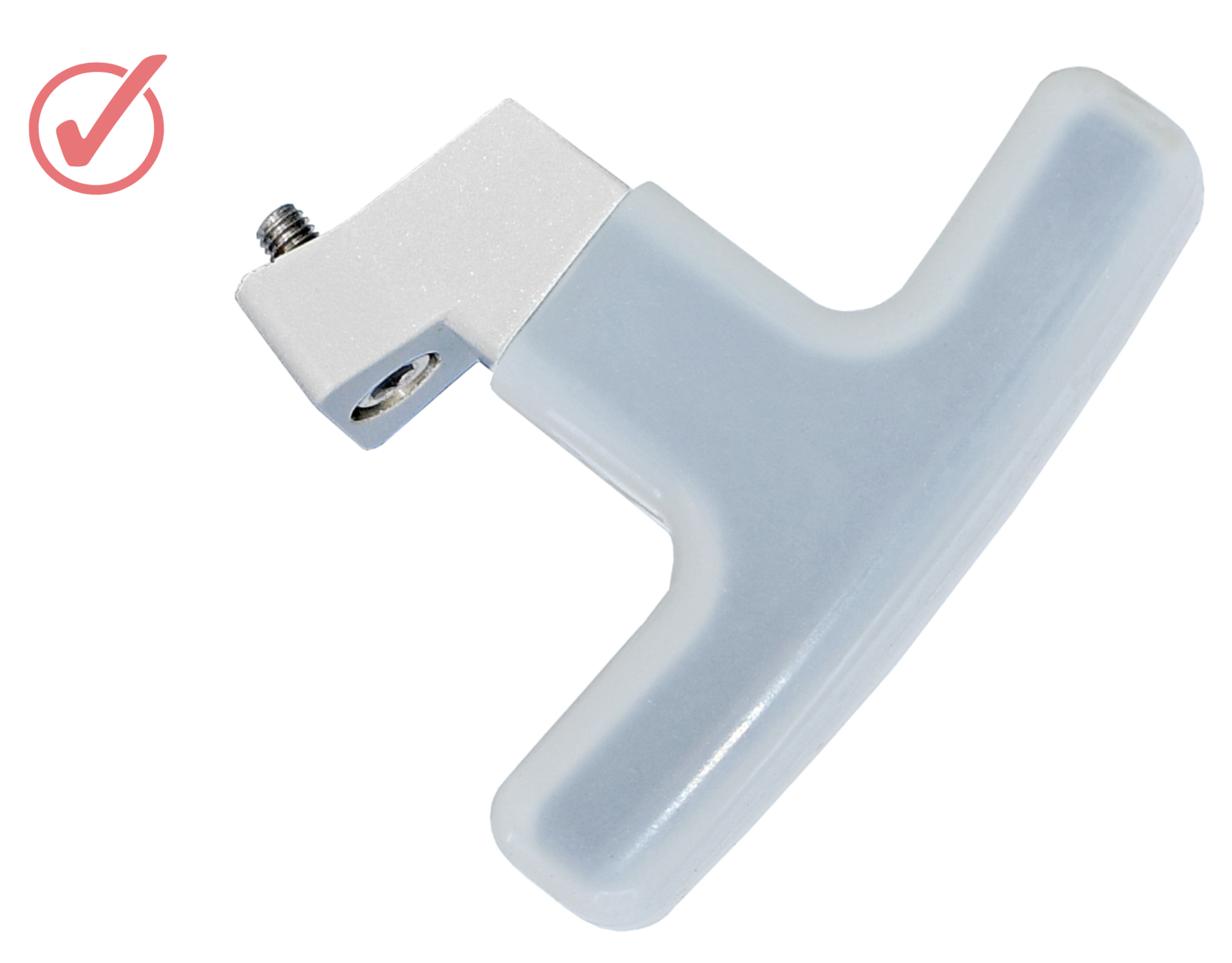

Observation head: ergonomic T-handle for observation head
Handle: T-handle with cover (included)
Microscope carriers: straight down mounted but also delivered with 155º carrier
Illumination: in magnichanger integrated illumination 27W LED, up to 50,000 hours of LED lamp lifetime, 75,000 Lux
Input: AC 115-240V, 50/60Hz
Filter: green filter with a filter holder
Vertical movement of arm: 600 mm
Fuse: quick-acting fuse 1.0 Amp
Standard accessories: dust cover for microscope observation head and illumination box
PACKAGE CONTENTS:
> Prima Mµ ENT microscope > Objective CMO 250 mm > Tools for securing base and pillar > Sterilizable knob covers > Nylon dust cover

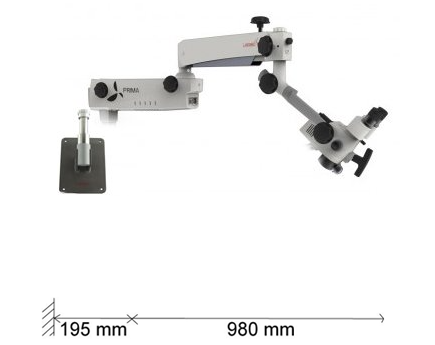

DIMENSIONS (mm)
CONFIGURATIONS
Produktinformationen
| Hersteller | Labomed Europe b.v. |
|---|---|
| Cmo | 250 mm |
| Fuse | quick-acting fuse 1.0 Amp |
| Head | 90º head |
| Input | AC 115-240V, 50/60Hz |
| Befestigung | Wall mount 195 mm |
| Eyepieces | WF adjustable eyepiece 10x/FN 18 mm with eye guards |
| Head Type | Straight 90º head |
| Objective | 250mm |
| Accessories | T-handle & wall mount |
| Illumination | 27W LED, up to 50,000 hours of LED lamp lifetime, 75,000 Lux |
| Light Output | 75,000 Lux |
| Magnichanger | 3-step |
| Magnification | 0.6x, 1.0x and 1.6x |
| Suspension Arm | 980 mm |
| Viewing Bodies | binocular tubes 90º tiltable, IPD range 55-75 mm, f=170 mm |
| Packaging Box 1 | 58 x 43 x 23 cm; 6,9 kg |
| Packaging Box 2 | 47 x 34 x 31 cm; 13,4 kg |
| Packaging Box 3 | 137 x 51 x 37 cm; 21 kg |
| Type Of Microscope | Prima ENT |
| Light Output In Lux | 75.000 Lux |
| Total Length Of The Arm | 380 + 600 = 980 mm |
| Vertical Movement Of Arm | 600 mm |
