S-line Platform 2.0 Prosthetics
Alfa Gate Holding Gmbh · Quelle
S-line Platform 2.0mm prosthetic system offering various attachment and abutment options:

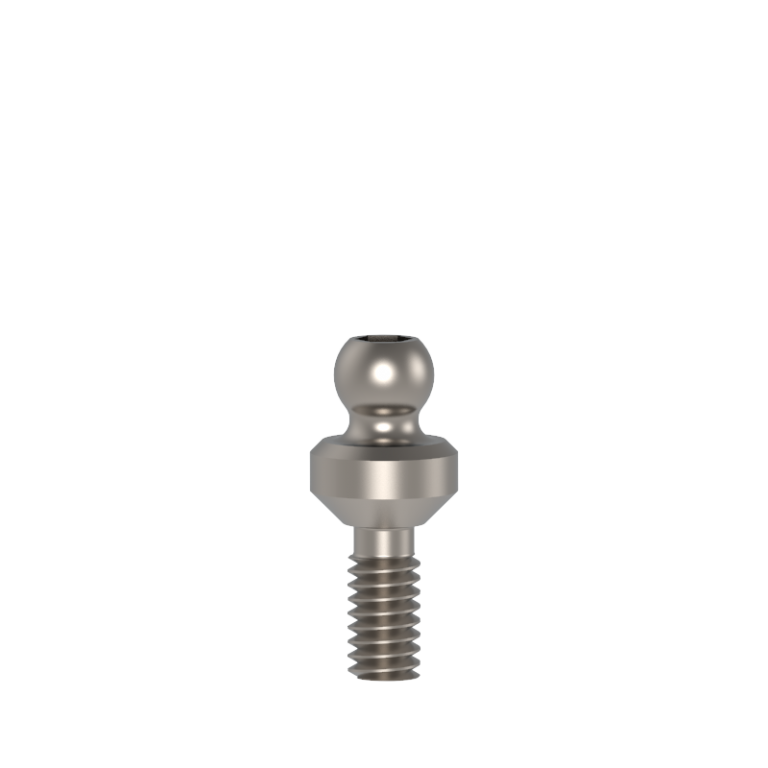

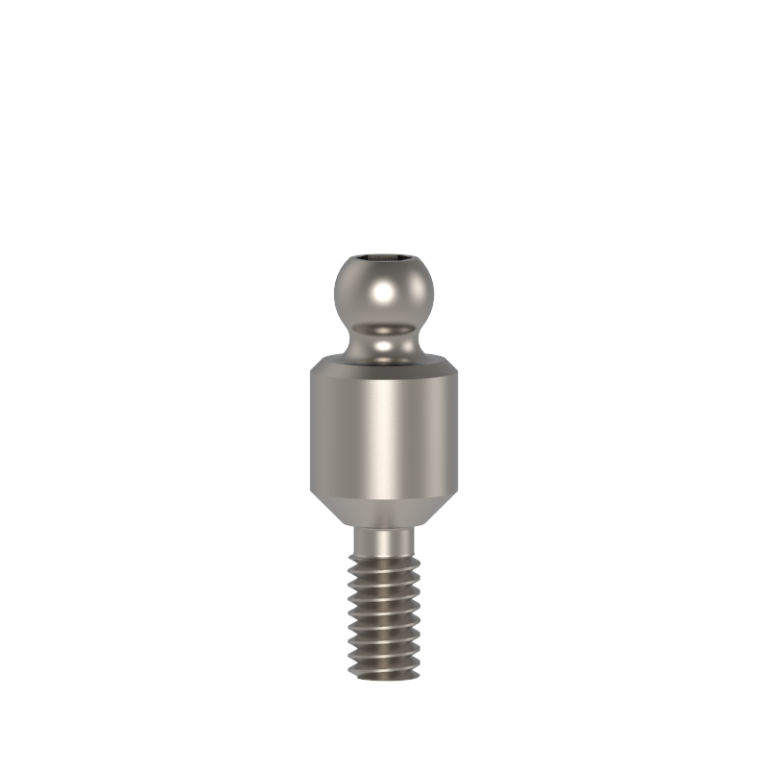

Standard Ball Attachment Ø4.2mm
- Height: 0.5mm, 1mm, 2mm, 3mm options
- Material: Titanium
- Recommended torque 25Ncm using hand driver 1.25MM

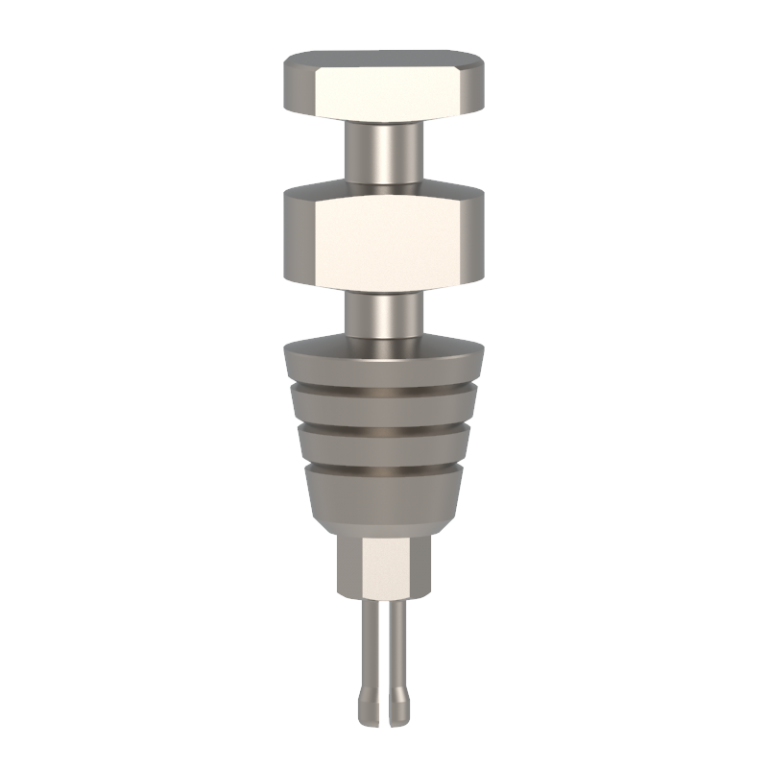

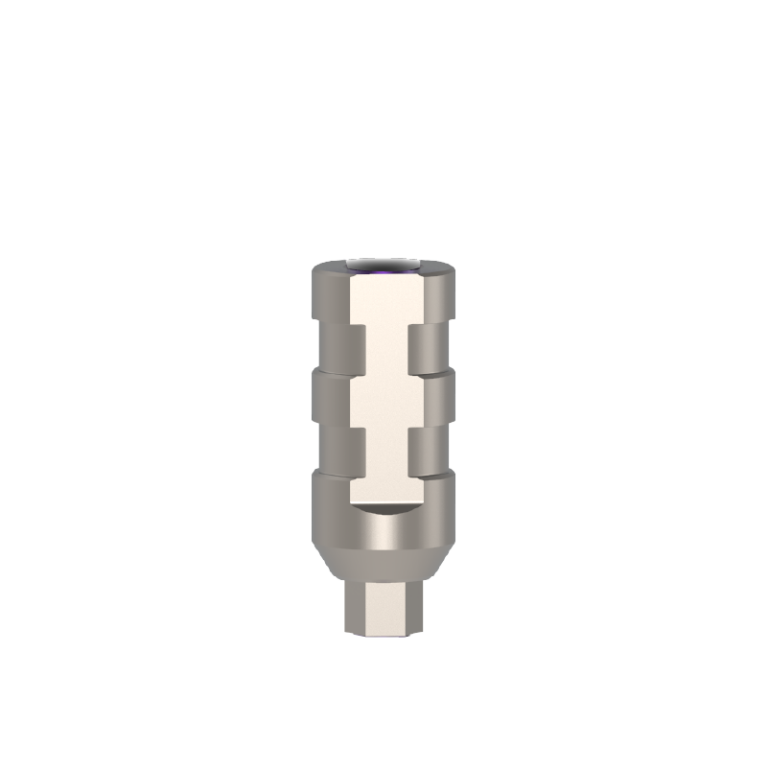

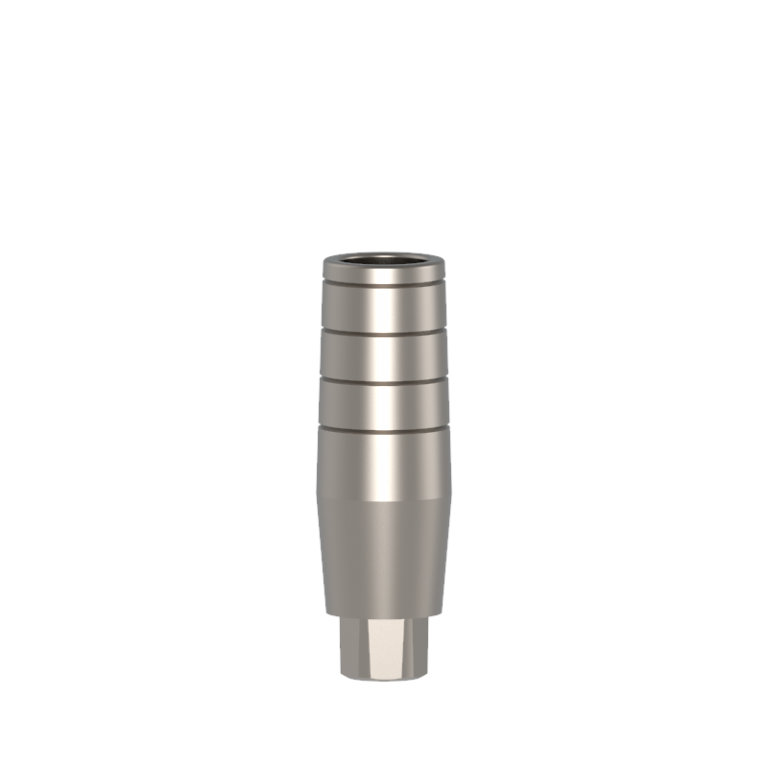

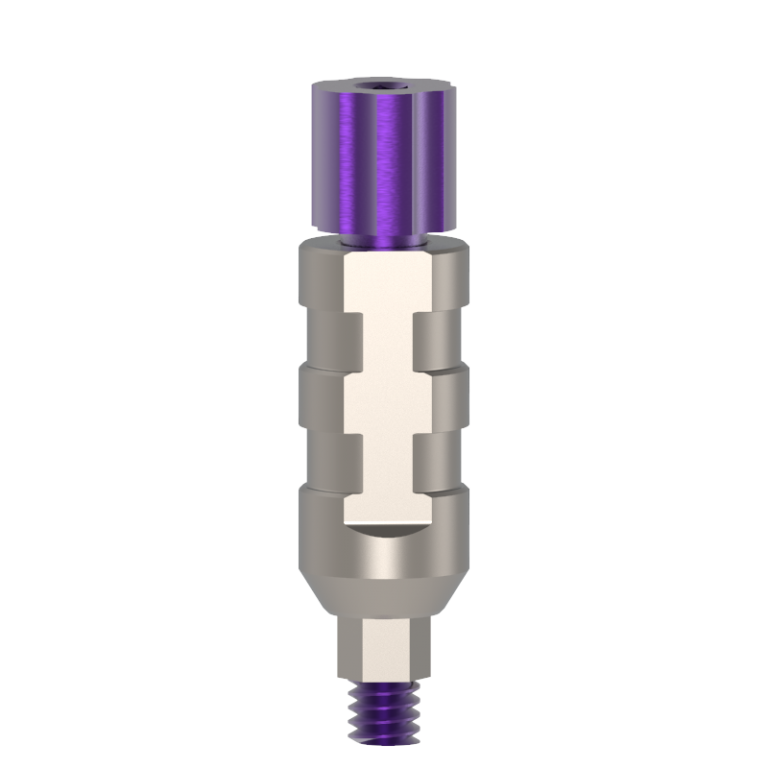

Impression Transfers
- Open Tray Impression: Height 14mm, Stainless Steel, light finger tight (5-10Ncm)
- Closed tray impression click connection: Height 9mm, Stainless Steel, light finger tight (5-10Ncm)
- Closed tray impression screw connection: Height 11mm, Stainless Steel, light finger tight (5-10Ncm)

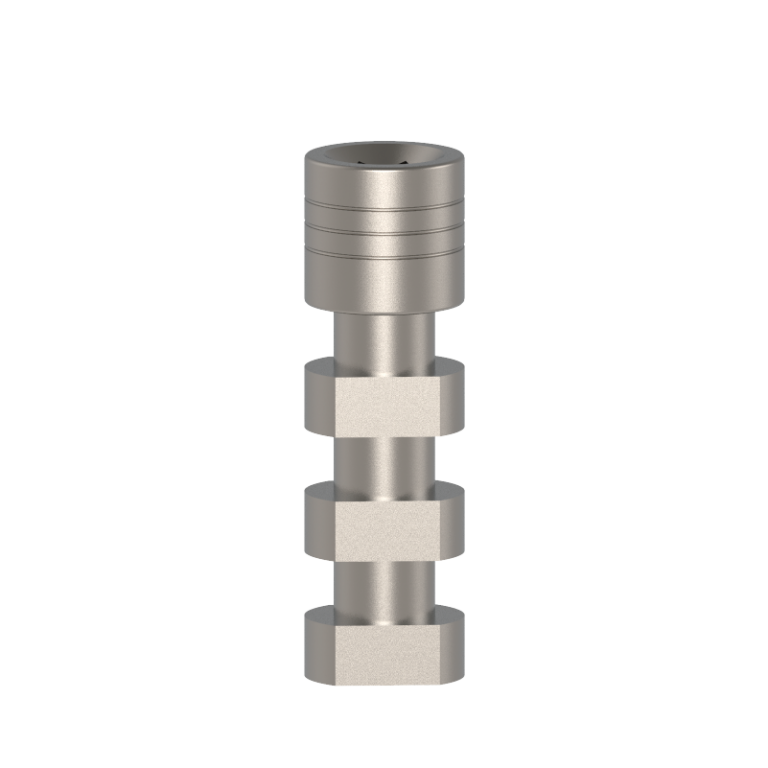

Implant Analog with Internal Hex 2.0mm
- Height: 3mm
- Material: Titanium
- Recommended torque 25Ncm using hand driver 1.25MM

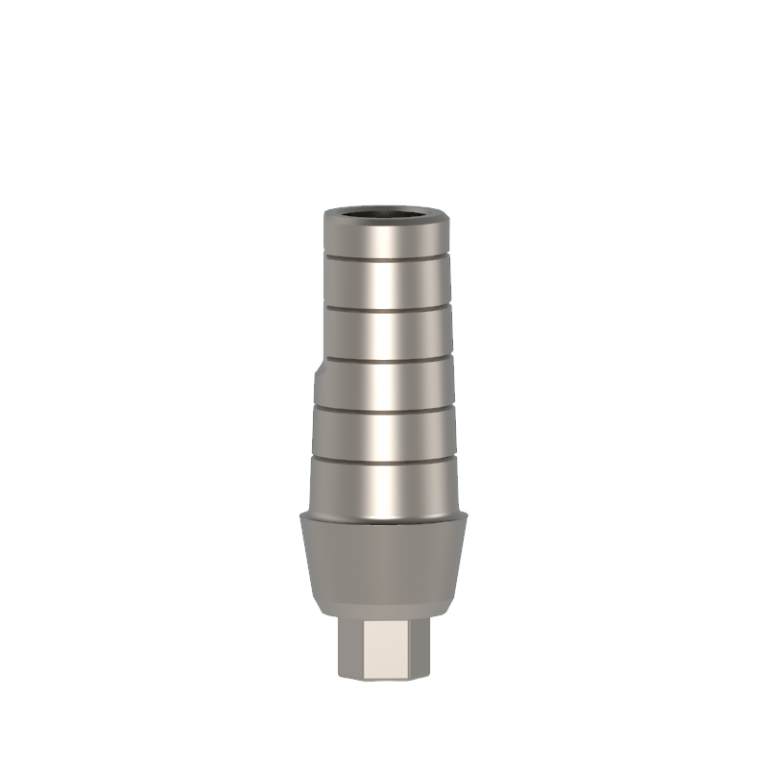

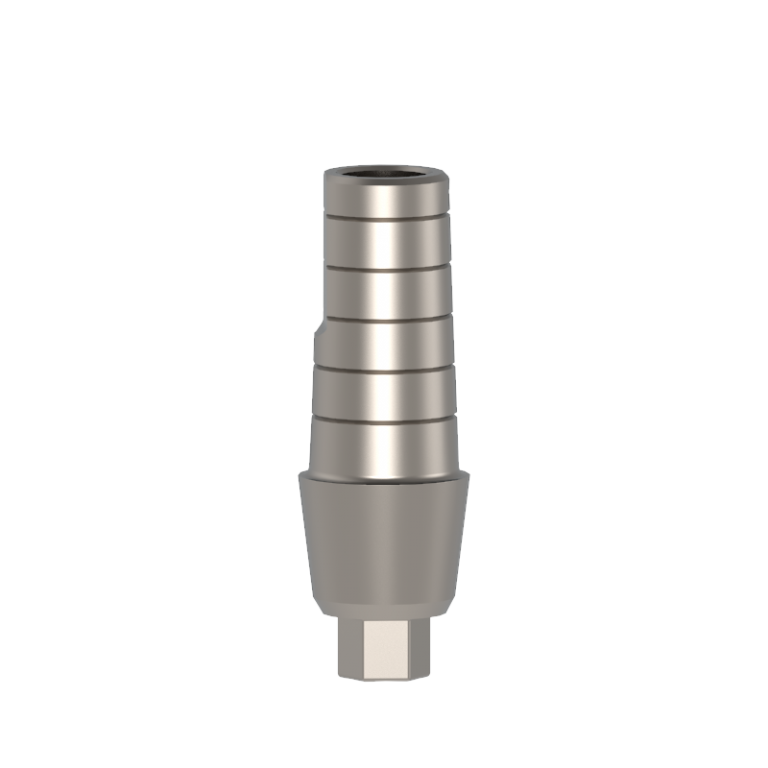

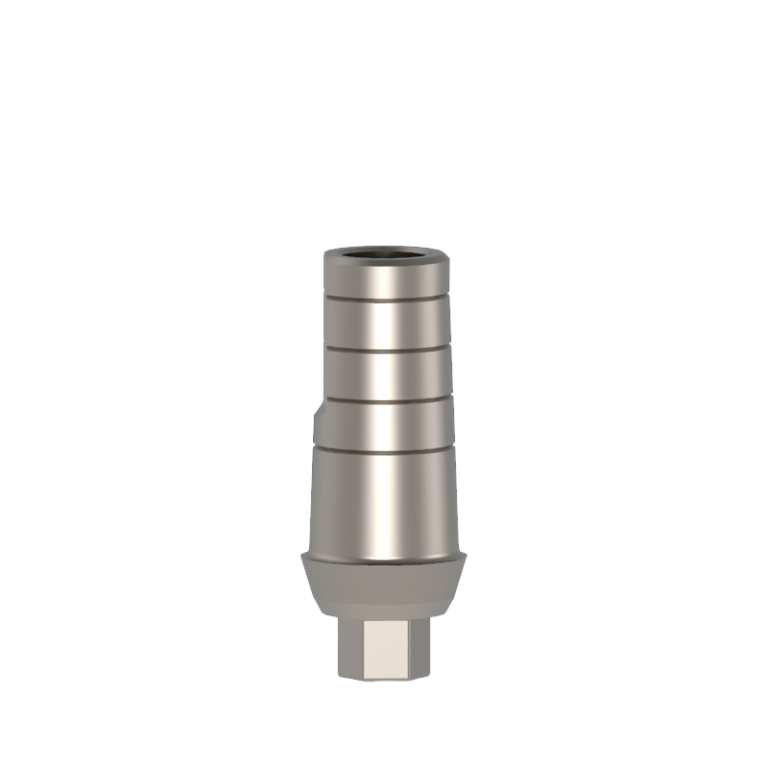

Abutments Straight
- Height: 10mm
- Material: Titanium
- Recommended torque: 20Ncm

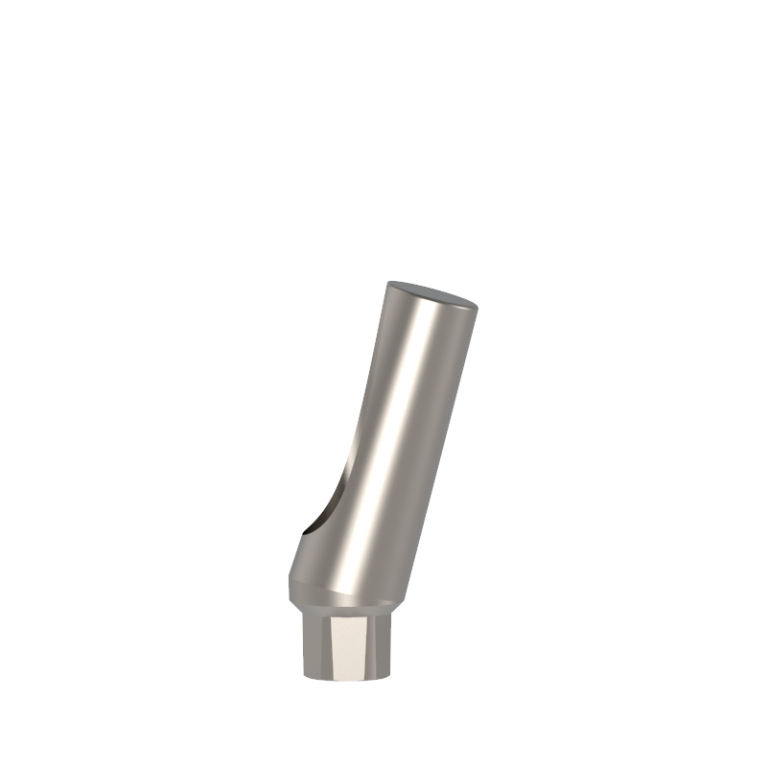

15° Abutments Angulated
- Height: 11mm
- Material: Titanium
- Recommended torque: 20Ncm
Abutments Shoulder
- Shoulder 1mm: Height 10mm, Titanium, light finger tight (5-10Ncm)
- Shoulder 2mm: Height 10mm, Titanium, light finger tight (5-10Ncm)
- Shoulder 3mm: Height 10mm, Titanium, light finger tight (5-10Ncm)

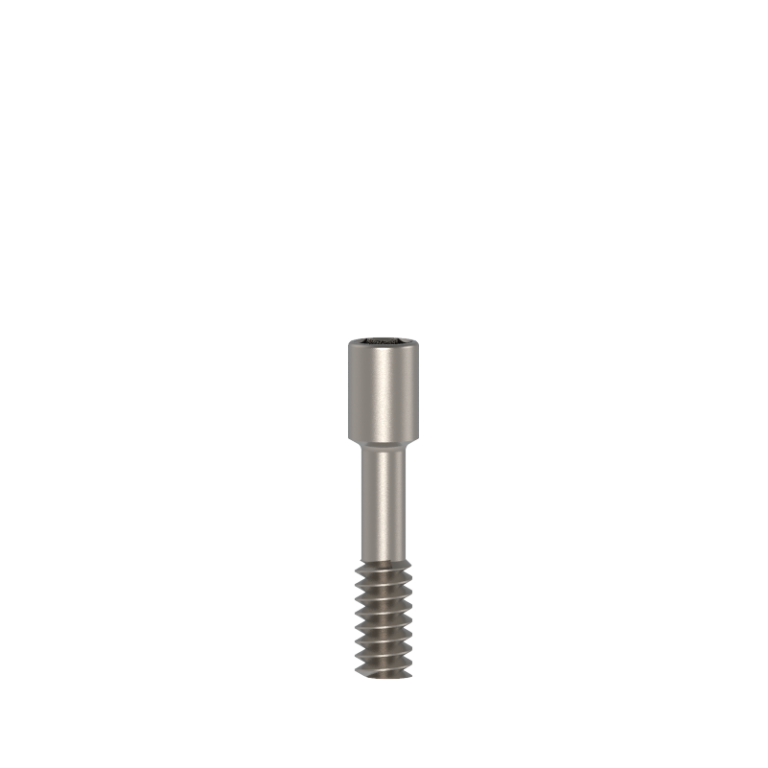

Direct Prosthetic S-line Screw
- Height: 7.7mm
- Material: Titanium
- Recommended torque: 20Ncm

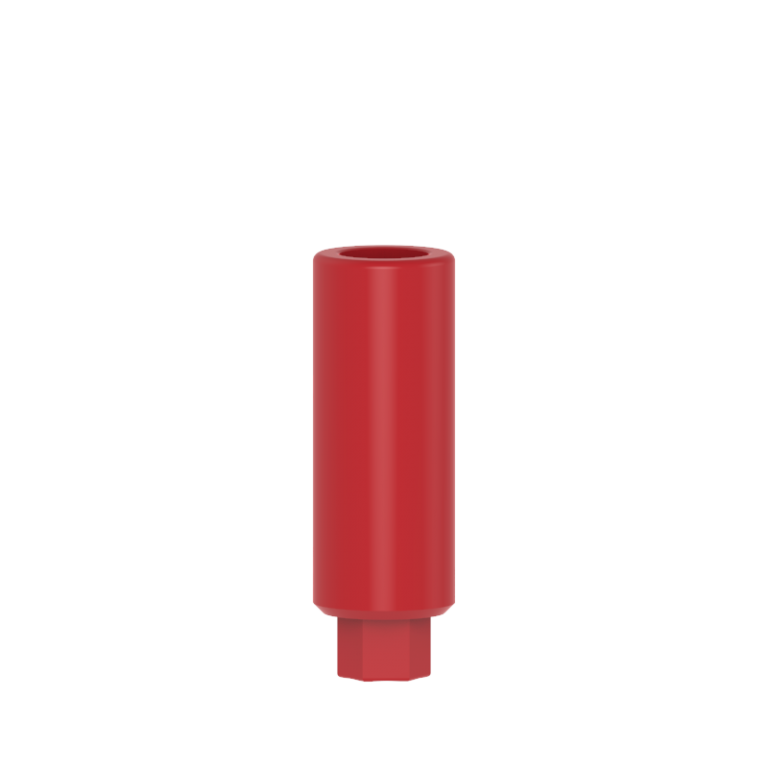

Temporary Abutments for Casting
- Hex: Height 10mm, REEK material, 15Ncm, supplied with prosthetic screw
- Non-Hex: Height 10mm, REEK material, 15Ncm, supplied with prosthetic screw

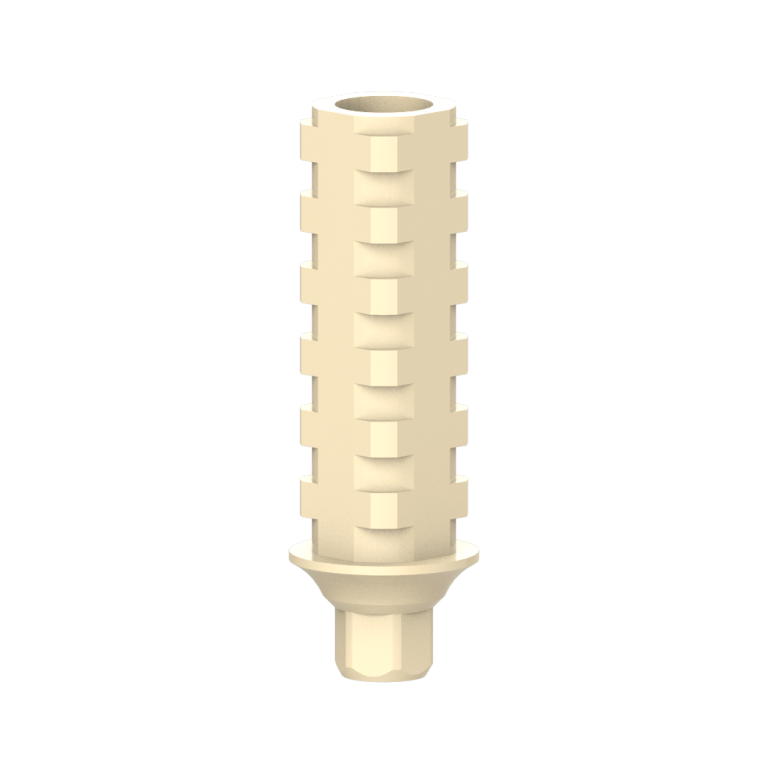

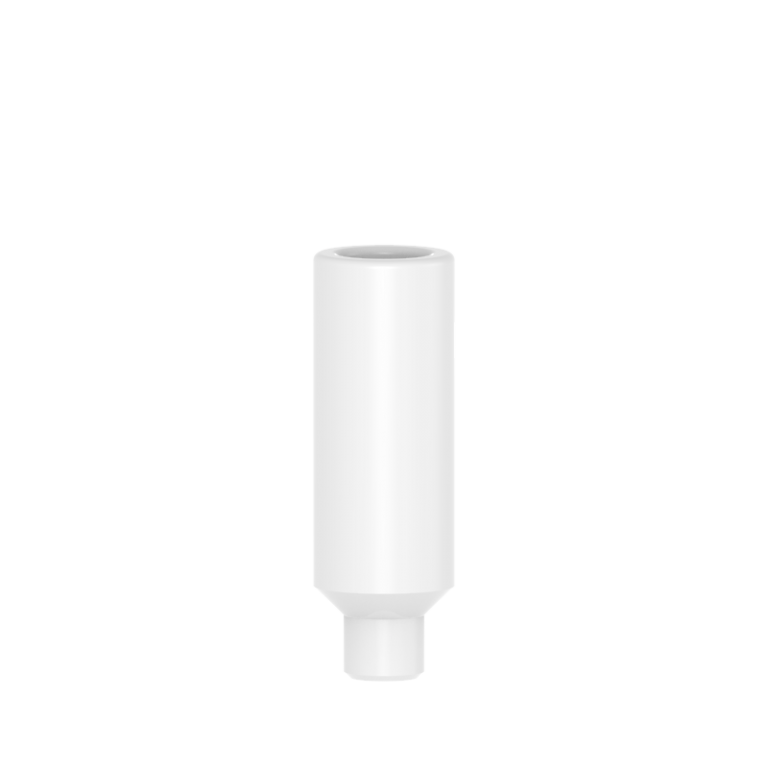

Plastic Abutments for Casting Height 11mm
- Hex: Plastic, 20Ncm, supplied with prosthetic screw
- Non-Hex: Plastic, 20Ncm, supplied with prosthetic screw

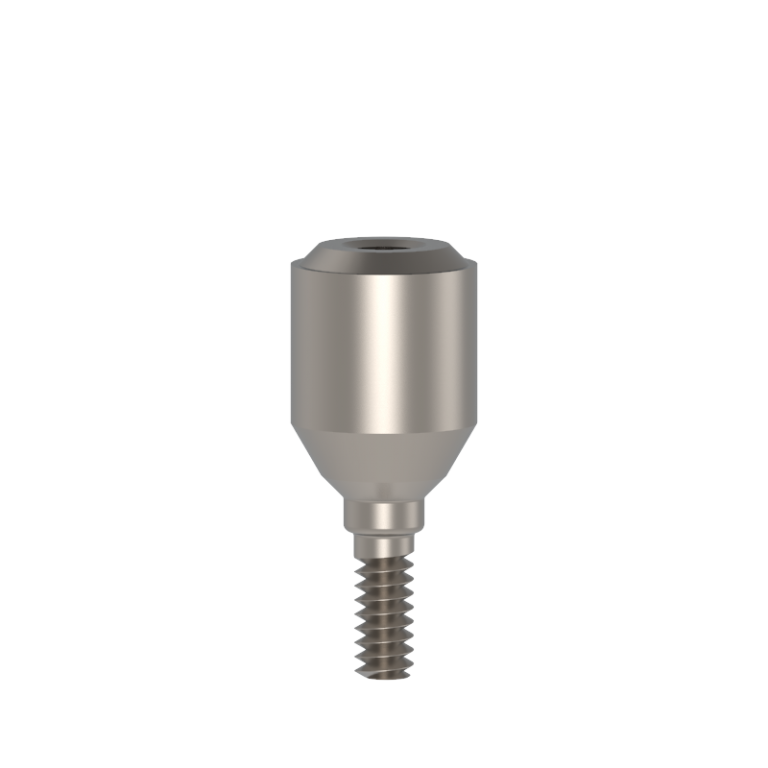

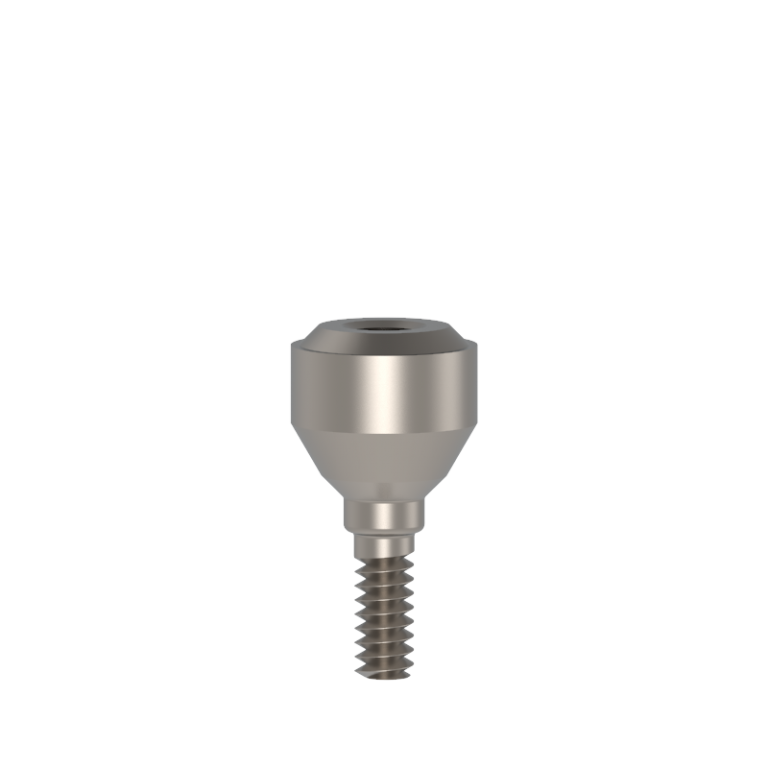

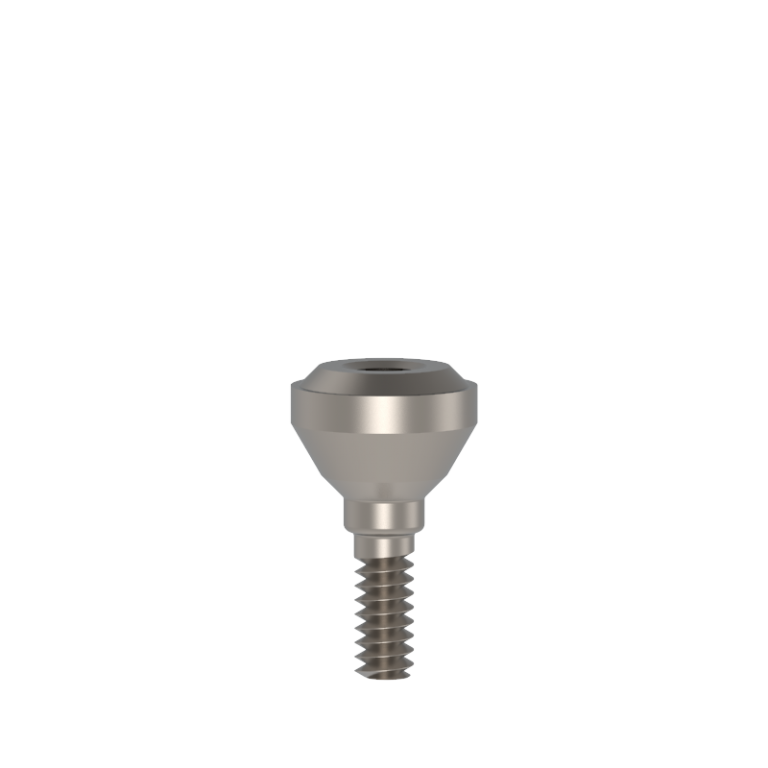

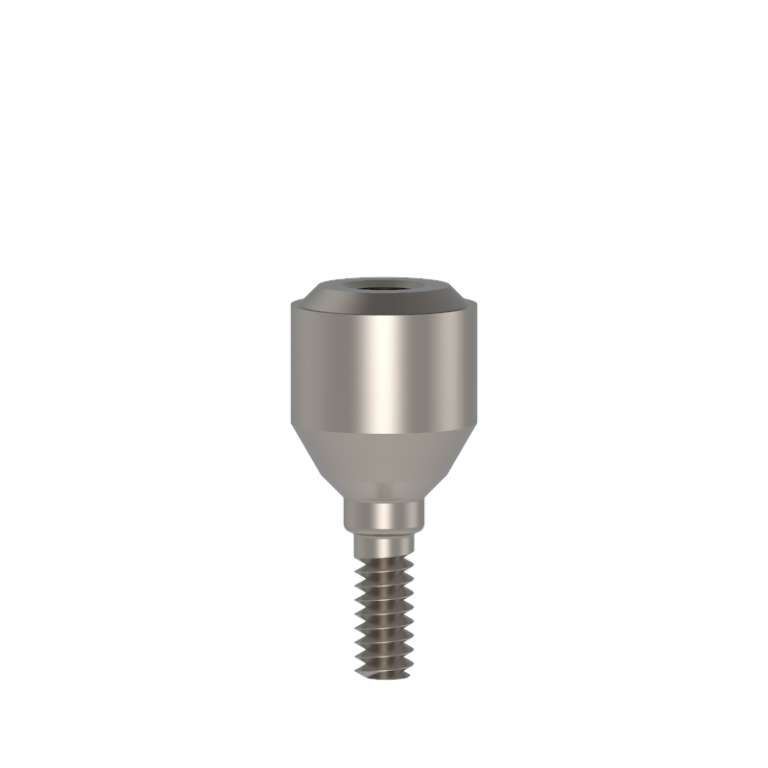

Low Profile Connector Ø4.6mm
- Heights: 2mm, 3mm, 4mm, 5mm
- Material: Titanium
- Recommended torque: 20Ncm using hex driver 1.25mm
- Used for multiple unit screw retained restorations

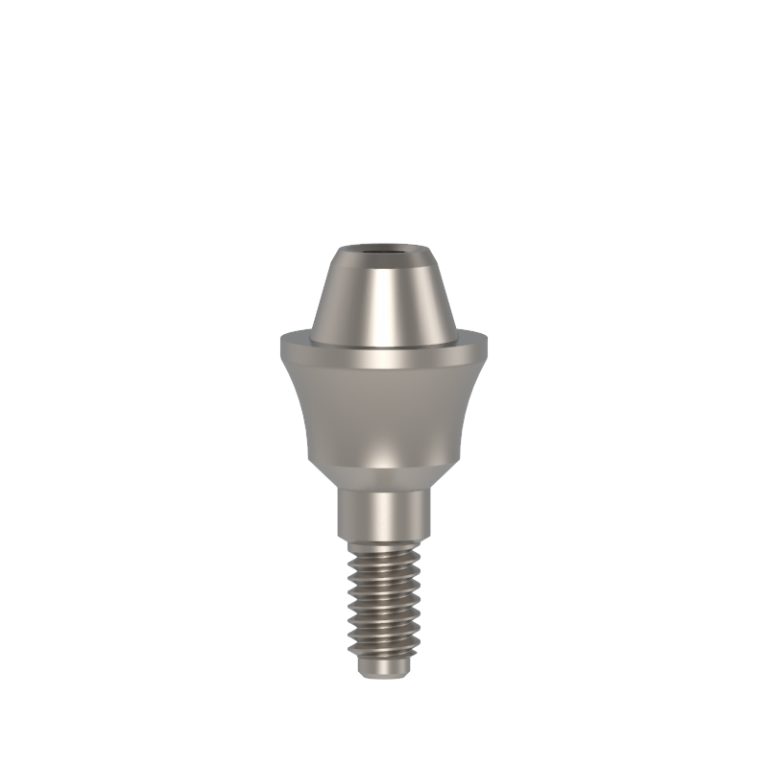

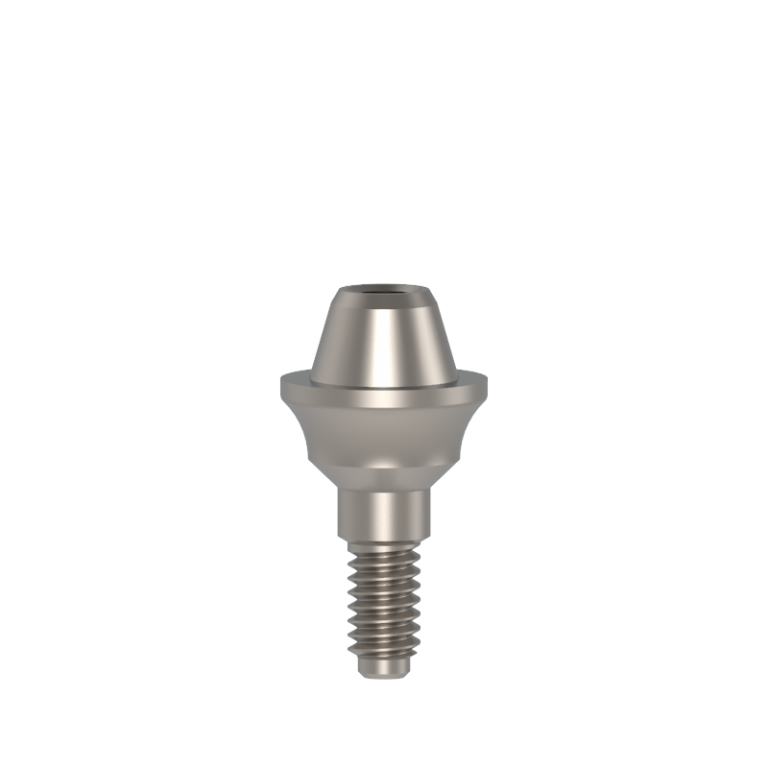

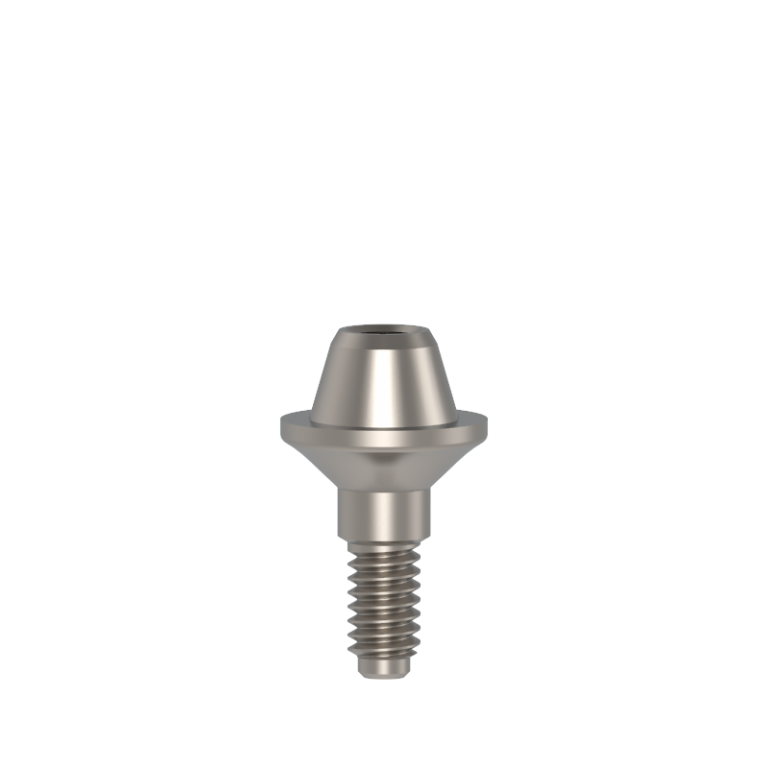

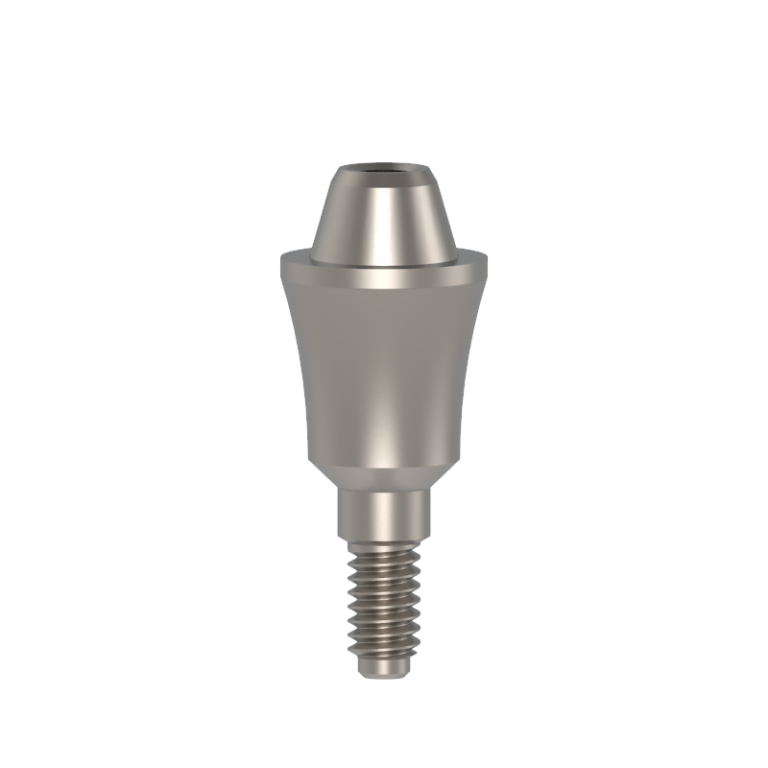

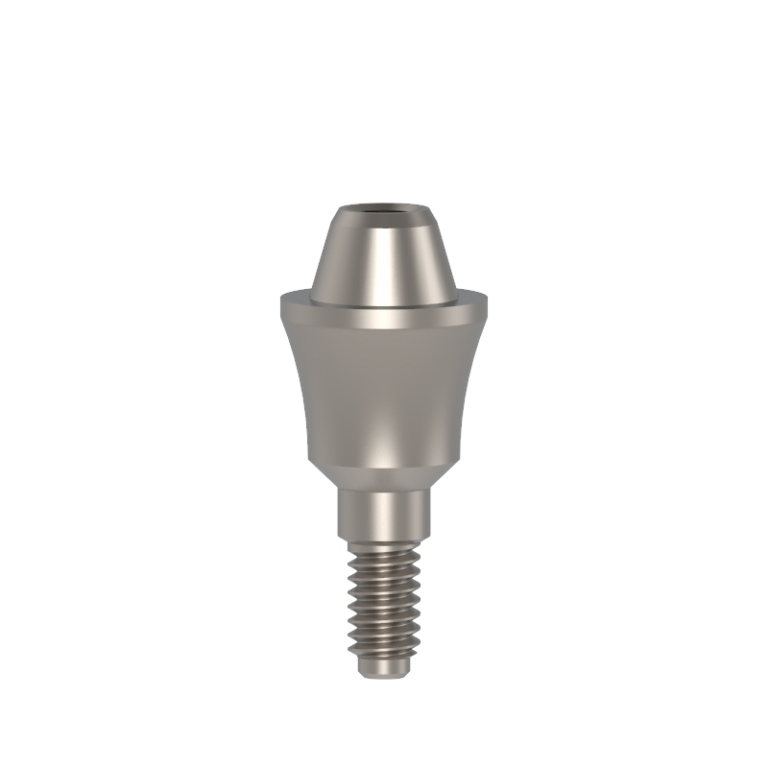

Straight Multi-Unit Ø5.0mm
- Heights: 1mm, 2mm, 3mm, 4mm, 5mm
- Material: Titanium
- Recommended torque: 20Ncm using hex driver 1.25mm

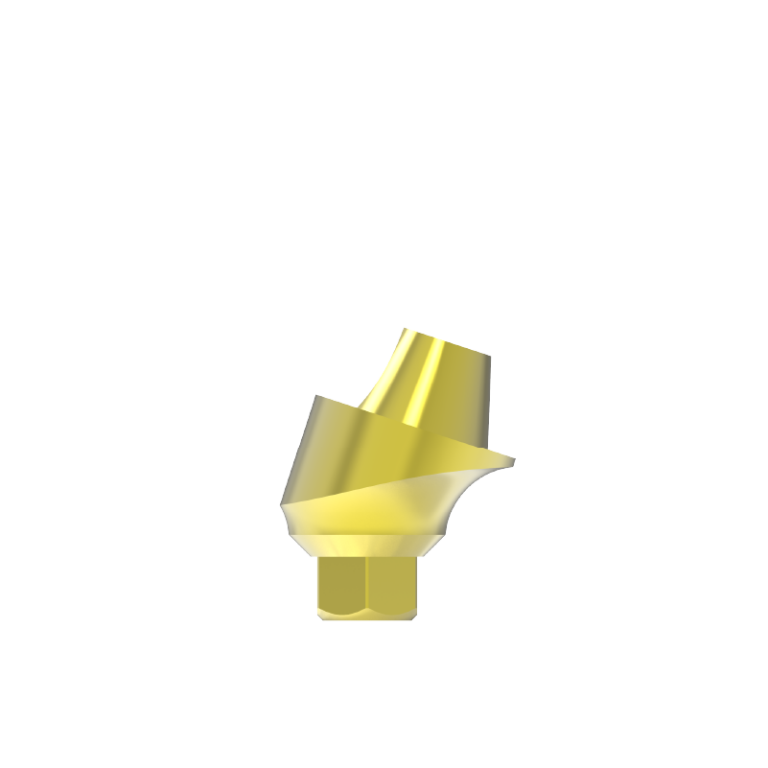

15° Angulated Multi-Unit
- Height: 2mm
- Material: Titanium
- Recommended torque: 20Ncm using hex driver 1.25mm

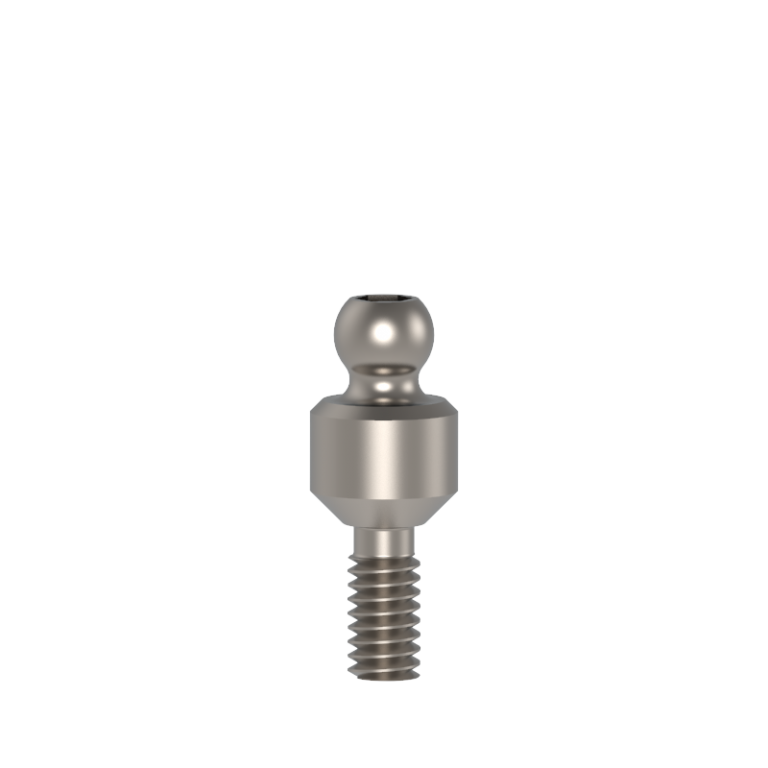

Ball Attachment Ø3.7mm
- Heights: 1mm, 2mm, 3mm, 4mm, 5mm
- Material: Titanium
- Recommended torque: 20Ncm using hex driver 1.25MM

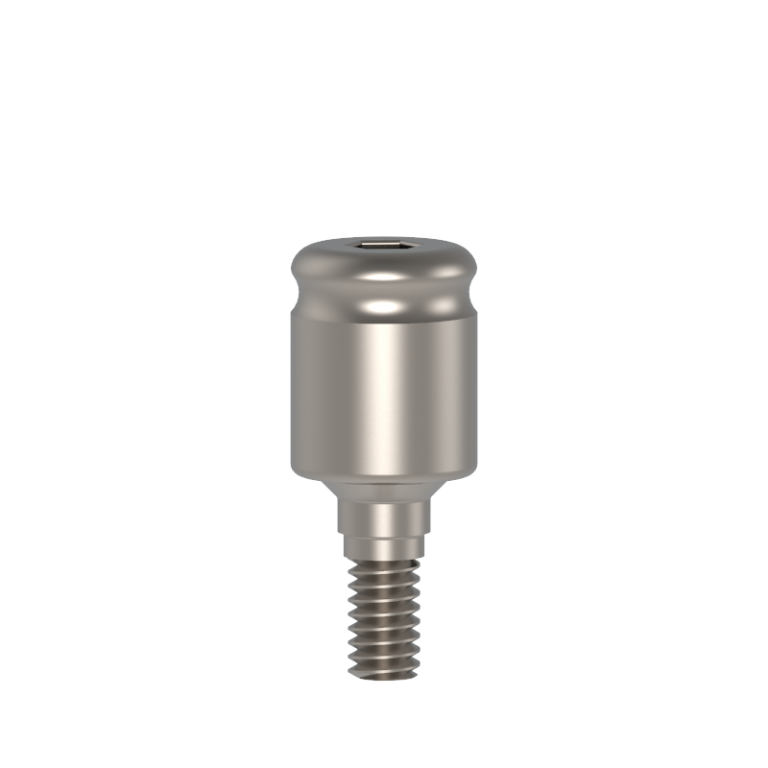

Alfa-Lock Attachment Ø4.5mm
- Heights: 1mm, 2mm, 3mm, 4mm, 5mm
- Material: Titanium
- Recommended torque: 20Ncm using hex driver 1.25MM
Produktinformationen
| Hersteller | Alfa Gate Holding Gmbh |
|---|---|
| Plattform | S-line 2.0mm |
| Abutment Types | Straight, 15° Angulated, Shoulder (1mm, 2mm, 3mm), Low Profile Connector, Multi-Unit |
| Multi Unit Options | Straight Ø5.0mm (1-5mm heights), 15° Angulated Multi-Unit |
| Plastic Abutment Heights | 11mm |
| Impression Transfer Options | Open Tray (14mm), Closed Tray Click (9mm), Closed Tray Screw (11mm) |
| Temporary Abutment Materials | REEK (Hex and Non-Hex options) |
| Ball Attachment Ø3.7mm Heights | 1mm, 2mm, 3mm, 4mm, 5mm |
| Alfa Lock Attachment Ø4.5mm Heights | 1mm, 2mm, 3mm, 4mm, 5mm |
| Standard Ball Attachment Ø4.2mm Heights | 0.5mm, 1mm, 2mm, 3mm |
