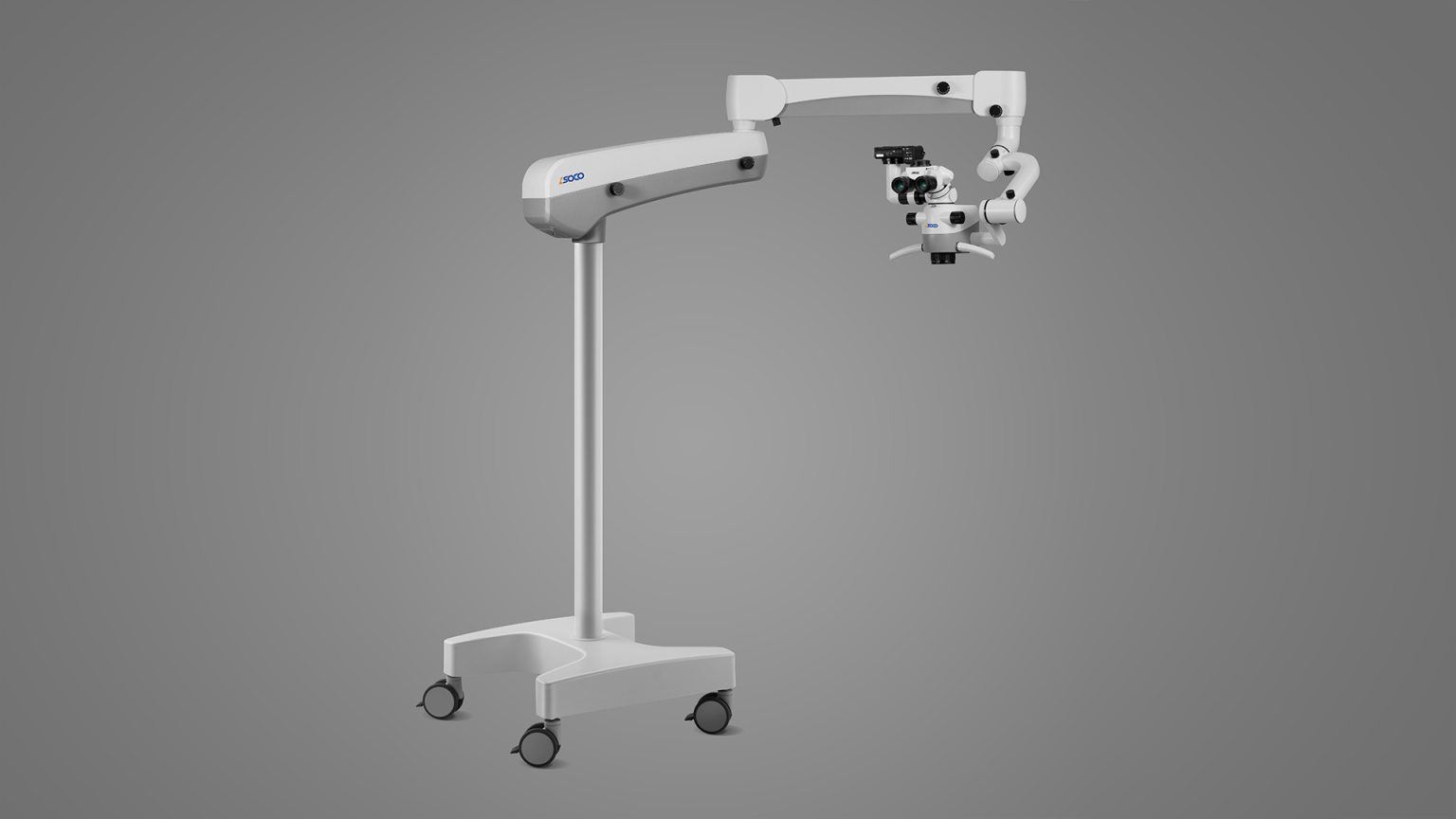

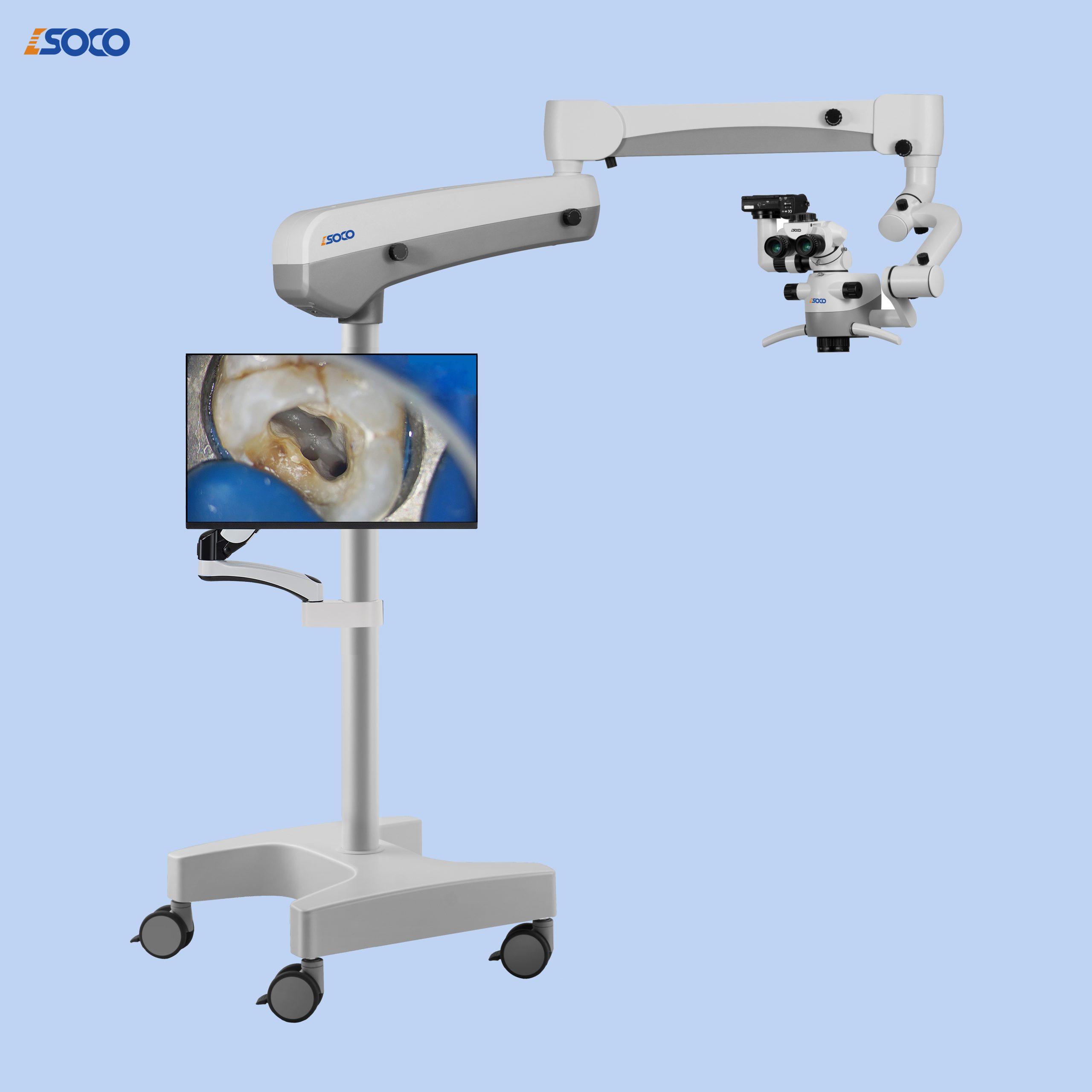

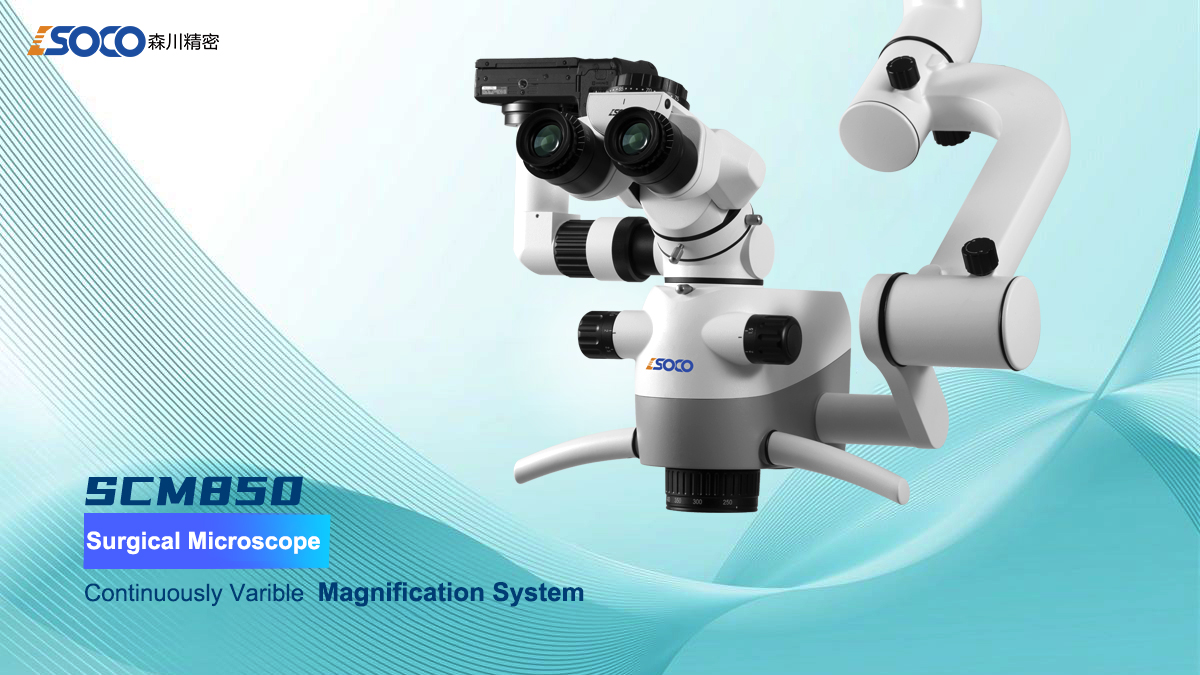

SCM850 dental microscope

Foshan SOCO Precision Instrument Co., Ltd. · #SCM850 · Quelle

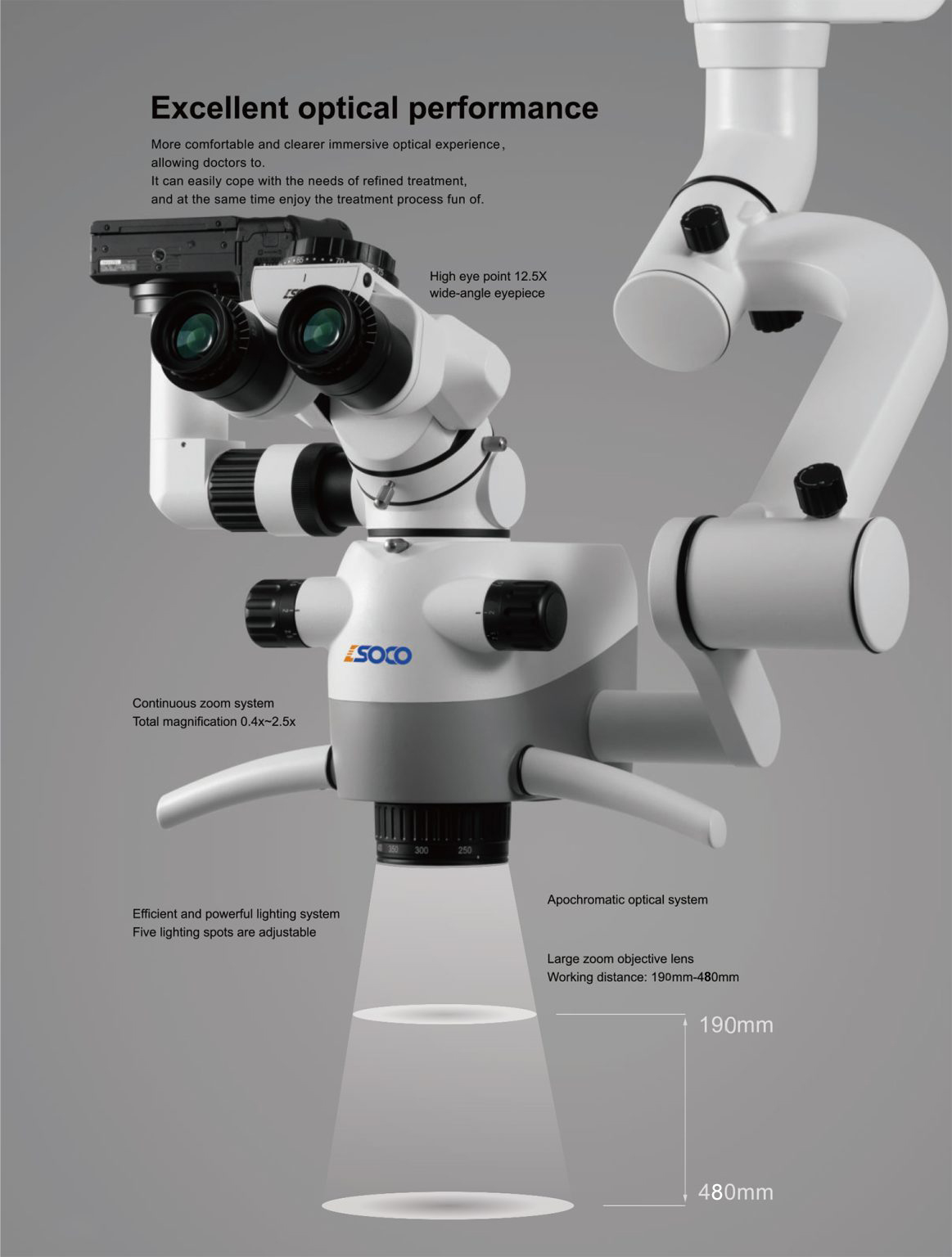

Excellent optics, every detail is in your grasp! High-definition wide-angle, apochromatic, every gaze is a clear witness.

Hersteller	Foshan SOCO Precision Instrument Co., Ltd.
Modell	SCM850

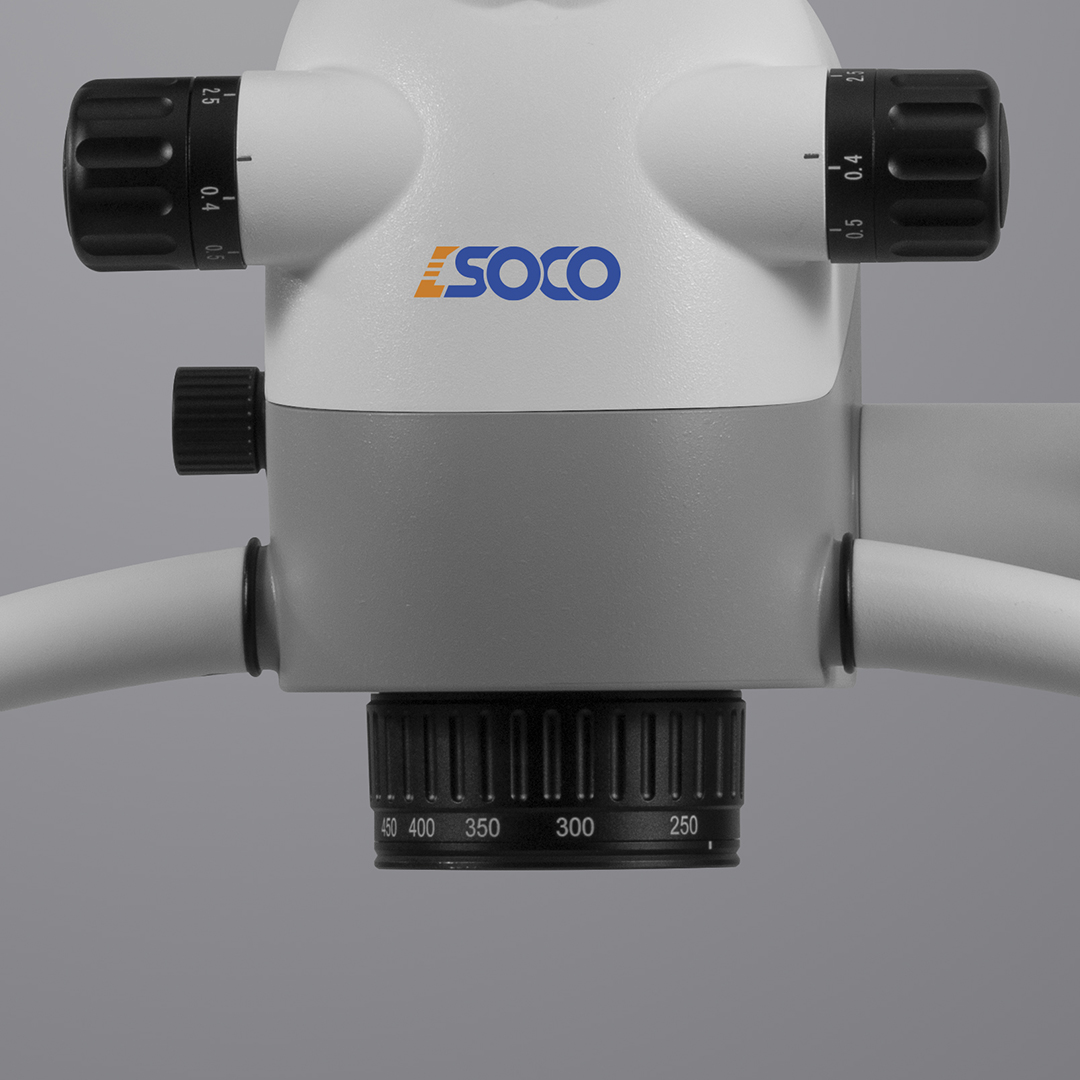

Zoom System	Continuous zoom: Magnification: 0.4~2.5; Total magnification range: 1.6x~19x

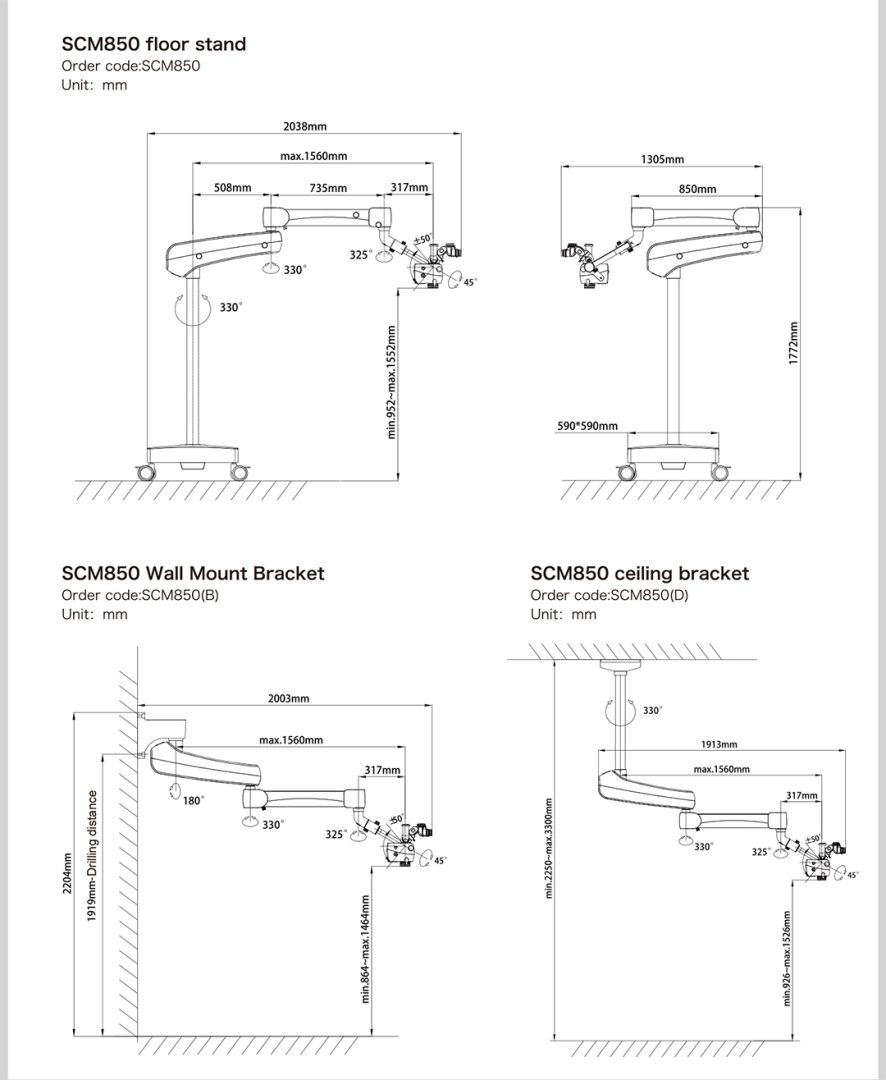

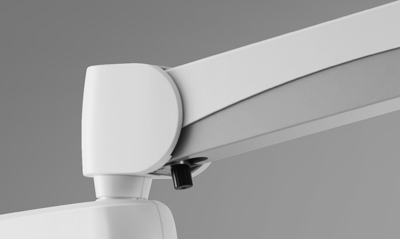

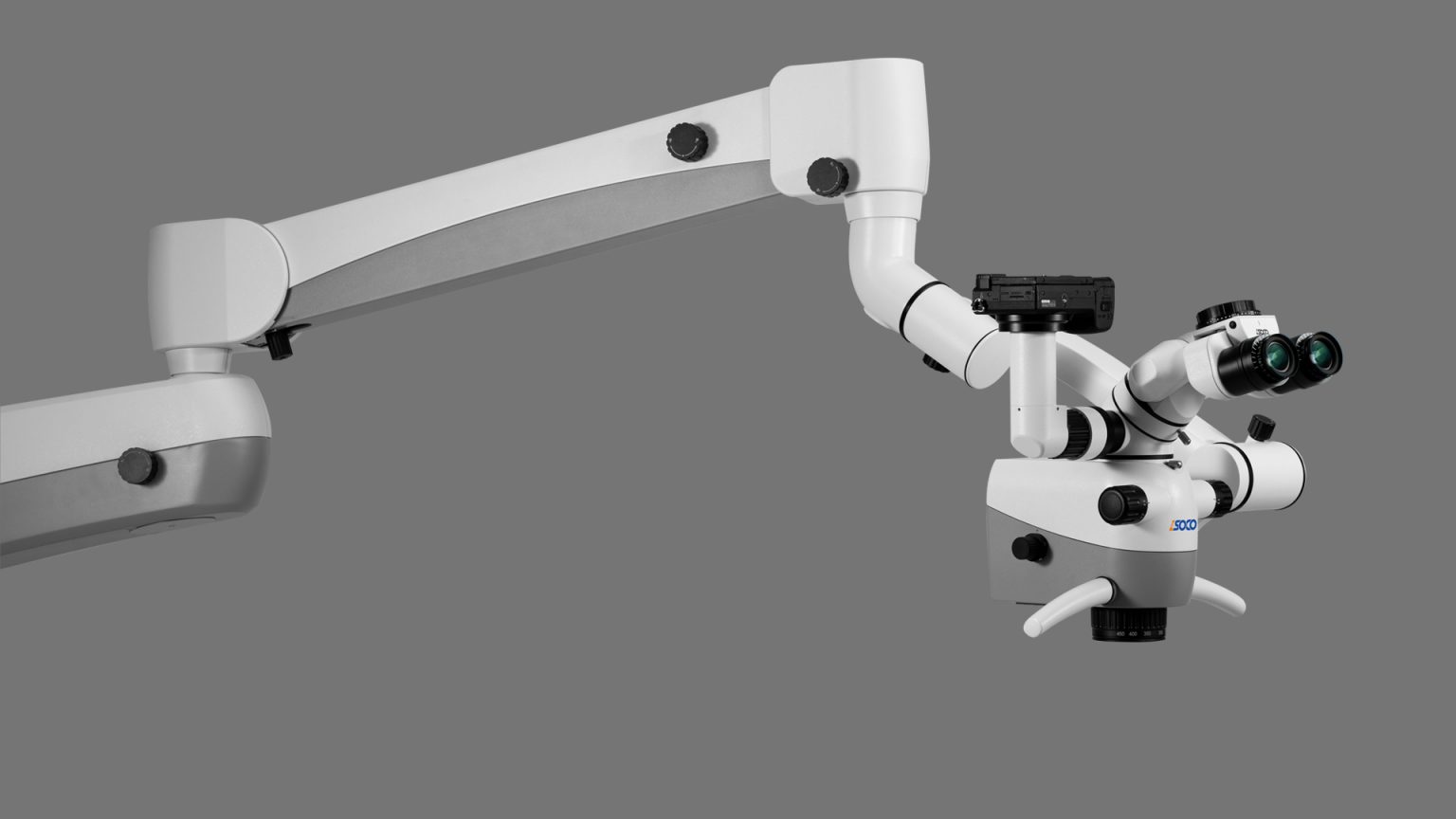

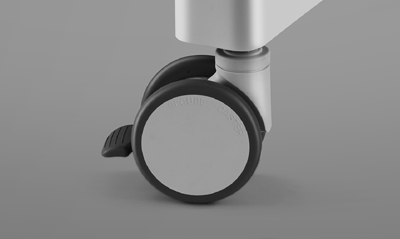

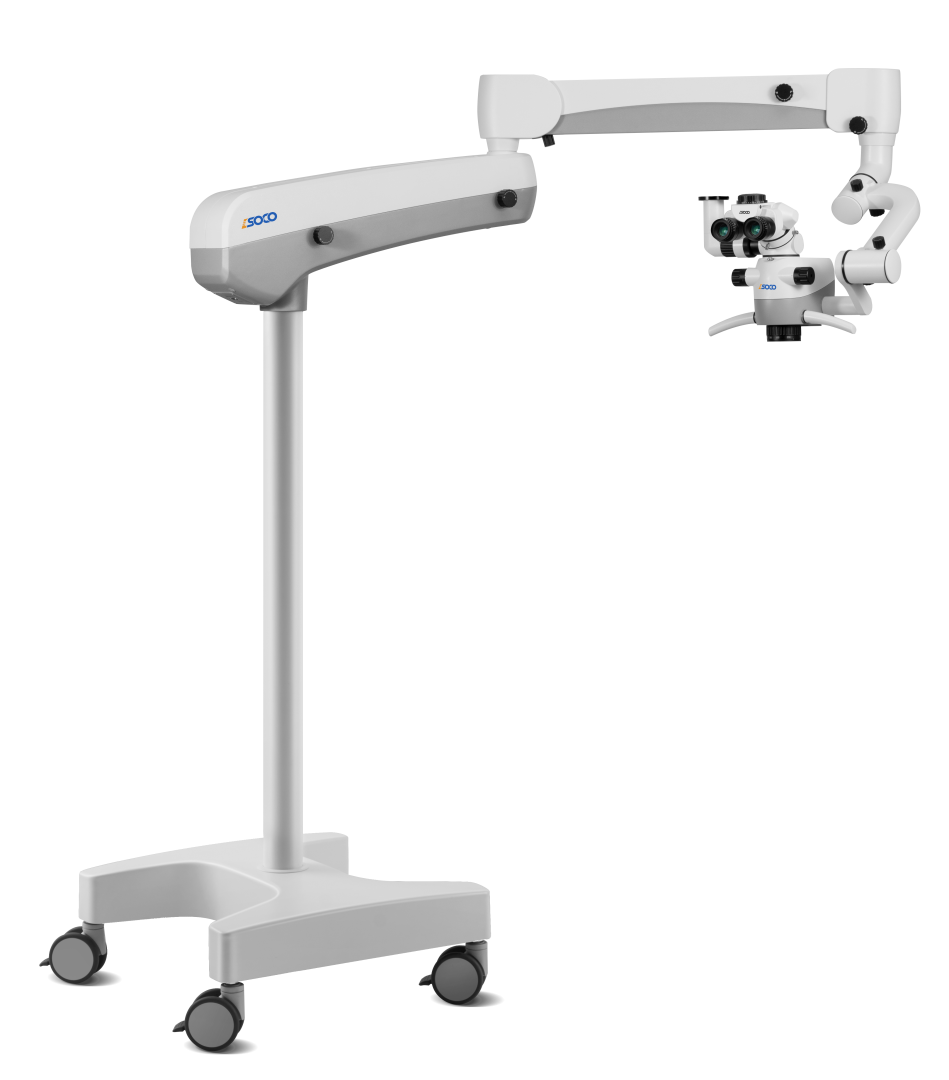

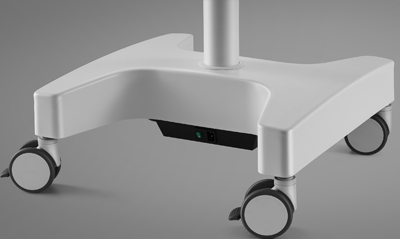

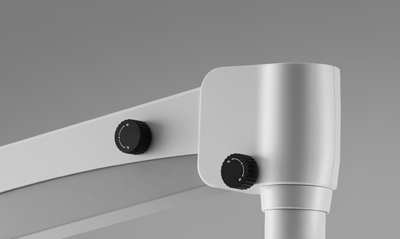

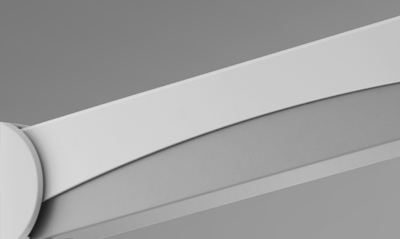

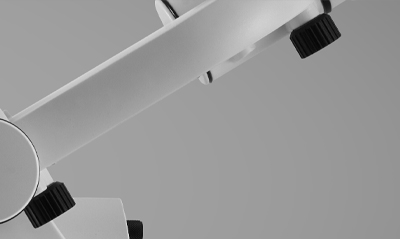

Stand System	Balance force adjustment device for main unit; Balance arm balance force adjustment device; Balance arm: rotation radius 735mm, ±330° rotation, vertical movement range (up/down): 600mm; Swing arm: rotation radius 508mm, ±330° rotation; Maximum net arm reach: 1560 mm; Integrated base with 3-inch silent medical casters, base dimensions: 590×590mm

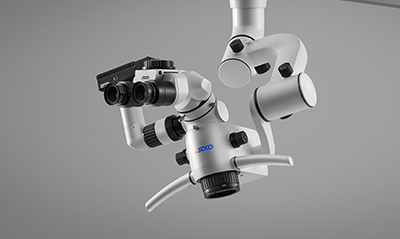

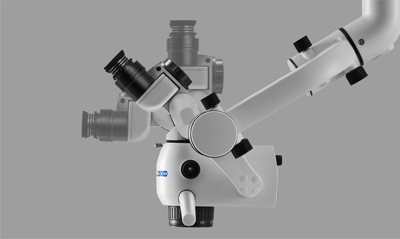

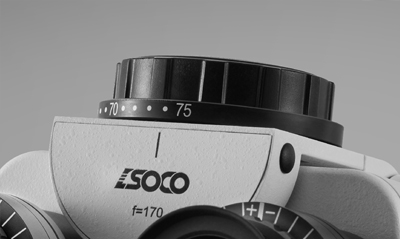

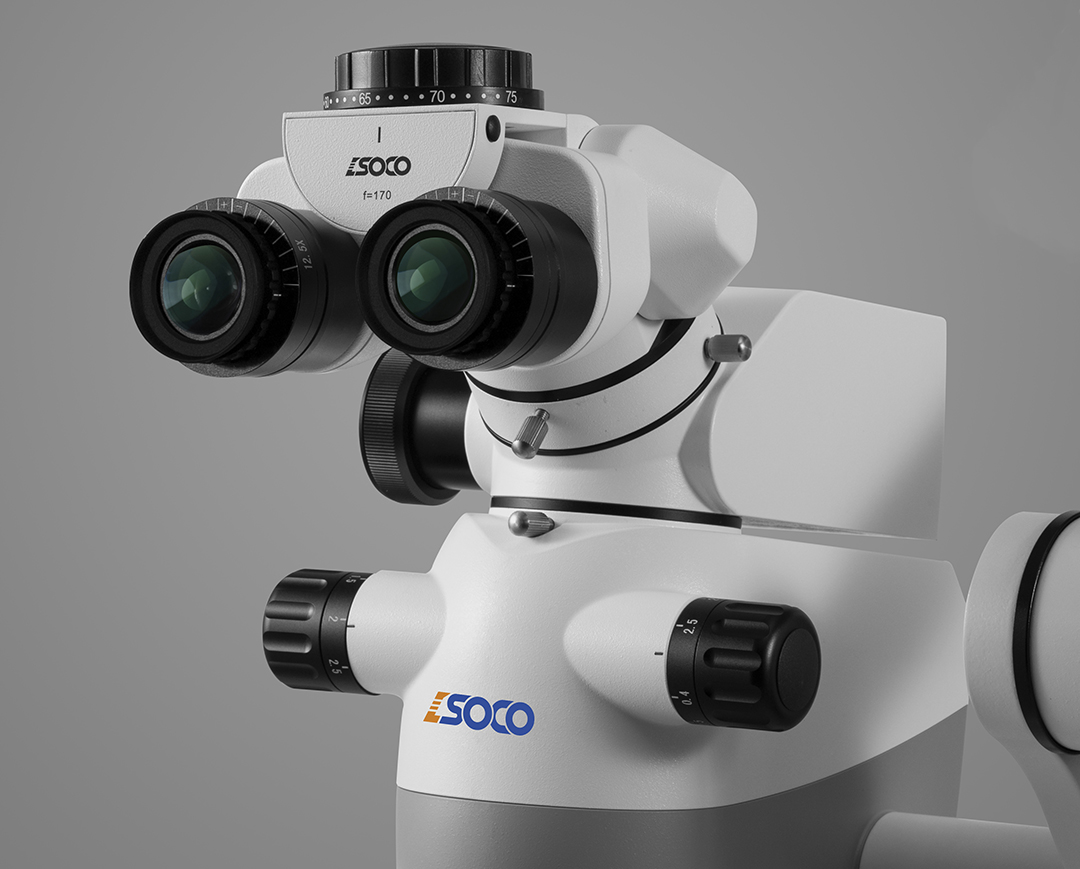

Binocular Head	Variable angle binocular head (0°~180°), with interpupillary distance adjustment mechanism, adjustable range: 55-75mm; High eye point 12.5 mm wide field eyepieces, adjustable eyecups height, diopter compensation ±7D

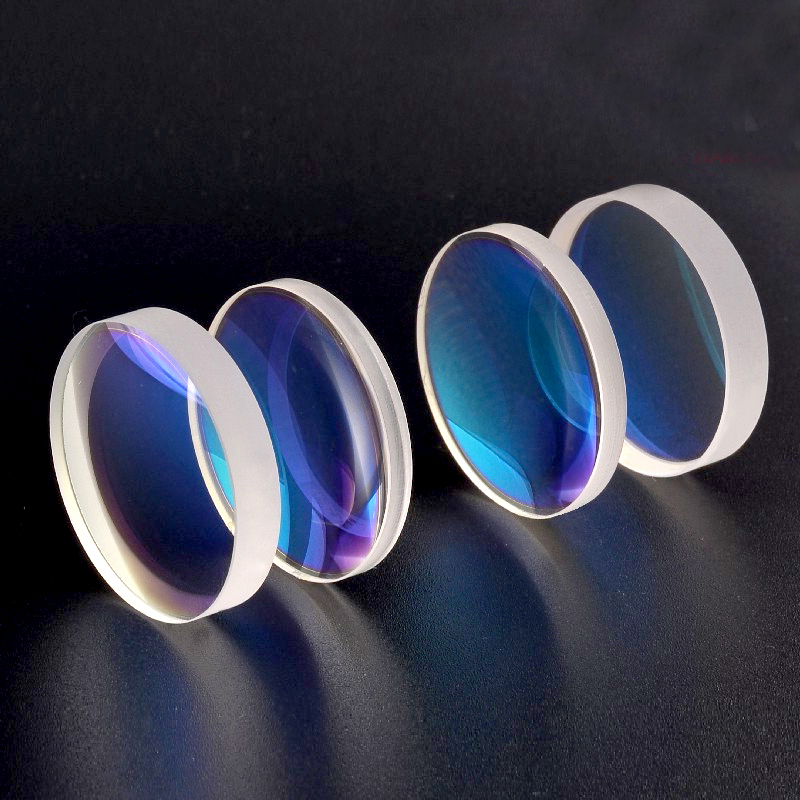

Optical System	Achromatic optical system

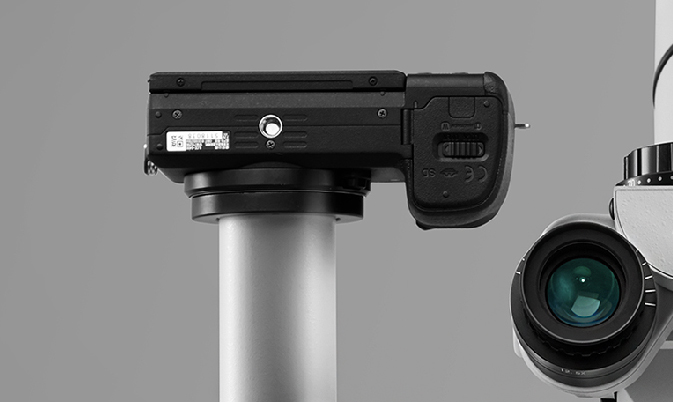

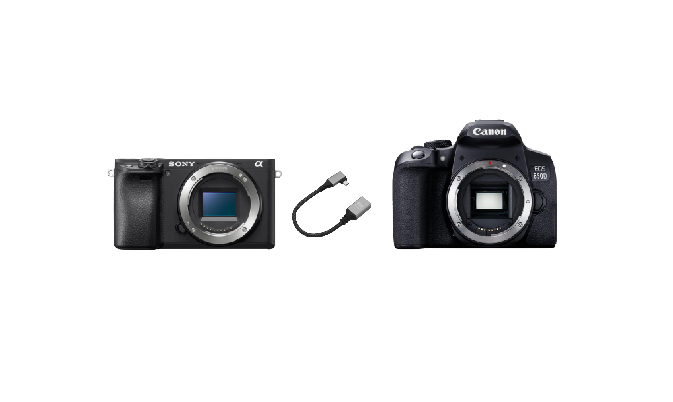

Focusing System	Canon, Sony mirrorless camera interface

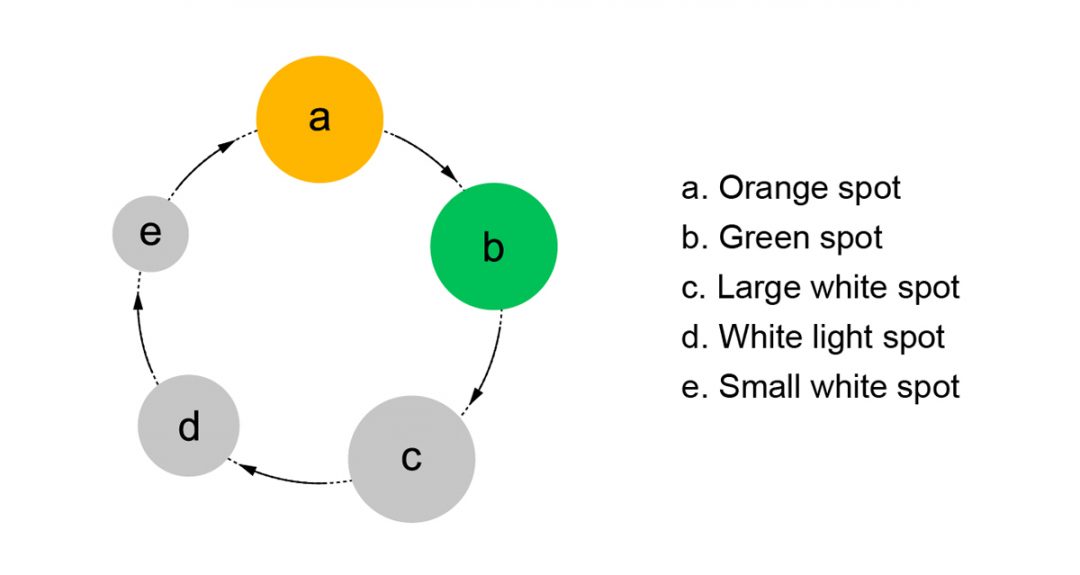

Lighting System	Integrated true color LED illumination, color temperature 5700K, CRI >80%, illuminance 120000Lux; Integrated orange filter, green filter, white spot size adjustable in three sizes: large, medium, small

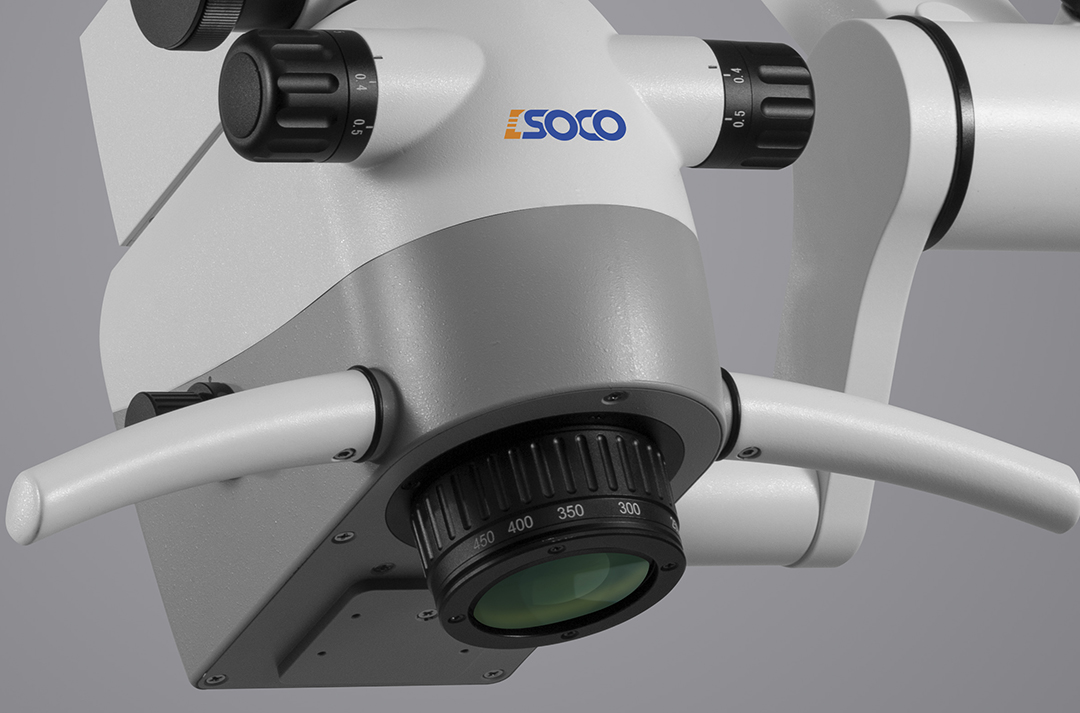

Magnification System	Large zoom objective lens, working distance adjustable from 190-480mm

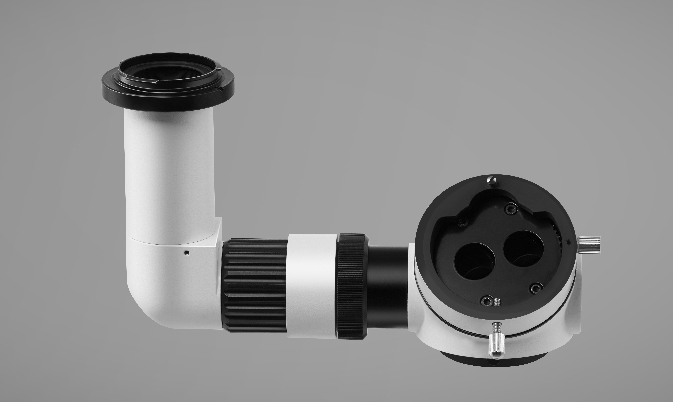

External Imaging Interface	Triple beam splitter: 45° extender, swing system, beam splitter integrated, beam splitting ratio 2:8 or 5:5
