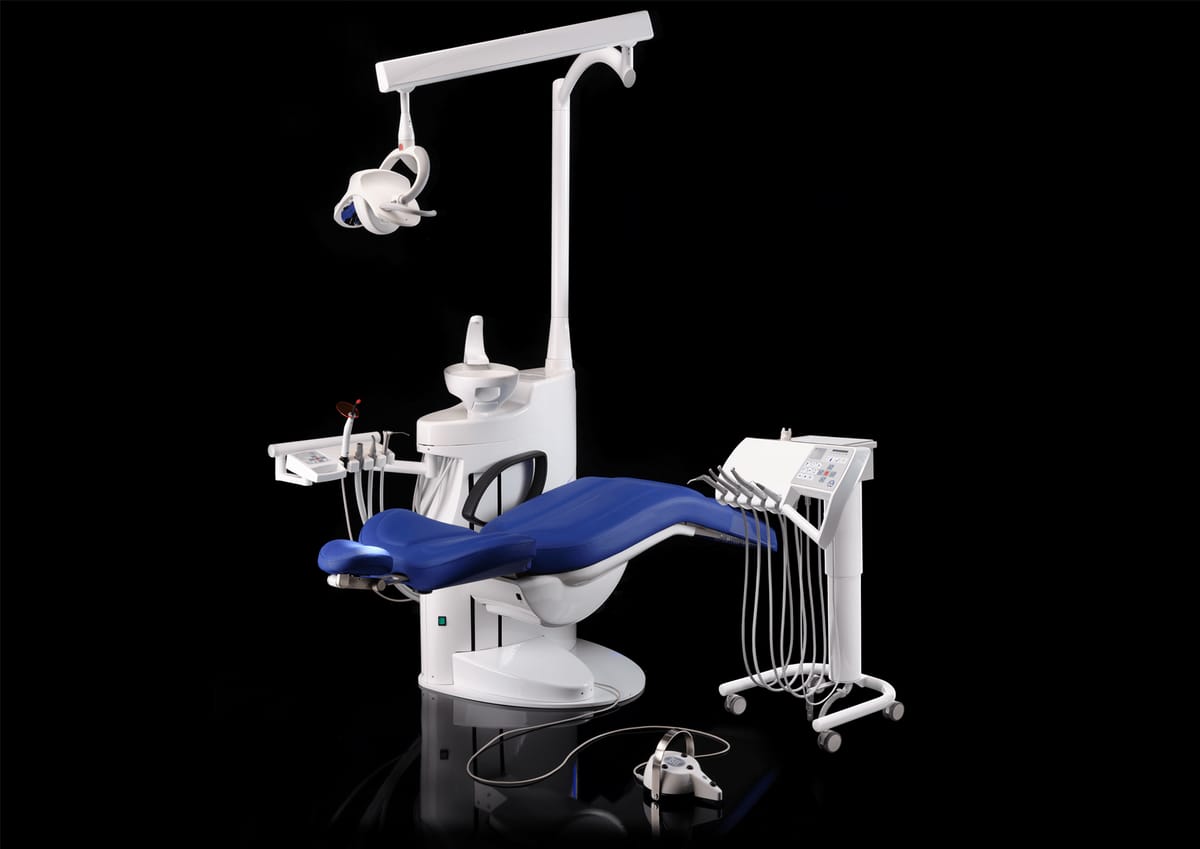

Scout Ortho
Galbiati 1935 srl · Quelle
Our Galbiati Lab, 100% Italian
Department of "research and development", created SCOUT, a Premium Class dental unit, entirely designed in Italy, with a great sense of ergonomics and performances.
The ORTHO DENTAL UNIT SCOUT is designed by GALBIATI MILANO as fuctional and ergonomic solution for orthodontics. This solution allowes dentist to feel free from any obstacles.
TECHNICAL SPECIFICATIONS
- Type of unit: dental chair with lift system, backrest, motors for chair movements, foot control
- Supply Voltage: 100 v ac (US) 230 v ac (EU)
- Rated frequency: 50hz/60 hz
- Max power: 650 va
- Atmospheric pressure: 70 kpa a 106 kpa
- Input water pressure: 0,6 mpa
- Water hardness: 8,4 dh to 12dh
PERFORMANCES
- Operating regulation of instruments speed and power
- Reverse of micromotors operating speed
- Adjustment of micro motor speed limit (0-100%)
- Instrument disinfection tubes switch on/off
- Integrated safe system (chair blocked while the instruments are working)
- 4 chair memories
- Instruments cooling switch on/off
- Water supply system with 2 bottles (disinfection and distilled water)
Produktinformationen
| Hersteller | Galbiati 1935 srl |
|---|---|
| Max Power | 650 va |
| Type Of Unit | dental chair with lift system, backrest, motors for chair movements, foot control |
| Supply Voltage | 100 v ac (US) 230 v ac (EU) |
| Water Hardness | 8,4 dh to 12dh |
| Rated Frequency | 50hz/60 hz |
| Atmospheric Pressure | 70 kpa a 106 kpa |
| Input Water Pressure | 0,6 mpa |
