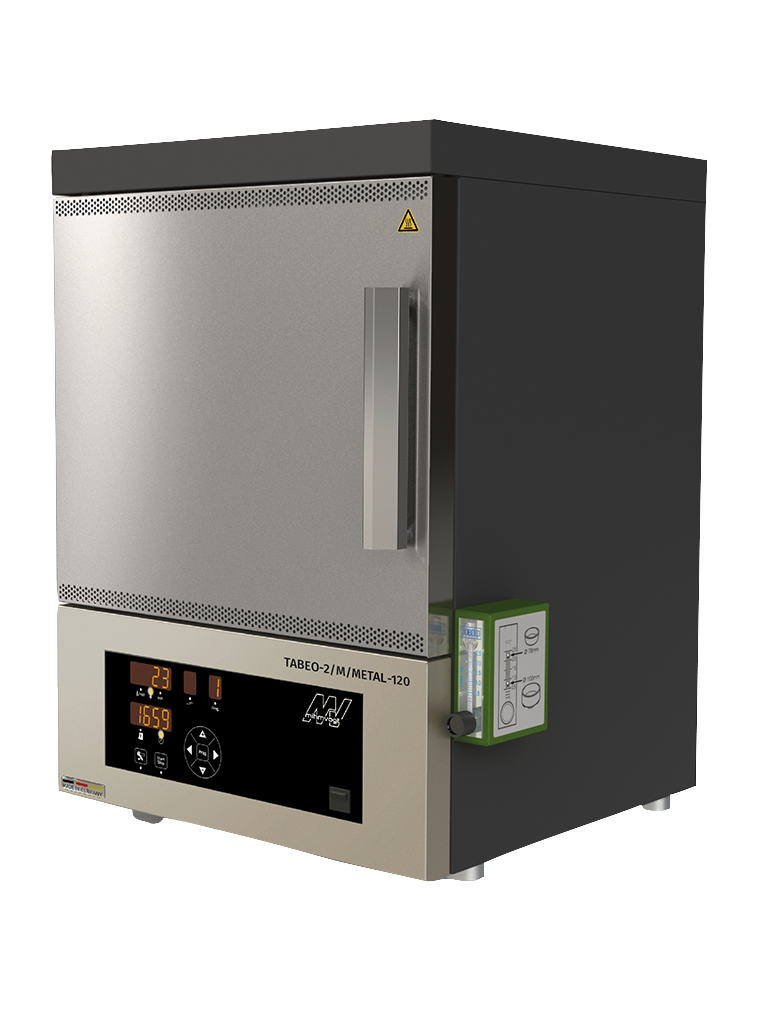

TABEO-2/M/METAL-120
MIHM-VOGT · Quelle

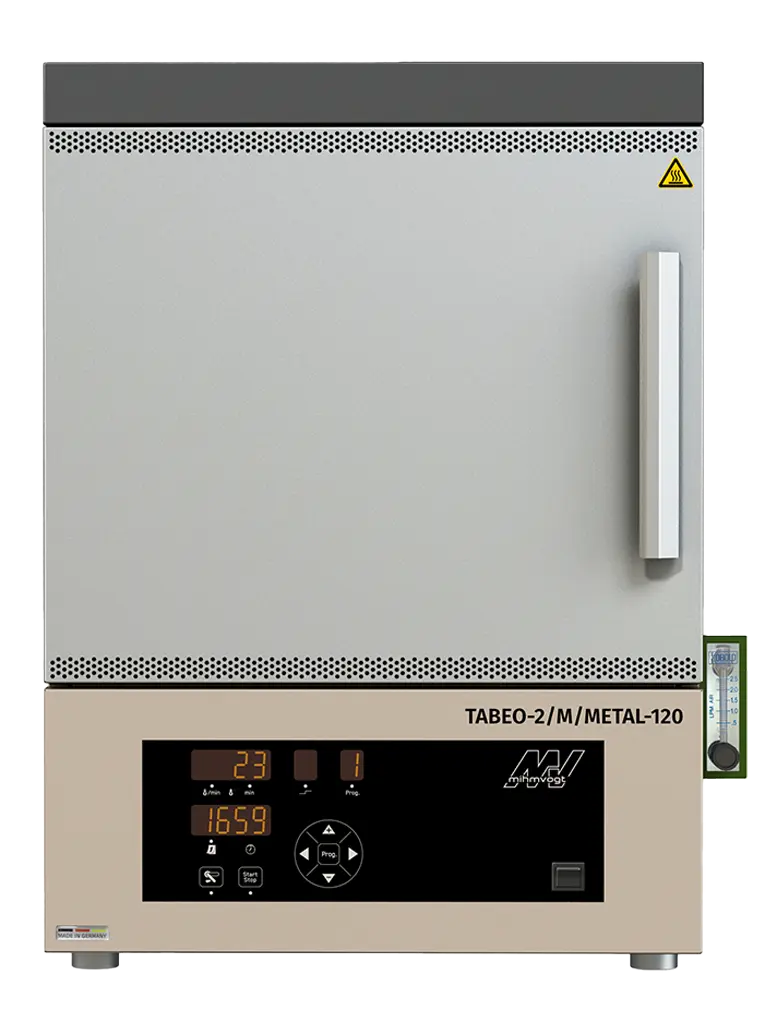

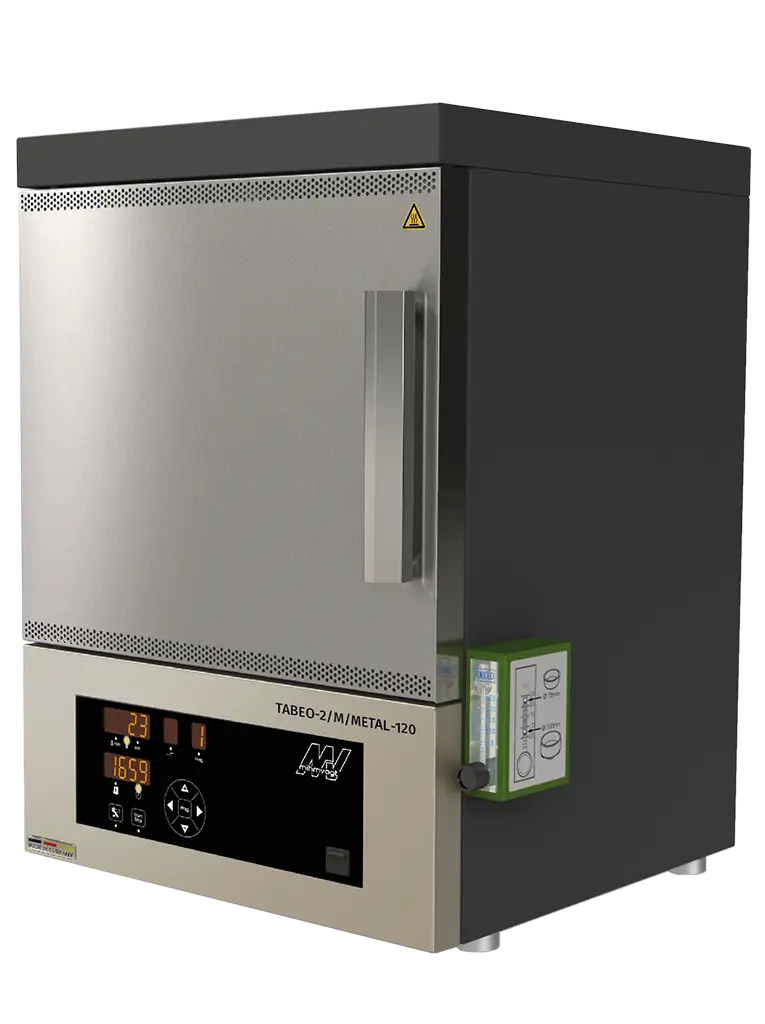

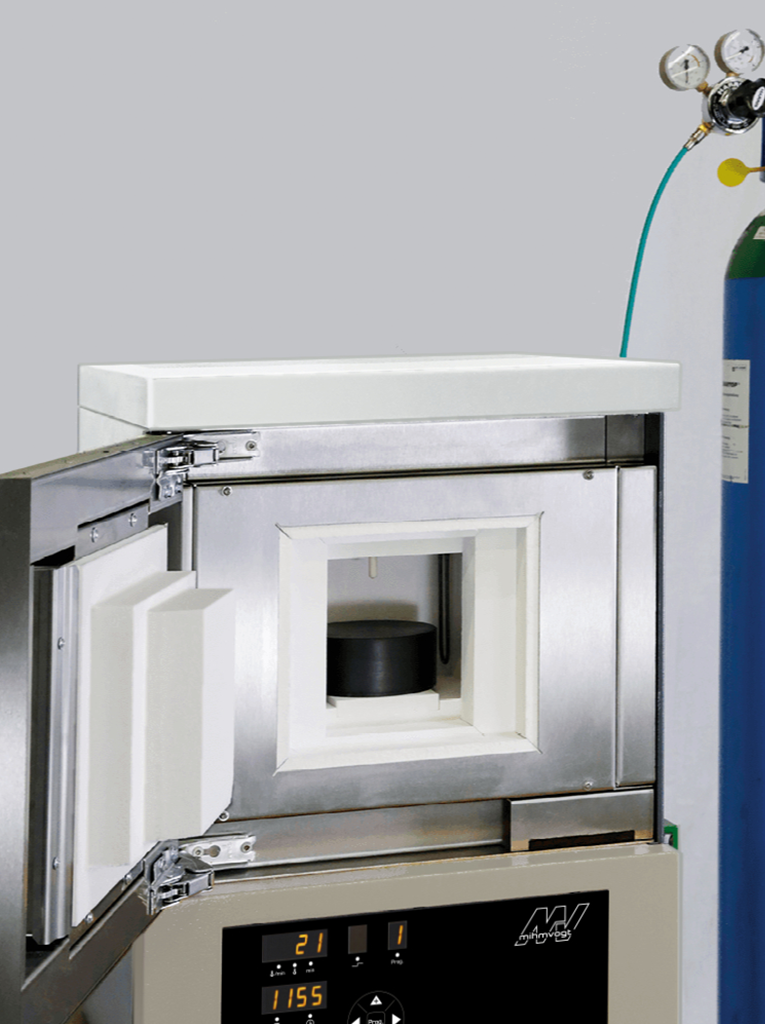

The TABEO-2/M/METAL-120 is used for sintering non-precious metal (NPM) restorations under a protective gas atmosphere. It is a classic front-loading furnace with a manually operated swing door, allowing the heating chamber to be loaded from the front with the sintering material. Device and program parameters are set via a control unit with a 7-segment display.

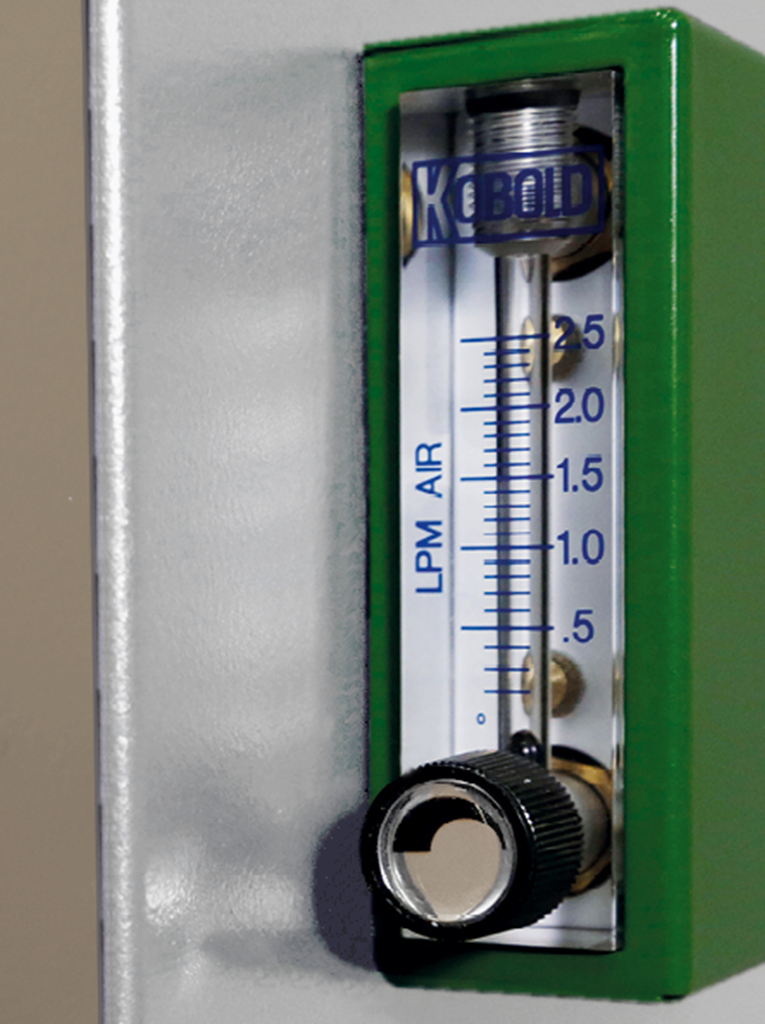

The unit features a manual, stepless regulator for adjusting the protective gas flow rate.
Produktinformationen
| Hersteller | MIHM-VOGT |
|---|---|
| Gewicht | 80 kg |
| Power Max | 1600 W (1,6 kW) |
| Heating Elements | 4x MoSi2 |
| Max. Temperature | 1400°C |
| Dimensions (w/d/h) | 530/460/680 mm |
| Voltage Range / Frequency | 200-240 V / 50-60 Hz |

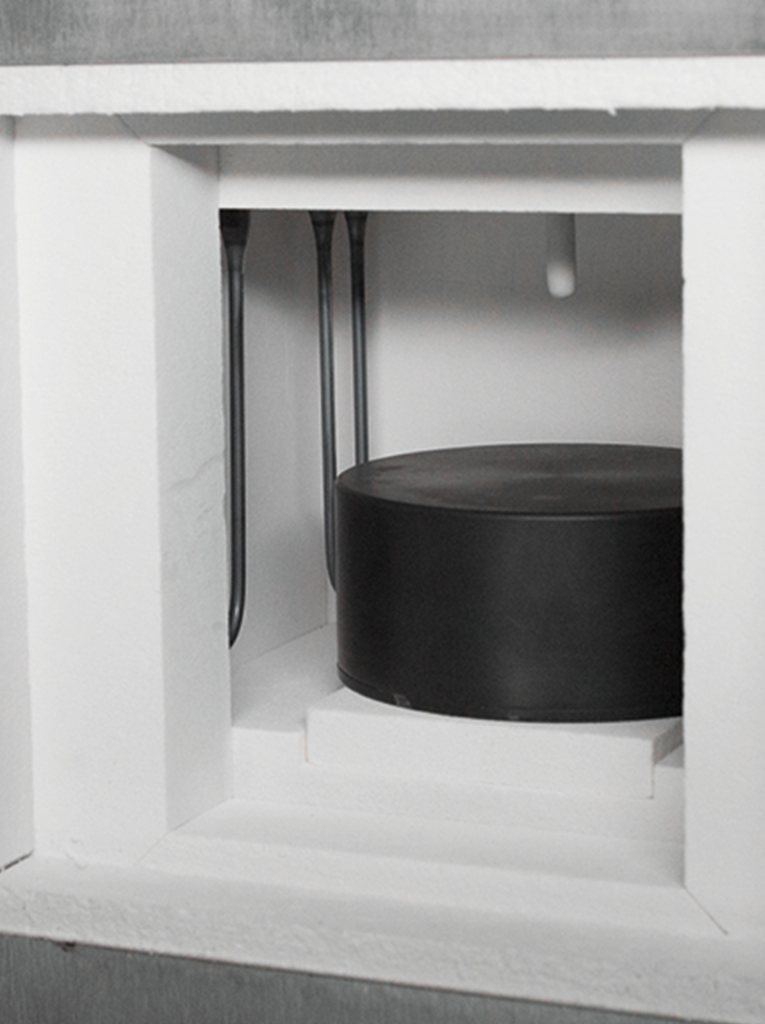

| Max. Heating Chamber Capacity | 1x Sintering-system, Ø 120 / H 54 mm |
| Max. Programmable Heating Rate | 40 °C/min |
