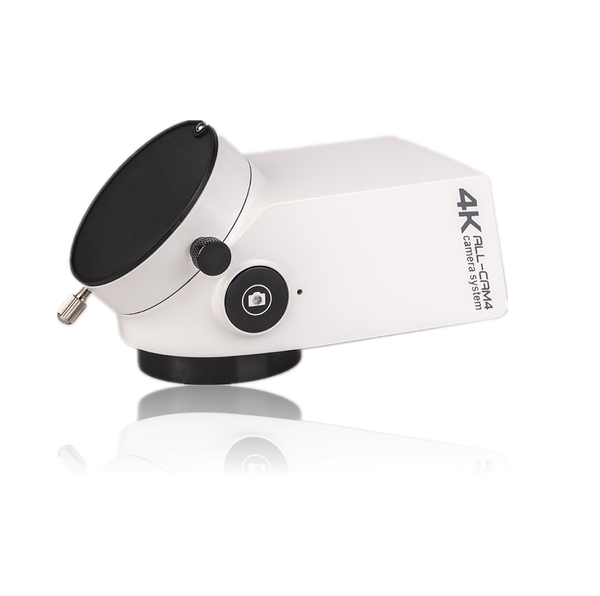

ALL-CAM4 Surgical Microscope 4K Camera System
ALLTION(Guangxi) Instrument Co., Ltd · source
Multi-functions

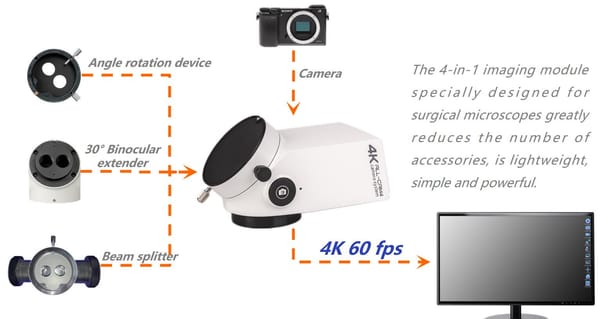

The 4-in-1 imaging module specially designed for surgical microscopes greatly reduces the number of accessories, is lightweight, simple and powerful.
4K Camera System
Photograph and Video Recording

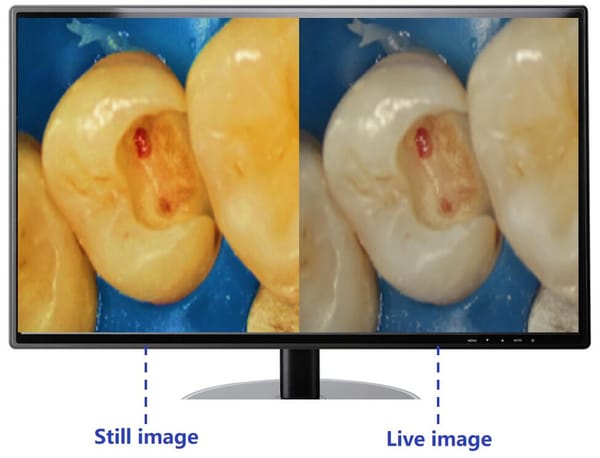

Contrasting photo-photo, photo-live images
The same screen photo and live image/photo can be compared.
Can match different brands of surgical microscopes, including ALLTION, Zumax, Zeiss, Leica, etc.
4K Camera System
Senor SONY high-performance CMOS, low noise, high sensitivity, true colors
Interface
- HDMI2.0 1pc
- USB2.0 1 pc and USB3.0 1 pc

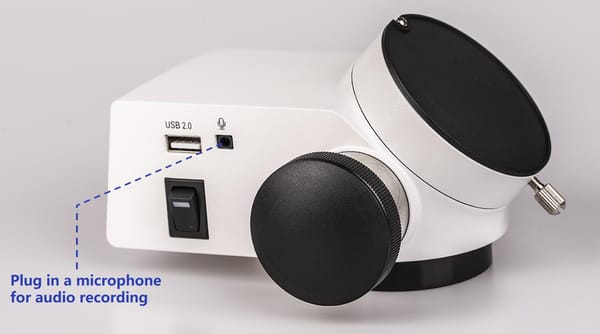

- 3.5 audio interface 1pc (for sound recording)
Resolution 4K（3840 x 2160） 60FPS (16：9)
Storage Connect external USB flash disk (support FAT32 and NTFS formats); picture: JPG format; video: MP4 format
WIFI Built-in WIFI function, it can transmit images
Camera split ratio 2:8
Beam split ration 2:8; (optional 5:5)
Video resolution 4K 30FPS, 1080P 30FPS
Picture resolution 8M(3840*2160)
Basic functions Freeze, photograph, video recording, automatic exposure, white balance, play back and cross curve
Image effect Exposure value, best brightness, gain, red gain, blue gain, saturability, contrast ratio, definition, HDR and system setting
Advanced functions Horizontal flip, vertical flip, zoom out, zoom in, AOI and image comparison
Product Information
| Manufacturer | ALLTION(Guangxi) Instrument Co., Ltd |
|---|---|
| Usb | USB2.0 1pc and USB3.0 1pc |
| Hdmi | HDMI2.0 1pc |
| Wifi | Built-in WIFI function for image transmission |
| Sensor | SONY high-performance CMOS, low noise, high sensitivity, true colors |
| Storage | External USB flash disk (FAT32 and NTFS formats); JPG format for pictures; MP4 format for video |
| Resolution | 4K (3840 x 2160) 60FPS (16:9) |
| Image Effect | Exposure value, best brightness, gain, red gain, blue gain, saturability, contrast ratio, definition, HDR and system setting |
| Compatibility | Can match different brands of surgical microscopes, including ALLTION, Zumax, Zeiss, Leica, etc. |
| Audio Interface | 3.5 audio interface 1pc (for sound recording) |
| Basic Functions | Freeze, photograph, video recording, automatic exposure, white balance, play back and cross curve |
| Beam Split Ratio | 2:8; (optional 5:5) |
| Video Resolution | 4K 30FPS, 1080P 30FPS |
| Advanced Functions | Horizontal flip, vertical flip, zoom out, zoom in, AOI and image comparison |
| Camera Split Ratio | 2:8 |
| Picture Resolution | 8M (3840×2160) |
