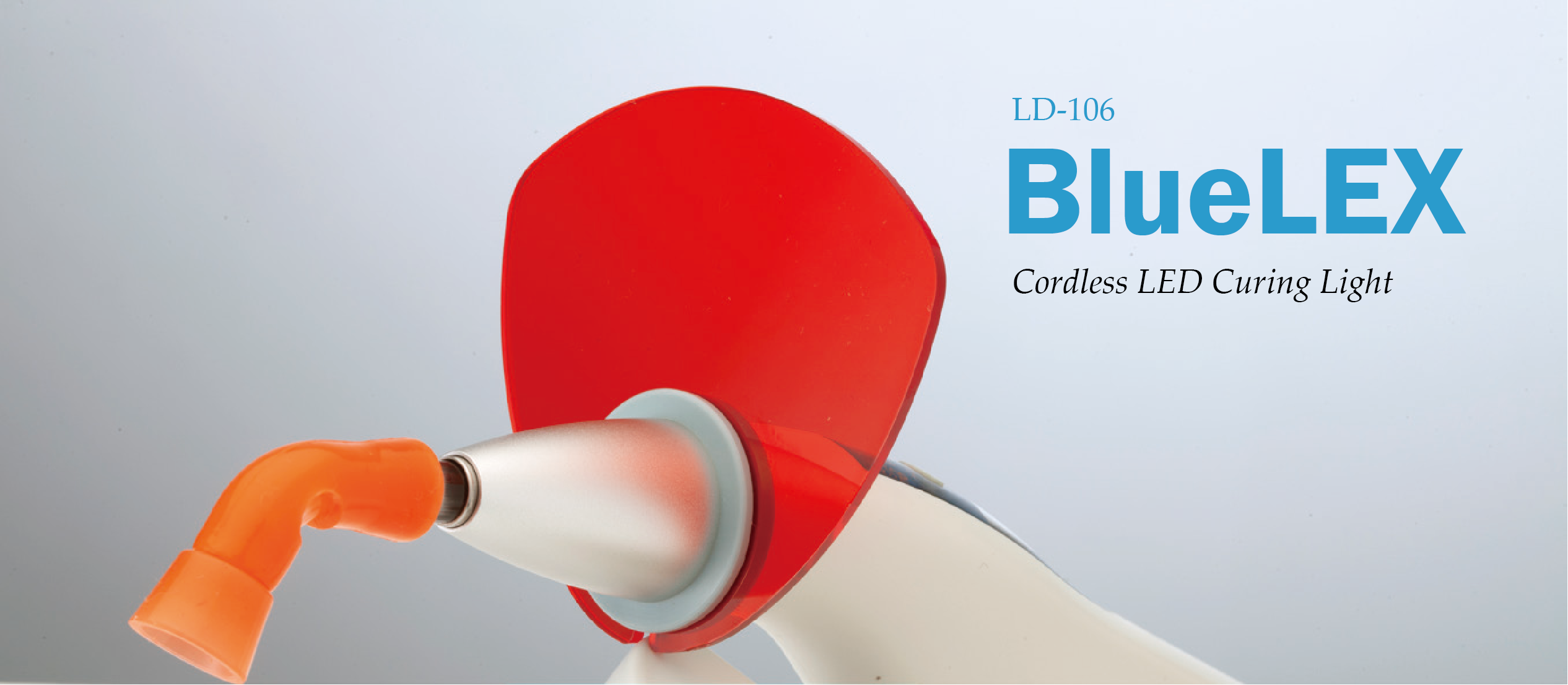

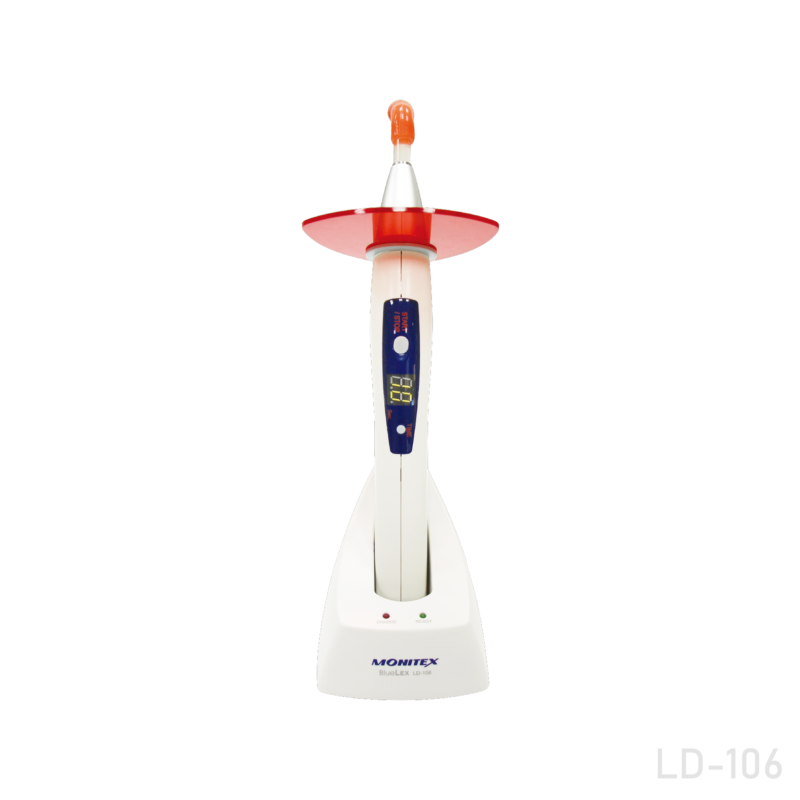

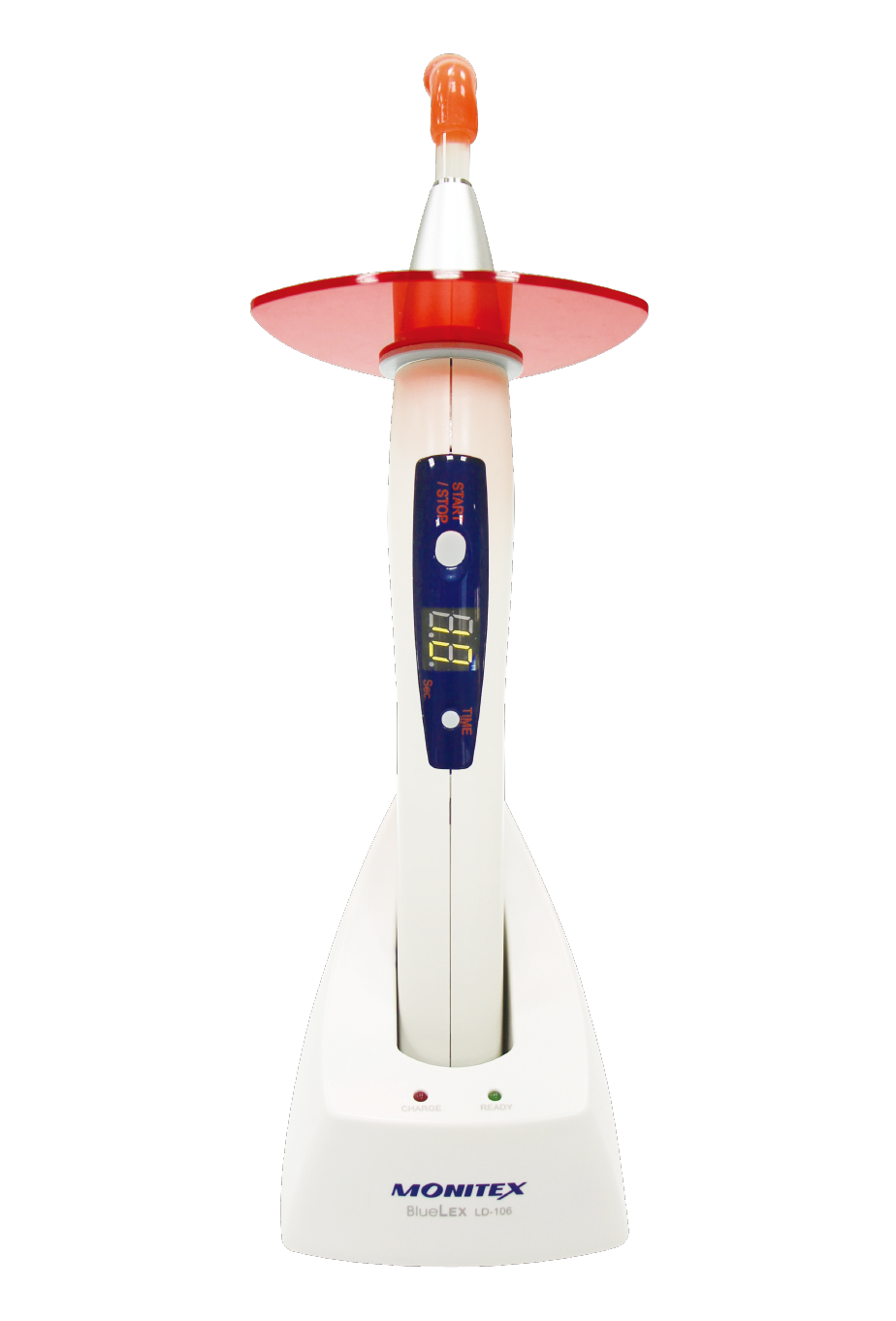

BlueLEX LD-106
Monitex Industrial Co., Ltd. · #LD-106 · source
BlueLEX
Cordless LED Curing Light
BlueLEX LD-106 has both full power and ramp-up functions
adjusted according to the time set on the device
A 5-second curing time will enable the full power mode
while curing cycles of 10~30 seconds
the device will automatically changes to ramp-up mode.
Optimized fiber-optic transmission
Complete polymerization of most composites within 10 seconds.

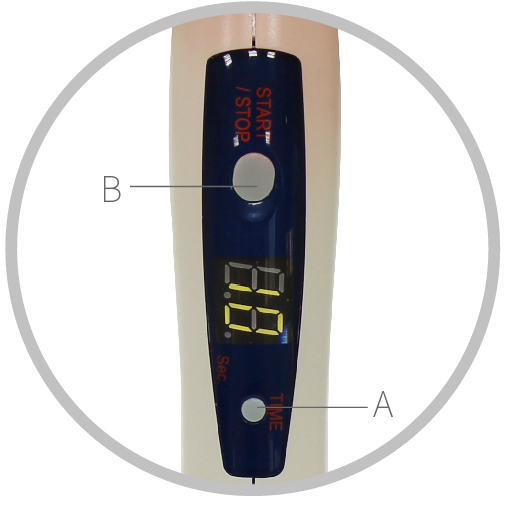

Display Screen
(A) TIME Button
(B) START / STOP Button

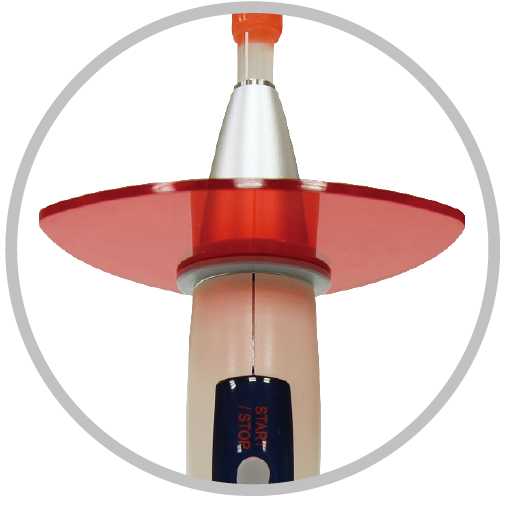

Protective Shield

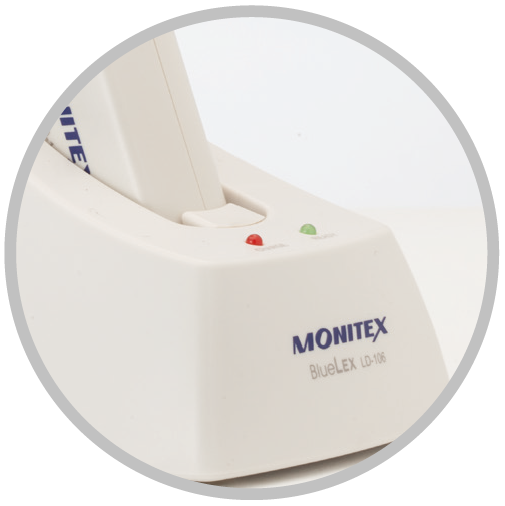

Charger Stand
Anti-glare Cone

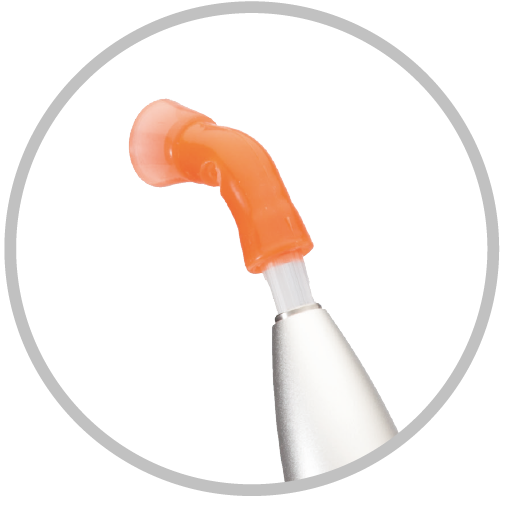

Fiber-optic Probe
Display Screen
"TIME" Button
"START / STOP" Button
Charger Stand
Protective Shield
Technical Specifications:
LED Lamp: 5 W
Light Intensity: 1,000 mW/cm² and up
Wavelength Range: 420490 nm (peaks at 455465 nm)
Fiber-optic Probe: Ø8mm, autoclavable up to 132°C
Handpiece Dimensions: 214(L) x 28(W) x 39(H) mm
Handpiece Weight: 160 g
Charger Stand Dimensions: 79(L) x 83(W) x 126(H) mm
Charger Stand Weight: 110 g
Power Input: AC 100~240V, 50/60 Hz
Power Output: DC 9V --- 1.3A
Product Information
| Manufacturer | Monitex Industrial Co., Ltd. |
|---|---|
| Led Lamp | 5 W |
| Power Input | AC 100~240V, 50/60 Hz |
| Power Output | DC 9V --- 1.3A |
| Light Intensity | 1,000 mW/cm² and up |
| Handpiece Weight | 160 g |
| Wavelength Range | 420~490 nm (peaks at 455~465 nm) |
| Fiber Optic Probe | Ø8mm, autoclavable up to 132°C |
| Charger Stand Weight | 110 g |
| Handpiece Dimensions | 214(L) x 28(W) x 39(H) mm |
| Charger Stand Dimensions | 79(L) x 83(W) x 126(H) mm |
