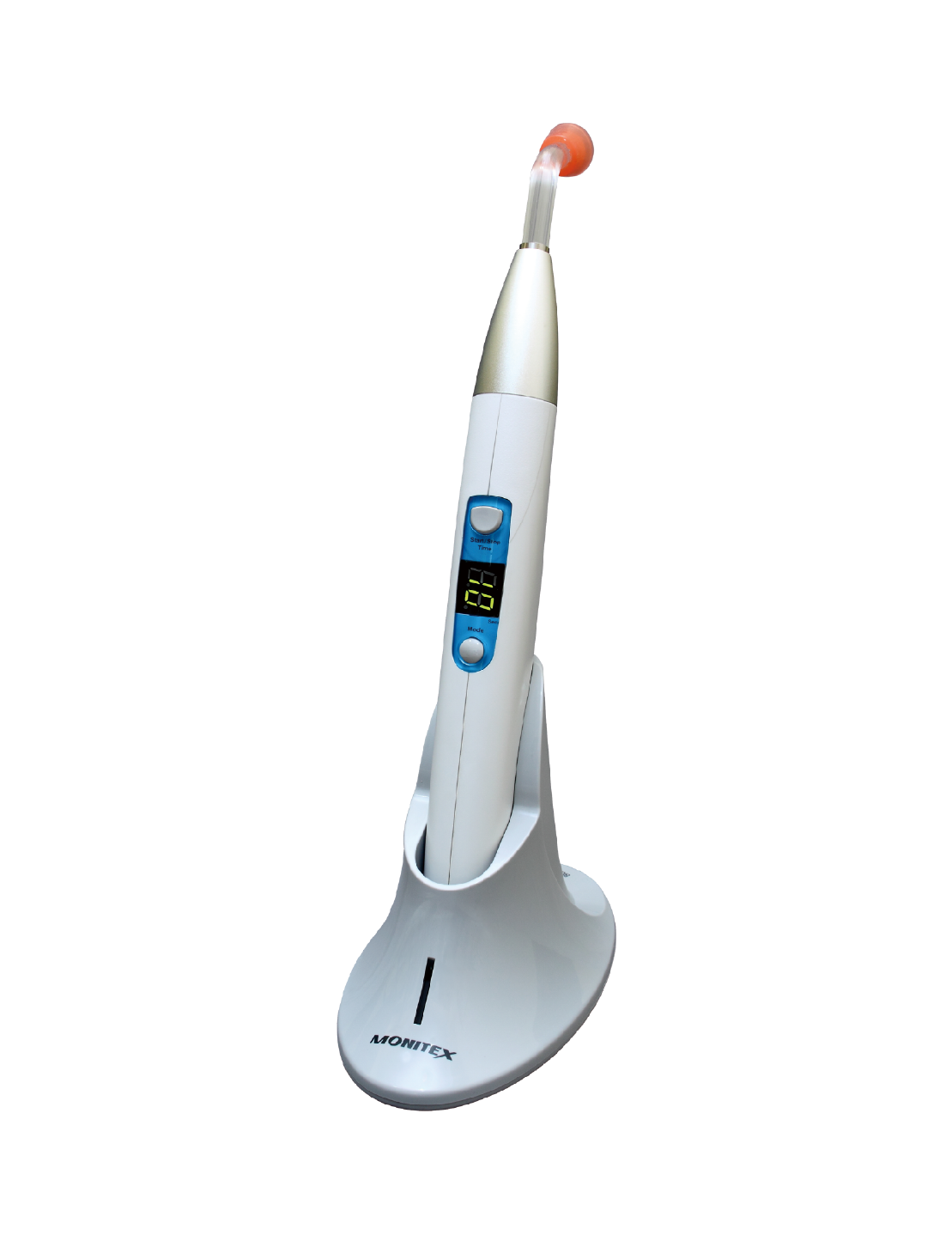

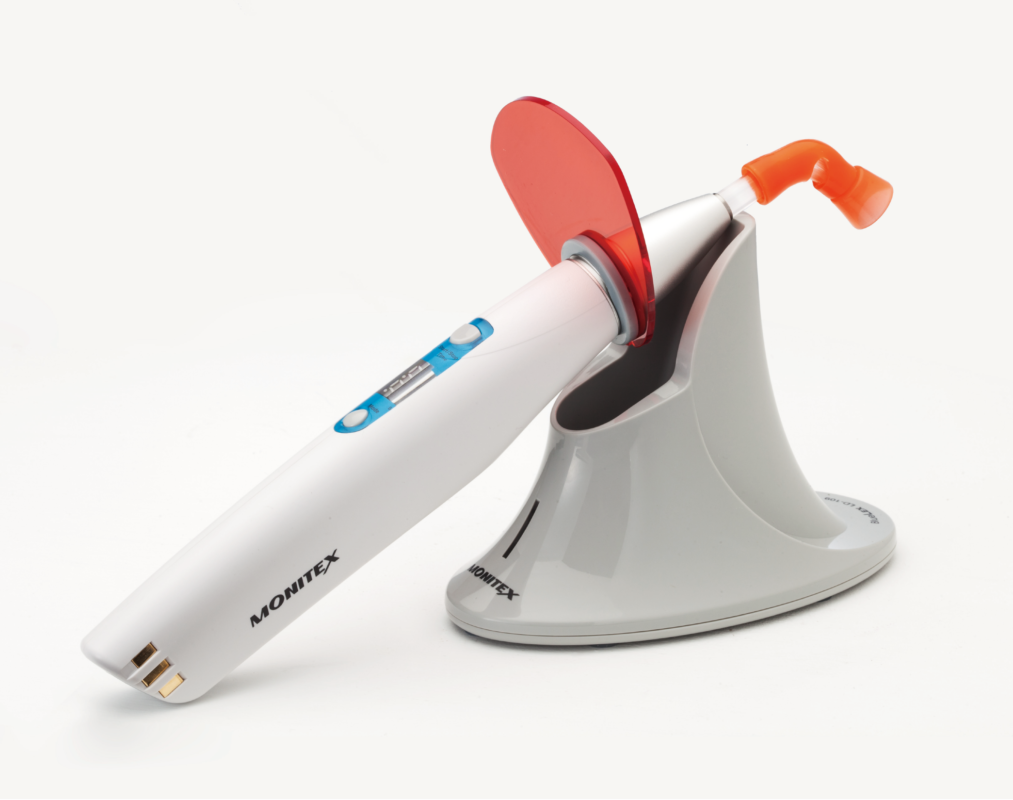

BlueLEX LD-109
Monitex Industrial Co., Ltd. · source
BlueLEX
Cordless LED Curing Light
Designed the high light intensity for boosting fast cure
BlueLEX LD-109 is able to reach 1,600 mW/cm²
and has 3 curing modes to suit all clinical requirements.
Experience the power and quality of LD-109 yourself !
Curing modes
Full power mode
Full power output for maximum intensity curing.

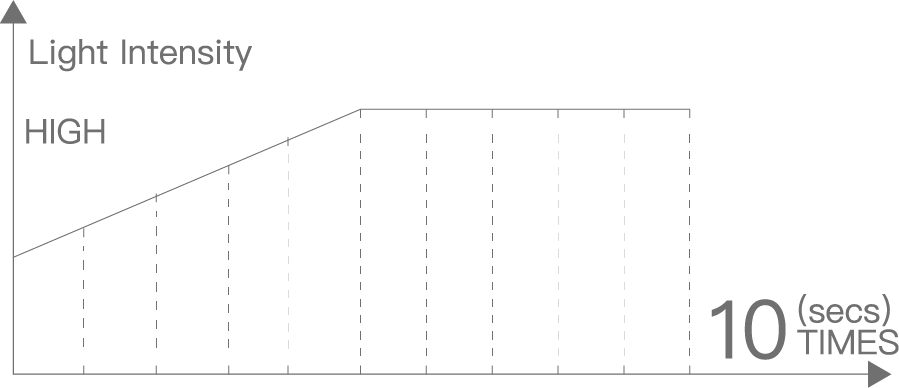

Ramp-Up mode
Gradual increase in intensity to minimize sensitivity.
Pulse mode
Intermittent pulsed output for controlled polymerization.
Optimized fiber-optic transmission
Complete polymerization of most composites within 10 seconds.

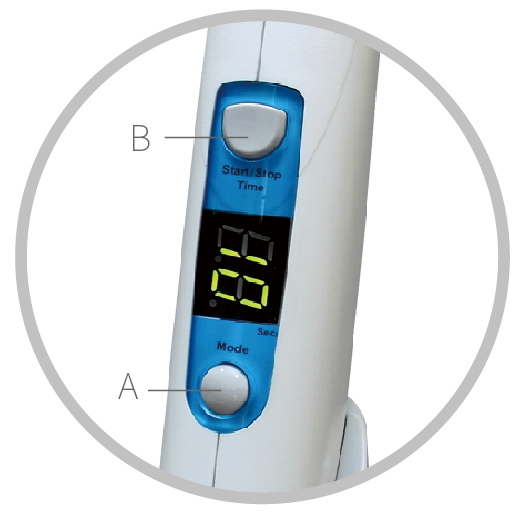

Display Screen
(A) TIME Button
(B) START / STOP Button

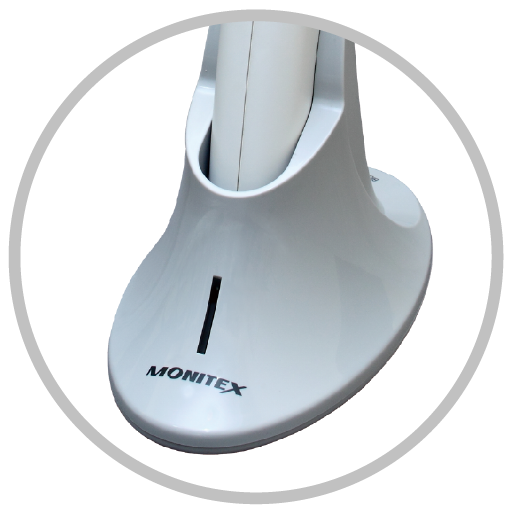

Charger Stand
Included Accessories

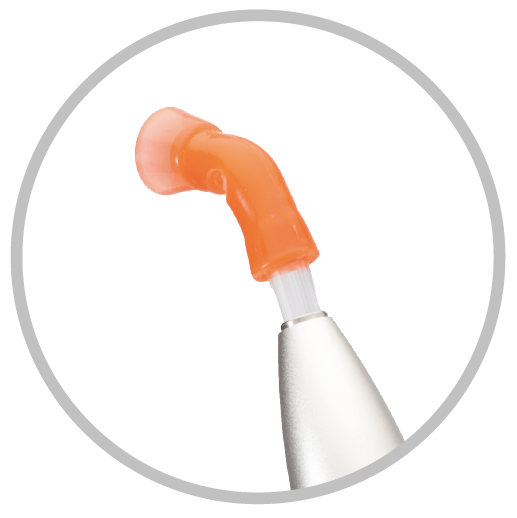

- Anti-glare Cone
- Fiber-optic Probe
- Display Screen
- "TIME" Button
- "START / STOP" Button
- Charger Stand
Product Information
| Manufacturer | Monitex Industrial Co., Ltd. |
|---|---|
| Led Lamp | 5 W |
| Power Input | AC 100~240V, 50/60 Hz |
| Power Output | DC 9V --- 1.3A |
| Light Intensity | 1,600 mW/cm² and up |
| Handpiece Weight | 160 g |
| Wavelength Range | 420~490 nm (peaks at 455~465 nm) |
| Fiber Optic Probe | Ø8mm, autoclavable up to 132°C |
| Charger Stand Weight | 200 g |
| Handpiece Dimensions | 210(L) x 23(W) x 32(H) mm |
| Charger Stand Dimensions | 140(L) x 77(W) x 103(H) mm |
