C-PUMA INT X Series Dental Electrical Motors

Dental Electrical Motors

C-PUMA INT X Series Dental Electrical Motors is a versatile, built-in clinical solution offering four progressive configurations—ranging from manual control to screen-operated, sterile water-supplied, and multi-motor systems—to efficiently meet diverse dental needs, including restoration, polishing, endodontics, and tooth extraction.

C-PUMA INT X1–X4 — Built-in Electric Motor System

From standalone units to full chair integration — for a cleaner, more efficient operatory.

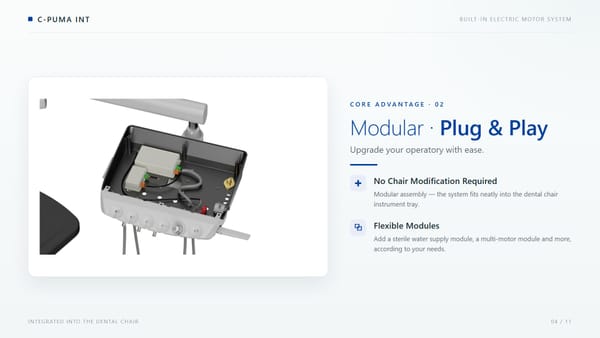

Modular · Plug & Play — Upgrade Your Operatory with Ease

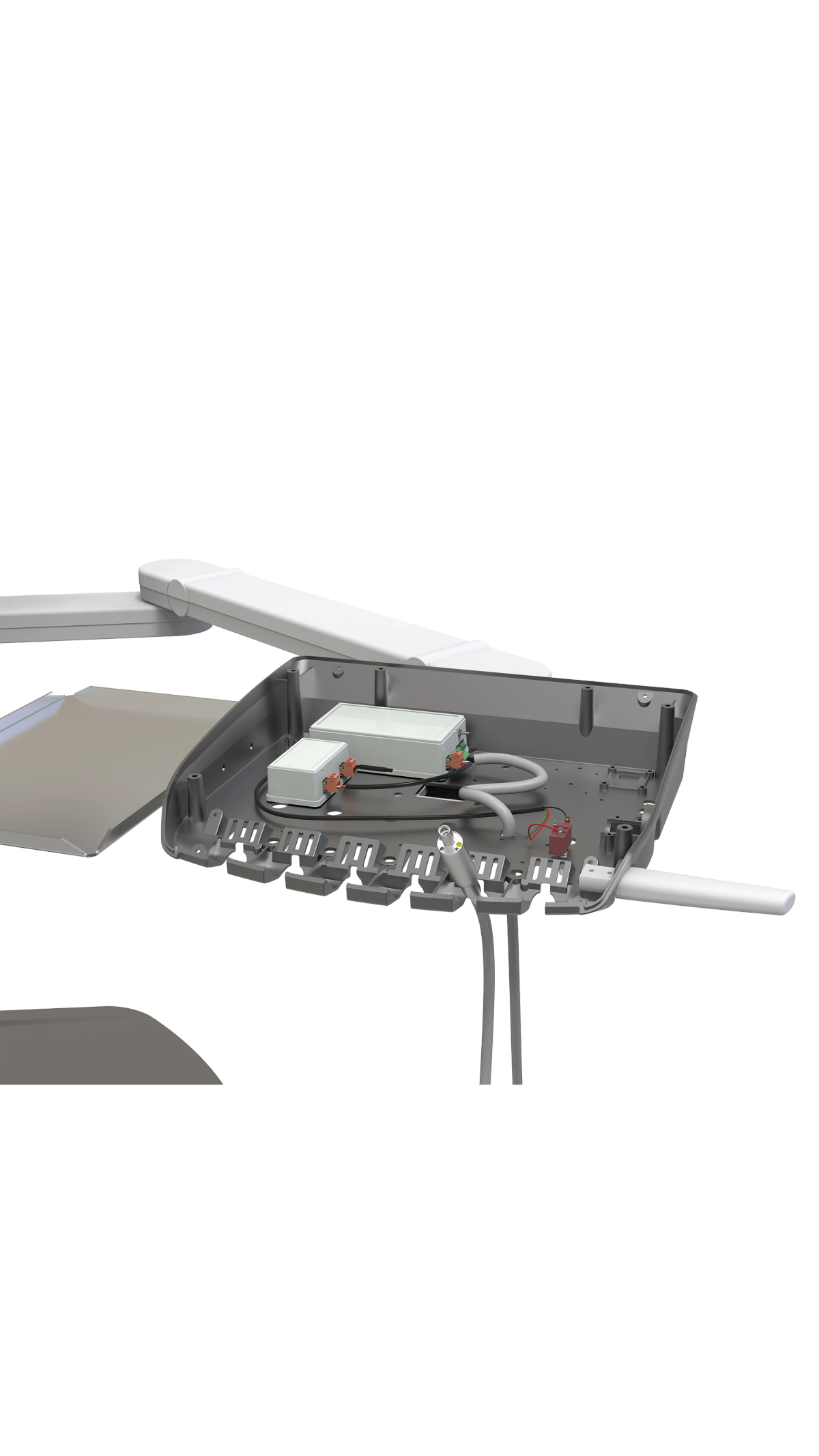

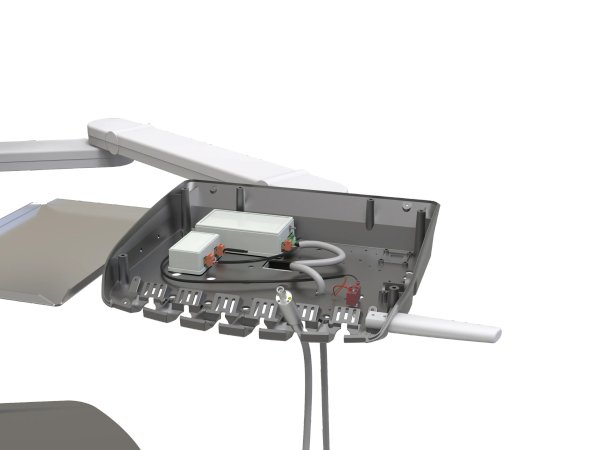

• No chair modification required — modular assembly fits neatly into the dental chair.
• Add a sterile water supply module, a multi-motor module, and more as needed.

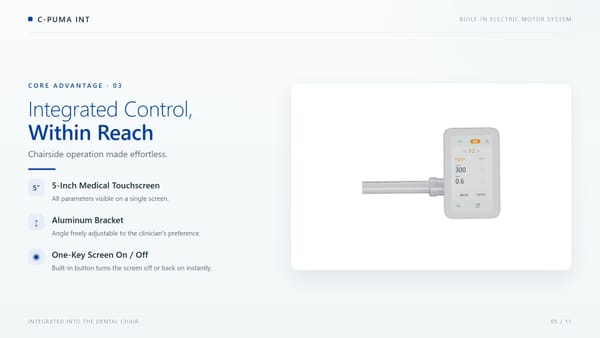

Integrated Control, Within Reach — Chairside Operation Made Effortless

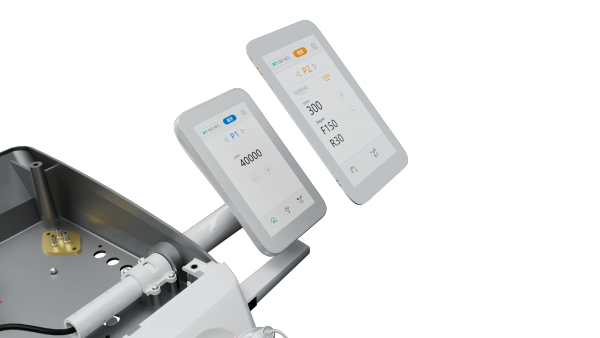

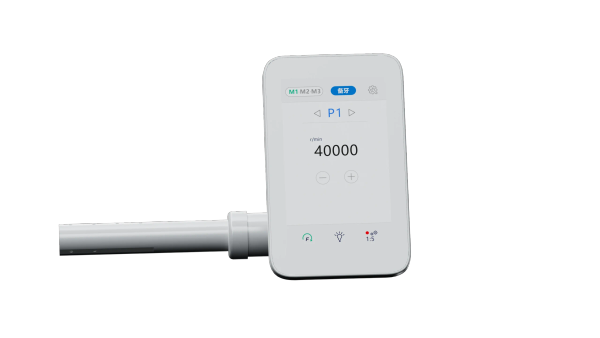

• 5-inch medical touchscreen — all parameters visible on a single screen.
• Aluminum bracket with a freely adjustable angle.
• One-key screen on/off button — turn the screen off or back on instantly.

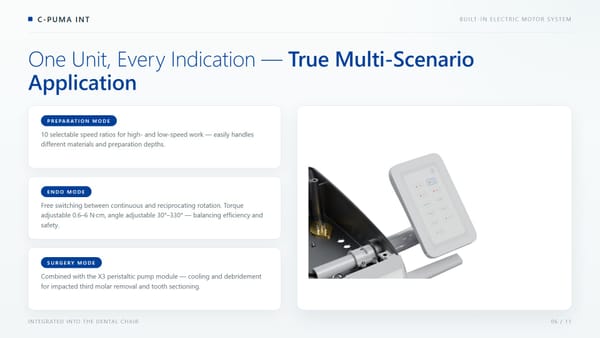

One Unit, Every Indication — True Multi-Scenario Application

• Preparation Mode: 10 selectable speed ratios for high- and low-speed work — easily handles different materials and preparation depths.
• Endo Mode: Free switching between continuous and reciprocating rotation. Torque adjustable 0.6–6 N·cm, angle adjustable 30°–330° — balancing efficiency and safety.
• Surgery Mode: Combined with the X3 peristaltic pump module — cooling and debridement for impacted third molar removal and tooth sectioning.

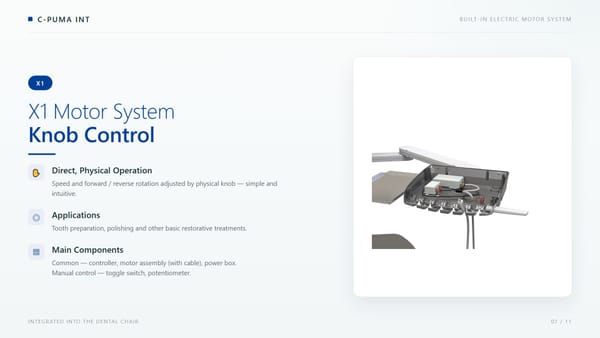

X1 Motor System — Knob Control

• Speed and forward/reverse rotation are adjusted by a physical knob — direct and intuitive operation.
• Applications: tooth preparation, polishing, and other basic restorative treatments.
• Main components: controller, motor assembly (with cable), power box, toggle switch, potentiometer.

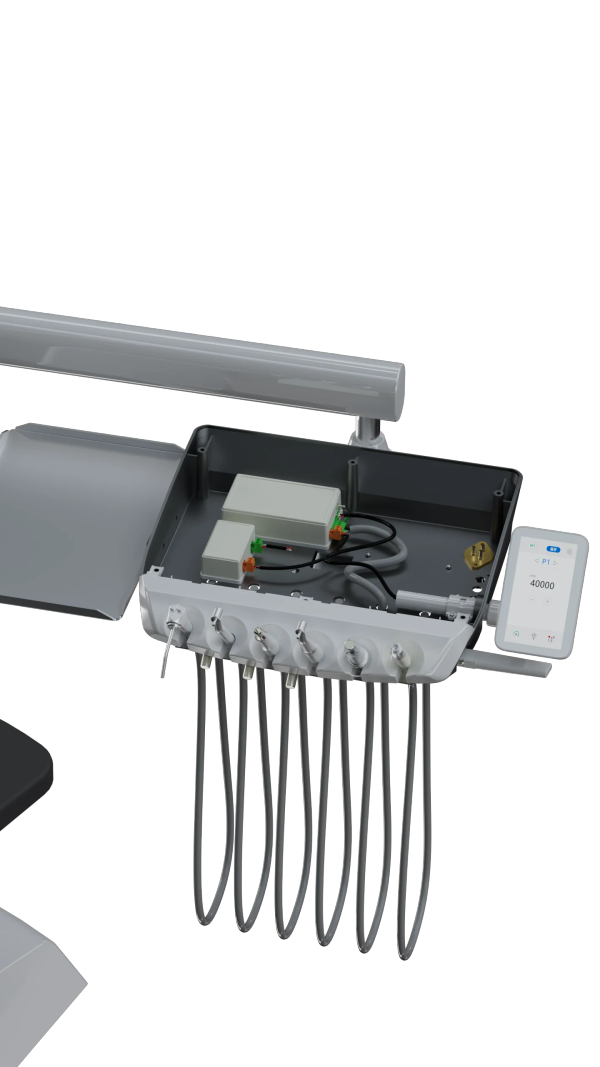

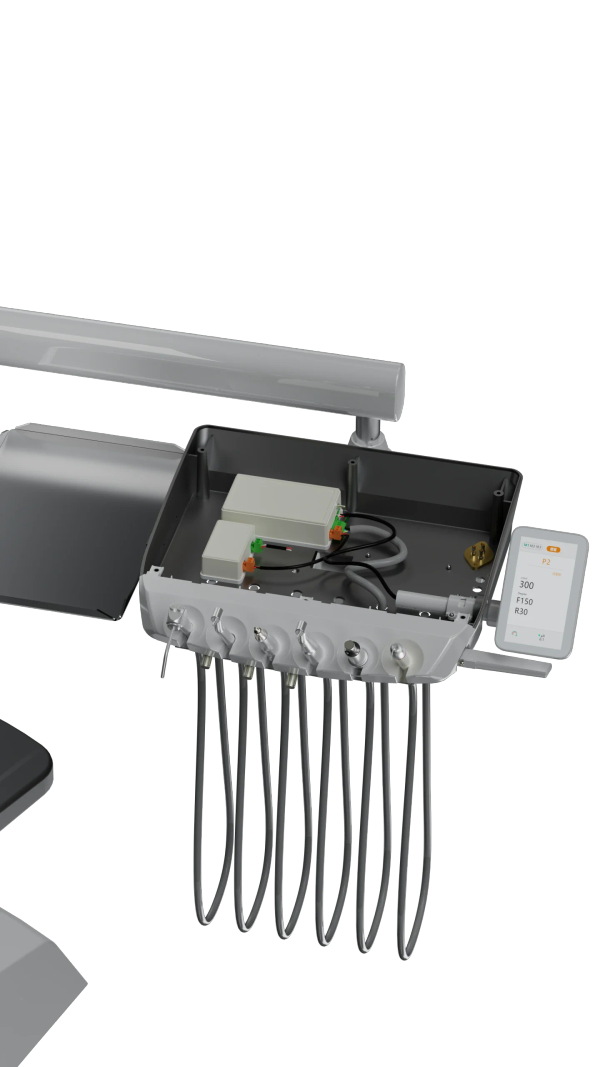

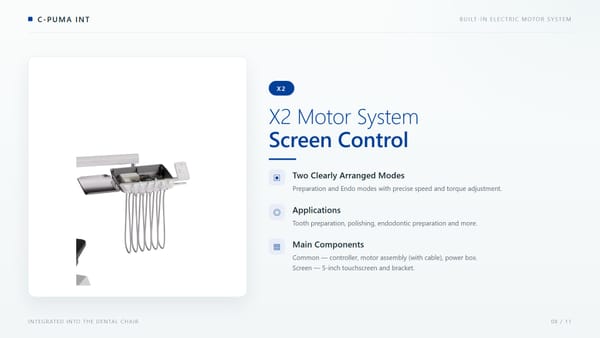

X2 Motor System — Screen Control

• Two clearly arranged modes (Preparation / Endo) with precise speed and torque adjustment.
• Applications: tooth preparation, polishing, endodontic preparation, and more.
• Main components: controller, motor assembly (with cable), power box, 5-inch touchscreen, and bracket.

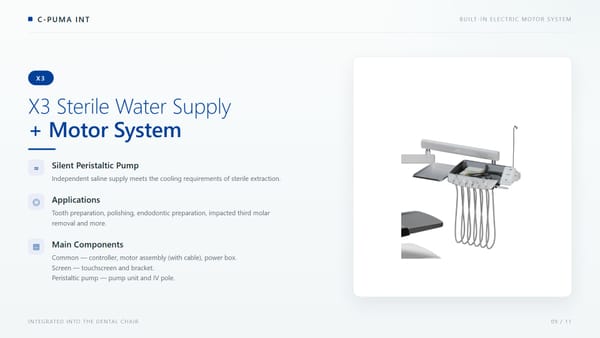

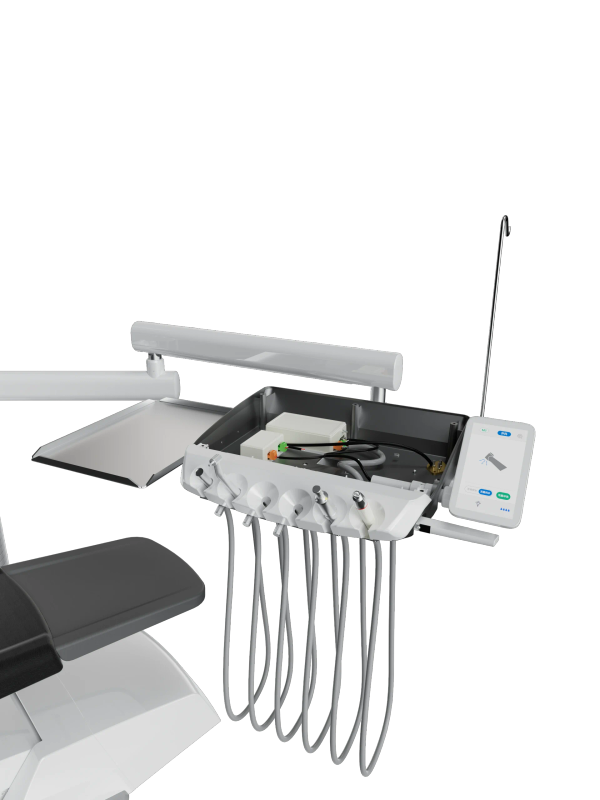

X3 Sterile Water Supply + Motor System

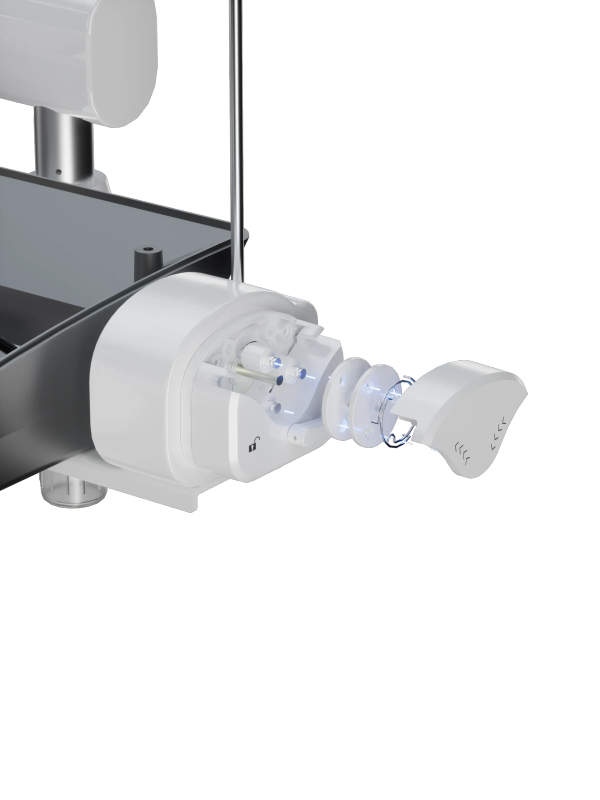

• Silent peristaltic pump provides an independent saline supply, meeting the cooling requirements of sterile extraction.
• Applications: tooth preparation, polishing, endodontic preparation, impacted third molar removal, and more.
• Main components: controller, motor assembly (with cable), power box, touchscreen and bracket, peristaltic pump, and IV pole.

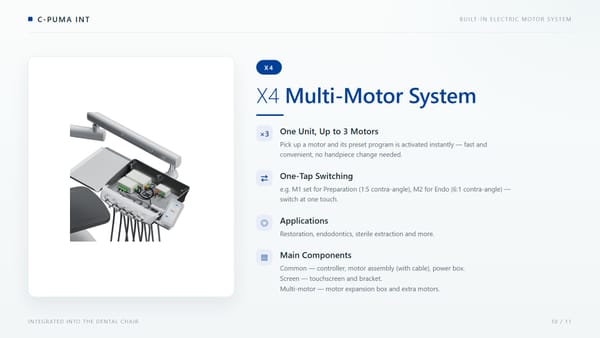

X4 Multi-Motor System — Pick Up and Go

• One unit, up to 3 motors. Pick up a motor, and its preset program activates instantly—fast and convenient, with no handpiece change needed.
• Example: M1 set for Preparation (1:5 contra-angle), M2 for Endo (6:1 contra-angle) — one-tap switching.
• Applications: restoration, endodontics, sterile extraction, and more.
• Main components: controller, motor assembly (with cable), power box; touchscreen and bracket; motor expansion box and extra motors.

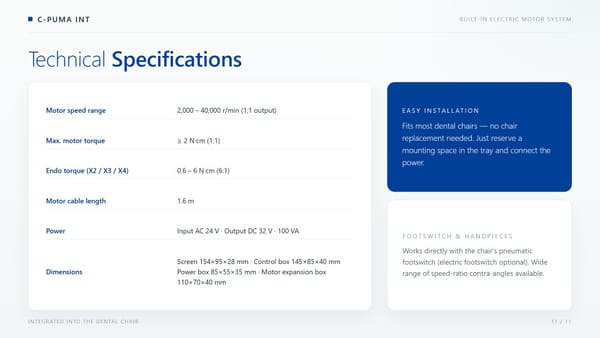

Technical Specifications

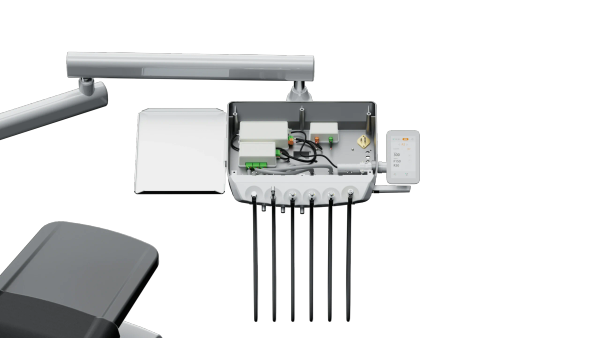

• Easy installation: fits most dental chairs — no chair replacement needed. Just reserve a mounting space in the tray and connect the power.
• Footswitch & handpieces: works directly with the chair's pneumatic footswitch (electric footswitch optional). Wide range of speed-ratio contra-angles available. Feature:

1. Smart Touchscreen: 5-inch HD color display with an integrated power button on the back for convenient operation.
2. Flexible Bracket: Aluminum alloy construction; offers adjustable angles, easy installation, and robust durability.
3. Dual-Mode High-Efficiency Treatment:
   • Tooth Preparation/Surgical Mode: 10 speed ratio settings to meet requirements for both high- and low-speed operations.
   • Endodontic Mode: Adjustable speed (250–3000 rpm) and torque (0.6–6 N·m); supports custom programs and seamless switching between continuous and reciprocating rotation.
4. Precise Air Pressure Calibration: Automatic calibration of foot-pedal air pressure ensures rapid and accurate operational response.

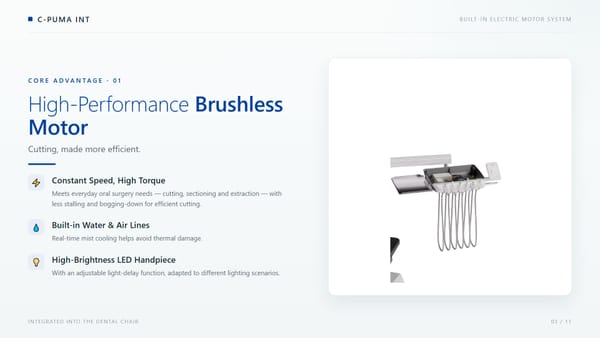

5. Precision Power Control: The motor utilizes imported bearings to ensure accurate and reliable control of speed and torque.
6. User-Friendly Illumination: Motor handpiece features a high-brightness light source with a time-delay function to suit various clinical scenarios.
7. Sterile Water Supply (X3 only): Supports an external peristaltic pump for sterile intraoperative cooling and irrigation; suitable for tooth preparation, polishing, endodontic preparation, impacted tooth extraction, basic implant procedures, etc.
8. Multi-Motor Control (X4 only): Supports connection of 2–3 motor handpieces for quick switching, accommodating diverse treatment needs such as restorative work, endodontics, and implantology.
9. Versatile Foot Pedal Compatibility: The motor can be driven by the dental chair's pneumatic foot pedal; an electric foot pedal is also available as an option.
10. Flexible Power Solutions: The standard power conversion box allows direct connection to the dental chair's power supply; an optional external adapter is also available for greater installation flexibility.
