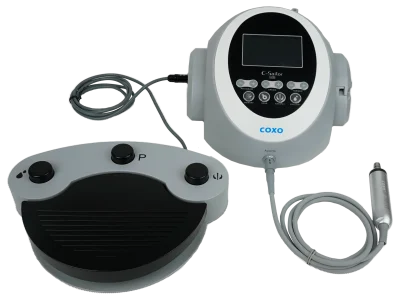

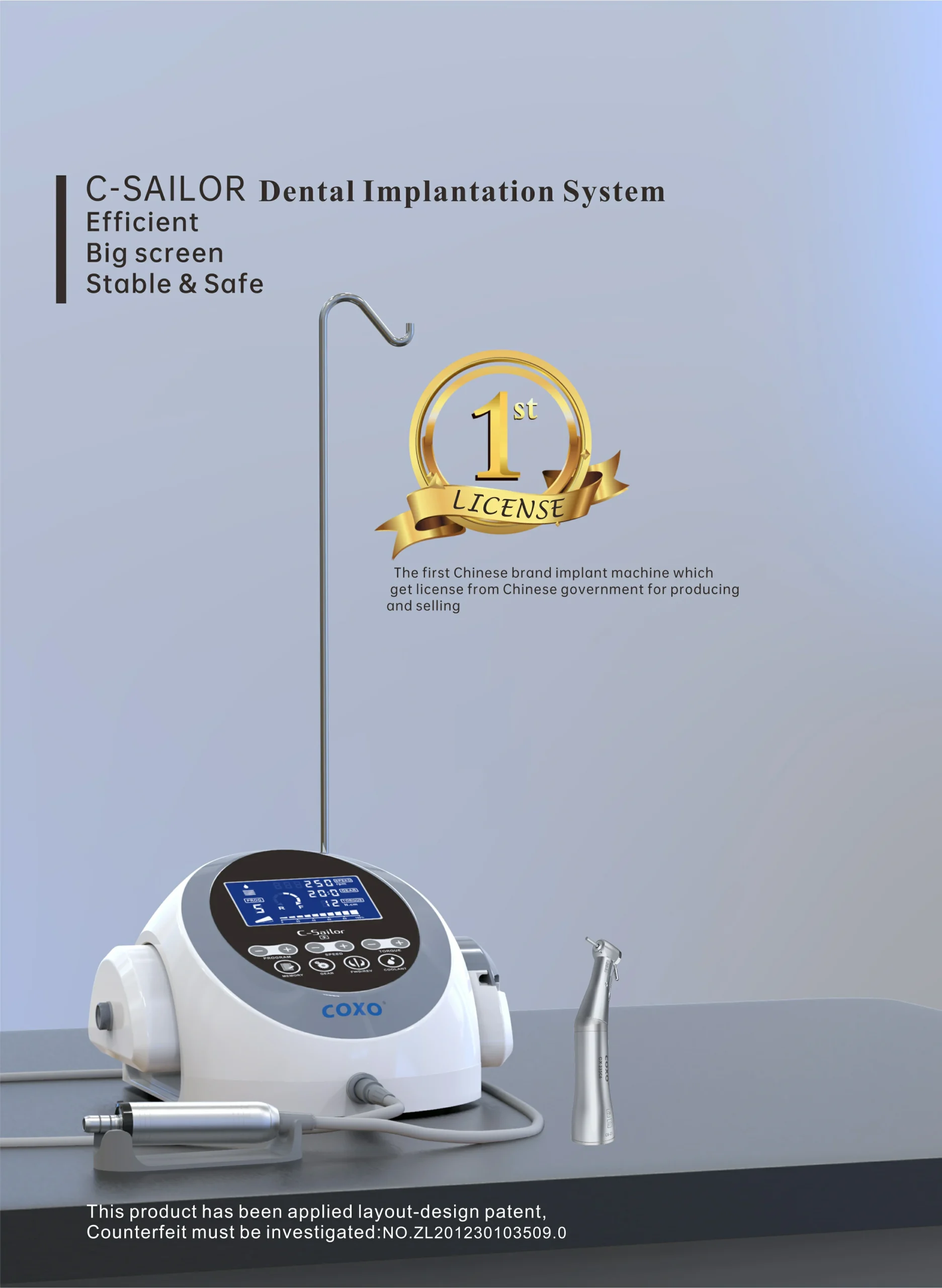

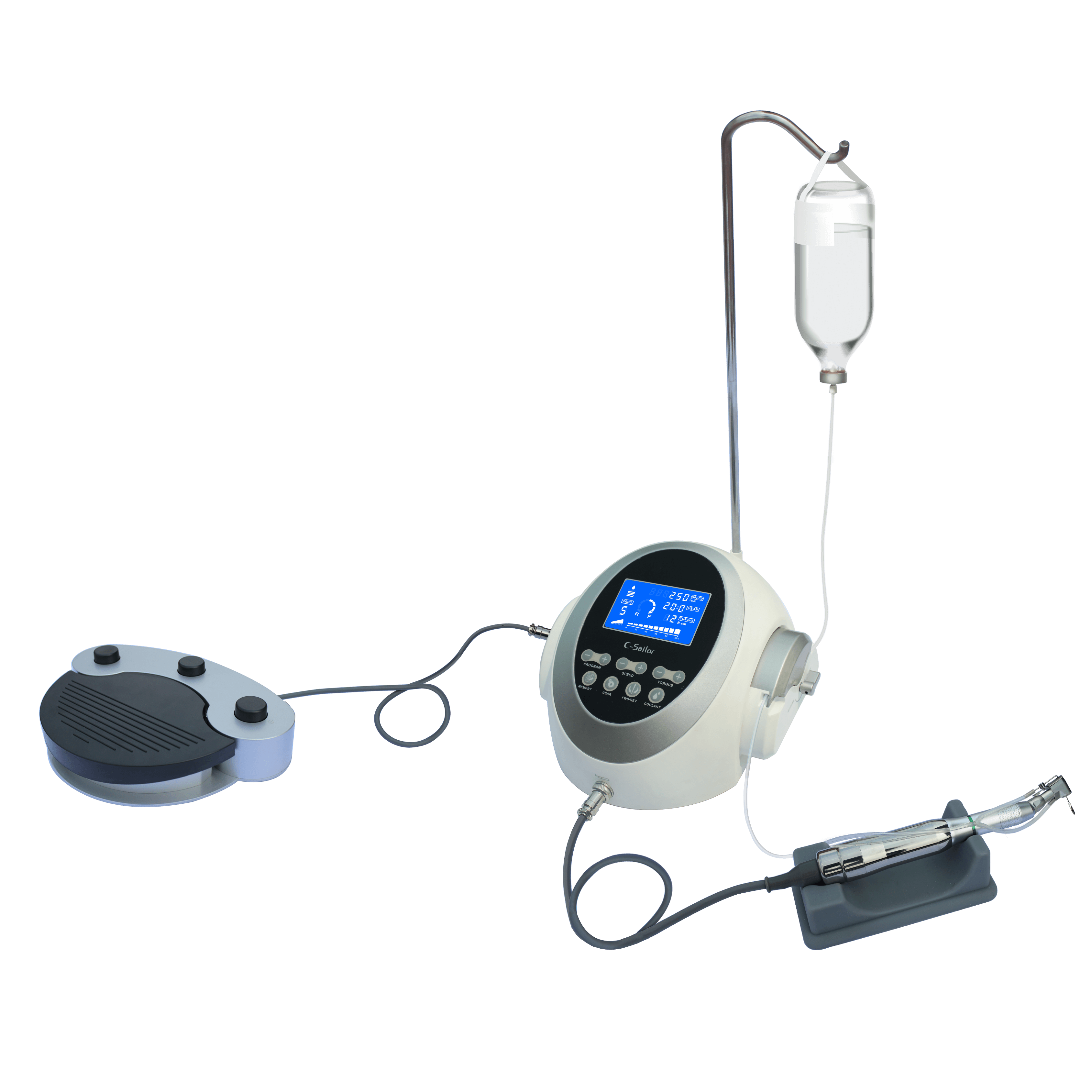

C-Sailor Dental Implantation Systems

C-Sailor

Dental lmplantation Systems

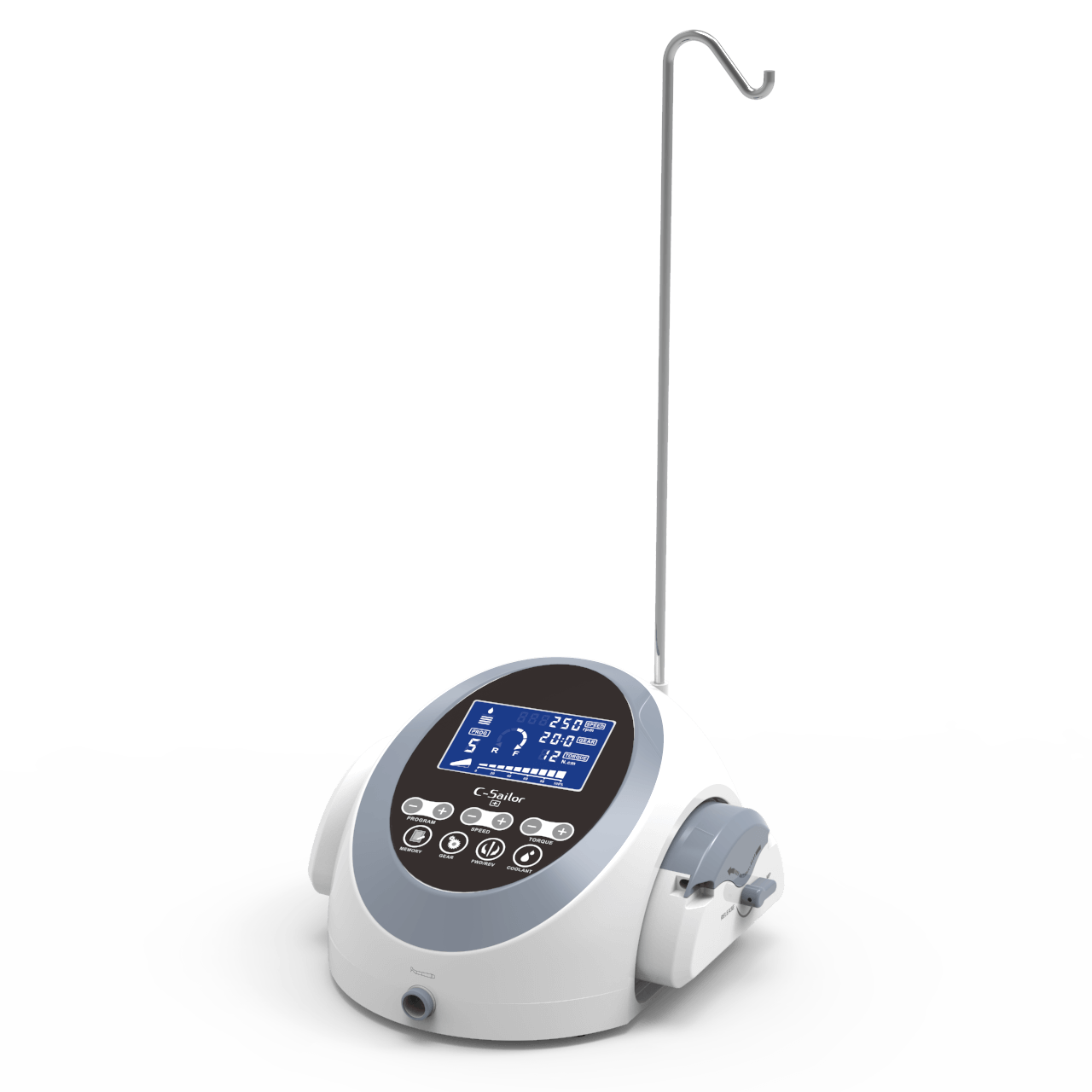

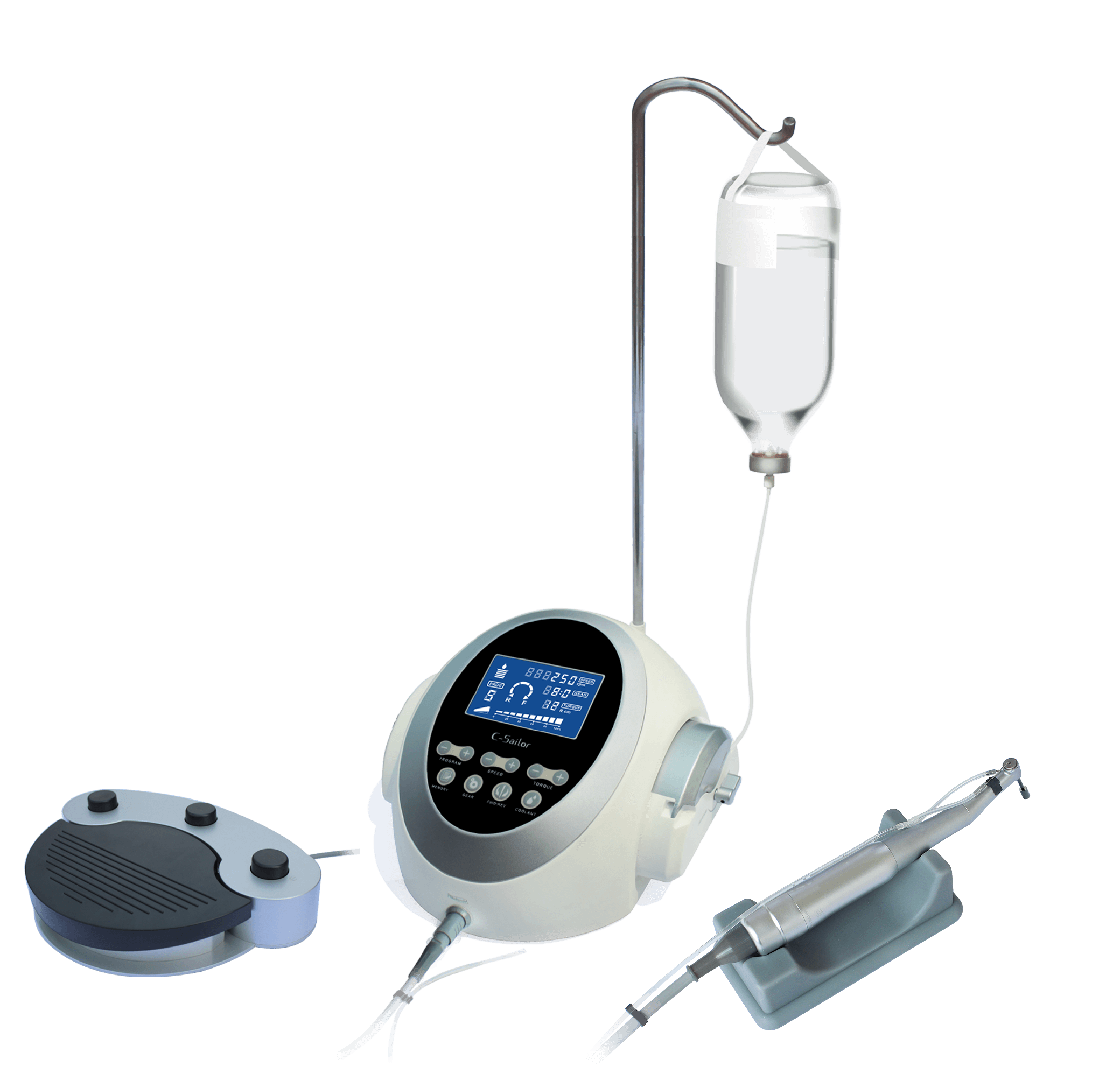

Foshan COXO Medical Instrument Co., Ltd., a leading manufacturer of dental devices, has been deeply involved in dental electric motors for over 10 years. The company sells its products in over 130 countries and regions, earning widespread acclaim from its global customer base. The C-Sailor is a fully functional dental implantation system, a high-performance control system for dental and medical needs, featuring not only a clear, big screen, but also efficient, stable & safe.

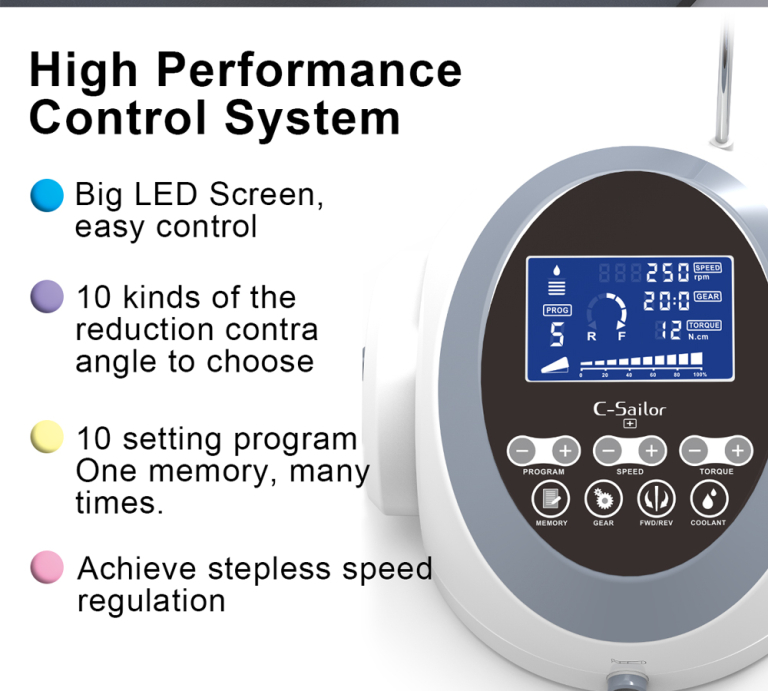

High Performance Control System

• Big LED Screen, easy control
• 10 kinds of thereduction contraangle to choose
• 10 setting program, one memory, many times.
• Achieve stepless speed regulation

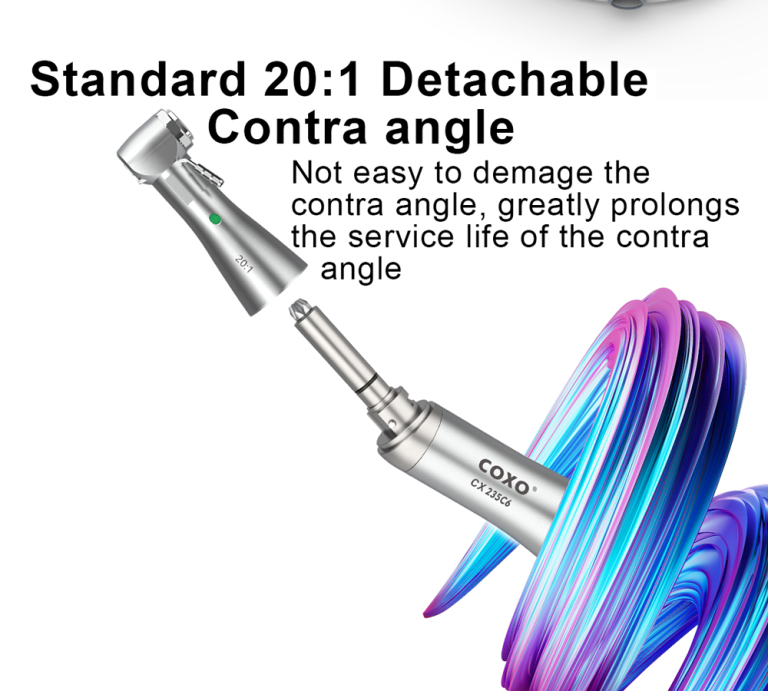

Standard 20:1 Detachable Contra angle

Not easy to damage the contra-angle, greatly reducing the service life of the contra-angle

Switzerland technology surgical brushless motor

Maximum speed: 50,000rpm

Maximum torque: 55N.cm(with 20:1 contra angle)

High torque and wide speed range for all kinds of treatment

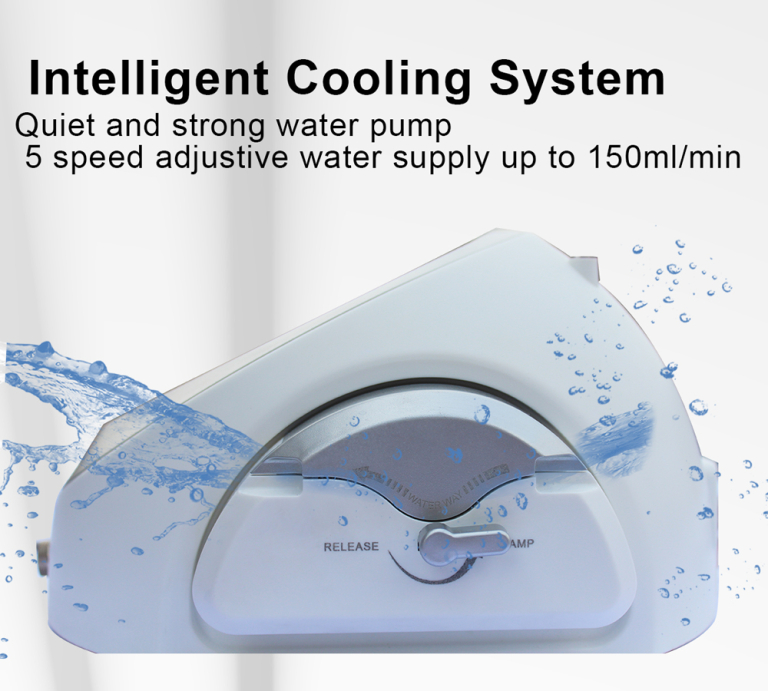

Intelligent Cooling System

Quiet and strong water pump 5-speed, adjustable water supply up to 150ml/min

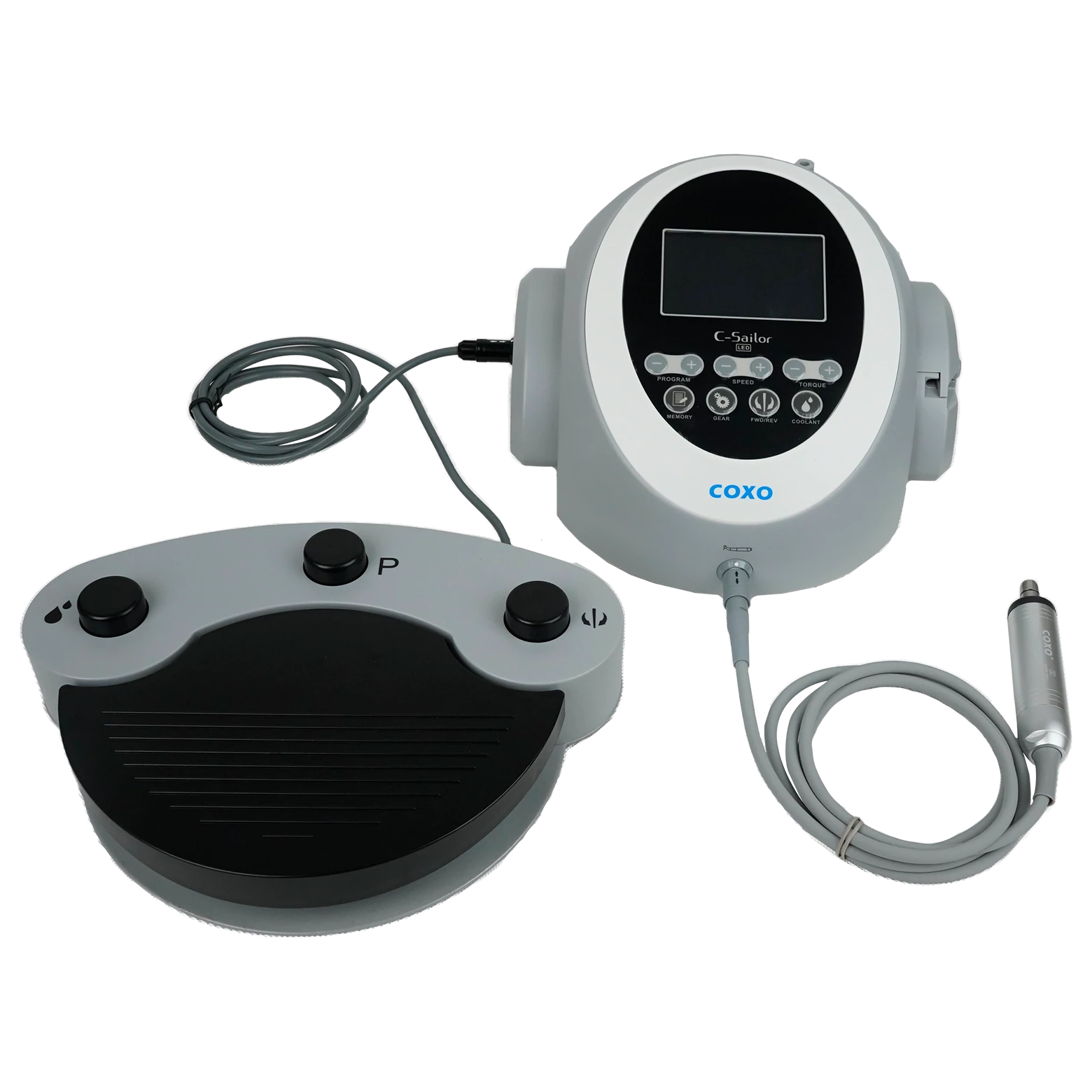

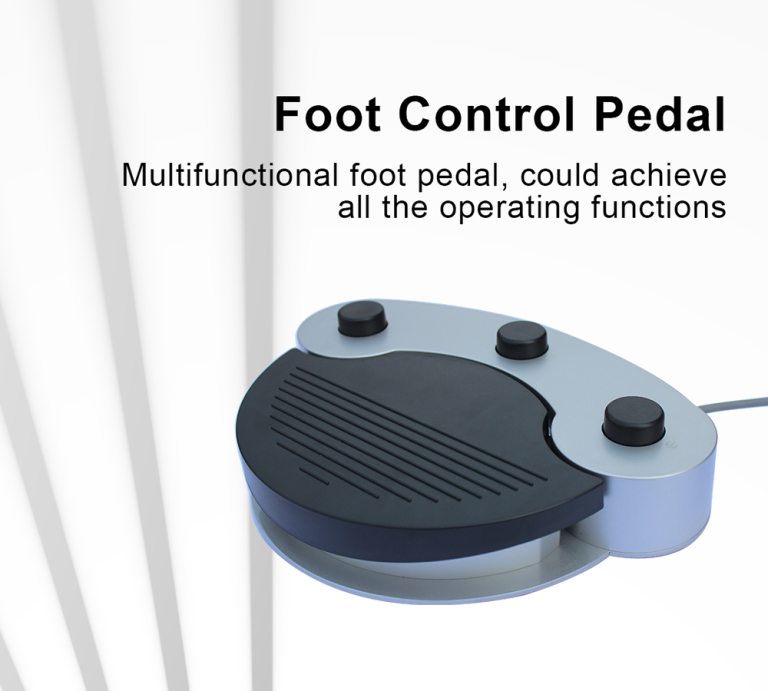

Foot Control Pedal of C-Sailor

A multifunctional foot pedal could achieve all the operating functions

Motor & Performance

• High-torque 210W brushless motor (55 N · cm ) for efficient bone tissue cutting.
• Wide speed range: 300 - 50,000 rpm (15 - 2,500 rpm with 20:1 reduction).
• Swiss technology motor ensures high stability, low heat, low noise, and minimal vibration.
• Capable of withstanding high-temperature sterilization.

Handpiece & Compatibility

• Comes standard with a 20:1 reduction contra-angle handpiece with auto-chip ejection.
• Features internal and external irrigation.
• Compatible with standard reduction handpieces.

Intelligent Cooling System

• Offers both manual and foot-controlled operation.
• Internal and external cooling/flushing channels.
• Provides silent, powerful water flow with 5 adjustable levels (50 – 100 ml/min).

High-Performance Control System

• Large LCD screen for simple operation and clear visibility of all surgical parameters.
• Stores 10 user-defined programs for preset motor speed, coolant flow, torque, rotation direction, and speed ratio.
• Features a brushless motor for seamless stepless speed adjustment.
• 10 different speed ratio settings for the contra-angle are available.

Foot Switch

• Multi-function foot switch enables control of all operations.
• Designed for simple and flexible responsiveness.

Safety & Certification

• Complies with IPX4 international waterproof rating.
