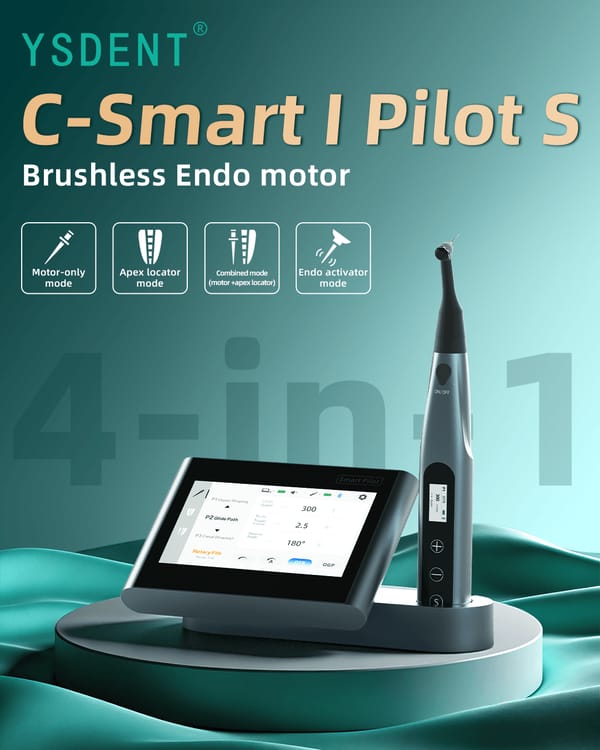

C-SMART-I PILOT S Brushless Endo Motor - YSDENT

Brushless Endo Motor

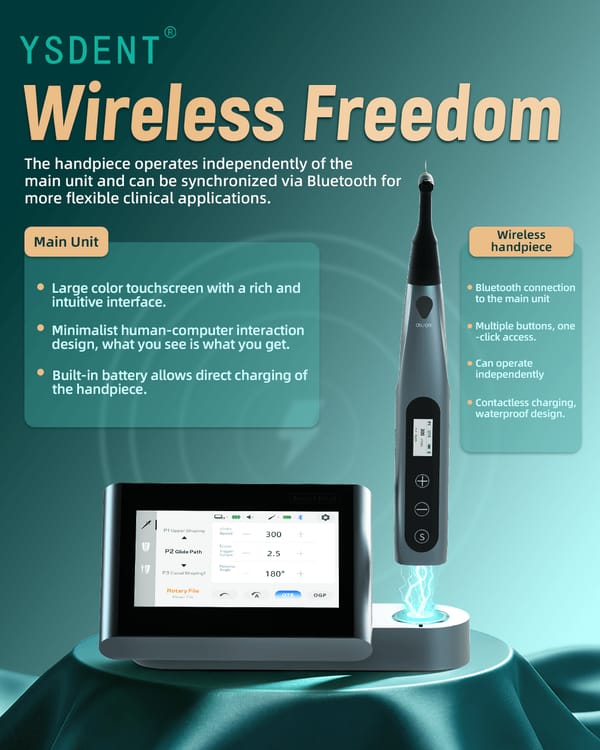

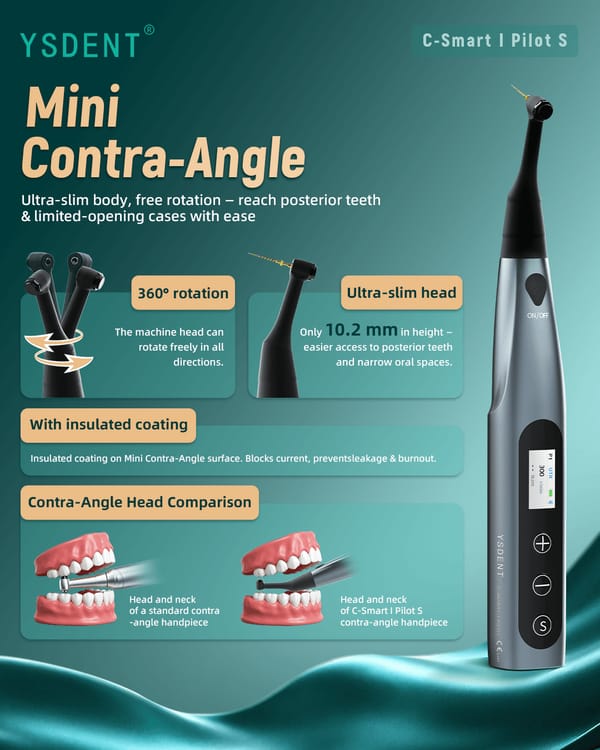

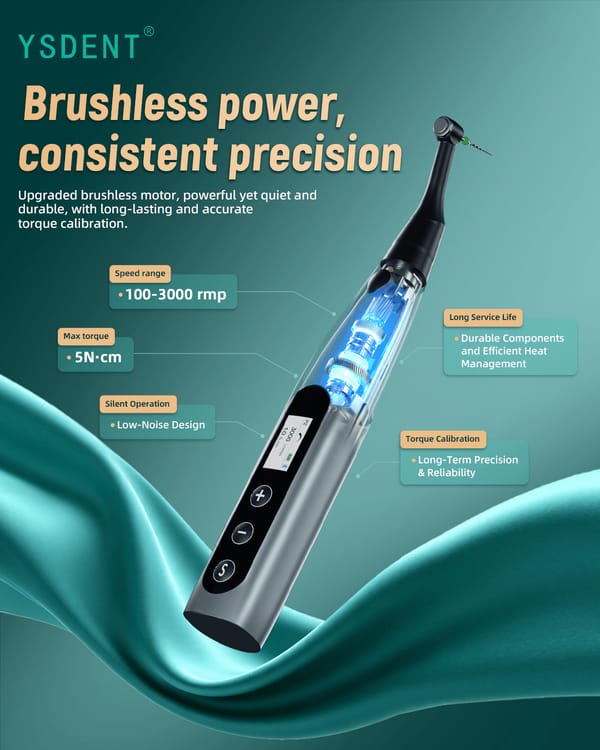

C-SMART-I PILOT S Brushless Endo Motor – an all-in-one wireless endo system that integrates expansion, root canal measurement, combined measurement‑and‑expansion, and ultrasonic irrigation, featuring a dual‑end synchronous host＋handpiece design, a brushless motor upgrade, high‑precision apex locating, a mini contra‑angle handpiece, streamlined workflow, intuitive HMI, and multiple safety protections for effortless, secure endodontic procedures. Wireless Freedom The handpiece operates independently of the main unit and can be synchronized via Bluetooth for more flexible clinical applications. Brushless power, consistent precision Upgraded brushless motor, powerful yet quiet and durable, with long-lasting and accurate torque calibration. Mini Contra-Angle Ultra-slim body, free rotation - reach posterior teeth & limited-opening cases with ease 4 MODES

• Irrigation Mode
• Integrated Measurement & Motor Mode
• Apex Locator Mode

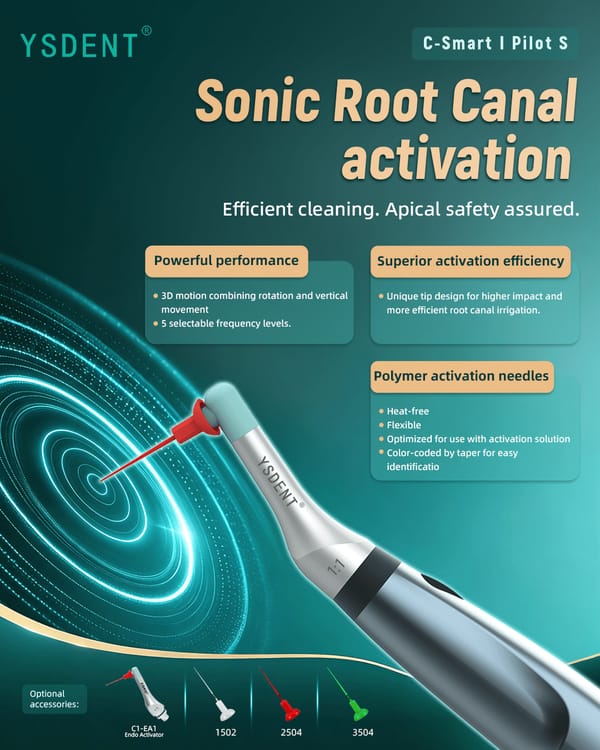

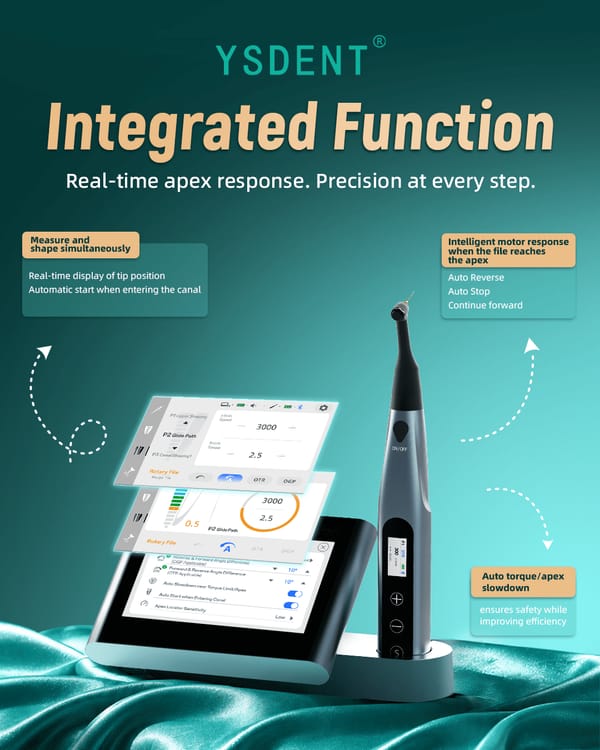

• Motor Mode MOTOR MODE Engineered for Precision. Designed for Control. 5 Fully Customizable Programs. Every Motion, Every Canal, Every Confidence. Advanced Apex Detection Precise locating. Instant response. Integrated Function Real-time apex response. Precision at every step. Sonic Root Canal activation Efficient cleaning. Apical safety assured.

Advantages of C-SMART-I PILOT S

1. Root Canal Enlargement Modes: Includes 5 customizable programs (P1-P5), each allowing adjustment of functions such as continuous rotary files and reciprocating files.
   • Continuous Rotary Files: Includes Reverse, Automatic Reverse, Intelligent Reverse, and Step Removal.
     • Reverse: Speed ​​range 100-3000 rpm; torque is not adjustable during reverse.
     • Automatic Reverse: Speed ​​range 100-3000 rpm; torque range 0.6-5 N·cm.
     • Intelligent Reverse: Speed ​​range 100-500 r/min; Torque range 0.6-5.0 N·cm; Retraction angle 180°-240°
     • Step Removal: Speed ​​range 100-500 r/min; Torque not adjustable; Advance angle 90°-240°
   • Reciprocating File: Speed ​​range 150-450 r/min; Torque range 2.0-5.0 N·cm; Reciprocating angle 30°-370°
2. Root Canal Measurement Mode: Adjustable apical reference point; root canal measurement sensitivity can be adjusted in the settings interface (automatic switching of corresponding mode upon insertion of root canal guide).
3. Simultaneous Measurement and Enlargement Mode:
   • Program selection, function selection, parameter adjustment, etc., are the same as in root canal enlargement mode.
   • In this mode, the root canal measurement linkage function is activated, and the motor will automatically execute corresponding actions based on root canal measurement feedback, including automatic deceleration and automatic start/stop.
4. Irrigation Mode: Intended use: Drives the irrigation fluid to circulate at high speed within the root canal, flushing away instrument debris to prevent clogging and cleaning the root canal. User-adjustable speed settings: Level 1, Level 2, Level 3, Level 4, Level 5. Independent Handle Function

1. Intended Use: Considering that a sudden loss of connection between the handle and the main unit may interrupt the user's work process, this product is specially designed with an independent handle function to ensure that the user can continue to use the device smoothly to complete the work, even in the event of an accident.
2. This function only supports root canal mode and has three programs: continuous forward rotation, continuous reverse rotation, and reciprocating rotation.
3. Inserting a root canal guide allows for root canal measurement mode and simultaneous measurement and reaming mode. Main Components Standard Configuration: Main unit, handle, root canal bending device (6:1), file clamp, root canal measuring line, lip hook, power adapter, etc. Optional Configurations: Irrigation bending device (1:1), irrigation needle
