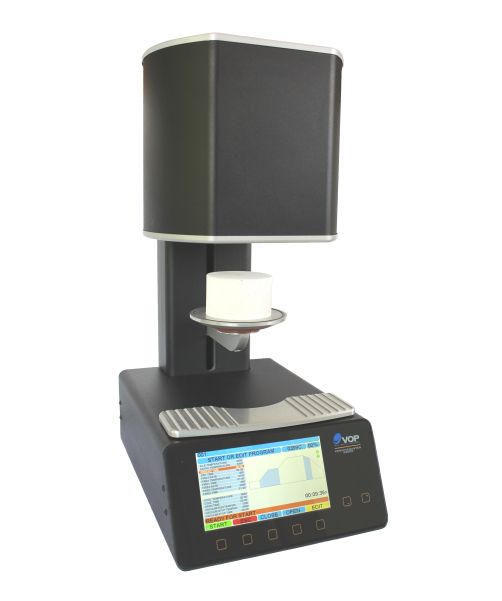

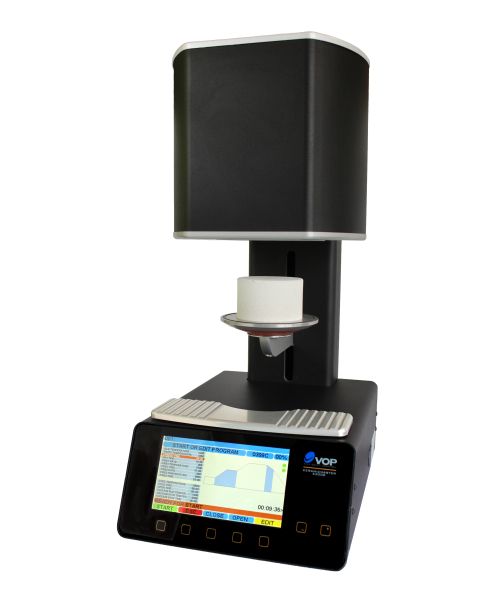

Ceramicmaster E3000
VOP Ltd. · source
Automatic programmable dental furnace for metal and pure ceramics.
Features:
- designed for all available types of dental metal ceramics
- 255 individual programs
- completely controlled process - 16 programmable parameters in every program
- improved system of self-diagnostics and auto calibration
- 7'' TFT display with protective tempered glass
- sensor buttons
- graphical display of processes progress
- heater with heating element in a quartz spiral tube
- Pt/Ro thermocaple
- automatic continuation of the program after short power breakdown
- USB transfer of programs parameters
- remote analysis of damage
Accessories:
- isolation table (Ref. № 122000025)
- firing tray (Ref. № 122000026)
- pins (Ref. № 122000027)
- vacuum pump PVM122 (Ref. № 032000000)
Product Information
| Manufacturer | VOP Ltd. |
|---|---|
| Weight | 25 kg |
| Power supply | ~230 V ±10%, 50/60 Hz |
| Adjustable Vacuum | from 0.1 to 0.92 bar |
| Dimensions (w/d/h) | 265/370/565 mm |
| Individual Programs | 255 |
| Firing Chamber Dimensions | Ø 95 mm, h 60 mm |
| Maximum Firing Temperature | 1200°C |
| Vacuum Pump Suction Capacity | 22 l/min |
| Programmable Parameters Per Program | 16 |
| Power Consumption Furnace With Vacuum Pump | 1700 W |
| Power Consumption Furnace Without Vacuum Pump | 1550 W |
