Custom Instrument Hoses
MYTRONIC GmbH · source
Description and product range
Product description

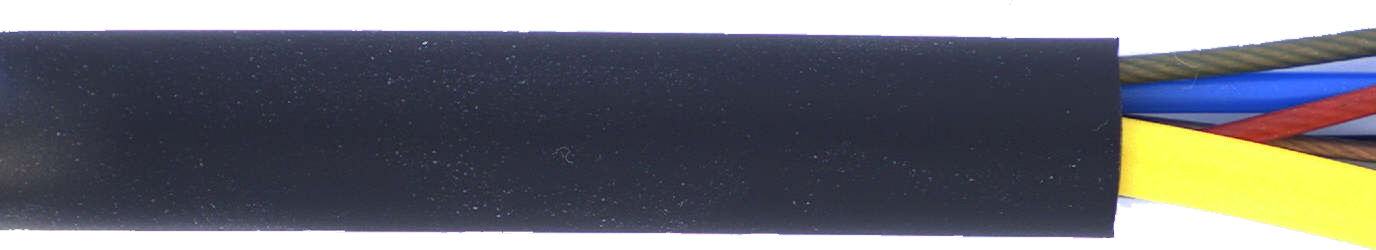

Dental medical instrument hoses are used to deliver media such as air and/or water and to provide electrical connections between the instrument and the treatment unit. Air, water and electrical power are all essential for the operation of medical instruments. These hoses are intended solely for professional applications, e.g. for use in dental practices or the cosmetics area.

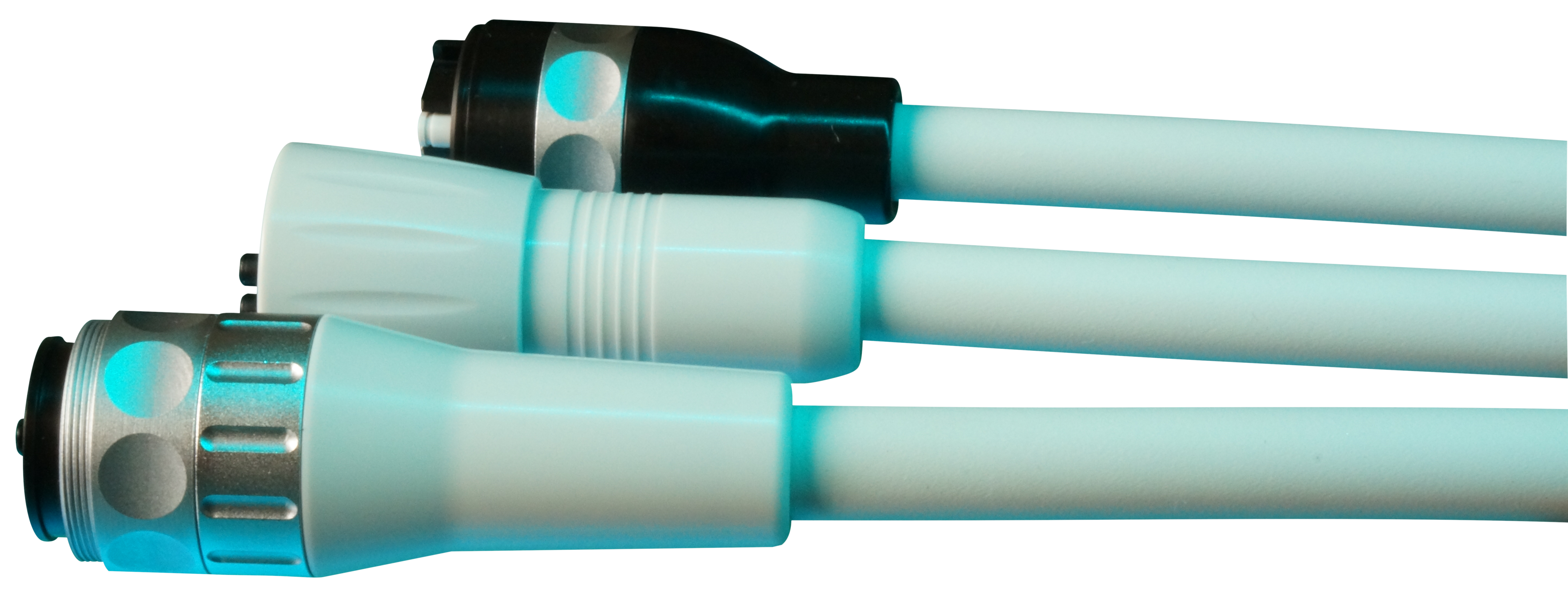

The Mytronic product range includes hoses for motors, syringes and dental scalers, as well as pre-configured couplings for all standard treatment units from renowned German and international manufacturers. The hoses are available with or without light and/or water regulation. All instrument hoses comply with Medical Device Class I.
Intended use
- Low build-up of static charge in comparison to standard silicone hoses
- PUR material retains its shape and prevents kinking of media hoses
- Robust plastic sleeves; lightweight; no abrasion on the instrument holder
- Various instrument sleeves available; custom-made products available
- Open hoses or hoses with a coupling on the device side available for individual solutions
How do I configure my customised hose?
Choose the desired hose that will fit your unit-site connector. Mytronic supplies all common instrument-side and unit-side connectors. If you should not find the desired hose, please contact us for help or advice.
A hose is made up of 5 components:

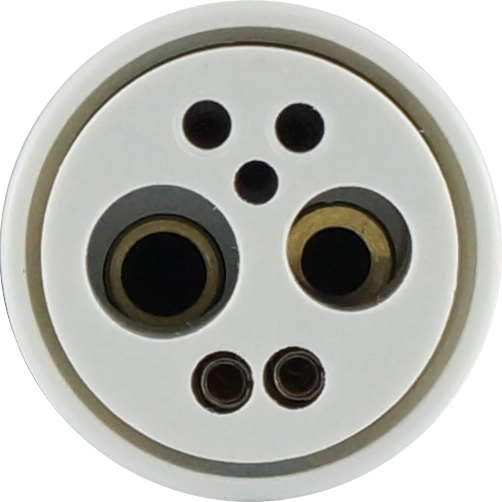

- Instrument-side connector
- Connector sleeve
- Unit-side hose end
- Length of outer hose
- Colour of outer hose
Order example 743.C01.1800.01
| Article type | Instrument-side connector sleeve | Unit-side hose end | Outer hose in mm | Outer hose colour |
|---|---|---|---|---|
| 743 | C | 01 | 1800 | 01 |
| Turbine hose 4-hole with light | Standard sleeve | open ends | 1800 mm | black RAL9011 |

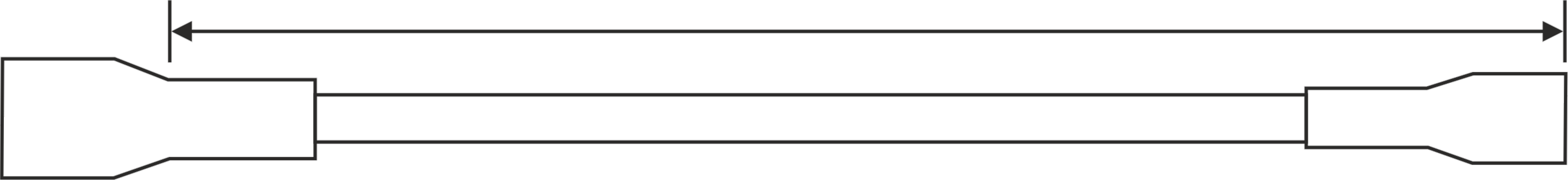

How to determine the length of the hose:
For hoses with unit side connector: from bend (connector/sleeve widens). The standard length of the hose is 1350 mm.
For hoses with open ends: visible outer hose length. The standard length is 1800 mm; the additional length of the inner tubes/wires 500 mm.
Note
For configuring a hose please select the relevant item. You will then be transferred to the next step where you can configure the hose to meet your specific requirements. If you have any questions about the composition of your hose, please do not hesitate to call us!
Product Information
| Manufacturer | MYTRONIC GmbH |
|---|---|
| Moq | Custom-made products available |
| Type | Dental medical instrument hoses |
| Material | PUR |
| Application | Delivery of air and/or water, electrical connections between instrument and treatment unit |
| Intended Use | Professional applications in dental practices or cosmetics area |
| Regulatory Class | Medical Device Class I |
| Available Options | With or without light and/or water regulation |
| Standard Length (with Open Ends) | 1800 mm |
| Additional Length (inner Tubes/wires) | 500 mm |
| Standard Length (with Unit Side Connector) | 1350 mm |
