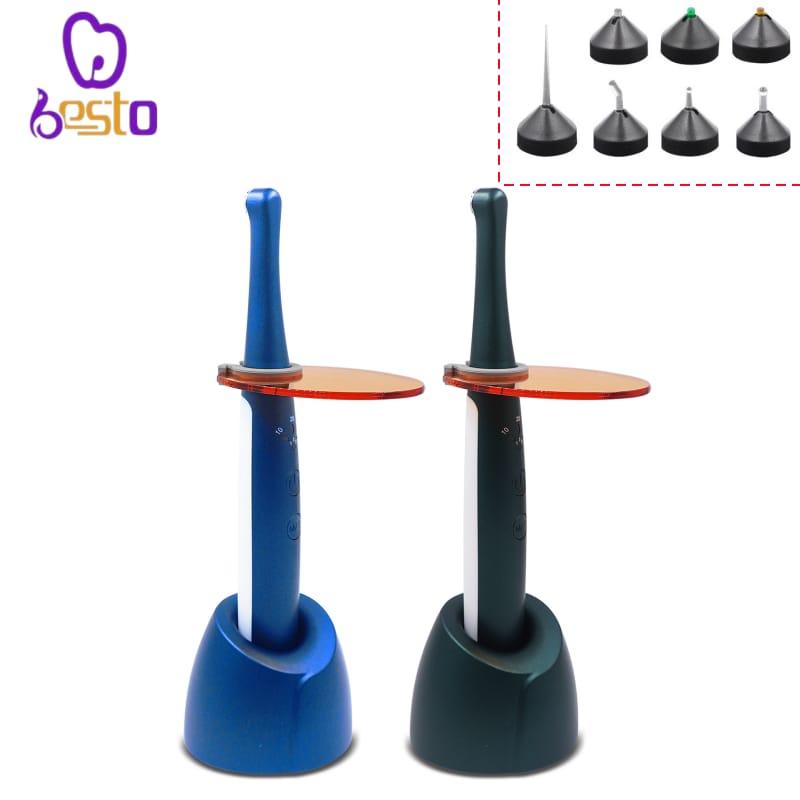

Dental LED Curing Light Lamp Wireless Oral UV Cured Lamps Orthodontic 1 Second Composite Curing Lights Lab Dentistry Instrument

Dental LED Curing Light Wireless Oral UV Cured Lamp Orthodontic 1 Second Composite Curing Lights Lab Dentistry Instrument

Specification:

• Input voltage: AC100-240V 50/60Hz
• Output voltage: DC5V 1.0A
• Battery Type: rechargeable lithium battery
• Wave length: 385~515mm
• Temperature range: 5~40℃
• Relative humidity range: ≤80%
• Air pressure range: 75kPa~106kPa
• Voltage: DC 3.7V

Product sellpoints:

A. This Dental LED Curing Light comes with 7 lenses to achieve various functions.

B. Endo Guide Lens 2/Point Cure Lens/Endo Guide Lens 1/Trans Lume Lens(Orange)/Proxi Cure ball Lens/Trans Lume Lens(Green)/Proxi Cure ball Lens

C. The Dentistry Photopolymer Lamp has two modes(Super power mode/.Normal mode) and six selectable times (1s/3s/5s/10s/20s/30s)

D. Easy to operate, with two buttons to distinguish mode and time based on the light source.

E. Intelligent use, the device will automatically shut down after 60 seconds without any operation to achieve energy-saving effect. An alarm will be issued to remind you to charge before the power is depleted.

Feature:

1. This product is a new type curing light that uses high power and high purity broad spectrum blue-violet LED with a wavelength of 385-515nm as light source and an enhanced condenser lens.it is suitable for most composite resins on the market.

2. This curing light has 2 working modes for users to use in different working environments.The working head can be rotated 360 degrees for easy operation.

3. Lens instructions

   • (1) Point-like Lens: Clear lens for pinpoint curing of small composites or tack curing veneers.
   • (2) Inspection Lens(Green): aids in detection of cracks and defects in a tooth or prostheses.
   • (3) Inspection Lens(Orange): The penetrating ability of the orange lens shows the obstruction to light caused by posts or internal bubbles.
   • (4) Ball Lens
   • (5) Ball Lens: holds matrix against contact while curing composite for Class II restorations
   • (6) Endotreat Lens1
   • (7) Endotreat Lens2: This special lens is helpful for curing apical retrofills and other narrow preparations.

MODE 1:

Normal mode(green indicator light)

The curing light work with standard power, and the time can be set to 10 seconds,20 seconds and 30 seconds.

Mode 2:

Constant power mode(blue indicator light)

The curing light works with super power, and the time can be set to 1 second,3 seconds and 5 seconds.

DETAILED OPERATION:

Step 1: PRESS any button to wake up the circuit and enter the standby state.

Step 2: Long press the (M/T) button to choose the required working mode.

Step 3: After selecting the working mode, short press the (M/T) button to select the required working time.

Step 4: After setting the working mode and time, press the switch button to turn on the device.

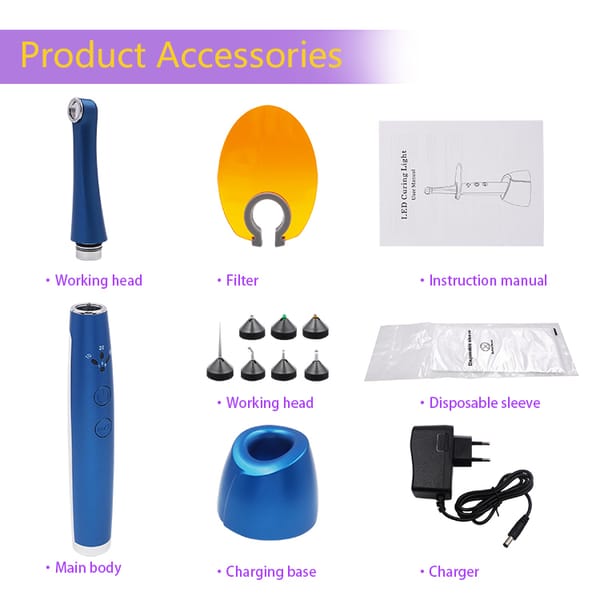

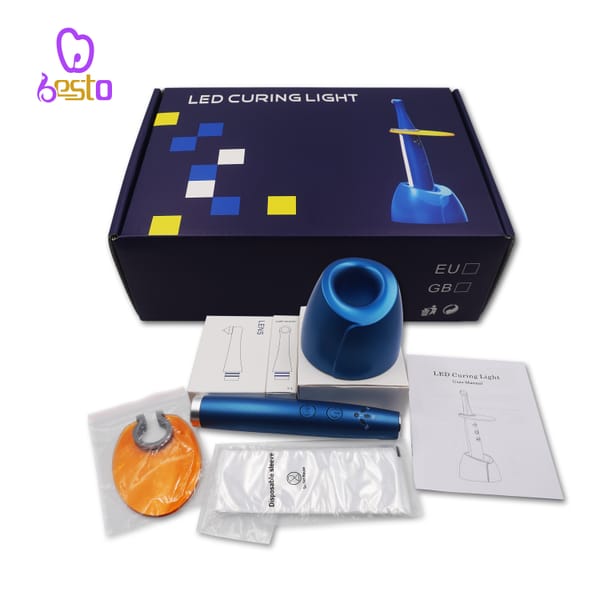

Packing list

The product includes:

1. Curing light body------1pcs
2. Working head------1pcs
3. Charging base------1pcs
4. Filter cover------1pcs
5. User manual------1pcs
6. Certificate------1pcs
7. Power adapter------1pcs
8. Disposable sleeve------1bag(50pcs)

Features:

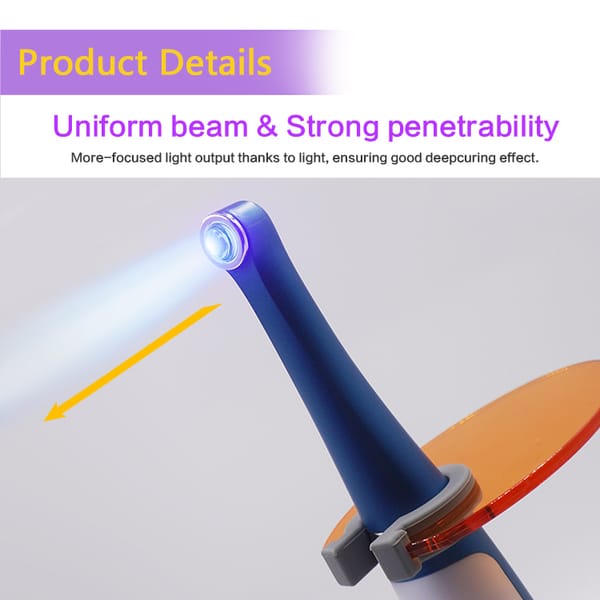

• Uniform beam & Strong penetrability: More-focused light output thanks to light, ensuring good deep curing effect.

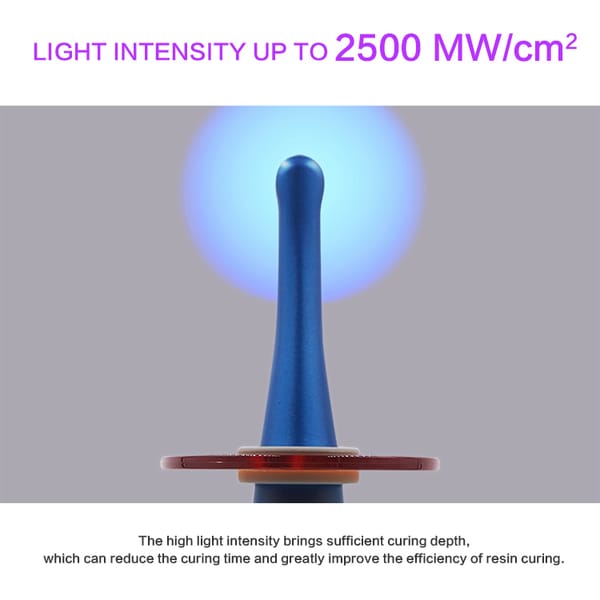

• LIGHT INTENSITY UP TO 2500 MW/cm2: The high light intensity brings sufficient curing depth, which can reduce the curing time and greatly improve the efficiency of resin curing.
• CURED HEAD CAN BE ROTATE 360 DEGREES: 360°rotatable head, easy to illuminate all angles in the mouth. The low-profile head can easily reach the posterior teeth. The patient only needs to open the mouth slightly and enjoy comfortable treatment.

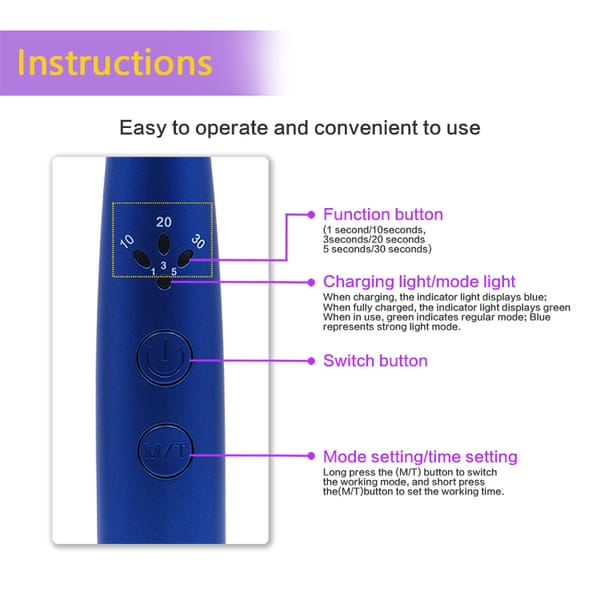

• Easy to operate and convenient to use

Function button

(1 second/10seconds, 3 seconds/20 seconds, 5 seconds/30 seconds)

Charging light/mode light

When charging, the indicator light displays blue; When fully charged, the indicator light displays green. When in use, green indicates regular mode; Blue represents strong light mode.

Switch button

M/T - Mode setting/time setting

Long press the (M/T) button to switch the working mode, and short press the(M/T)button to set the working time.

7 PCS Magnetic Point Cure Lens

• Endotreat lens: This special lens is helpful for curing apical retrofills and other narrow preparations.
• Ball lens: Holds matrix against contact while curing composite for Class II.
• Point-like lens: Clear lens for pinpoint curing of small composites or tackcuring veneers.
• Inspection lens(green): Aids in detection of cracks and defectsin a tooth or prostheses.
• Inspection lens(orange): The penetrating ability of the orange lensshows the obstruction to light caused byposts or internal bubbles.

MULTI-FUNCTION NEEDLE

FIXED POINT CURING ADVICE TO MEET YOUR NEEDS

Magnetic suction type Lens: Installation and disassembly are more convenient
