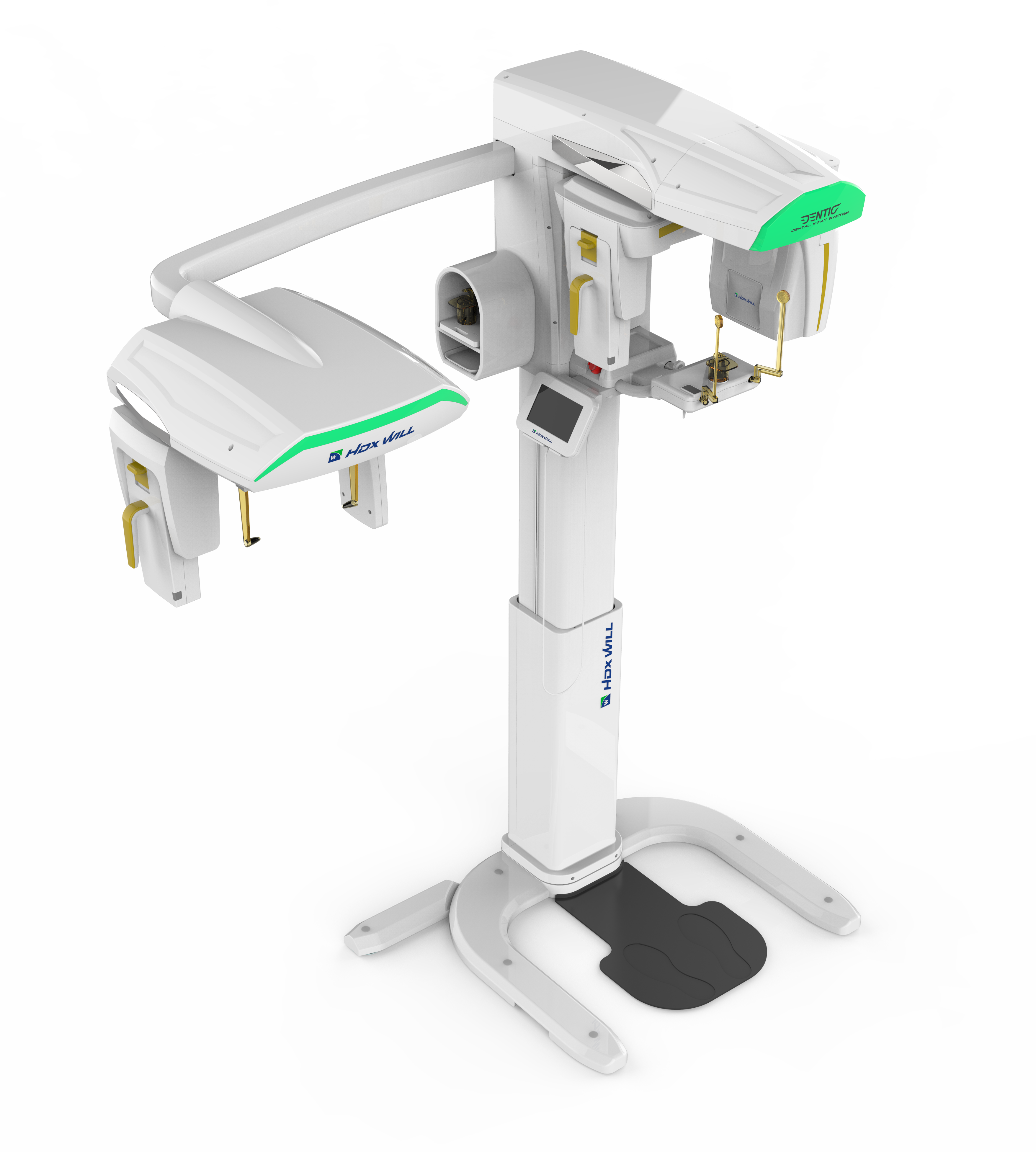

eco-x

eco-x

Max 16×9 cm FOV, perfect for capturing dentition, sinus, or TMJ. 2D panoramic feature with Autofocus for minimized distortion. Extraoral bitewing images for better patient comfort. Various cephalometric imaging modes. Model CBCT Scan for STL extraction.

Key Features:

• Paired with AI technology
• Superior Image Quality
• Minimized Metal Artifacts
• Low Dose Radiation
• Wide FOV
• Auto Cephalometric Landmark Tracing

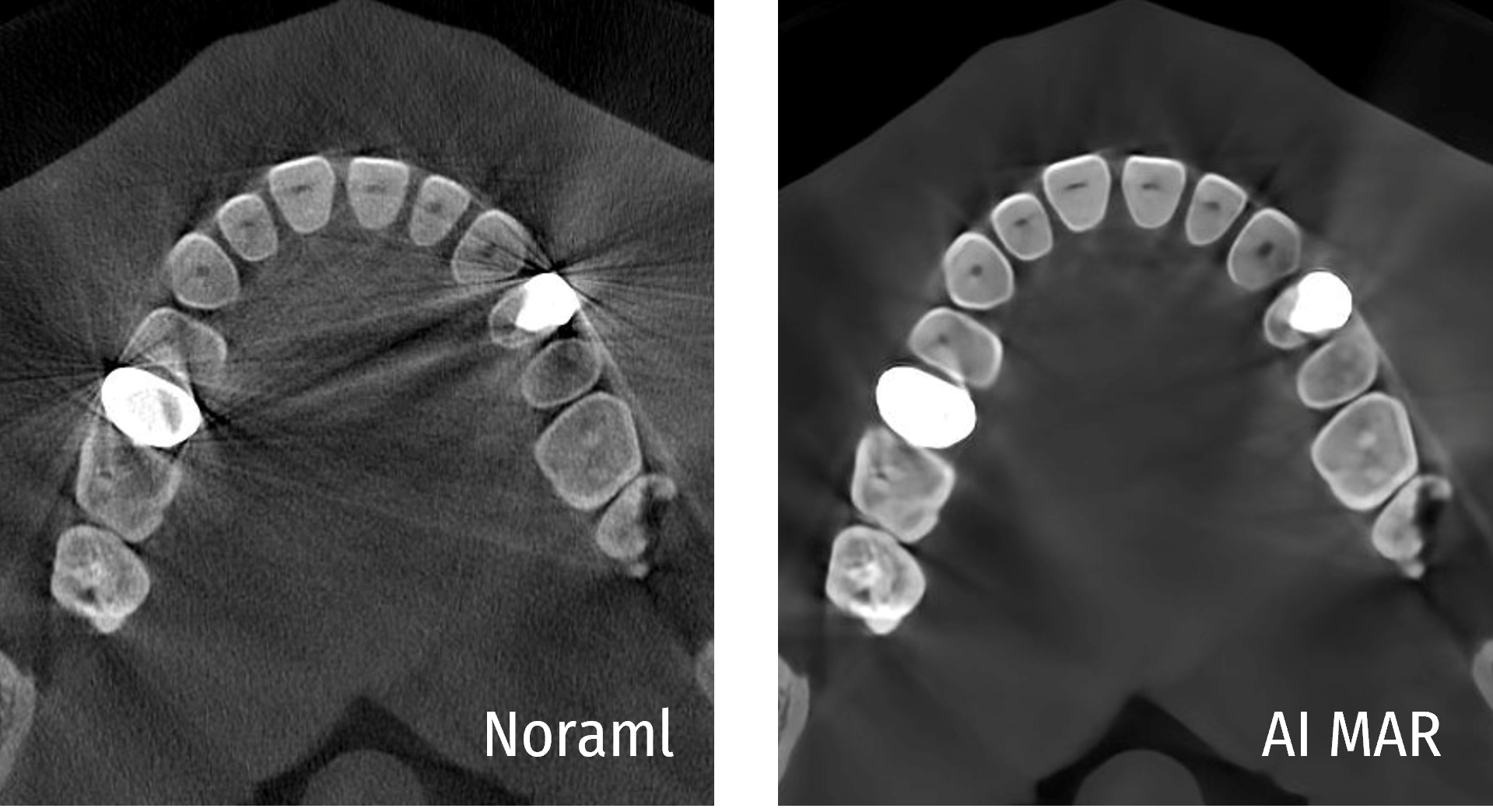

AI MAR: Substantially reduced metal artifact powered by AI technology. Clear choice for prosthetic and orthodontic cases.

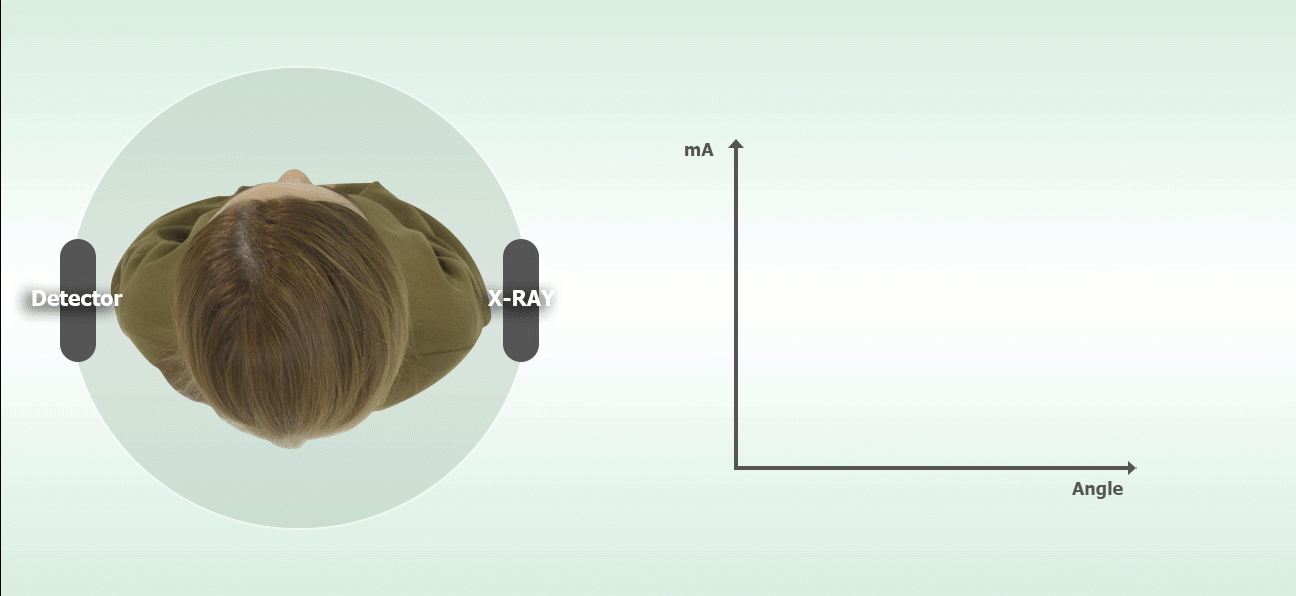

AEC: eco-x provides distortion-free CT image with lower radiation dosage than Panorama scanning.

Panorama Auto Focus: Minimized distortion. Maximized ability to obtain clear images.

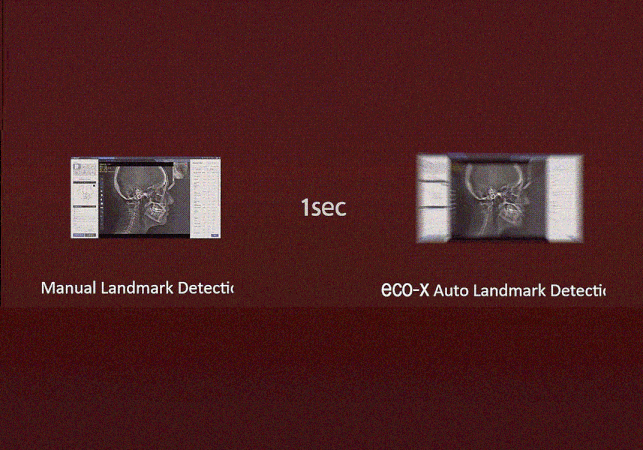

Auto Landmark Detection: AI automatically detects landmarks with 2D cephalometric scan.

Specifications

Generator

• Voltage: 60 - 90 kV
• Current: 4 - 10 mA

Tube

• Focal spot: 0.5 mm
• Filtration: 2.5 mm Al

Detector

• Type: TFT:a-Si (CSI)
• Pixel size: 119 µm
• A/D (bits): 16 bits

Scan times

• Scan times: 8 - 24 sec

Panoramic Programs

• Adult protocols: 15
• Child protocols: 9

Scalable Field of View

• Free FOV: 50 x 50 - 120 x 90 mm

3D Volume

• Children: 100 x 80 mm
• Adults: 120 x 90 mm, 160 x 90 mm

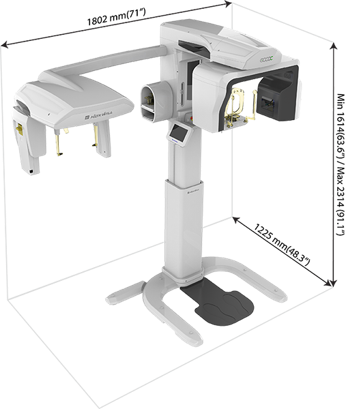

Dimensions

• Width: 614 - 2314 mm
• Height x Depth: 980 x 995 mm
• with Ceph: 1802 x 995 mm
• Weight: 178 kg
• with Ceph: 211 kg

Software

• 2D Viewer: WillMaster
• 3D Viewer: OnDemand3D
• Ceph Analysis Program: WillCephPro
