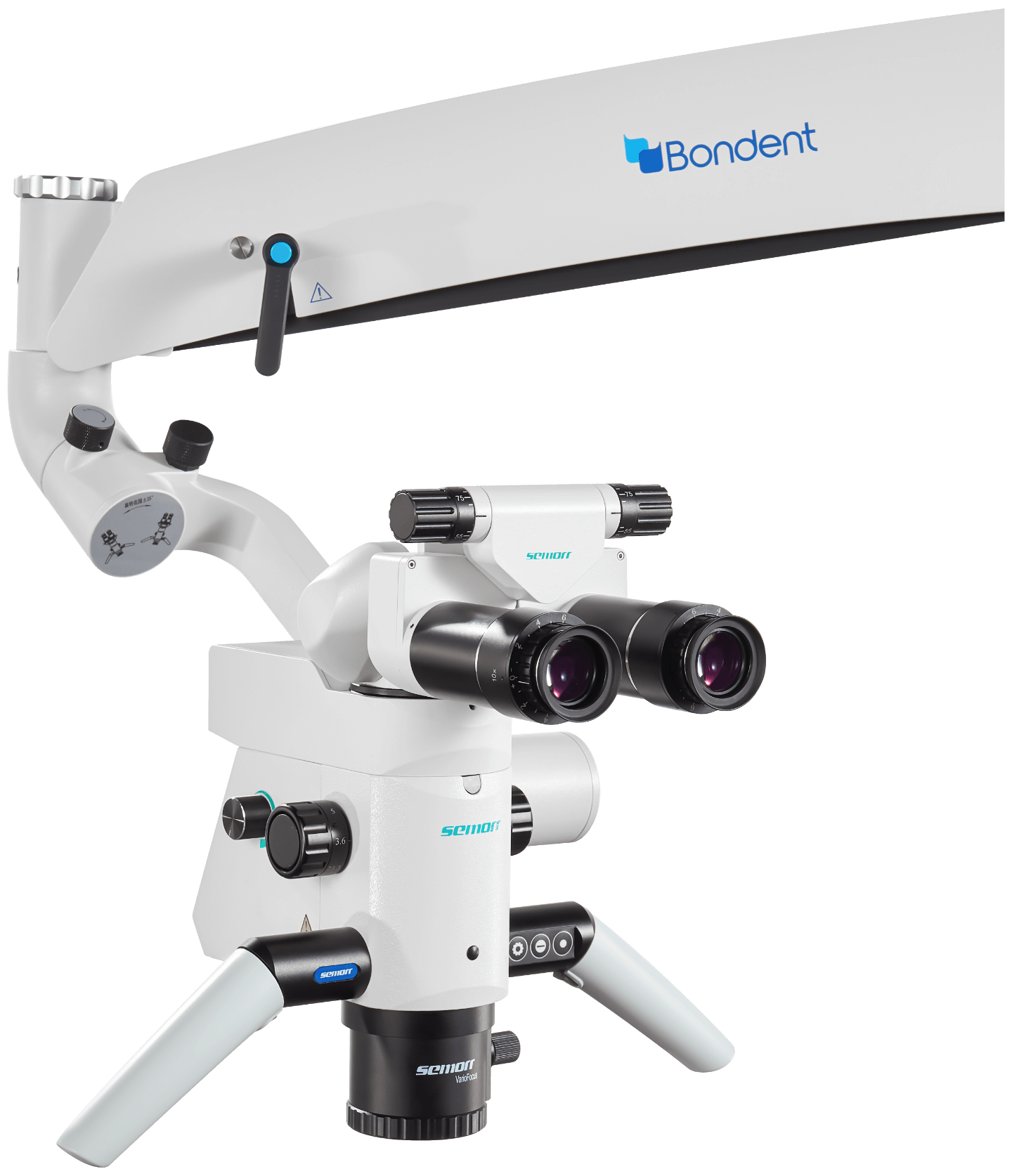

DOM 3000 D MICROSCOPE
Bondent GmbH · source
Surgical Microscope
Intelligent anti-artifact technology provides a clearer and accurate digitization and decreases chances of misdiagnosis
Core technologies:
- Excellent optical system ensures an exquisite image in every detail
- Accurate zoom magnification system
- Stable and lifelong LED illumination
- Elegant and compact design
- Ergonomic binoculars (with 210° movement)
Key Features
Eye Cups
Fold or unfold it, use it to comfort your viewing
Rotatable Handles
360° variable rotation Easy to be placed at any intended position and enables the surgeon to move the microscope head easily
Magnification Changer
Accurate magnification positioning
Technical Data
Microscope System
- Eyepieces: 10X/22B (Aperture:18mm)
- Binoculars: 0~210° inclinable extended tube
- PD adjustable range: 55mm~75mm
- Diopter Range: ±7D
- Magnifications (DOM3000D-4K): 3.6X~23.3X
- Total magnification rate (DOM3000D-4K): ZOOM
- Objective Lens: WD180-460mm
- Diameter of FOV: 65 mm (DOM3000D-4K)
Illumination System
- Light source: LED module, variable brightness, over 60,000h life span
- Minimum illumination intensity (f=250): >80,000lX
- Diameter of illumination spot: 85mm
- Filter: 85mm Orange, Green
- Color temperature: 6500k close to natural light, true color
Support System
- Standard base: Mobile base (white/black)
- Swing arm: Radius gyration: 460mm, 360° rotation
- Microscope arm: Radius gyration:700mm, ±160° rotation, up & down ±315mm
- Longest arm reach: 1390mm
- Dimension of base: 730mm X 730mm or 516*516mm
- Net weight: 120kg
Electric System
- Input power: AC100-250V, 50/60Hz
- Light source max consumption: 20VA
- Total consumption: 70VA
- Fuse: 220V: T1.0AL 250V / 110V: T2.0AL 125V
Image System
- Video resolution: 3840x2160 (4K, The effective number of pixels is 4 times that of 1080P)
- Video frame rate: 30fps@4K
- Resolution of static image: 4000x3000
- Control Method: one-key video recording and camera parameter setting for wireless remote control, mobile phone, tablet computer, foot pedal, small buttons etc.
- Storage media: TF card (maximum supporting 128G)
- Working mode: Single shot, video, continuous shot, time-lapse shot
- Additional features (optional): Support the personalized Settings of camera parameters, RAW format photo storage; multi-point image transmission and receiving function
Product Information
| Manufacturer | Bondent GmbH |
|---|---|
| Type | Surgical Microscope |
| Model | DOM 3000 D |
| Filter | 85mm Orange, Green |
| Eyepieces | 10X/22B (Aperture:18mm) |
| Binoculars | 0~210° inclinable extended tube |
| Net Weight | 120kg |
| Fuse (110v) | T2.0AL 125V |
| Fuse (220v) | T1.0AL 250V |
| Input Power | AC100-250V, 50/60Hz |
| Light source | LED module, variable brightness, over 60,000h life span |
| Diopter Range | ±7D |
| Storage Media | TF card (maximum supporting 128G) |
| Working Modes | Single shot, video, continuous shot, time-lapse shot |
| Base Dimension | 730mm X 730mm or 516*516mm |
| Control Method | wireless remote control, mobile phone, tablet computer, foot pedal, small buttons |
| Video Frame Rate | 30fps@4K |
| Video Resolution | 3840x2160 (4K) |
| Color Temperature | 6500k |
| Longest Arm Reach | 1390mm |
| Optional Features | RAW format photo storage, multi-point image transmission and receiving function |
| Total Consumption | 70VA |
| Magnification Type | ZOOM |
| Swing Arm Rotation | 360° |
| Pd Adjustable Range | 55mm~75mm |
| Microscope Arm Rotation | ±160° |
| Static Image Resolution | 4000x3000 |
| Swing Arm Radius Gyration | 460mm |
| Light Source Max Consumption | 20VA |
| Magnifications (dom3000d 4k) | 3.6X~23.3X |
| Diameter Of Fov (dom3000d 4k) | 65 mm |
