Elmasense Cavicheck
Elma · #1144463 · source
Elmasense Cavicheck is a compact measuring device for qualifying cavitation in ultrasonic baths. The Cavicheck Lifter is used to position the Elmasense Cavicheck securely in the ultrasonic bath. The measurement then runs automatically. The Elmasense Cavicheck uses ultrasonic energy as its energy source. An LED display shows the current cavitation power. The measured data can be analysed and documented via our digital portal, the "Elma Hub".
Scope of Delivery
- Microfibre cloth
- Magnetic folding box for safe transport
- Cavicheck Lifter
- Cavicheck Fixator Single 30–300
PLEASE NOTE: The delivery phase will begin on April 14, 2026.
Key Features
- Measure, don't just test: Process reliability through equipment qualification based on real measurement data in accordance with IEC/TS 63001.
- Intuitive operation: NFC interface for data reading

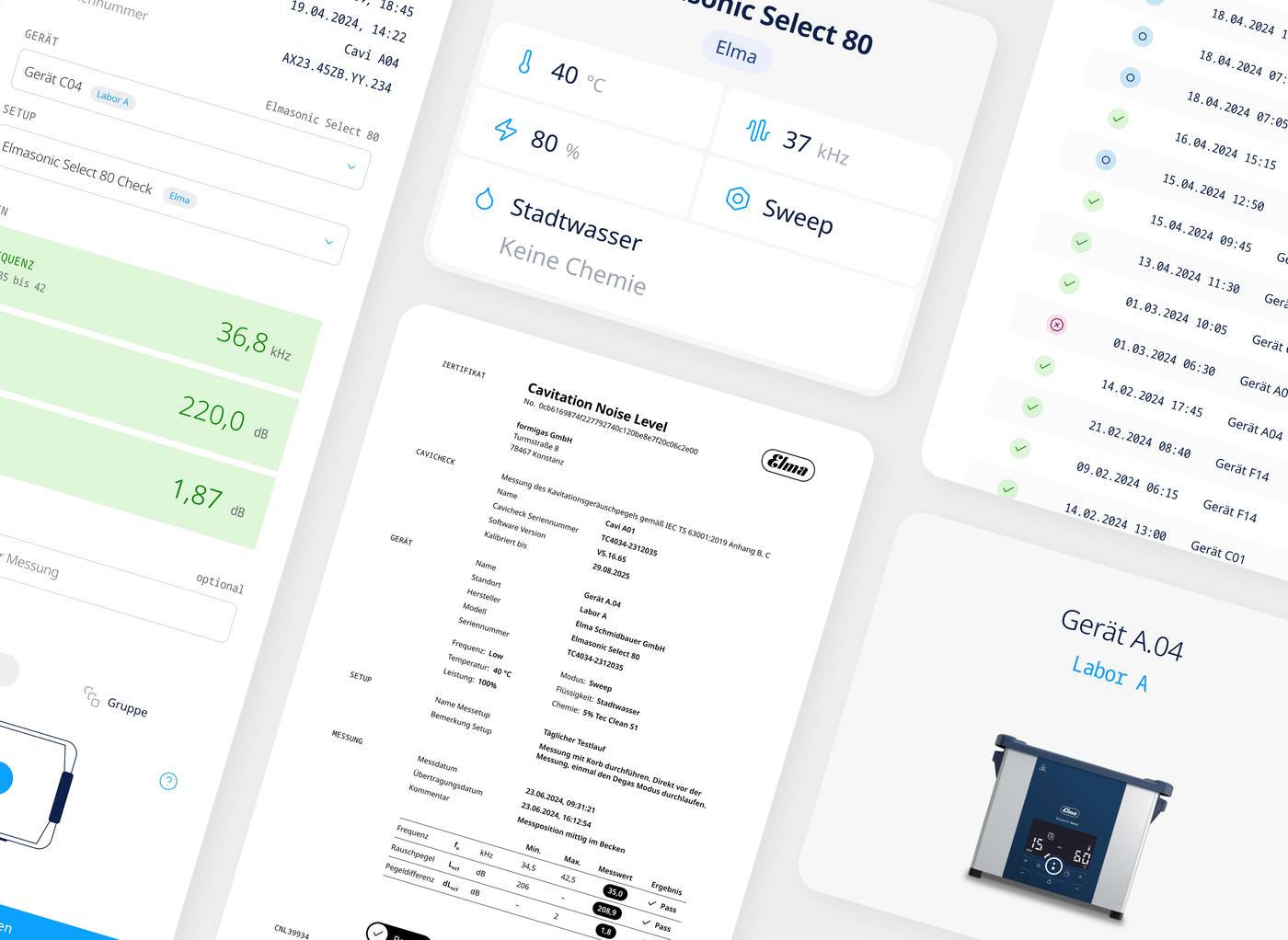

- Elma Hub: Evaluation and documentation of measurement results including the creation of certificates.
- Sustainability: No battery required, as ultrasonic energy is used as the energy source.
- Meets global standards: Compliance through measurement, analysis and documentation (e.g. VDA 19.1)
Product Information
| Manufacturer | Elma |
|---|---|
| Weight | 175 g |
| Connection | NFC = Near Field Communication |
| Außenmaße | 72 × 71 mm |
| Schutzklasse | 68 |
| Schnittstelle | NFC = Near Field Communication |
| Protection Class | 68 |
| External Dimensions | 72 × 71 mm |
| Messgenauigkeit Krz | +/- 1,5 dB |
| Measurement Accuracy Krz | +/- 1,5 dB |
| Temperatureinsatzbereich | 20 – 65 °C |
| Storage Temperature Range | 5 – 40 °C |
| Temperaturbereich Lagerung | 5 – 40 °C |
| Temperature Operating Range | 20 – 65 °C |
| Recommended Calibration Cycle | 1 Jahr oder 100 Betriebsstunden |
| Empfehlung Kalibrierungszyklus | 1 Jahr oder 100 Betriebsstunden |
| Messbereich Ultraschallfrequenz | 25 – 50 kHz |
| Measurement Range Ultrasound Frequency | 25 – 50 kHz |
