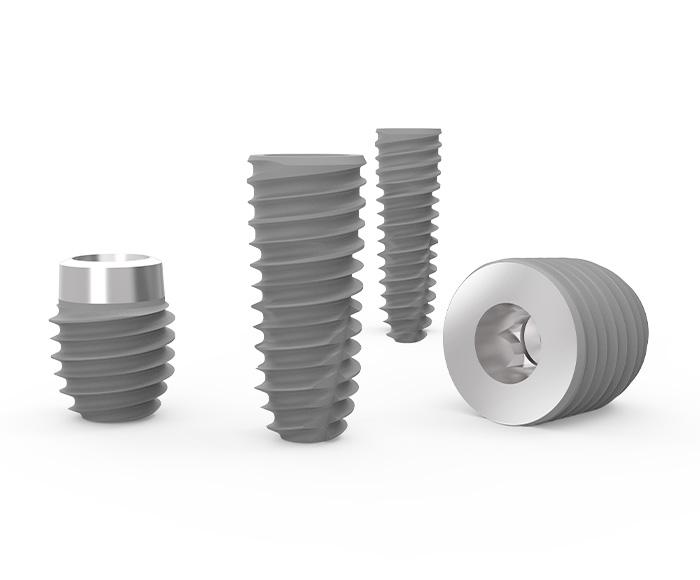

IB-T Implant System

IB-T

Internal Bone Level - Tapered

The IB-T implant system offers a flexible solution for all indications and esthetic outcomes. It is a submerged type implant that has an internal hex 11˚ taper connection. With tapered body design, it allows excellent primary stability, and it can be applied to any situation as it has various diameters, lengths and prosthetic line-up.

Key Points

G·DIFF IB-T Implant System

Platform Switching

• Reduces the risk of inflammatory cell infiltration
• Greatly contributes to marginal bone preservation and soft tissue attachment

Morse Tapered Hex Connection

• Provides anti-rotation and allows for convenient indexing of the abutment
• Distributes the load to the fixture evenly and helps to reduce the micro movement

Tapered Body

• Allows the compressive load to be transferred to the apex of implant
• Allows excellent primary stability especially in soft bone

Hybrid Double Thread

• Allows Easier and quicker implant insertion in various bone condition
• Helps to reduce bone stress during insertion and penetrate the bone with ease

3 Blade Cutting Edge

• Self-tapping function allows smooth insertion with minimal bone destruction
• Rounded implant apex reduces risk of bone perforation

S.L.A Surface Treatment

• Sandblasted, Large grits, Acid etched
• Most researched and proven surface technology
