Ganter Ratchet
Elos Medtech · source
Ganter Ratchets – The Perfect Fit
Ganter ratchets are manufactured from robust, abrasion-resistant and chemical-resistant material and feature an impressive aesthetic design and excellent functionality. Furthermore, they are easy to clean and simple to handle. The ratchets can be ergonomically adjusted to individual requirements and are compatible with the various instruments and tools. The ratchets are available with and without torque function, with and without bending arm attachment, and even in one piece.

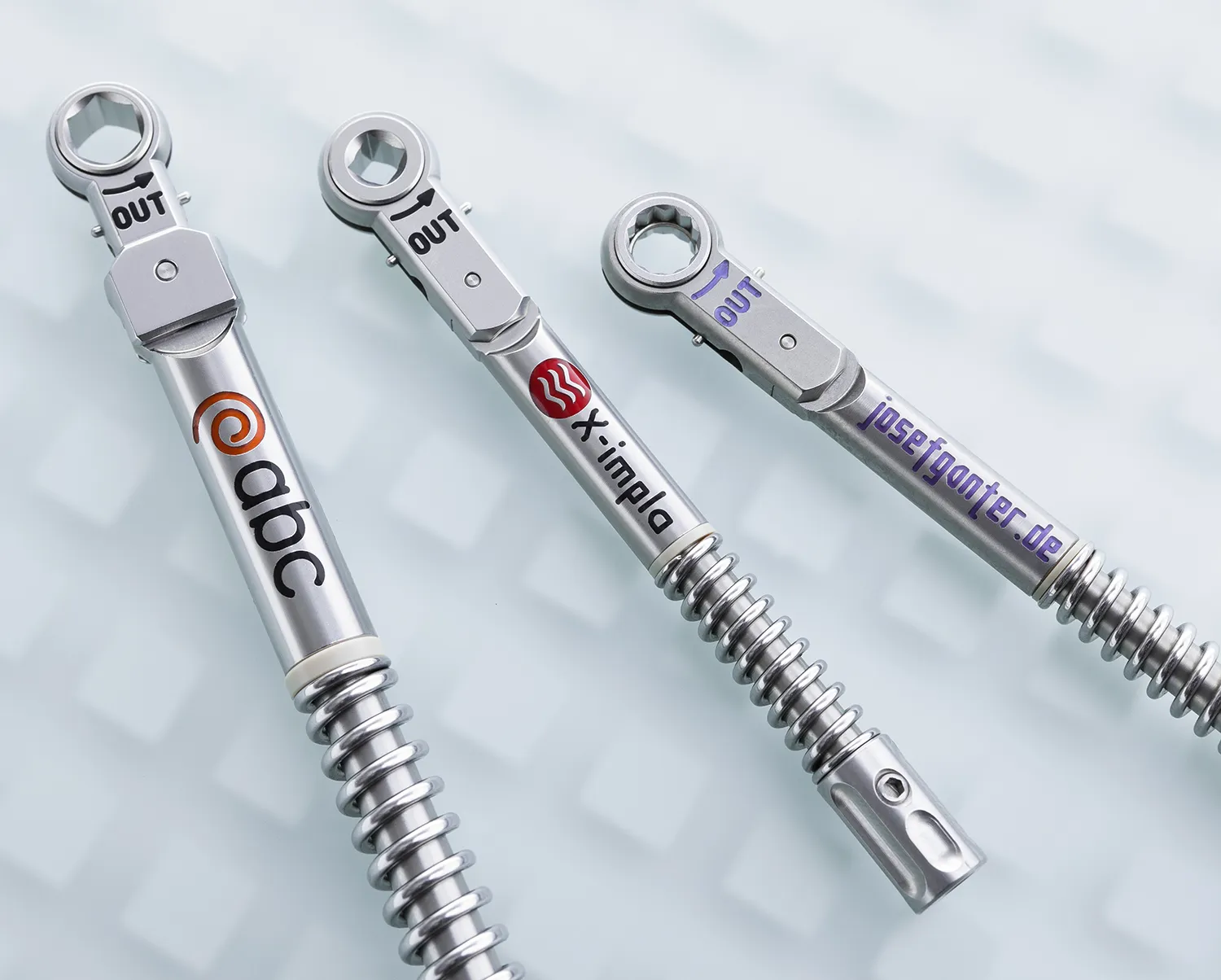

Single-piece torque ratchets
The single-piece torque ratchet is an innovation from Josef Ganter. Since it does not need to be taken apart to be cleaned, this means a considerable saving of time for preparation in practice. It impresses with its proven high quality, a torque range of 10 to 70 Ncm and reliable functionality accompanied by an aesthetic design. The torque ratchet is available with an individualised customer logo and also with gold coating.

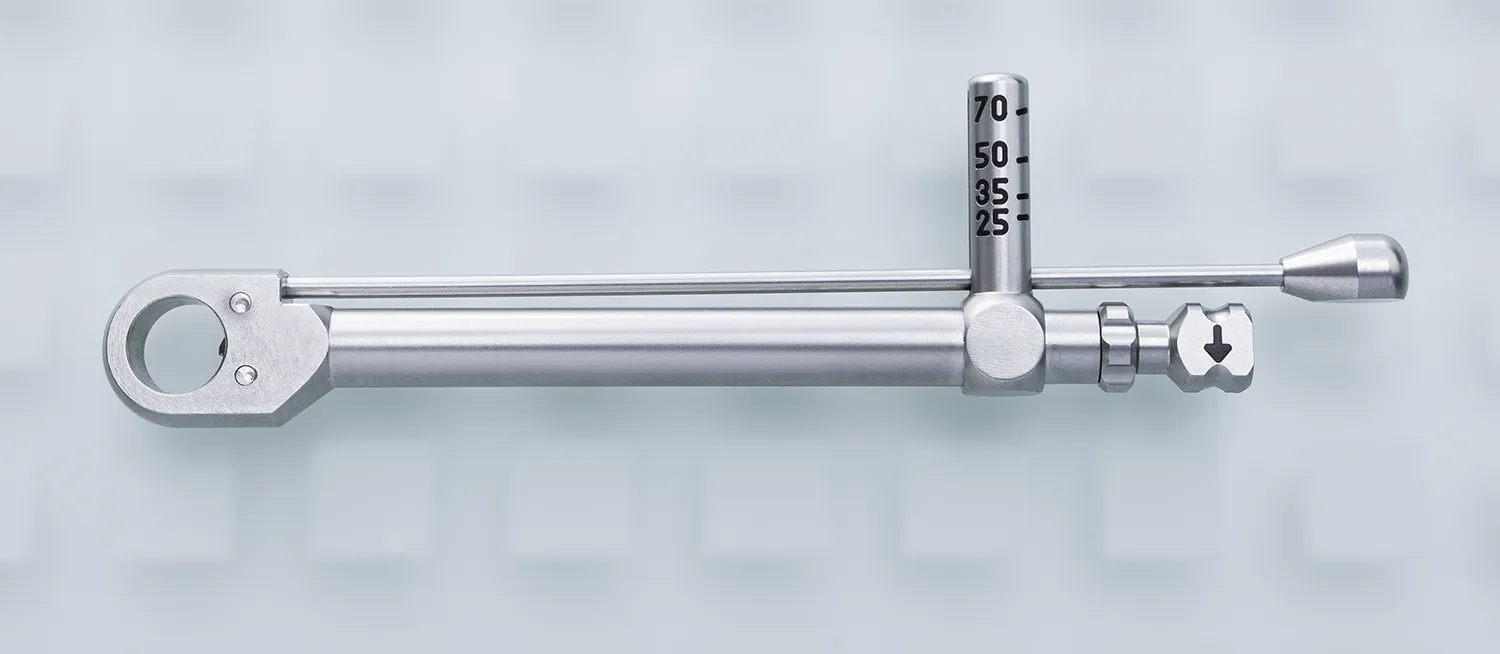

Torque ratchets with bending arm
Three variants of torque ratchets with bending arm with different tool connections are available. They consist of just two individual parts and can therefore be dismantled for preparation in just a few seconds.

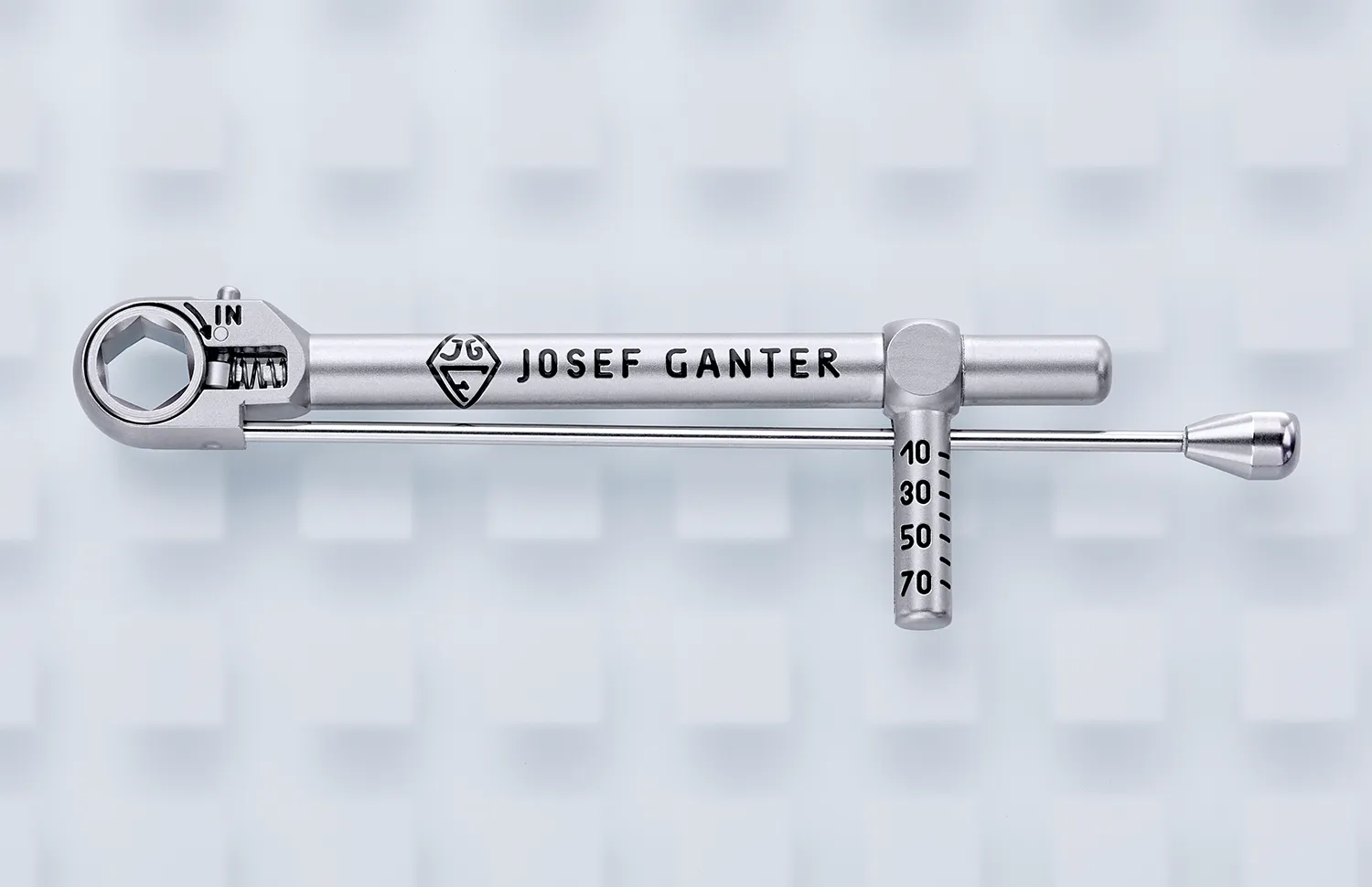

Torque ratchets without bending arm
The torque ratchets without bending arm offer outstanding user friendliness, as the torque can be adjusted before the intervention on the patient. If the torque is achieved during the intervention, a clicking noise can be heard and the effort decreases abruptly. In addition to the opportunity to set a specific torque, the ratchet possesses a blocking function allowing it to transfer larger torques. The large, outlying spring keeps the spring force constant for a long time and does not change.
Ratchets without torque function
The ratchets without torque function are available in a total length of 54 mm, 71 mm or 90 mm and each offer three different tool connections. They consist of just two individual parts and can therefore be dismantled for preparation in a few seconds.
Ratchets without torque function with optional bending arm attachment
The ratchets without torque function with optional bending arm attachment can be used without a torque display or expanded into a ratchet with a torque display function within just a few second by connecting the bending arm attachment. There are four different models available with different tool connections. Each of these can currently be combined with five different bending arm attachments with a different torque range.
Product Information
| Manufacturer | Elos Medtech |
|---|---|
| Material | Robust, abrasion-resistant and chemical-resistant material |
| Bending Arm Ratchets | Two individual parts, can be dismantled for preparation in seconds |
| Bending Arm Variants | Three variants with different tool connections |
| Single Piece Ratchets | One-piece design, no disassembly required for cleaning |
| Optional Customization | Available with individualised customer logo and gold coating |
| Available Configurations | With and without torque function, with and without bending arm attachment, in one piece |
| Torque Range (single Piece) | 10 to 70 Ncm |
| Bending Arm Attachment Combinations | Four different models available, each combinable with five different bending arm attachments with different torque ranges |
| Total Length (without Torque Function) | 54 mm, 71 mm or 90 mm |
