GIANO C4
Al.Con.Press. S.r.l. con unico socio / Alcon Air · #GNO4C000S · source

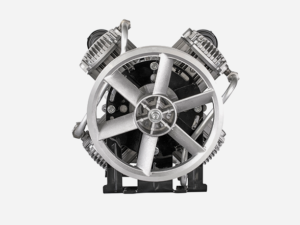

GIANO SERIES PUMPING UNITS
The four main components for the Giano series compressors are: Piston, Cylinder, Motor and Valves.
This four-cylinder compressor is fitted with an exclusive intake filter system on the silencer, which makes it unique, for this type, in silent operation. The groups are complete with fixing feet in die-cast aluminum; there is the possibility of supply in a soundproofed cabinet, with or without compensation tank, with pressure switch and accessories.
Product Information
| Manufacturer | Al.Con.Press. S.r.l. con unico socio / Alcon Air |
|---|---|
| Weight | 12 – 26.5 kg – lbs |
| Air Intake | 420 – 14.8 L/min – cfm |
| Dimensions | 390 x 340 x 310 mm |
| Noise Level | 78 dB (A) |
| Revolutions | 1600 rpm |
| Max Pressure | 9 – 130.5 bar – psi |
| Peso / Weight | 12 kg – 26,5 lbs |
| Cylinders Stages | 4/1 |
| Rumore / Noise Level | 78 dB (A) |
| N° Giri / Revolutions | 1600 rpm |
| Dimensioni / Dimensions | 390 x 340 x 310 mm |
| Aria Aspirata / Air Intake | 420 L/min – 14,8 cfm |
| Pressione Max / Max Pressure | 9 bar – 130,5 psi |
| Cilindri Stadi / Cylinders Stages | 4/1 |
