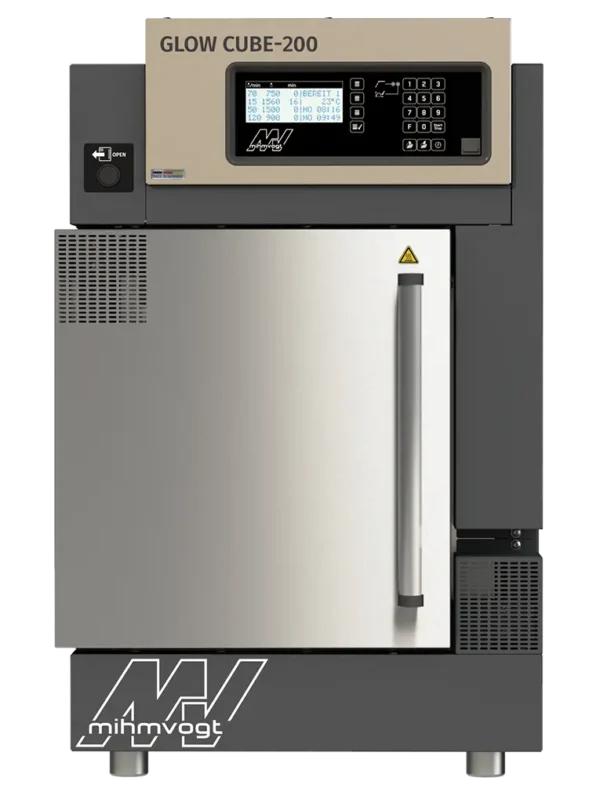

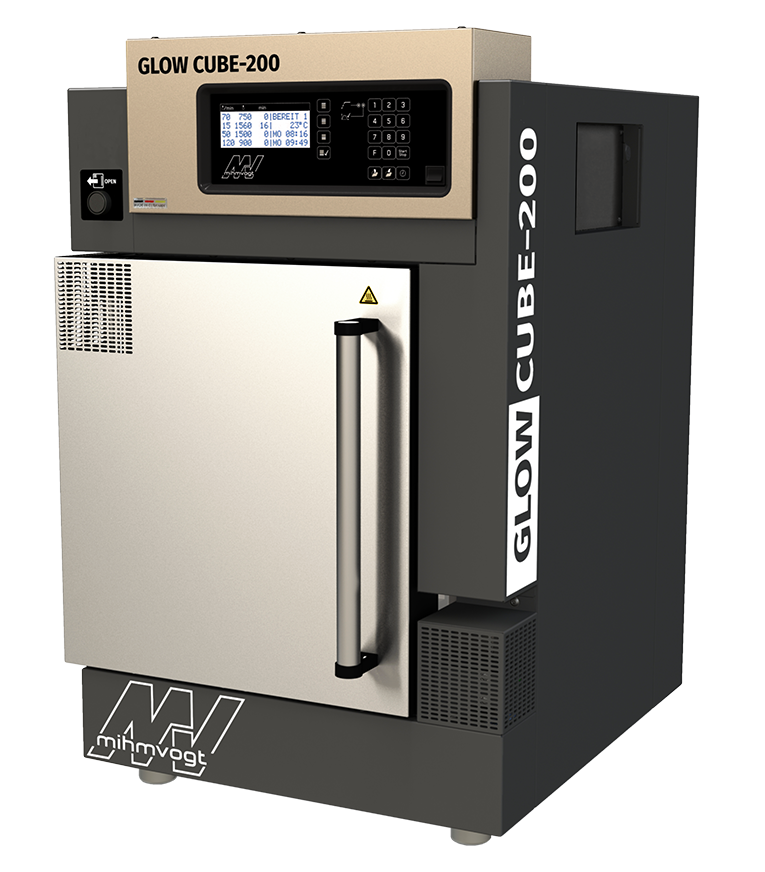

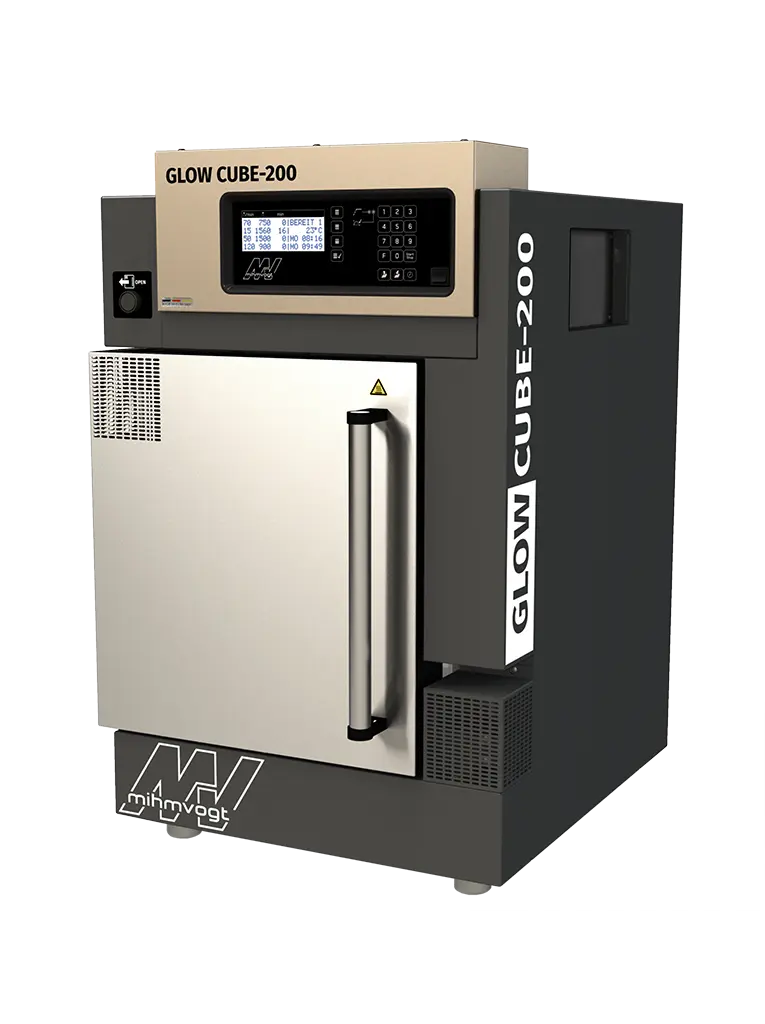

GLOW CUBE-200
MIHM-VOGT · source
The GLOW CUBE-200 features a four-sided wire-heated heating chamber, designed for annealing processes without protective gas. The generously sized heating chamber provides sufficient space for stress-relief annealing of SLS or SLM models with platform dimensions of up to 200 x 200 mm and a model height of up to 250 mm. Additionally, up to four round platforms with a diameter of 100 mm can be heat-treated simultaneously.
This makes the GLOW CUBE-200 the ideal annealing furnace for dental laboratories and industrial applications handling large volumes of 3D-printed metal models. Programming of up to 9 stages is quick and intuitive via the controller with a clear 4-line display.
Technical information
Power Max: 8600 W (8,6 kW)
Voltage range / frequency: 200-240 V; 50/60 Hz

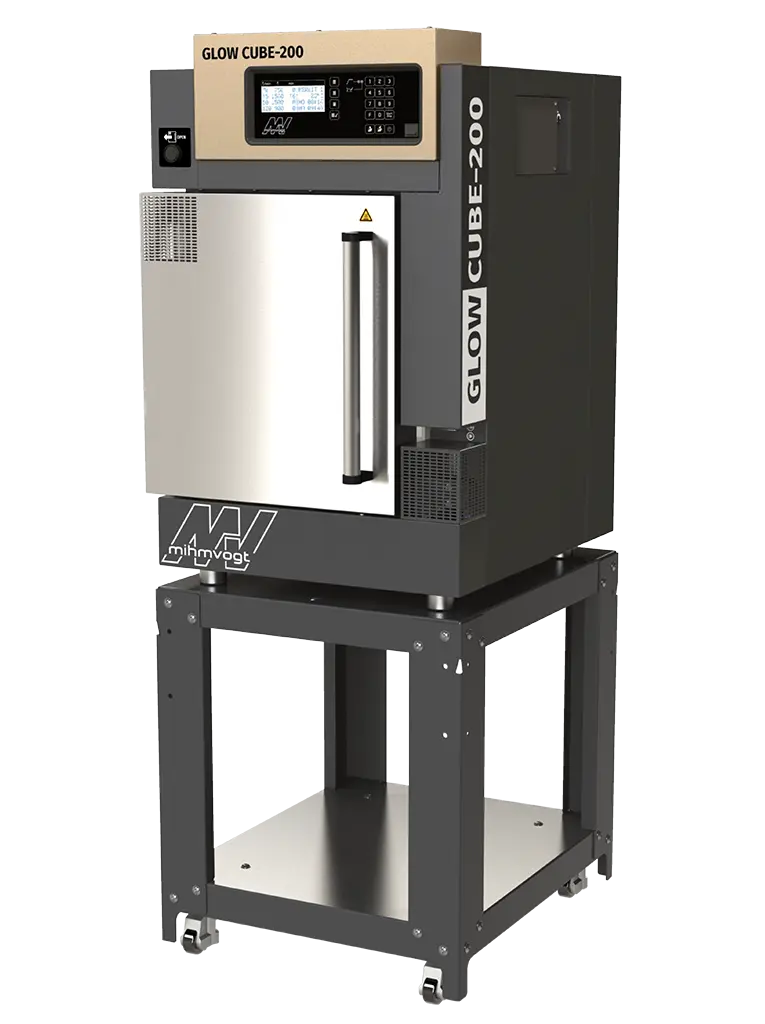

Weight (Without/with trolley): 200 kg / 250 kg
Dimensions (W/D/H): 620/710/1000mm
Max. programmable heating rate: 30 °C/min
Max. temperature: 1200 °C
Heating elements: 4x Heating coils
Max. heating-chamber capacity: Heating chamber internal dimensions W/D/H 280/300/290mm Usable volume: W/D/H 250/280/250mm
Product Information
| Manufacturer | MIHM-VOGT |
|---|---|
| Power Max | 8600 W (8,6 kW) |
| Heating Elements | 4x Heating coils |
| Max. Temperature | 1200 °C |
| Dimensions (w/d/h) | 620/710/1000mm |
| Voltage Range / Frequency | 200-240 V; 50/60 Hz |
| Max. Heating Chamber Capacity | Heating chamber internal dimensions W/D/H 280/300/290mm Usable volume: W/D/H 250/280/250mm |
| Weight (without/with Trolley) | 200 kg / 250 kg |
| Max. Programmable Heating Rate | 30 °C/min |
