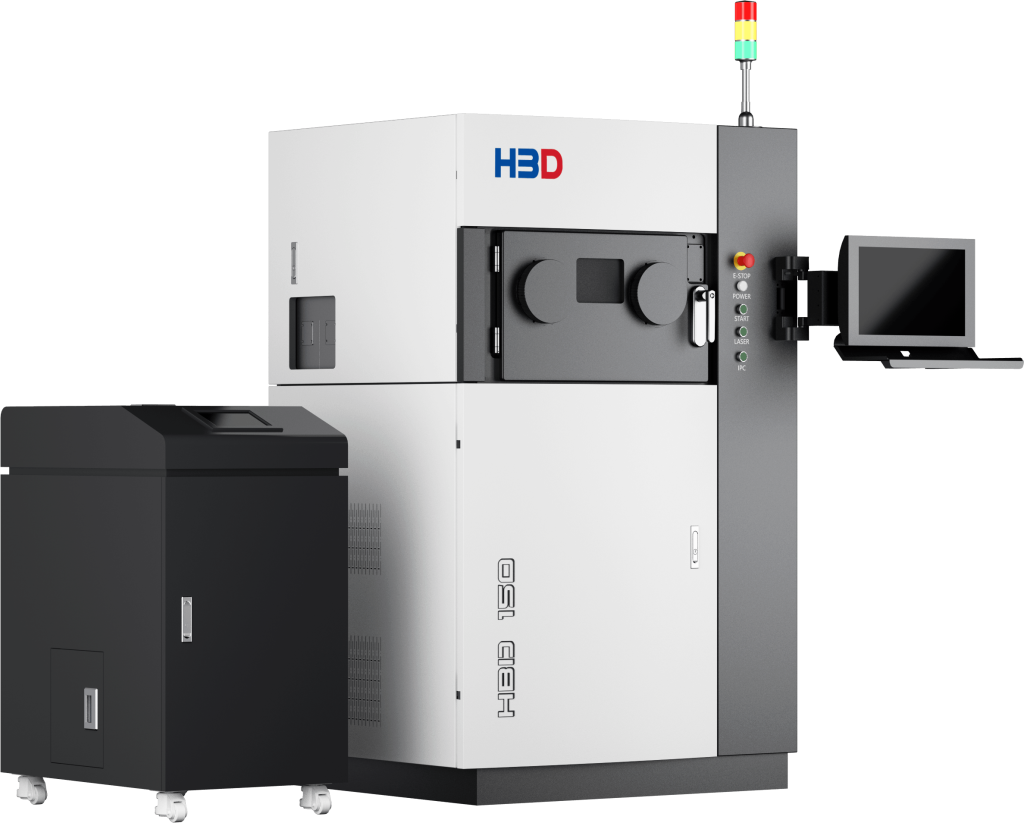

HBD 150
HBD Additive Europe GmbH · source
The HBD 150 features a round base plate and is equipped with a highly efficient and safe independent atmosphere purification system, along with a sealed glovebox structure; multiple safety interlocks ensure stable operation, while the system adopts a modular recoater blade design for quick and easy replacement and provides process-parameter configurations for multiple materials, making it ideal for educational experiments and R&D.
Structure & Features
1. Control System
The HBD 150 is equipped with a robust control system, offering comprehensive system logs for in-depth performance tracking. Its high-efficiency software is designed for swift data processing, ensuring precise control throughout the printing process.
2. Intelligent Powder Spreading Module
HBD 150 employs a high-strength structure to guarantee even and reliable powder distribution. This module optimizes layer consistency, crucial for achieving complex geometries and fine surface finishes.
3. Efficient Purification Assurance
Equipped with an independent purification system, with a dust removal rate of ≥99.9%, ensuring efficient and safe purification of metal power during the printing process, guaranteeing optimal building conditions and excellent printing quality.
4. Advanced Printing System
Equipped with advanced printing capabilities, a single laser optical path enables full coverage of the printing surface. Its stable printing system ensures long-term operation, providing consistent and reliable production performance.
Technical Specifications
- Build Volume: φ158mm x 100mm (Height Incl. Build Plate)
- Laser Power: 1 Laser, 300W/500W; 2 Lasers, 300W
- Layer Thickness: 10μm-50μm
- Scanning Track Width: 40μm-80μm
- Scanning Speed: ≤10m/s
- Oxygen Content: ≤100ppm
- Protective Atmosphere: Integral sealed, automatic monitoring of oxygen content, recycling cleaning and collection coefficient ≥ 99%
- Relative Density: 99.9%+
- Typical Accuracy: 0.05-0.1mm
- Metal Powder: Titanium alloy, cobalt-chromium alloy, stainless steel, mold steel, etc.
- Process Parameter Configuration: Tailored parameter set for the specific application, user-modifiable
- Weight: Est. 950kg
- External Dimensions: 1150mm x 1150mm x 1830mm
- Power Supply: AC220V, 50/60Hz, peak power ≤4.3-4.5kW, average power ≤2.8-3kW
- Optional Features: Long-Lasting Purification System
Product Information
| Manufacturer | HBD Additive Europe GmbH |
|---|---|
| Weight | Est. 950kg |
| Laser Power | 1 Laser, 300W/500W; 2 Lasers, 300W |
| Build Volume | φ158mm x 100mm (Height Incl. Build Plate) |
| Metal Powder | Titanium alloy, cobalt-chromium alloy, stainless steel, mold steel, etc. |
| Power supply | AC220V, 50/60Hz, peak power ≤4.3-4.5kW, average power ≤2.8-3kW |
| Oxygen Content | ≤100ppm |
| Scanning Speed | ≤10m/s |
| Layer Thickness | 10μm-50μm |
| Relative Density | 99.9%+ |
| Typical Accuracy | 0.05-0.1mm |
| Optional Features | Long-Lasting Purification System |
| External Dimensions | 1150mm x 1150mm x 1830mm |
| Scanning Track Width | 40μm-80μm |
| Protective Atmosphere | Integral sealed, automatic monitoring of oxygen content, recycling cleaning and collection coefficient ≥ 99% |
| Process Parameter Configuration | Tailored parameter set for the specific application, user-modifiable |
