HYDR_IM_ C61W G4 - Automated Instrument Washing
HYDR_IM_ C61W G4 ensures instruments are properly and consistently cleaned before moving to the next step of instrument reprocessing, sterilization.
Efficient

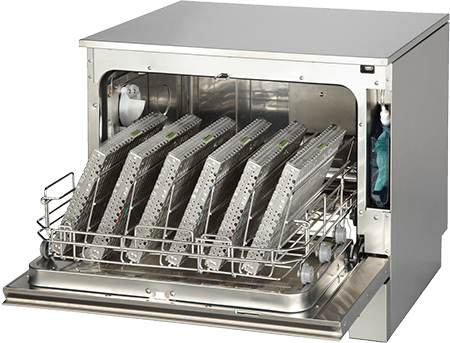

HYDR_IM_ C61W G4 has a 6 full-size cassette capacity and can turnover 120 instruments in 40 mins, start-to-dry.
- Can be mounted under the counter or as a counter top.
- HIPTM ULTRA cleaning solution is stored in the unit, no extra storage space required.
- Automated washing saves 1 hour of labour (manual cleaning) for every nine procedural set-ups.
Safe
Avoid the many steps involved with manual cleaning or using ultrasonic cleaners such as pre-soaking, scrubbing and drying instruments.
- HYDR_IM_ G4 ensures that every set of instruments receive the same validated cleaning process by dosing the correct amount of detergent with each cycle.
- Validated cycles to ensure repeatable washing performance.
- Active drying system allows instruments to immediately be transferred to the next step of instrument reprocessing, sterilization.
Smart
G4 Technology - Information at your fingertips
- Designed as a self-monitoring unit, WiFi enabled G4 technology can connect and send cycle data to your smart devices or computer, providing easily accessible cycle information and service logs.
- G4 technology connects your HYDR_IM_ to specialized technicians, which allows for remote support and minimizes unnecessary downtime.
- Large touch screen gives in-depth cycle info and allows users to view current operation.
Specifications
Unit Size: (W x H x D) 598 x 520 x 526mm (23.5" x 20.5" x 20.7")
Cycle Times:
- Rinse and Hold: 5 mins
- Regular Wash + Dry: 26 mins + 10 mins
- Heavy Duty Wash + Dry: 30 mins + 10 mins
Weight: 44 kg / 97 lbs
Electrical Rating: 208-240V, 12A, 60 Hz
Disinfection Cycle: Built in accordance to ISO15883-1 & -2
*Actual cycle times will vary with incoming water temperature and pressure.
Included Spare Parts/Consumables
- 01-107241: STAT_IM_ 5000 Basket (Quantity: 1)
- 01-113547: Basket with Hinged Lid (Quantity: 1)
- 01-113253: 3 Cassette/2 Basket Rack (Quantity: 1)
- CS-HIPC-U: Pouch of HIP Ultra Solution (Quantity: 1)
- USB (Quantity: 1)
Product Information
| Manufacturer | SciCan |
|---|---|
| Weight | 44 kg / 97 lbs |
| Features | Active drying system, Large touch screen, Self-monitoring unit, Remote support capability |
| Technology | WiFi enabled G4 technology |
| Installation | Can be mounted under the counter or as a counter top |
| Certification | ISO15883-1 & -2 |
| Cassette Capacity | 6 full-size cassettes |
| Cleaning Solution | HIP ULTRA cleaning solution stored in the unit |
| Electrical Rating | 208-240V, 12A, 60 Hz |
| Instrument Throughput | 120 instruments in 40 mins, start-to-dry |
| Unit Size (w X H X D) | 598 x 520 x 526mm (23.5" x 20.5" x 20.7") |
| Rinse And Hold Cycle Time | 5 mins |
| Regular Wash + Dry Cycle Time | 26 mins + 10 mins |
| Heavy Duty Wash + Dry Cycle Time | 30 mins + 10 mins |
