i-Fix Pro
Kamal Encon Industries Ltd · source
i-Fix Pro
The unique implant design for high primary stability and better esthetic outcome
Features
- The coronal region of i-Fix PRO implants is back-tapered to maximize bone volume around the implant platform.
- The double lead thread design provides high initial stability, gradual bone condensing, and adjustable implant orientation.
- A 1.3 mm thread spacing advances the implant by 2.6 mm per rotation.
- The expanding tapered body ensures high stability in compromised bone situations.
- Two reverse-cutting flutes gradually widen the osteotomy during counterclockwise insertion.
- Twin cutting blades in the apical region enable insertion into minimally prepared sites.
Dental Implants Size Table
Available sizes:
- Thread spacing: 7, 8.5, 10, 11.5, 13, 15, 18, 20
- Diameters: 3.5, 4.0, 4.5, 5.0, 5.5 mm

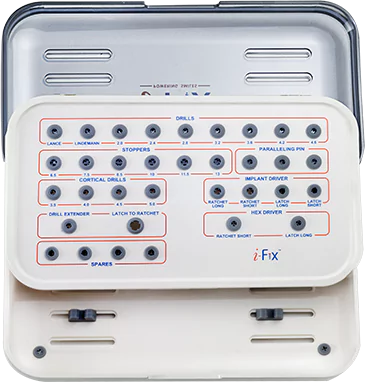

i-Fix Pro Implant Surgical Kit
Surgical kit provided for implant placement.
Prefabricated Abutments
Single Unit Restoration
- Screw Retained: St. MUA, UCLA Hex, TiBase Hex
- Cement Retained: Cemented Shoulder Abutment, Angled Abutment
Multiple Unit
- Screw Retained: St. MUA, UCLA Hex
- Cement Retained: Shoulder Non Hex, Tibase Non Hex
Edentulous Solution
- Screw Retained: Multiunit Abutment
- Cement Retained: Ball Abutment, Locator Abutment
Product Information
| Manufacturer | Kamal Encon Industries Ltd |
|---|---|
| Diameter | 3.5, 4.0, 4.5, 5.0, 5.5 |
| Body Design | Expanding tapered body |
| Thread Design | Double lead thread design |
| Coronal Design | Back-tapered to maximize bone volume |
| Thread Pitch Mm | 1.3 |
| Cutting Features | Two reverse-cutting flutes, Twin cutting blades in apical region |
| Thread Spacing Mm | 7, 8.5, 10, 11.5, 13, 15, 18, 20 |
| Primary Indication | High primary stability and better esthetic outcome |
| Advancement Per Rotation Mm | 2.6 |
| Abutment Options Edentulous Screw | Multiunit Abutment |
| Abutment Options Edentulous Cement | Ball Abutment, Locator Abutment |
| Abutment Options Single Unit Screw | St. MUA, UCLA Hex, TiBase Hex |
| Abutment Options Single Unit Cement | Cemented Shoulder Abutment, Angled Abutment |
| Abutment Options Multiple Unit Screw | St. MUA, UCLA Hex |
| Abutment Options Multiple Unit Cement | Shoulder Non Hex, Tibase Non Hex |
